SCM Accord 30 FX - CNC Machining Center - 2013

Woodworking - CNC Machining Center

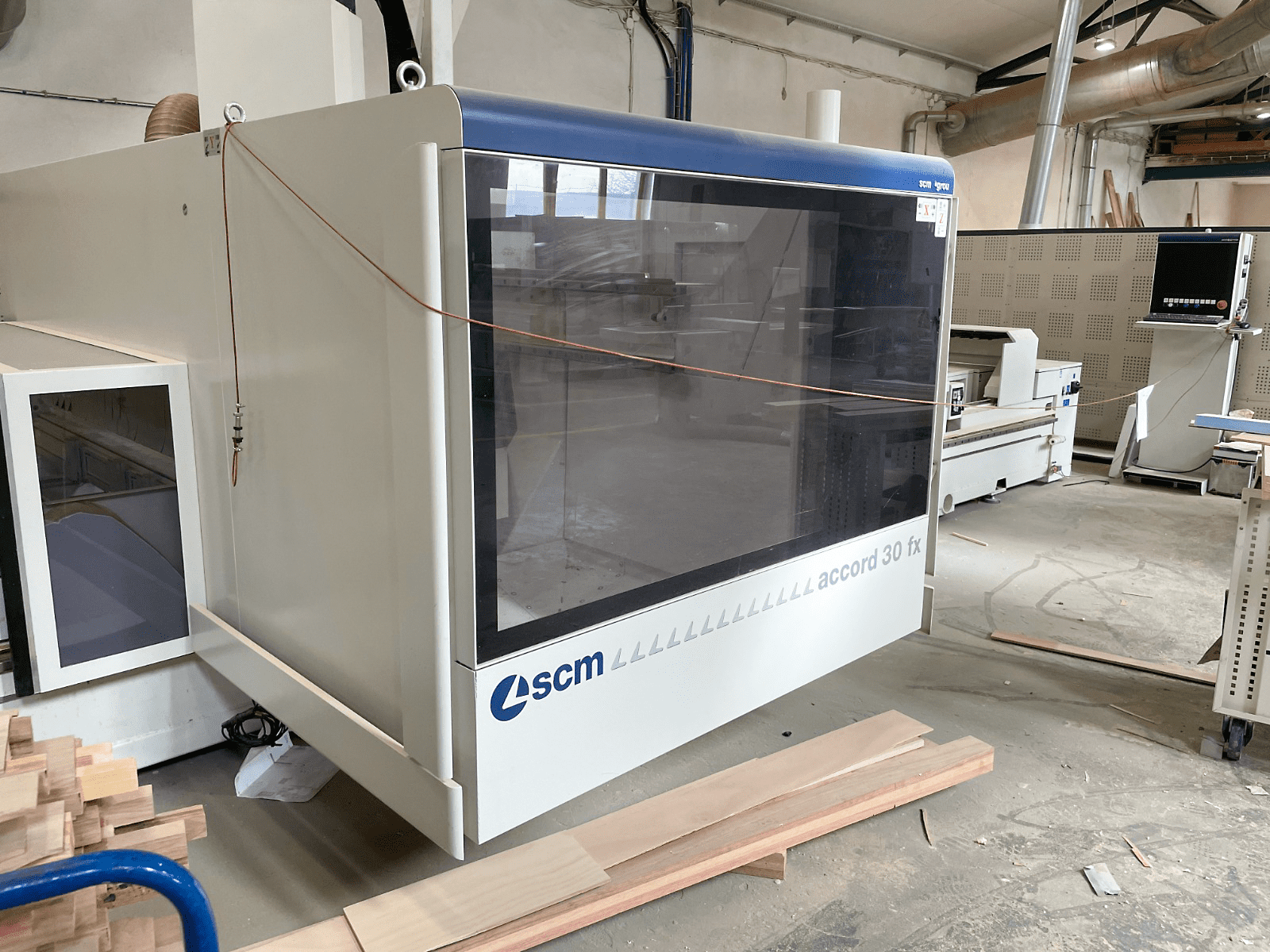

Used SCM industrial machinery – Accord 30 FX from 2013 located in Spain. This CNC machining center has a working area of 5020 x 1380 mm, 18000 rpm max rotation and electro-spindle power of 11 kW.

More info:

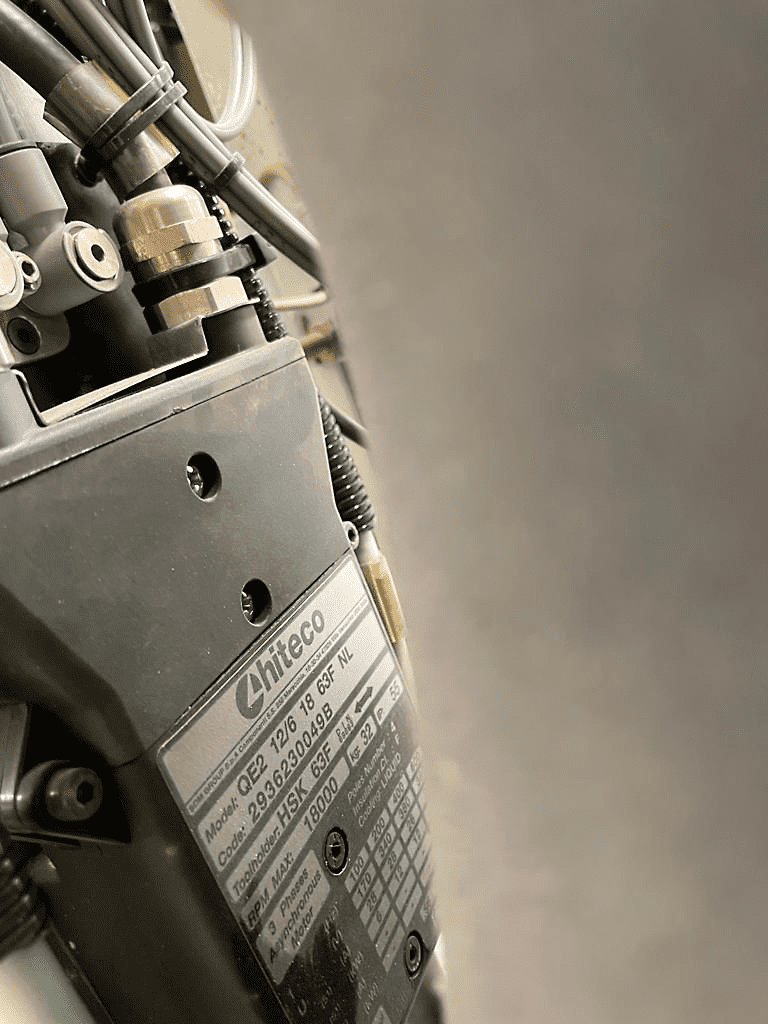

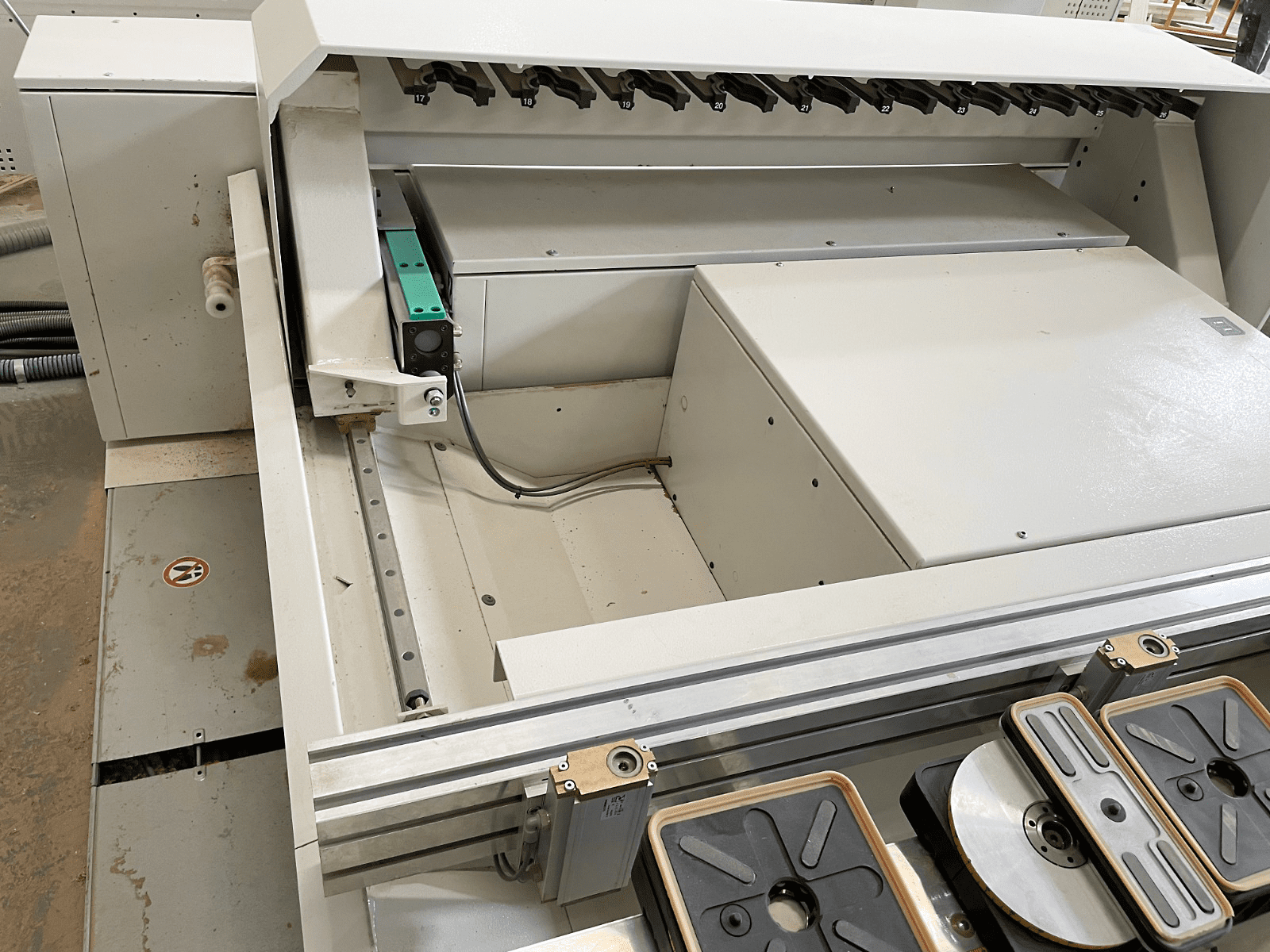

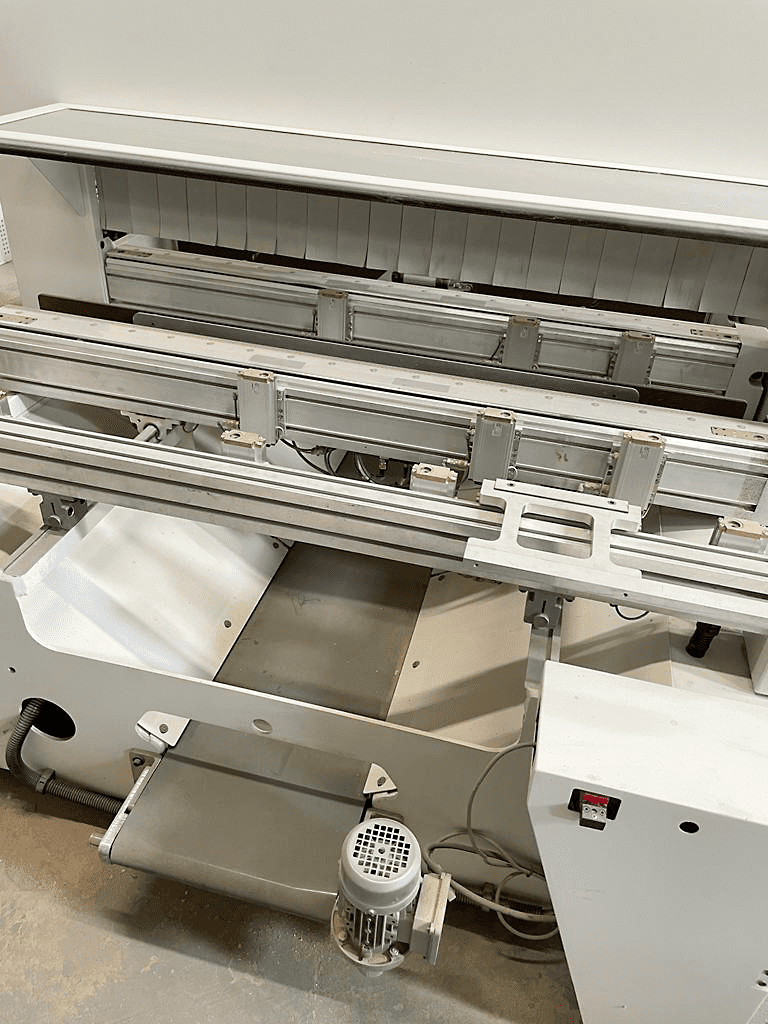

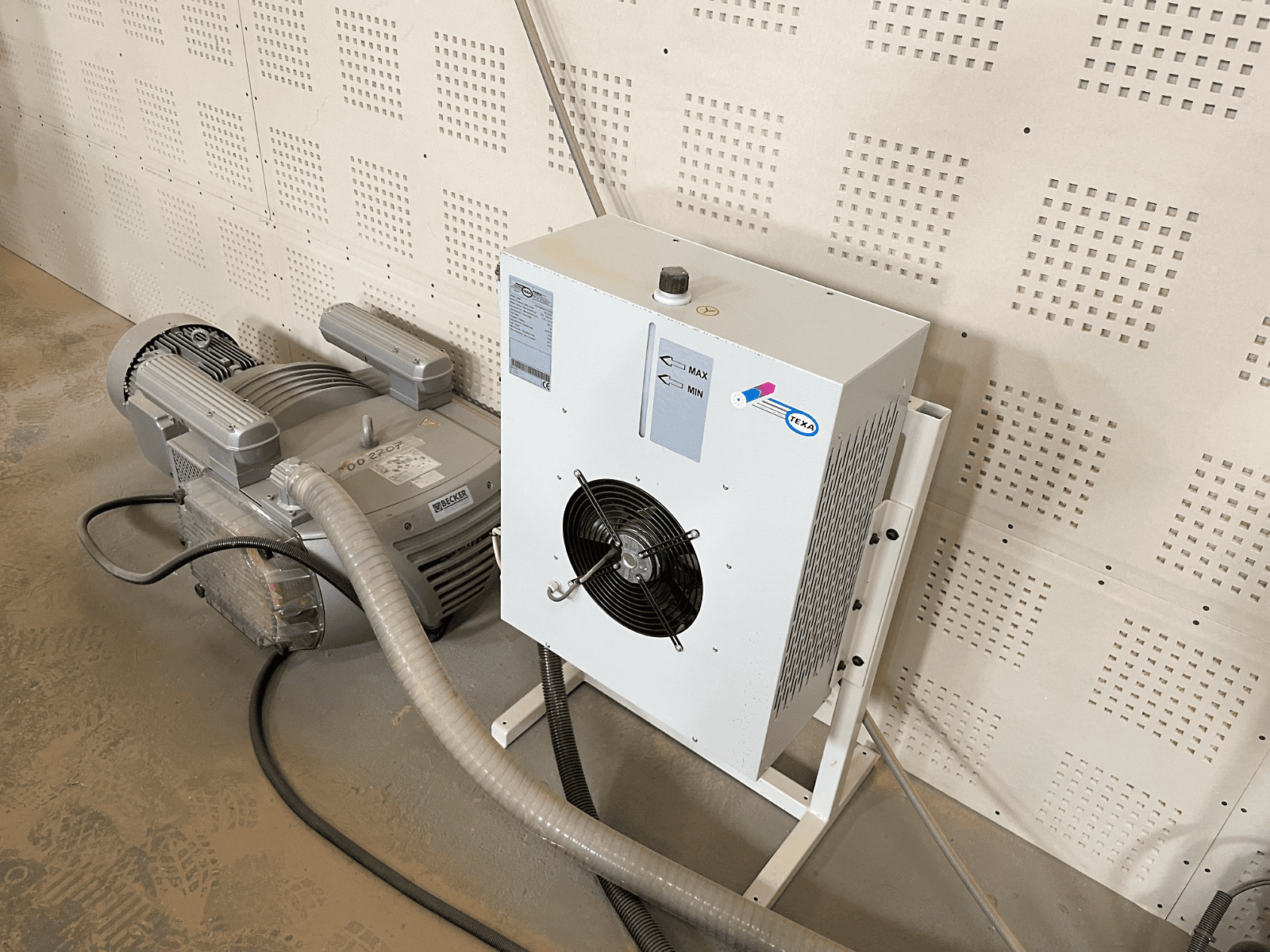

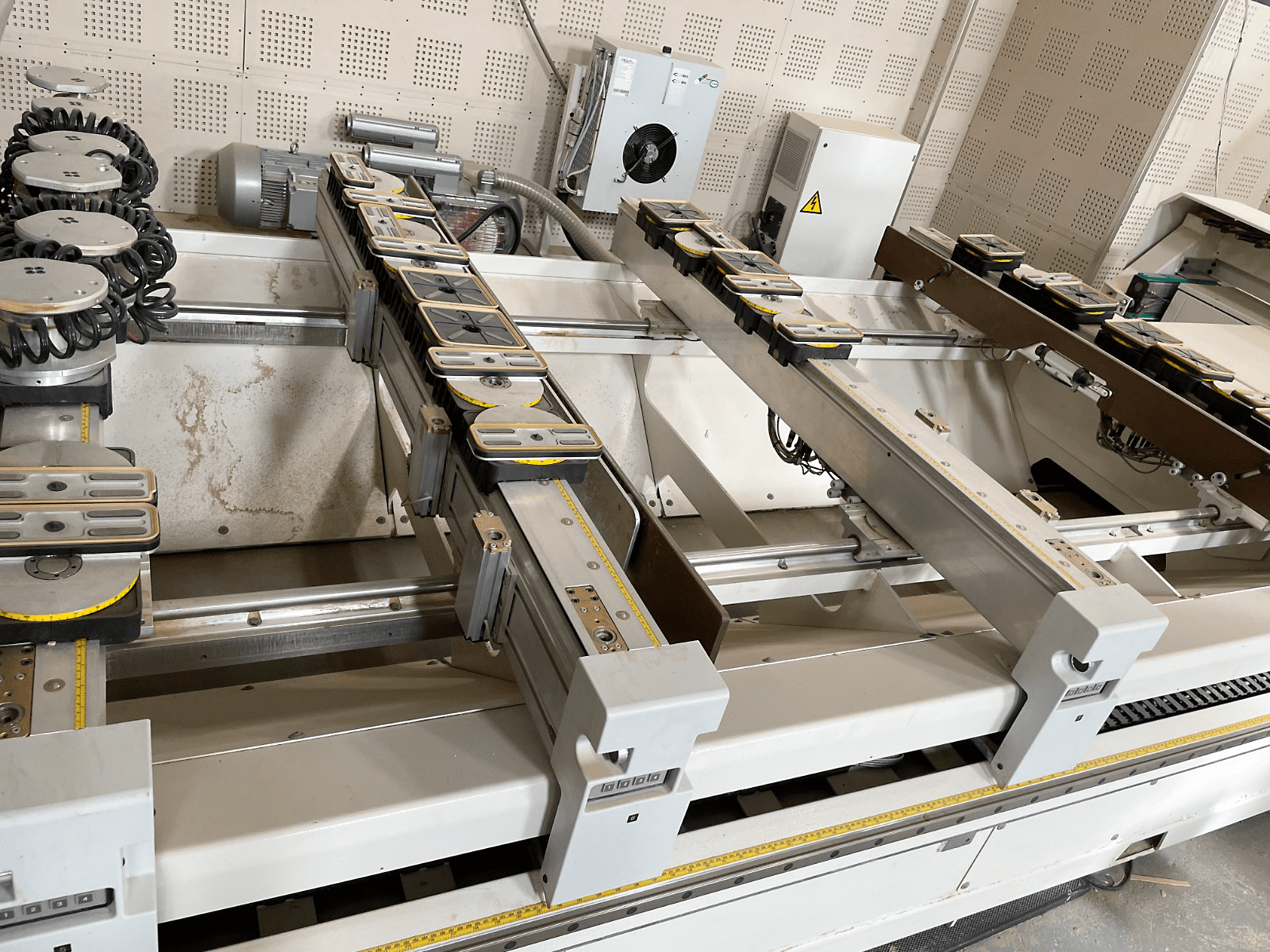

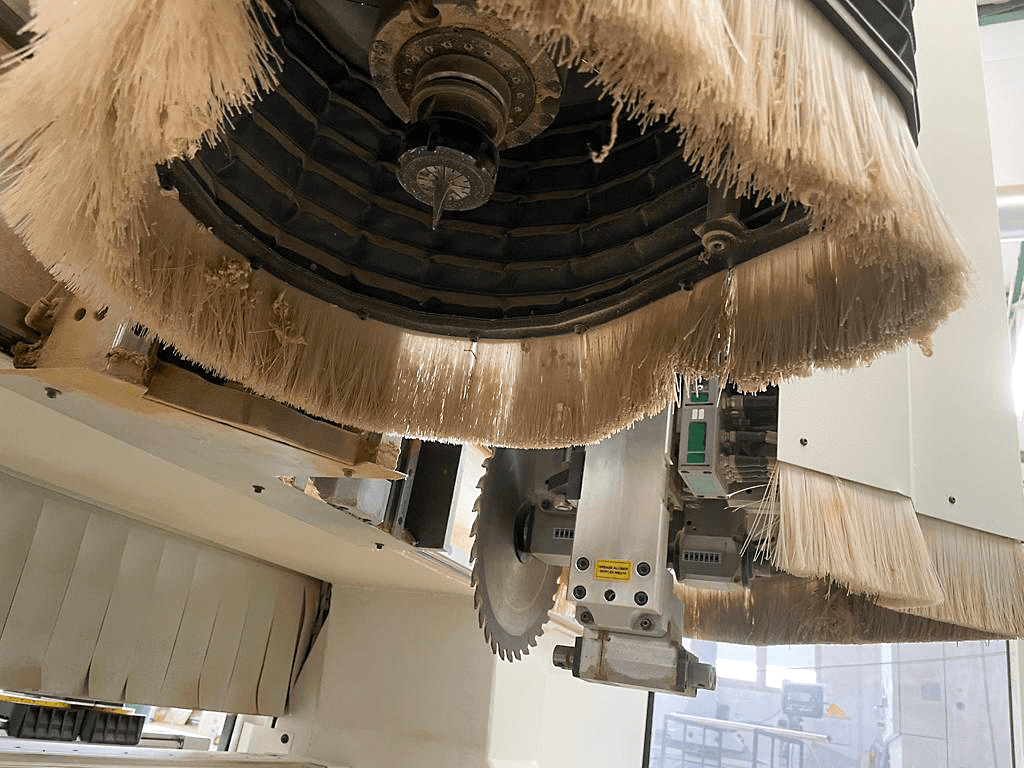

Machine includes 8 workbench supports fx start l = 1300, 2 fixed lateral base supports, 8 manually adjustable slides in the x-axis, one driven conveyor belt, preparation for slats for easy loading and unloading, preparation for mounting of additional stops, vacuum clamping system for elements with 2 independent work fields, five-axis electrospindle with hsk f63 chuck, liquid cooled with heat exchanger, c-axis equipped with patented tts locking system (total torque system), liquid cooled with heat exchanger, automatic hood adjustable from control level, waste guide on electric spindle, 1 er25 vertical attachment per cutter, 3 independent vertical drills m10, spacing 32mm, 3 vertical and independent m10 holders for drills, 21,5 mm space for drilling holes for shank, 2 horizontal, independent (1 per side) er25 attachments per cutter, 4 independent (2 per side) horizontal clamps m10 for drills, preparation for pneumatic clamps, 2 rows of base stops h = 110 front and rear, 6 pneumatic clamps h = 110 mm, 1 base stop h = 110 mm on the left fixed support for positioning the curves, 7 side base stops h = 110 on carriages - 1 laser as base for arc elements on the x-axis, vacuum pump with 250 m3/h capacity, tecpad portable console, safety system speed.

For more information please download the brochure.
