Morbidelli Author 213 - CNC Machining Center
Especificaciones
| Fabricante | Morbidelli |
| Modelo | Author 213 |
| Condición | Usado |
Descripción
Woodworking - CNC Machining Center
Used Morbidelli industrial machinery – Author 213 located in Belgium. This CNC machining center has a milling range of 2748 x 865 mm, 16000 rpm spindle speed and power milling motor of 4 HP.
More info:

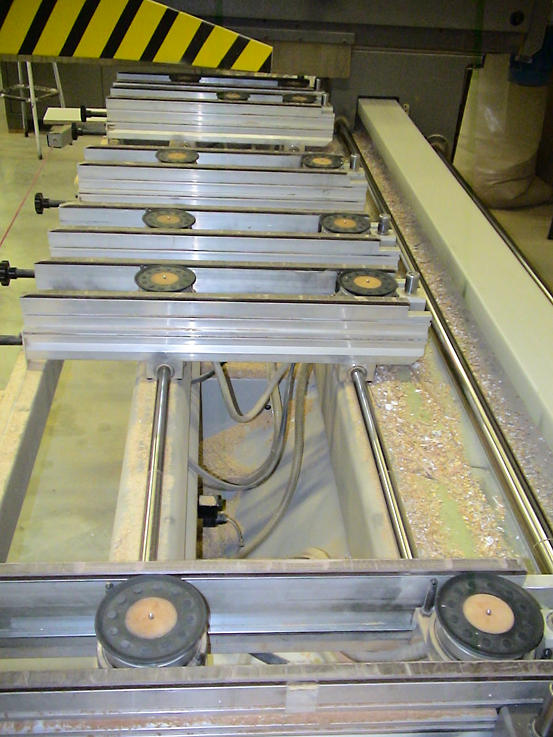

Machine with one drilling unit with 9 independent vertical drilling heads (distance 32 mm), 5 drilling heads in line on axis X, 6 drilling heads in line on axis Y, 1 independent double head for horizontal drilling in X axis, motor drilling unit 4 hp, independent pneumatic position of all drill heads (course 60 mm), 6 transverse tables with 2 vacuum tensioners per table for workpiece positioning, two interchangeable machining zones, double reference datum for right and left machining with 6 rear stops and 2 lateral stops, vacuum pump 40 mc/h, ball nut drive, dust extraction hoods, continuous control over 3 axes, Linear, circular and helicoidal interpolation and CE protection.
For more information please download the brochure.
