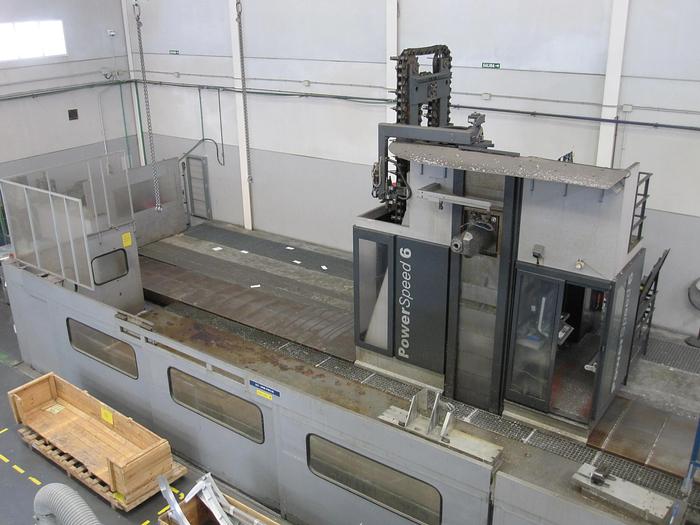

Máquina Fresadora de Columna Móvil SHW Power Speed 6 I
Especificaciones
| Fabricante | SHW |
| Modelo | Power Speed 6 |
| Año | 2014 |
| Condición | Usado |
| Número de Stock | 5516958 |
| Fabricado en | Alemania |
| Unidad de control | Siemens Sinumerik 840D |
| Recorrido del eje X | 14000 mm |
| Recorrido del eje Y | 2600 mm |
| Recorrido del eje Z | 1500 mm |
| Alimentación rápida X-Y-Z | 2 - 30000 mm/min |
| Placa de sujeción | 9000 x 2000 mm |
| Mesa giratoria | 1600 mm |
| Accionamiento principal | 37 kW 100%, 55 kW 40%, 800 NM 100% |
| Cono de herramienta | HSK A 63, SK 50 |
| Velocidad del husillo | 20000 rpm |
| Revistero de herramientas | 150 posiciones |
| Disponibilidad | Inmediata |
Descripción
We hereby offer this used SHW Power Speed 6 Mobile Column Milling Machine from 2014, located in Spain. Equipped with a state-of-the-art Siemens Sinumerik 840D control unit, it ensures seamless operation and precise control over your machining processes. With a spacious clamping plate measuring 9000 x 2000 mm, this lathe provides ample room for handling large workpieces with ease. Boasting a high-speed spindle capable of reaching 20000 rpm, coupled with a robust rotary table spanning 1600 mm, the SHW Power Speed 6 delivers exceptional machining accuracy and efficiency.
Features:
- Head 1: A Axis 180x1º
- Head 2: (Not functional) A Axis 180º
- Head 3:(Not funcitional. Need bearing maintenance) A Axis +60º to 120.
- Laser tool measurement system.
- Clamping Plate.
- Pick-Up ATM 3x.
- Shuttle Machining.
- Chip Conveyor.
- Compactfilter 2.000 Liter.
PLEASE NOTE:
The machine has very few hours 7500 spindle hours.
It has 3 heads but only one is currently operational.
It needs some overhaul but no serious breakdowns.
