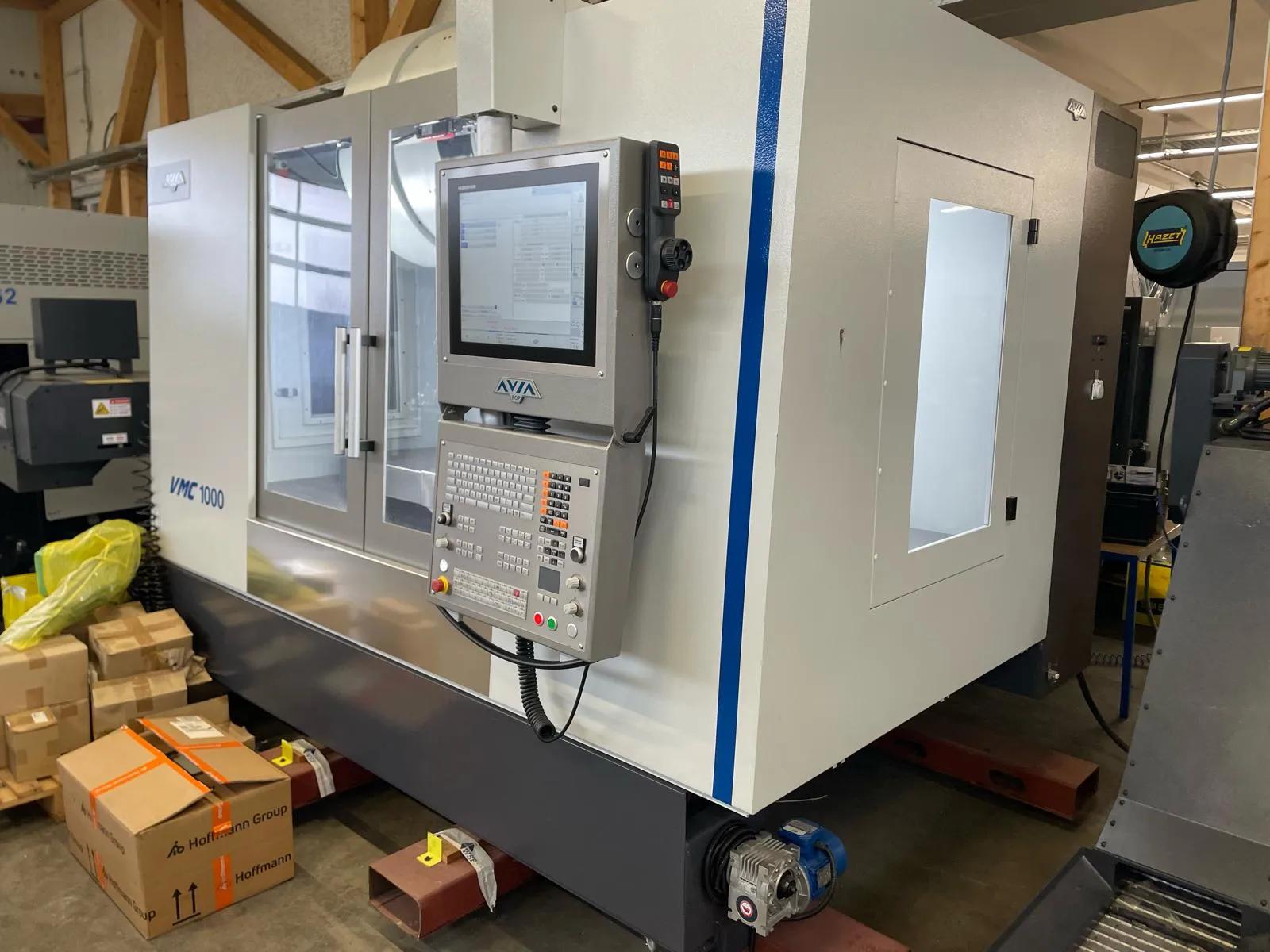

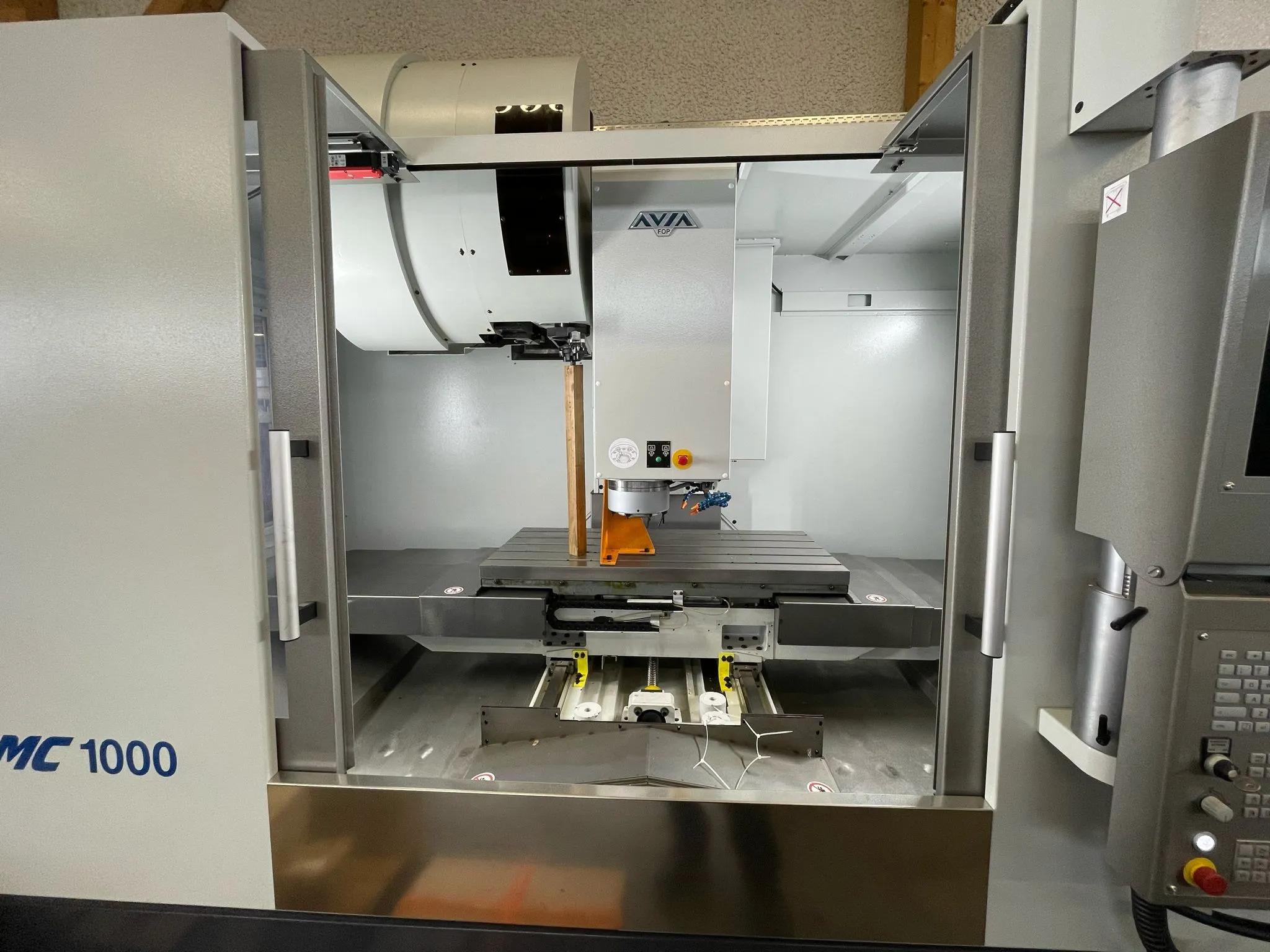

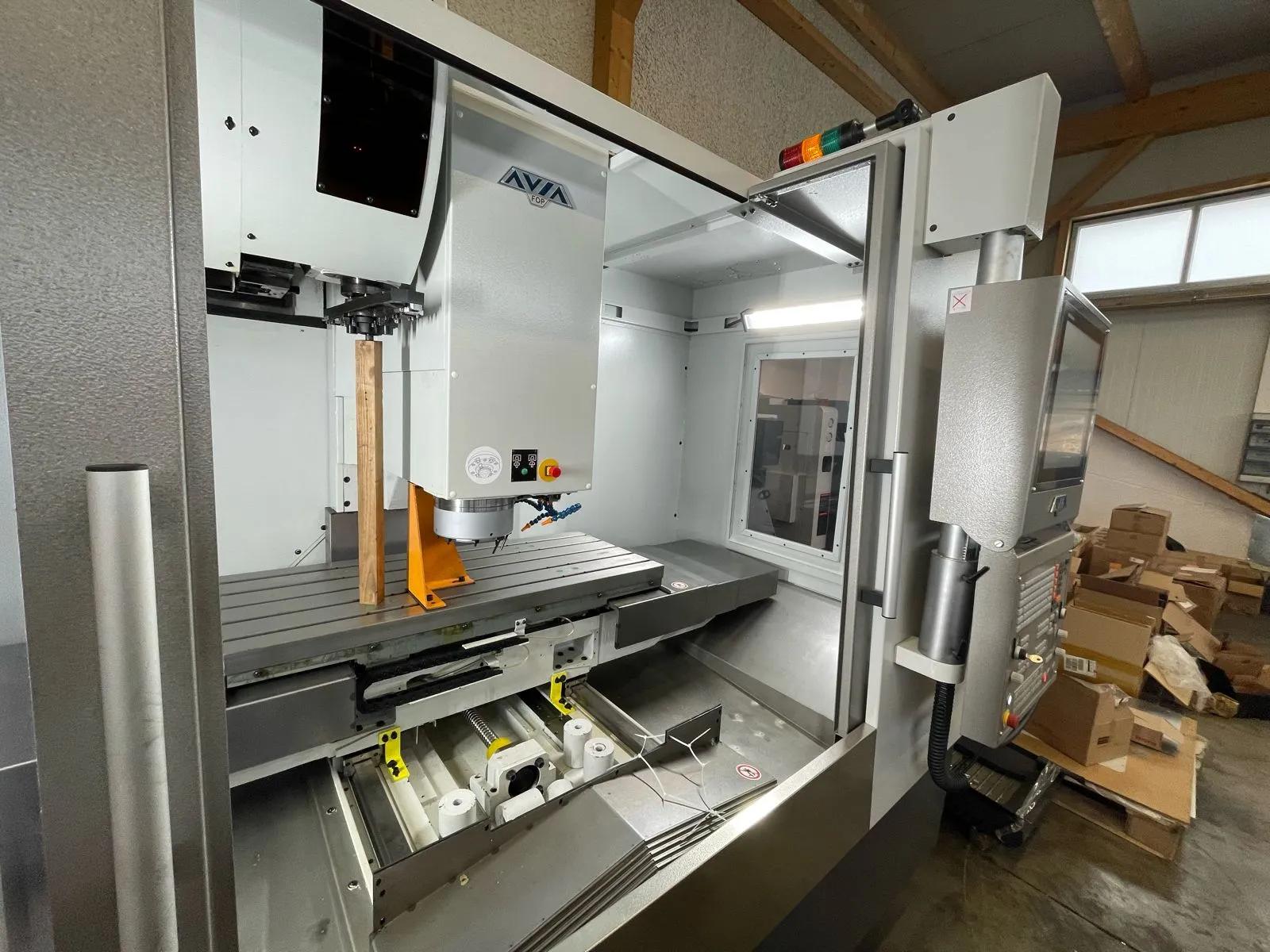

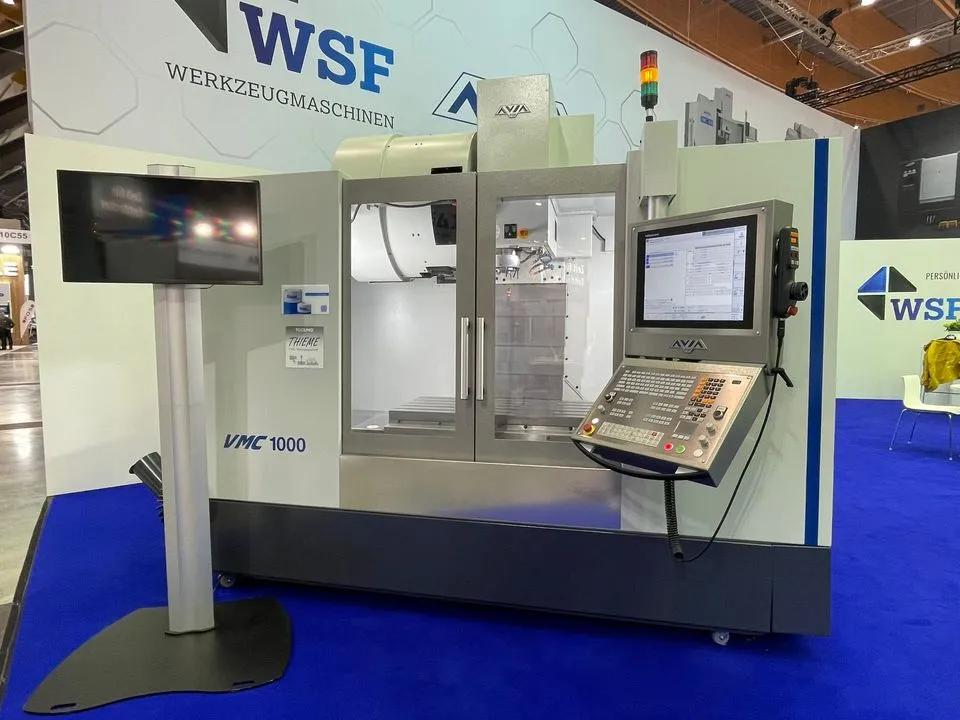

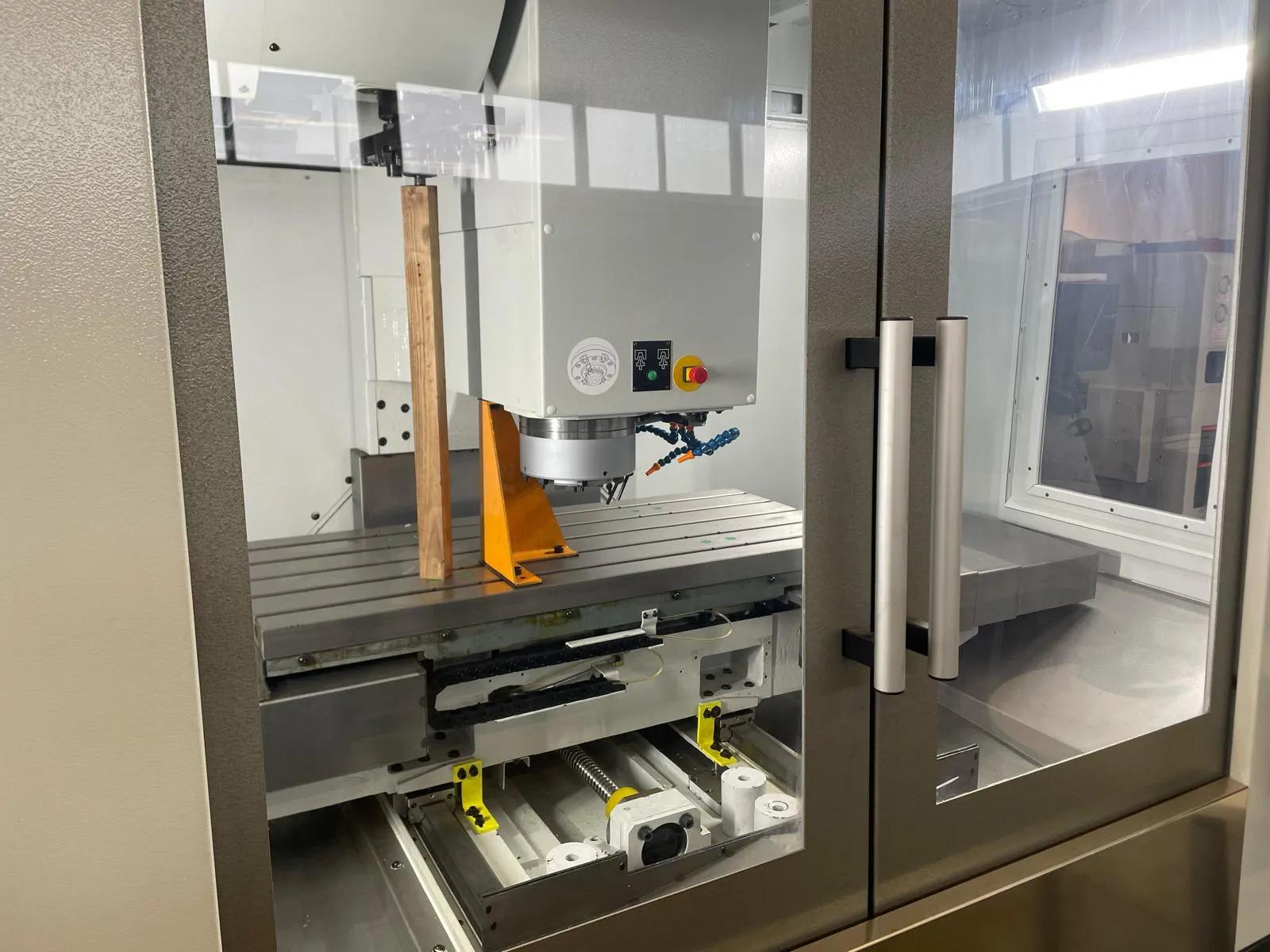

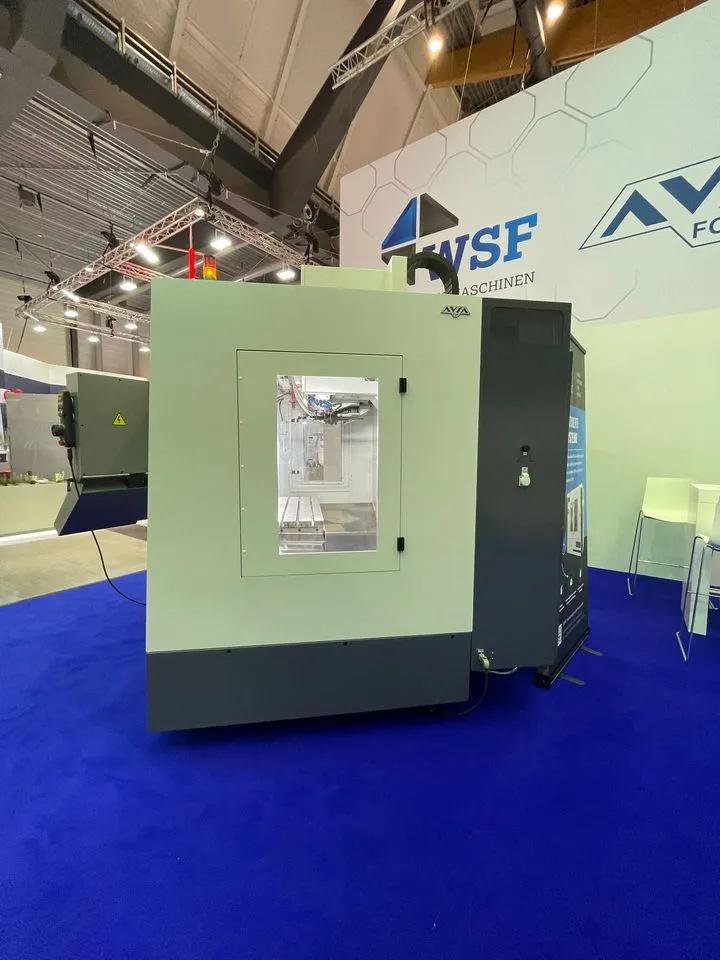

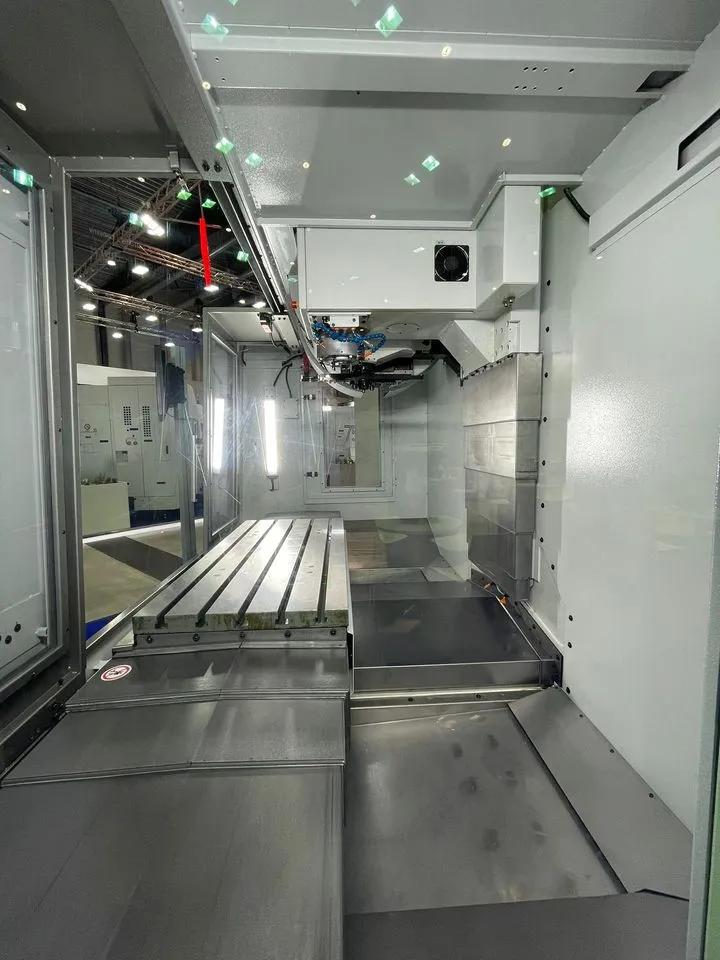

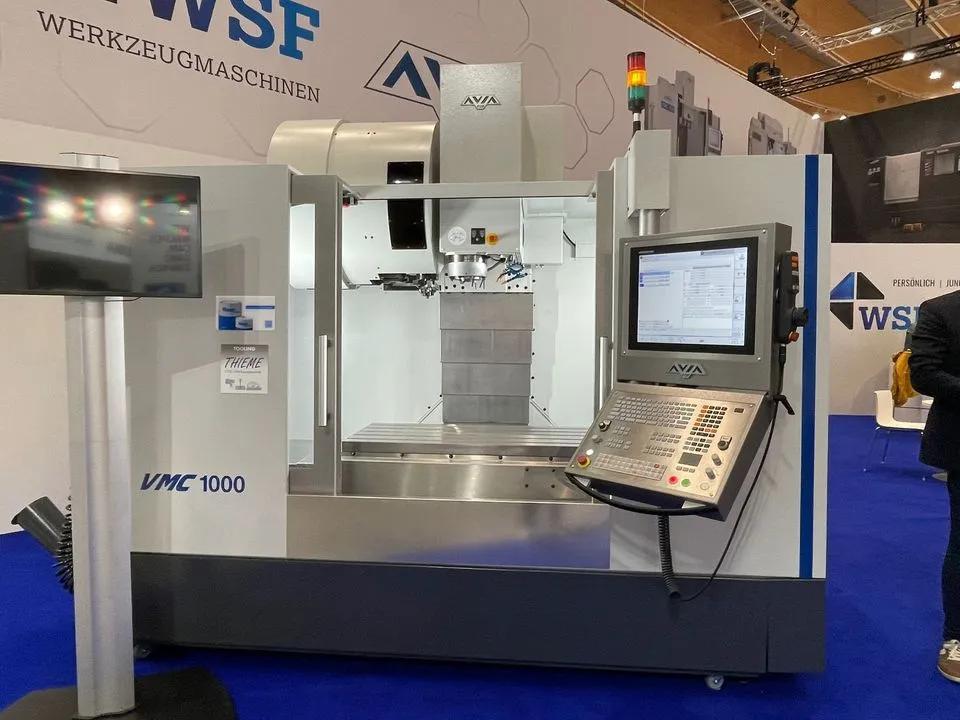

Centro de Mecanizado Vertical AVIA VMC 1000 I
Especificaciones
| Fabricante | AVIA |
| Modelo | VMC 1000 |
| Año | 2022 |
| Condición | Usado |
| Número de Stock | 5193770 |
| Hecho en | Polonia |

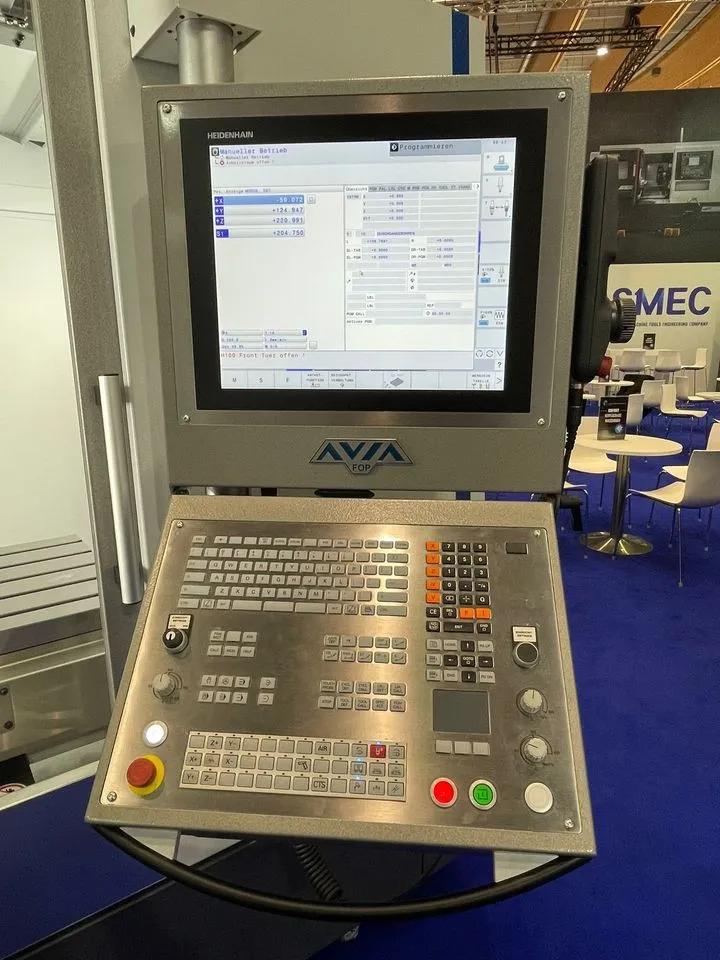

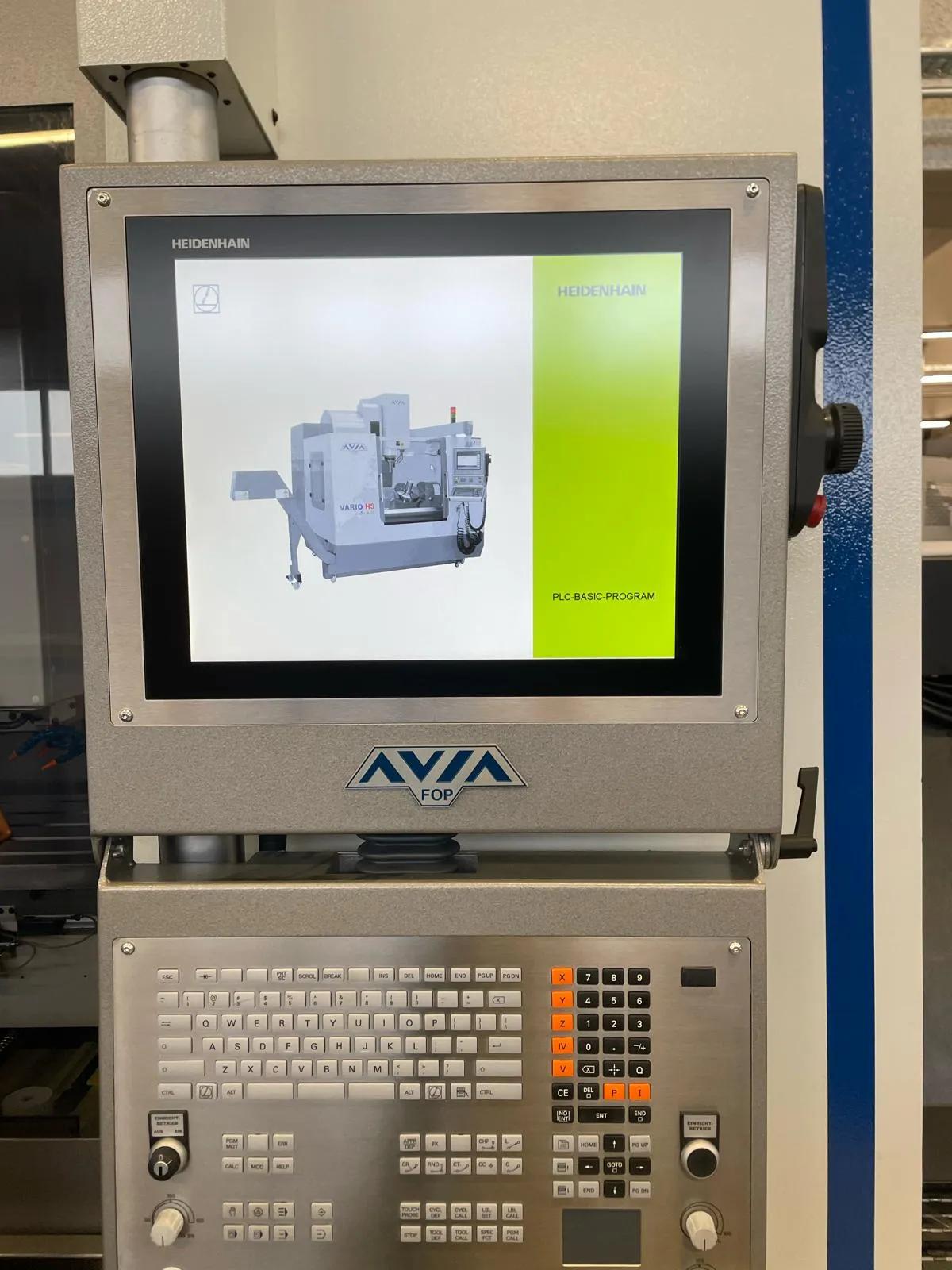

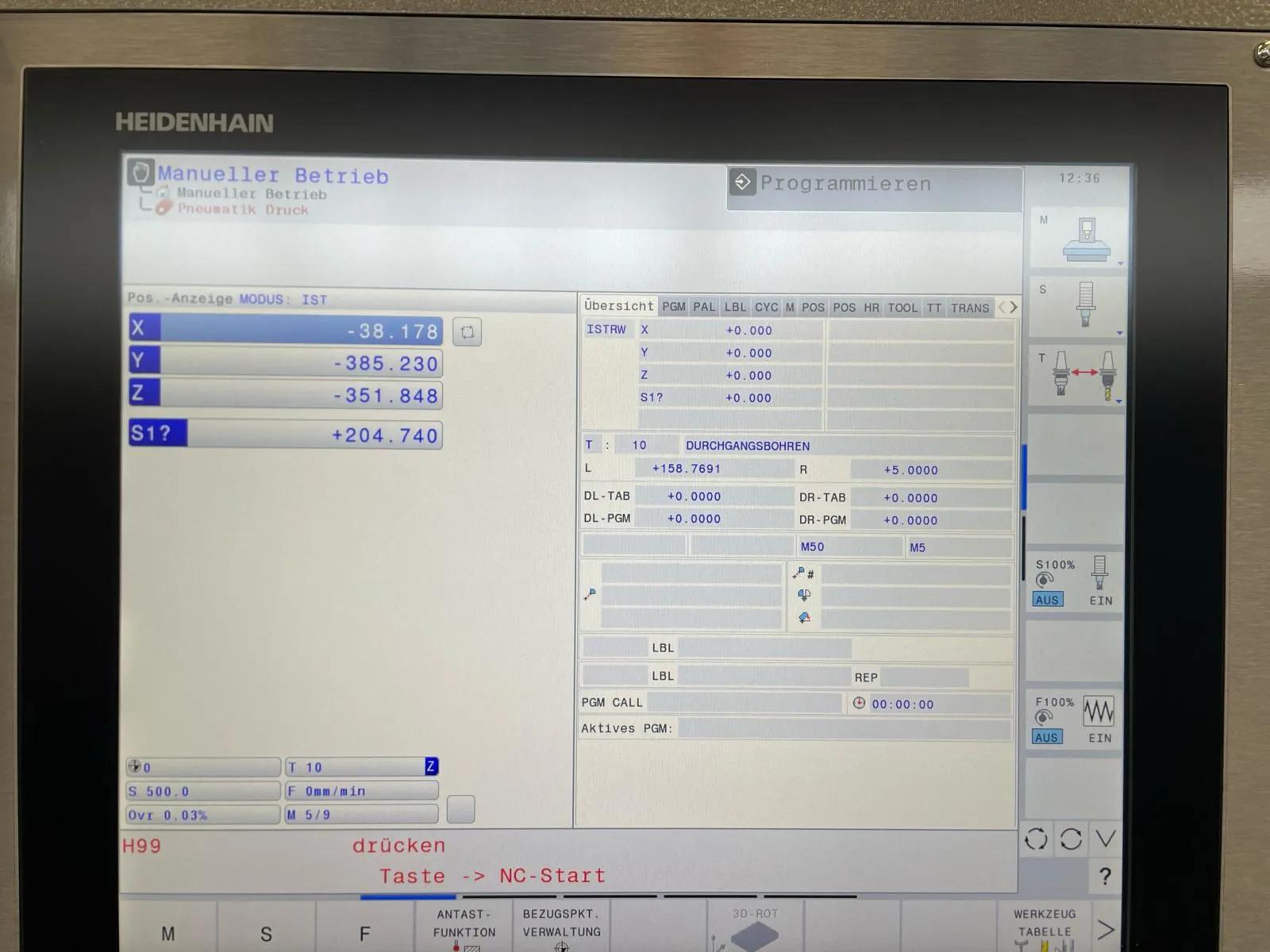

| Unidad de control | Heidenhain TNC 640 |
| Recorrido del eje X | 1000 mm |
| Recorrido del eje Y | 600 mm |
| Recorrido del eje Z | 620 mm |

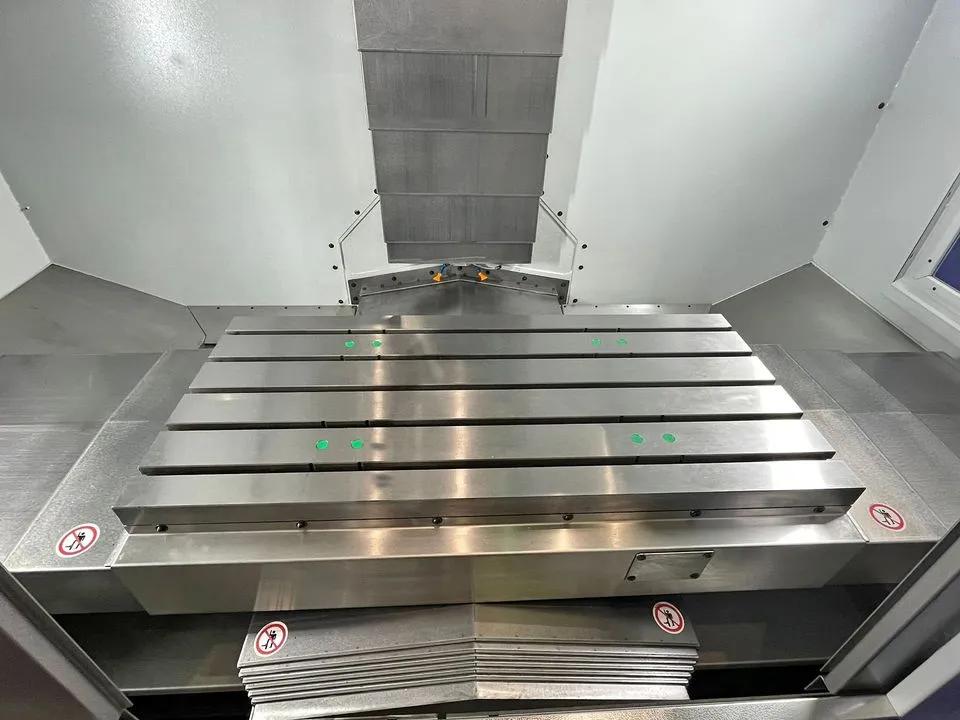

| Longitud de la mesa | 1200 mm |
| Ancho de la mesa | 550 mm |
| Carga de la mesa | 1000 kg |
| Cono del husillo | ISO 40 |
| Velocidad del husillo | 15000 rpm |
| Potencia del motor | 10/17 kW |
| Cambiador de herramientas | Brazo doble con 30 lugares |
| Tasa de avance X-Y-Z | 35 - 35 - 35 m/min |
| Disponibilidad | Inmediata |
Descripción
Explore this used AVIA VMC 1000 vertical machining center from 2022, located in Germany. Boasting a cutting-edge Heidenhain TNC 640 control unit, this machining center stands ready to meet the demands of the most intricate projects. The expansive working area of 1200 x 550 mm provides ample space for your creativity to flourish. Accelerate your production with the impressive 15000 rpm spindle speed, ensuring swift and accurate machining. The motor power of 10/17 kW adds an extra layer of robustness, making the AVIA VMC 1000 a reliable companion for all your metalworking needs.
Features:
- Stainless steel cabin floor.
- Stainless steel cover under machine doors.
- Pump enclosure.
- Chip flushing system.
- Double-arm tool changer with 30 places.

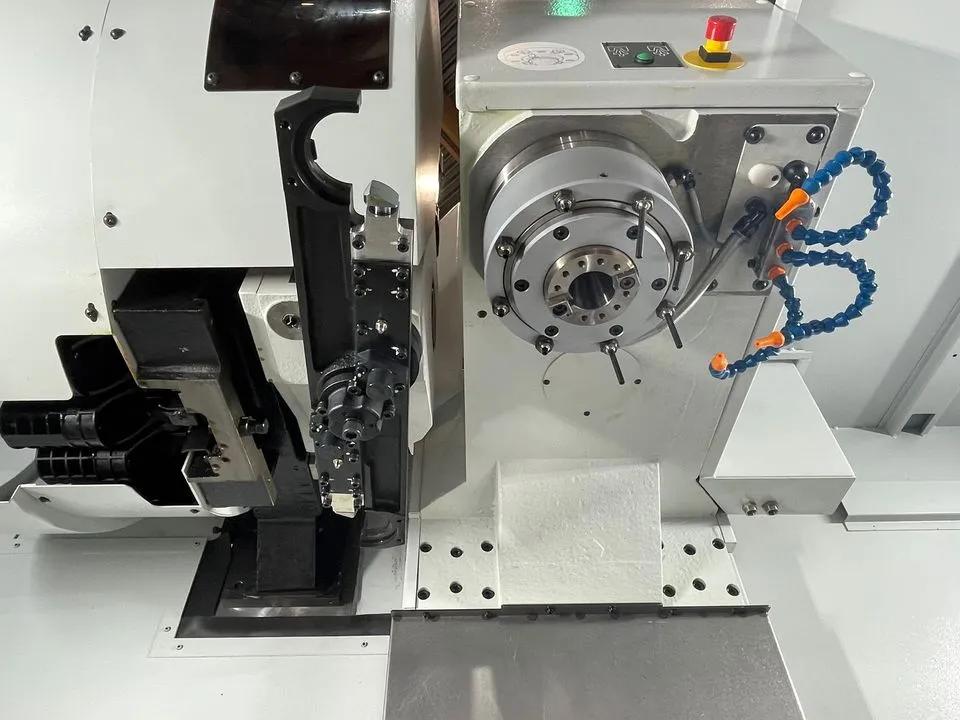

- Complete coolant system (coolant nozzles distributed in a ring around the spindle).
- Chip conveyor (screw).
- Work area lighting.
- 3-color signal light.
- Compressed air and coolant gun.
- Full cladding.
- Tightening bolt ISO 7388/B type B, 6 pcs.
- Blow-off device (spindle).
- Emergency off button and "Release tool" button on the spindle.
- Portable electronic handwheel.
- Limit switch.
- User manual.
- CE- Declaration of Conformity.
