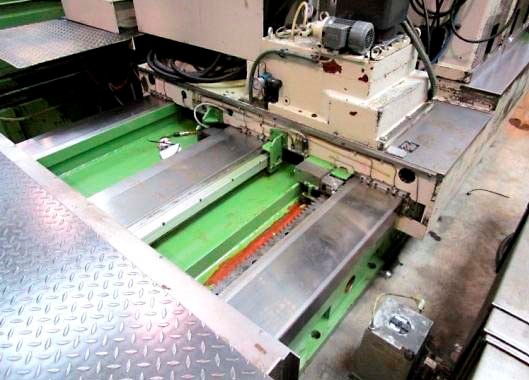

Wotan Rapid 5C - Fresadora CNC - 2004
o
Llamar +31 6 8722 7638
Especificaciones
| Fabricante | Wotan |
| Modelo | Rapid 5C |
| Año | 2004 |
| Condición | Usado |
| Hecho en | Alemania |

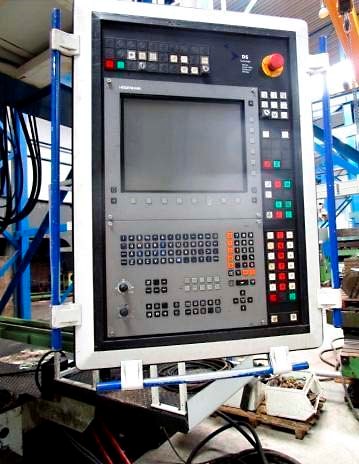

| Unidad de control | Heidenhain iTNC 530 |
| Recorrido del eje X | 10000 mm |
| Recorrido del eje Y | 3800 mm |
| Recorrido del eje Z | 700 mm |
| Recorrido del eje W | 700 mm |
| Avance rápido | 5000 mm/min |
| Diámetro del husillo | 160 mm |
| Velocidad del husillo | 1250 rpm |
| Potencia del motor | 83 kW |
| Potencia total | 120 kW |
| Portaherramientas | ISO 50 |
| Dimensiones | L 14500 x W 3850 x H 7360 mm |
| Peso | 62300 kg |
| Disponibilidad | Inmediata |
| Observaciones | *La información puede ser a veces inexacta y cambiar sin previo aviso! |
Descripción
Metalworking - CNC Boring Mill

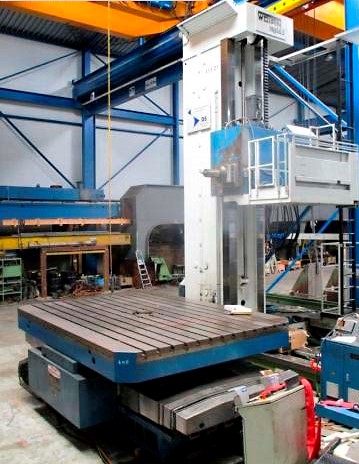

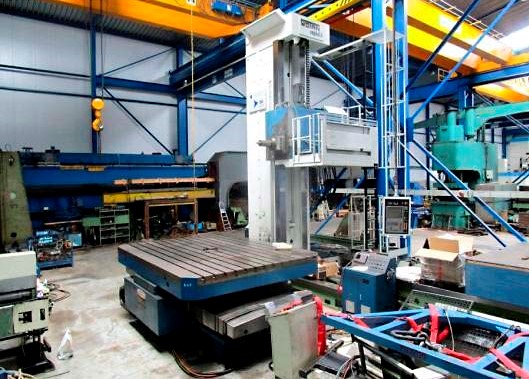

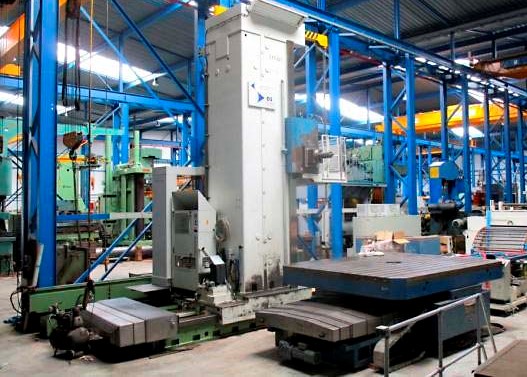

Used Wotan industrial machinery – Rapid 5C from 2004 located in The Netherlands. This CNC boring mill is equipped with a control unit Heidenhain iTNC 530 and has a spindle diameter of 160 mm, 1250 rpm spindle speed and motor power of 83 kW.
More info:

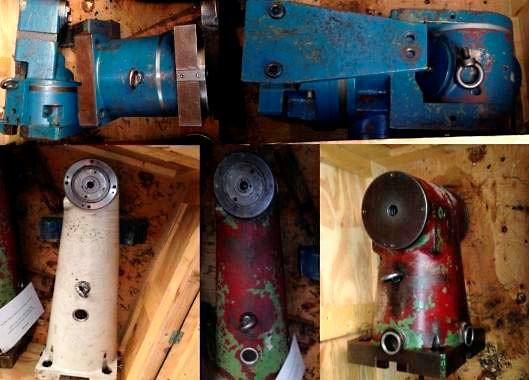

Machine with 5 different angle milling heads, hydrostatic spindle bearing, aerostatic guideways, coolant, device - chip conveyor and oil cooler.
____
* Please note that this description may have been translated automatically. The information of this classified ad are only indicative and change without notice! GLOMACHT recommends to check the details with the seller. Contact us for further information.*
