Torno Vertical Honor Seiki VL 125 CM I

Especificaciones
Fabricante | Honor Seiki |
Modelo | VL 125 CM |
Año | 2014 |
Condición | Usado |
Número de Stock | 6149211 |
Fabricado en | Taiwán |

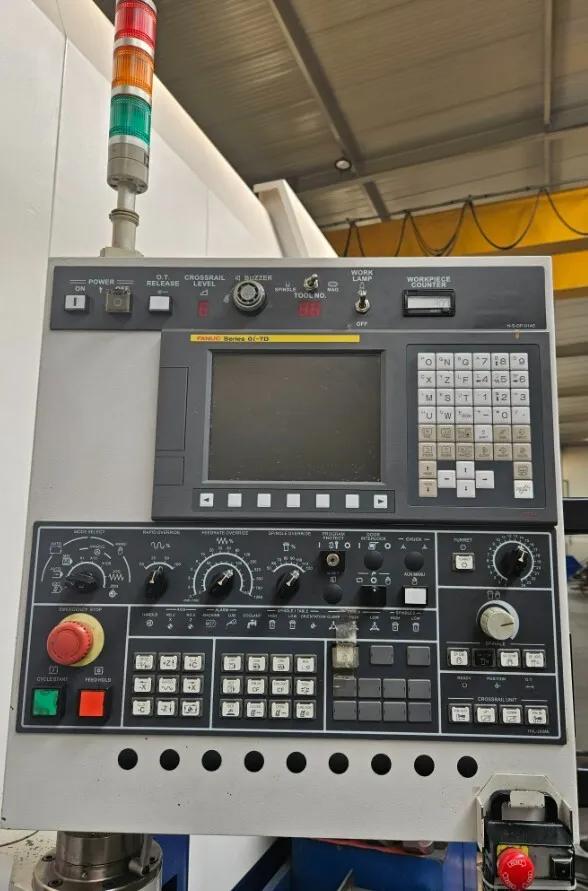

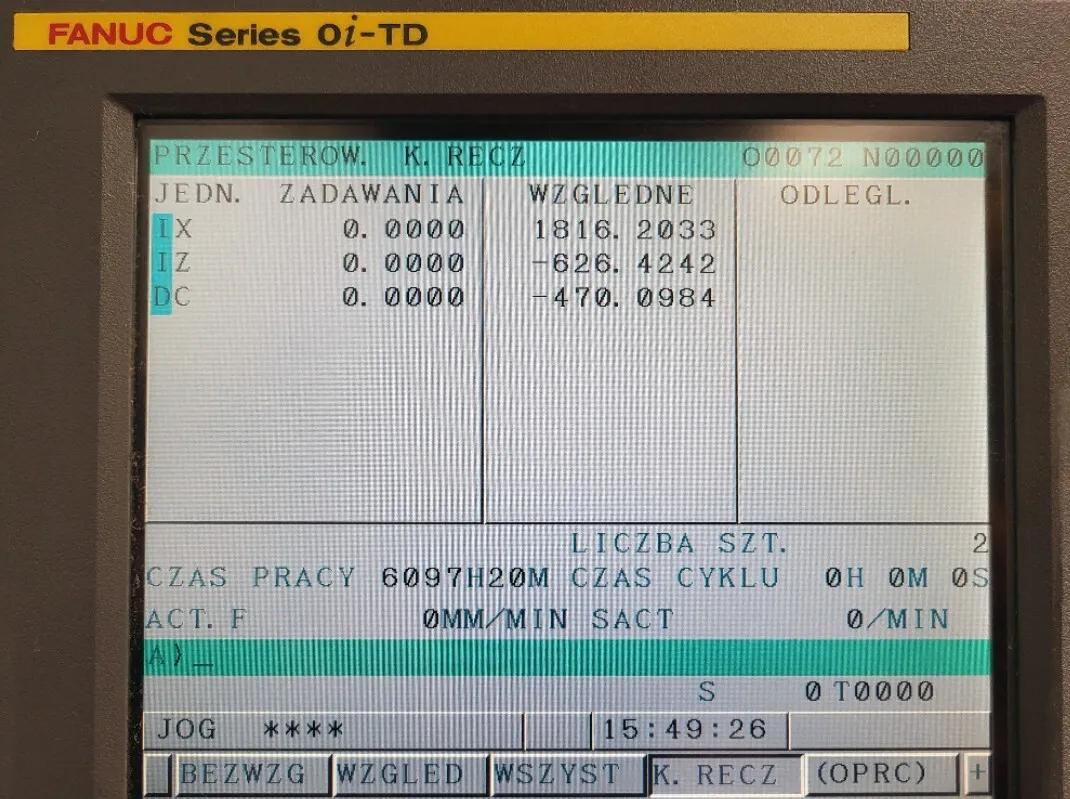

Unidad de control | Fanuc 0i-TD |
Diámetro de oscilación | 1600 mm |
Diámetro de giro | 1600 mm |
Altura de giro | 1250 mm |
Velocidad del husillo | 2250 rpm |
Peso de la pieza de trabajo | 5000 kg |
Potencia del motor | 45 kW |

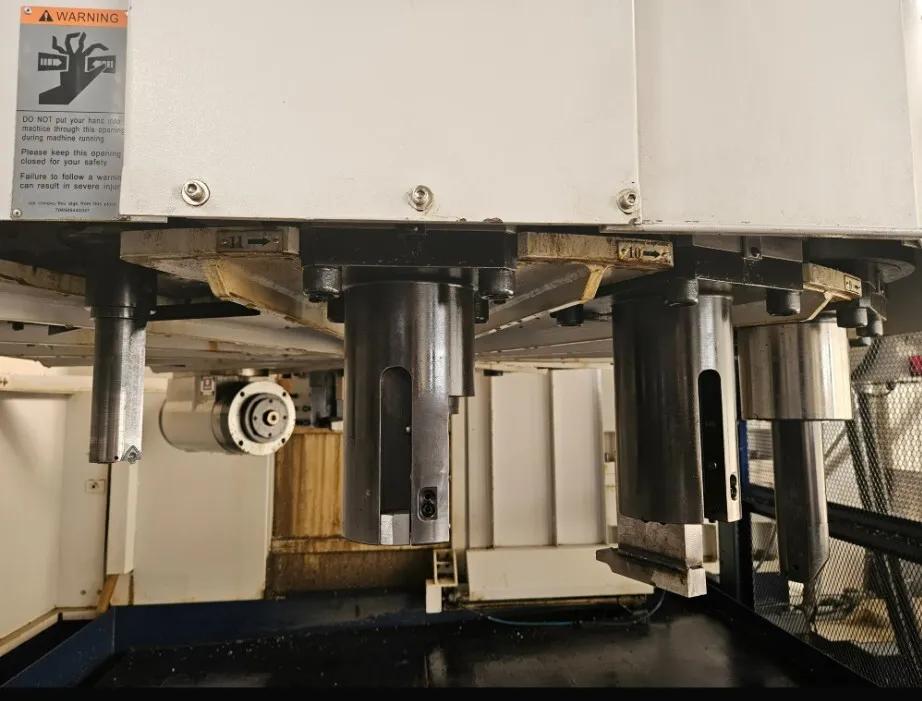

Revista de herramientas | 16 posiciones |

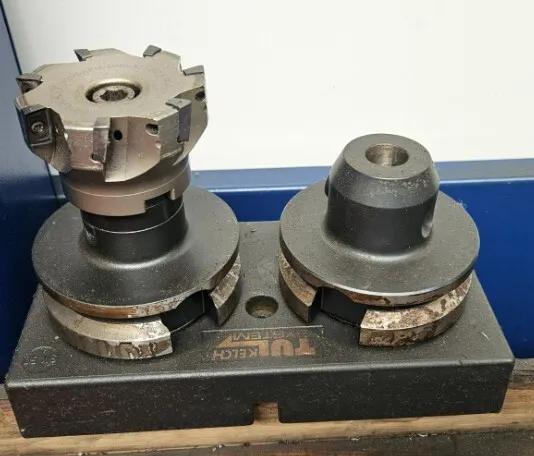

Conicidad de herramienta | BT50 |
Rotación de la mesa | 3 - 300 rpm |
Avance vertical (eje Z) | 900 mm |
Paso de viga (eje W) | 800 mm (4 x 200 mm) |
Avance horizontal (eje X) | L200+R950 |
Disponibilidad | Inmediata |
Descripción

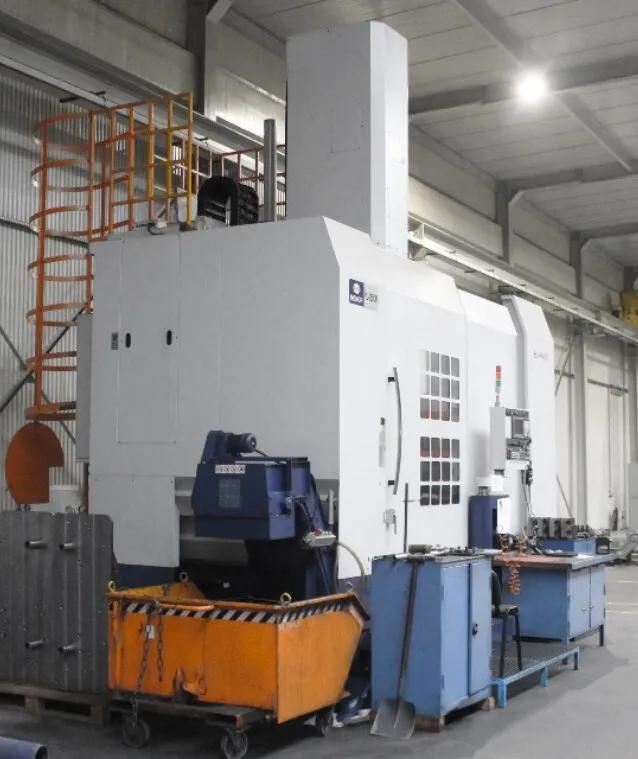

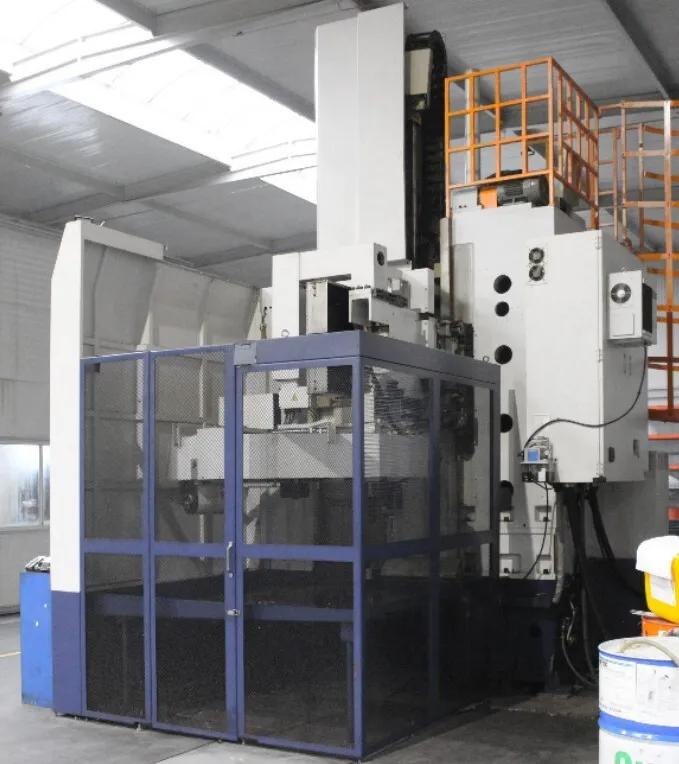

We hereby offer this used Honor Seiki VL 125 CM vertical turret lathe from 2014, located in Poland. Equipped with the sophisticated Fanuc 0i-TD control unit, the Honor Seiki VL 125 CM exemplifies optimal control and ease-of-use. The vertical lathe boasts a substantial turning diameter of 1600 mm, making it ideal for handling large-scale components with remarkable accuracy. The robust motor, with a power of 45 kW, operates at a spindle speed of up to 2250 rpm, delivering both the speed and strength needed for intense and enduring metalworking projects.
Included with the Machine:
- Chip conveyor + chip trolley.
- Covers.
- Cooling system + coolant tank.
- Automatic lubrication.
Since its inception in 1987, Honor Seiki has established a leading position in the global CNC machining centers market. Originating in Taiwan, the brand is synonymous with innovation, quality, and reliability in the design and manufacturing of machine tools. Honor Seiki's product range includes CNC Vertical Lathes, Vertical Turning Centers, and Gantry type Turning/Milling/Grinding Centers, all engineered to meet rigorous industry standards. These machines address various machining needs across numerous industries, emphasizing heavy-duty performance, especially in their VL series.
____
*Information may be inaccurate and subject to change without notice. This description could have been automatically translated, and details in this classified ad are indicative and subject to change. GLOMACH advises verifying specifications or else.
**Bidding is subject to specific circumstances and negotiation terms.
