Weeke BHX 050 Optimat - Centro de Mecanizado CNC - 2011

Woodworking - CNC Machining Center

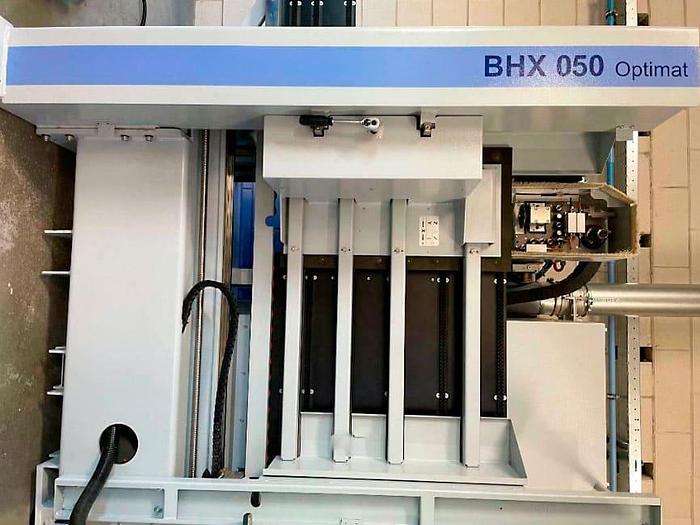

Used Weeke industrial machinery – BHX 050 Optimat from 2011 made in Germany located in The Netherlands, with 8776.9H working hours. This CNC machining center is equipped with a control unit Power PC 85 + Woodwod and has a working area of 2050 x 850 x 60 mm, router speed 6000 - 18000 rpm, router engine 5 kW.

Includes the following:

Drilling:

5 drilling spindles for machining the top of the workpiece in the "X" direction. All 5 drills can be controlled individually

3 drilling spindles for machining the top of the workpiece in the "Y" direction. All 3 drills can be controlled individually

4 drilling spindles for machining the side of the workpiece in "X direction". All 4 drills can be controlled separately

2 drilling spindles for machining the side of the workpiece in "Y direction". All 2 drills can be operated separately.

Milling unit:

1 milling unit incl. hydraulic quick change system - motor 5 KW (6000 / 18000 rpm)

Sawing unit:

Integrated sawing unit - Cutting diameter 100 mm

Controls:

Programming and control system POWER CONTROL PC 85 + WOODWOP SOFTWARE - PC - color screen with graphic display - CD-ROM - keyboard

Ergonomic control rotatable

Standardization:

EC conformity

Machining units in housing, with polycarbonate glass, so that the progress of machining can be visually clearly seen

Total connection: 12 KW
