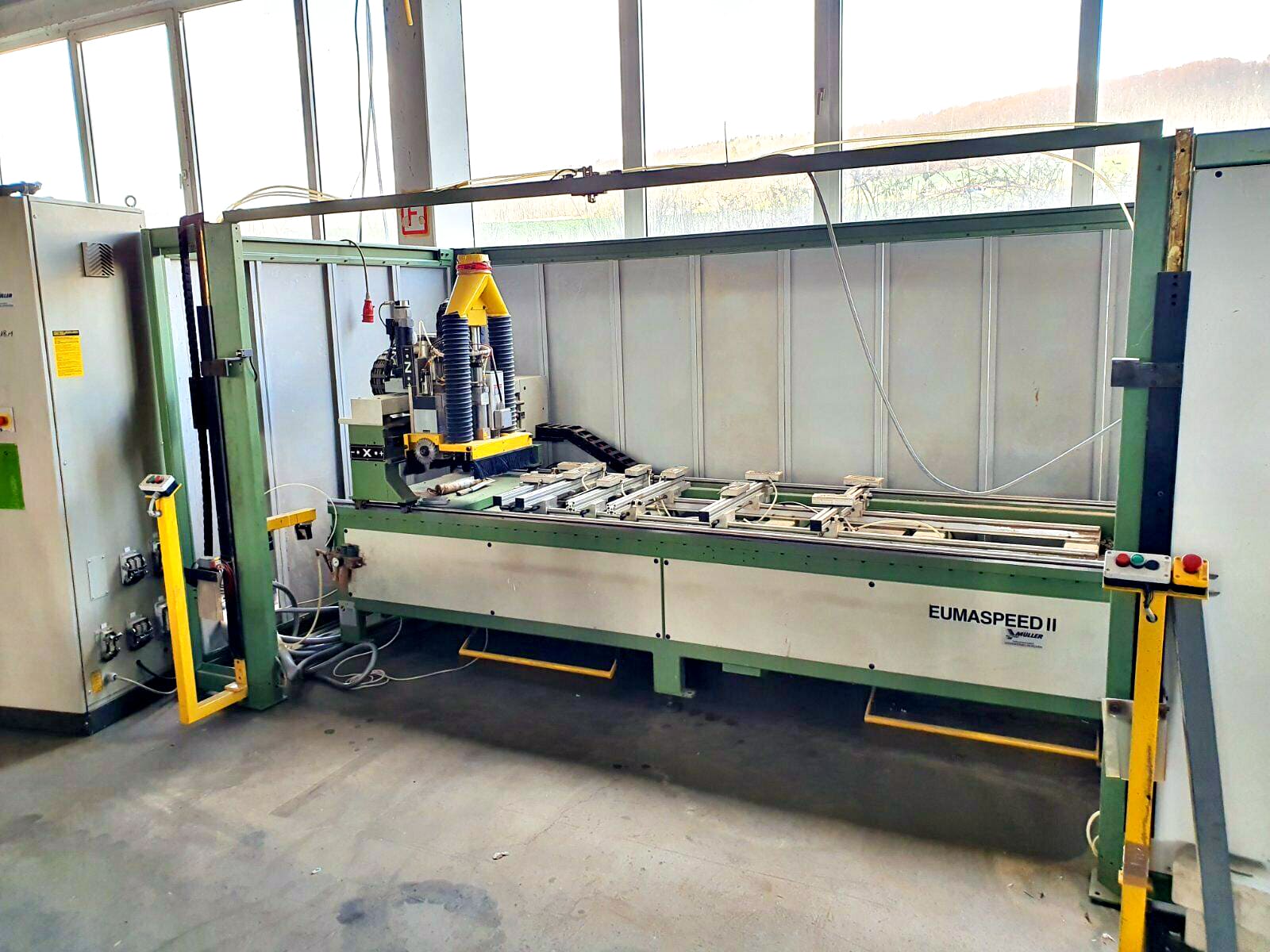

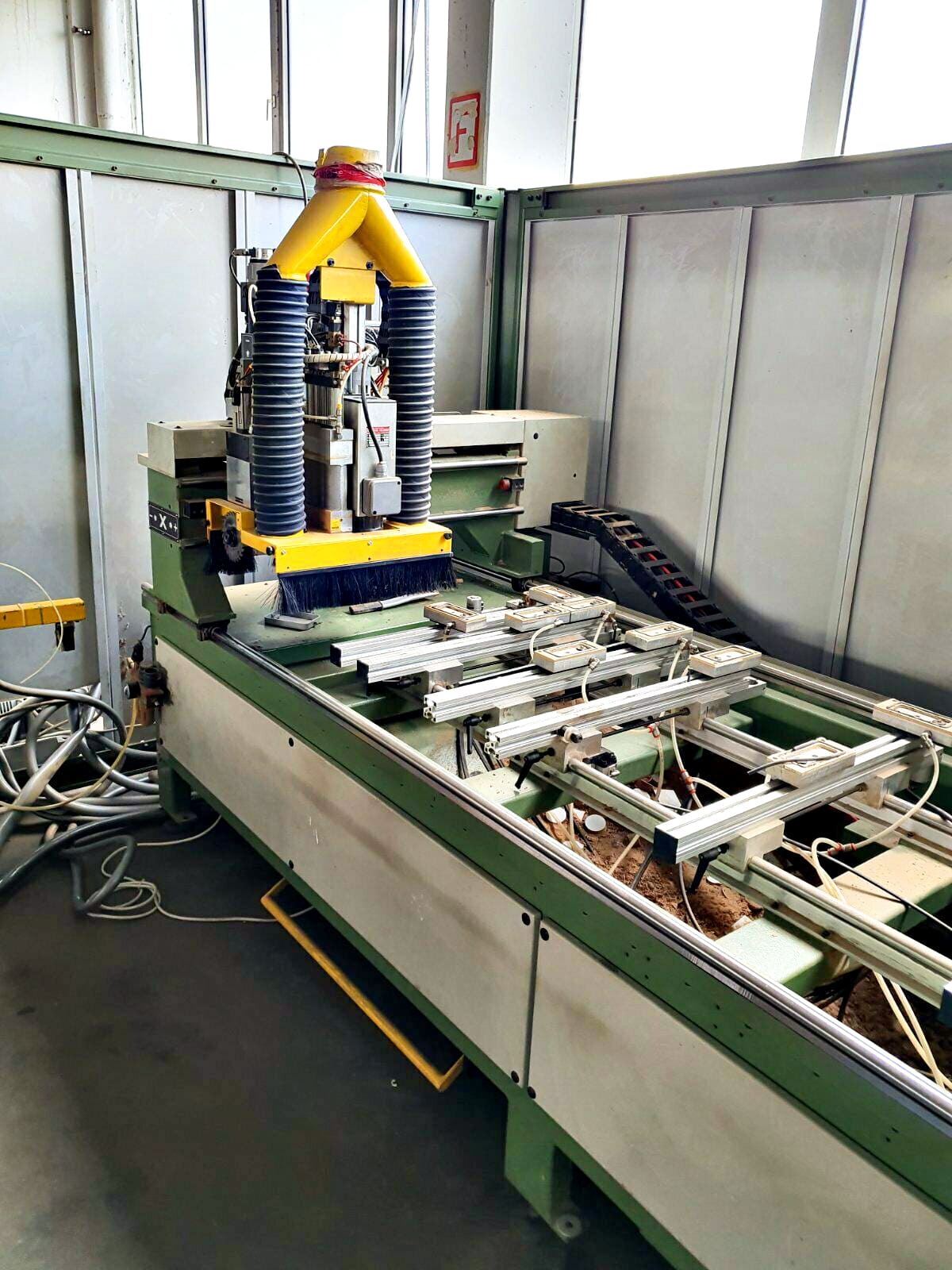

Masterwood Eumaspeed II - Centro de mecanizado CNC - 1995
Especificaciones
| Fabricante | Masterwood |
| Modelo | Eumaspeed II |
| Año | 1995 |
| Condición | Usado |
| Tamaño de la pieza de trabajo | 2530 x 734 x 50 mm |
| Sierra de ranura en X | 100 mm |
| Armario de control | 810 x 600 mm |
| Carga conectada | 10.5 Kw |
| Toma de extracción | toma central D 140mm |
| Dimensiones | L 4200 x W 2200 x H 2900 mm |
| Disponibilidad | Inmediatamente |
| Observaciones | *La información puede ser a veces inexacta y cambiar sin previo aviso! |
Descripción
Woodworking - CNC Machining center
More info:
The CNC works perfectly and
was used until recently.

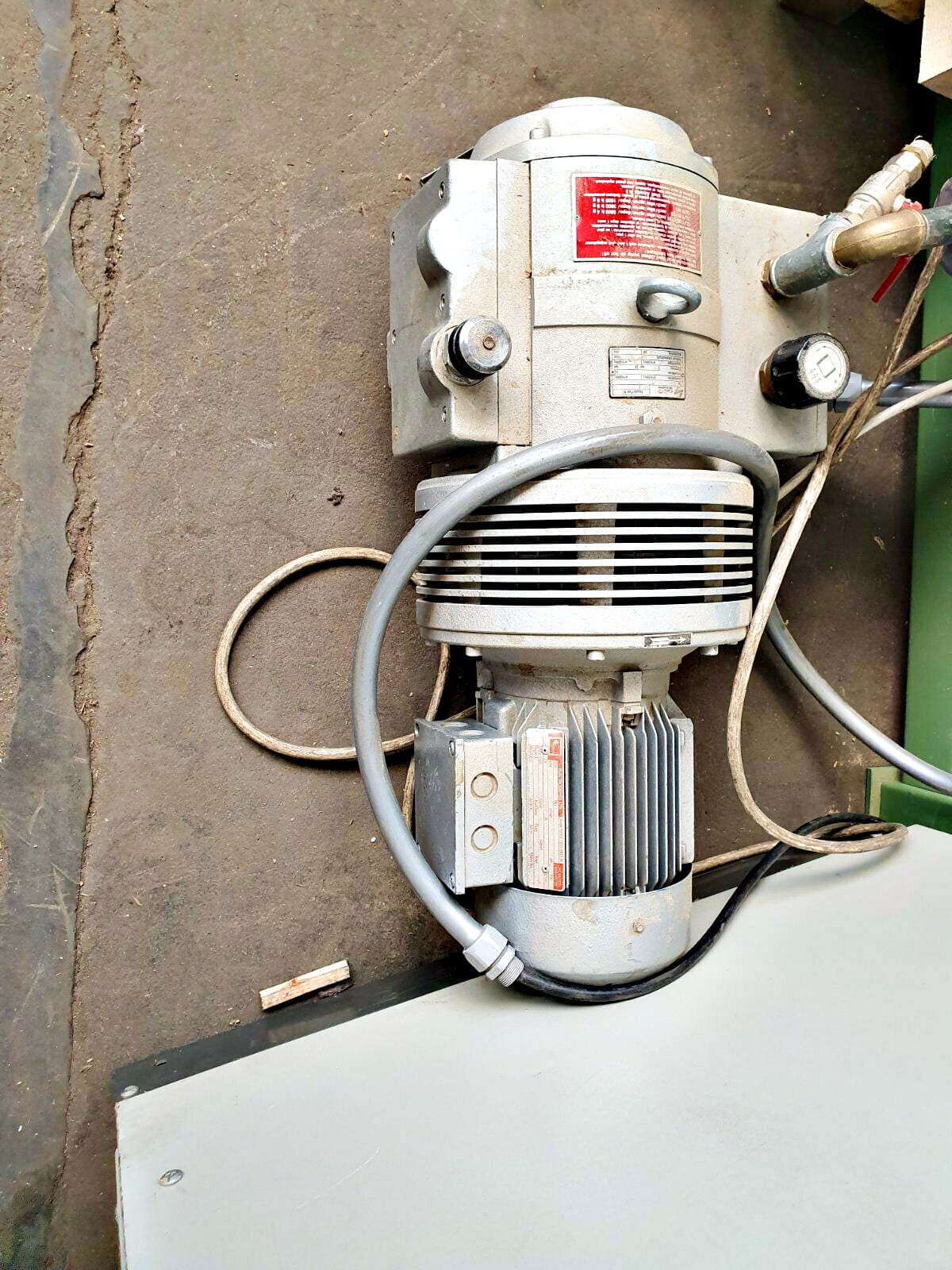

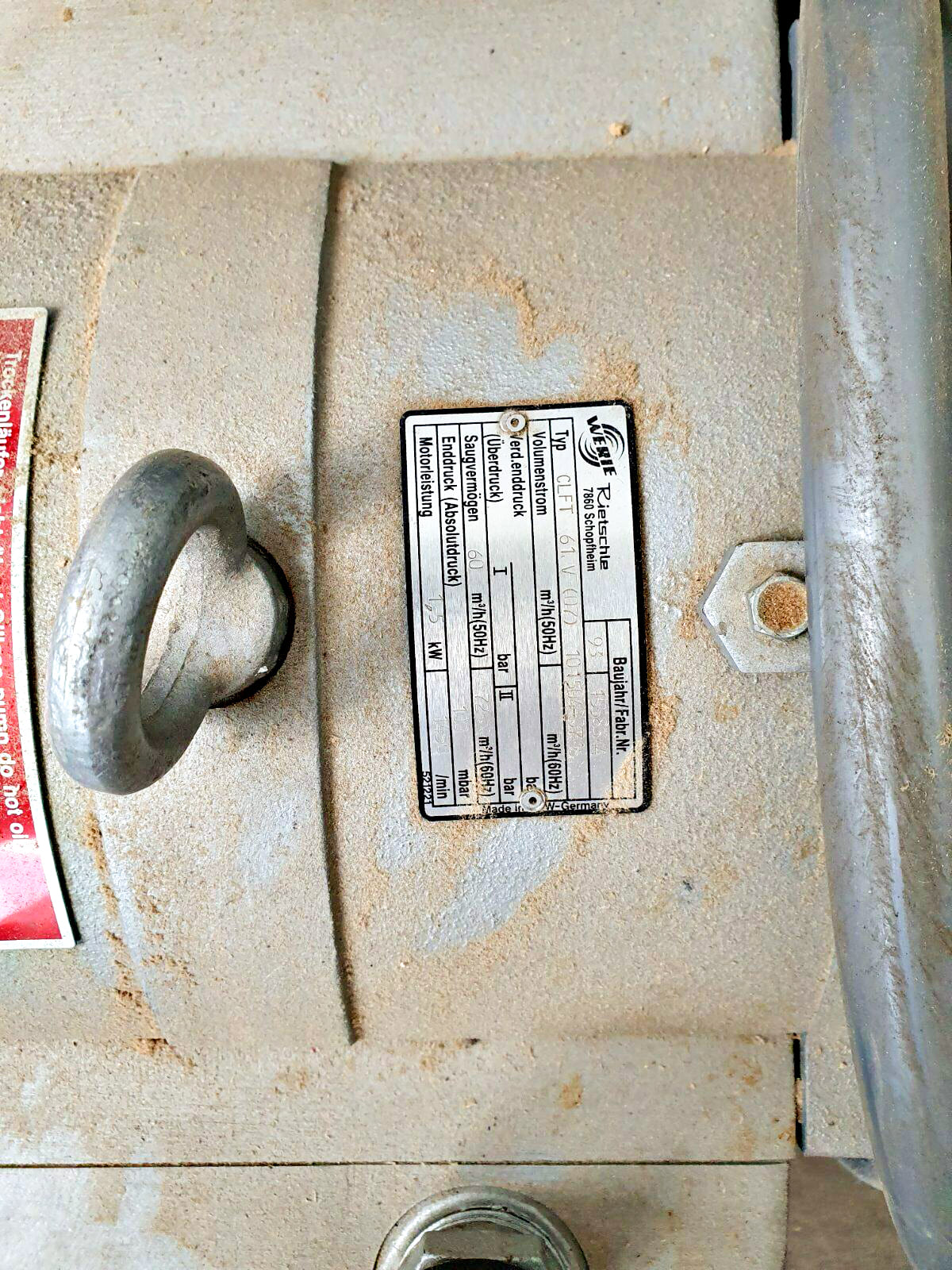

A larger vacuum pump from Beck is installed
and we have had a USB connection retrofitted.
For drilling, grooving, milling and sizing;
All construction, rows of holes, fitting holes, as well as grooves, milling and milling work
are processed in one clamping.
User-friendly, graphics-supported programming with an automatically optimized workflow.

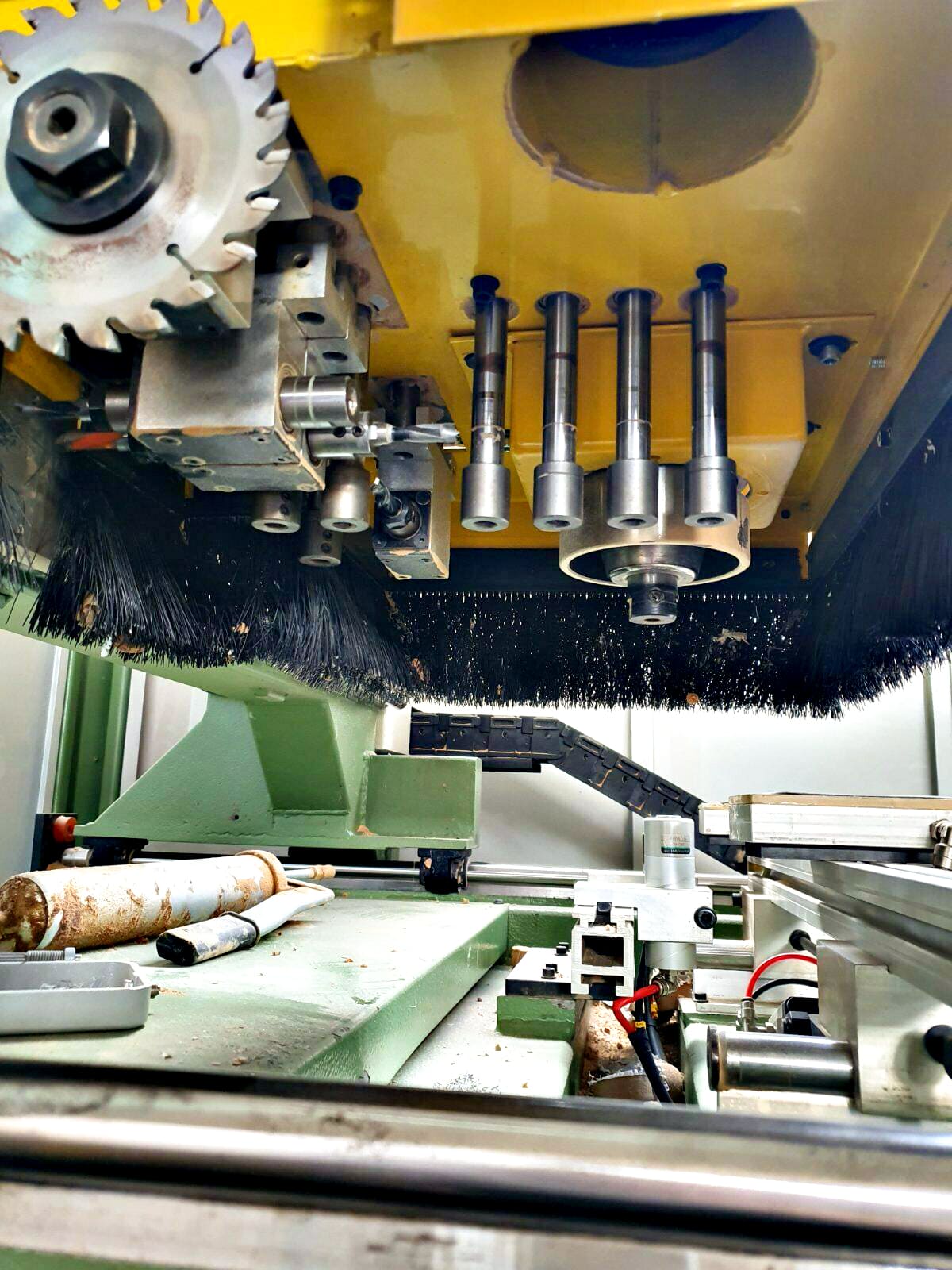

9 individually callable vertical drilling spindles
4 individually retrievable horizontal drilling spindles in X - direction
2 individually retrievable horizontal drilling spindles in Y - direction
with milling unit 4.0 kW, LEUCO hydraulic clamping system PS 25
6 table beams with vacuum
____
