SCM Olimpic K800 - Maquinaria de madera - Biselado - 2012
Especificaciones
| Fabricante | SCM |
| Modelo | Olimpic K800 |
| Año | 2012 |
| Condición | Usado |
| Unidad de control | Star-Touch |
| Grosor del panel | 8-60 mm |
| Grosor del borde | 0.4-8 mm |
| Grosor del material de rollo | 0.4-3 mm |
| Longitud mínima del panel | 140 mm |
| Velocidad de alimentación | 18 m / min |
| Contenedor de pegamento | 1.5 kg |
| Dimensiones | L 6000 x W 800 x H 1550 mm |
| Peso | 2451 Kg |
| Disponibilidad | Inmediata |
| Observaciones | *La información puede ser a veces inexacta y cambiar sin previo aviso! |
Descripción
Woodworking - Edgebanding machine
More info:
SCM Edge molding machine mod. K 800 ”T-ERL” comp 47
Pre-cut - limb-cut-cut-cut-rounding-sickling
special execution

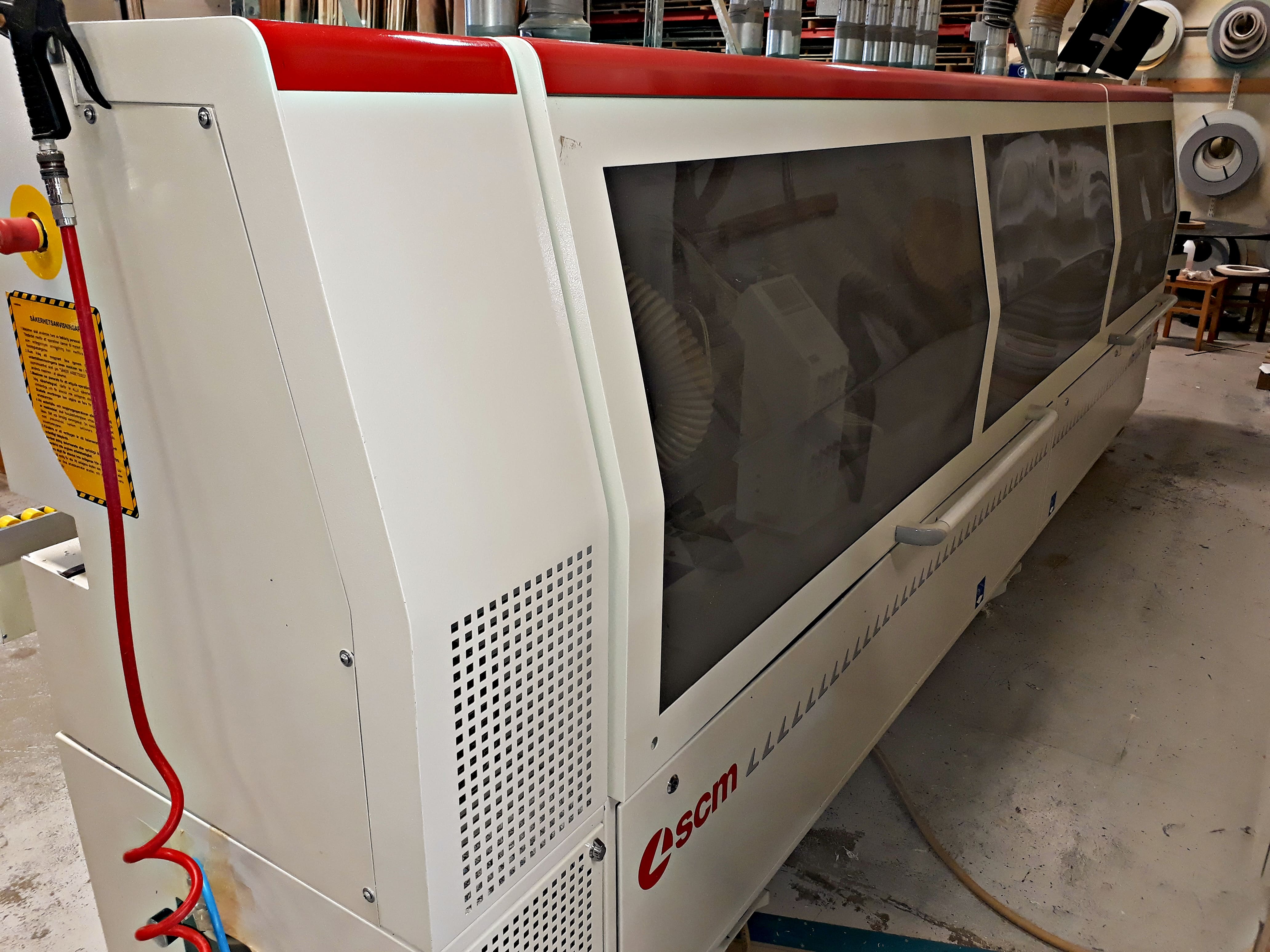

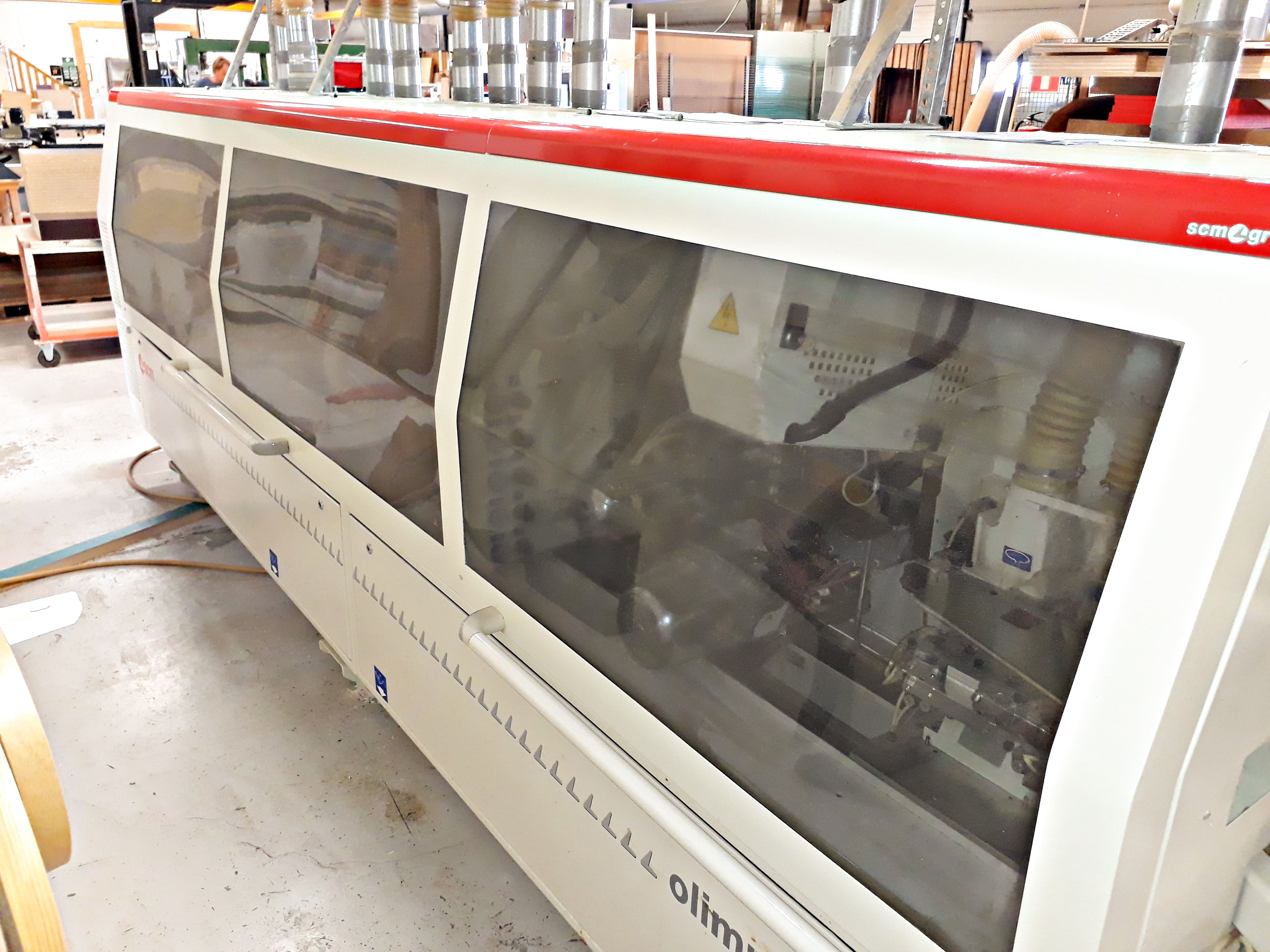

Single-sided flexible edging machine built on a welded steel frame with
separated spaces for glue application and finishing.
The machine is built with the same performance as the larger ones
the edging machines where all the units are mounted on the stand.
The feeding system via a plate belt in a specially designed year an SCM patent and
provides a calm and vibration-free passage of the workpiece.
The machine is intended for edge mounting of roller strips and strips up to 12 mm
thickness.

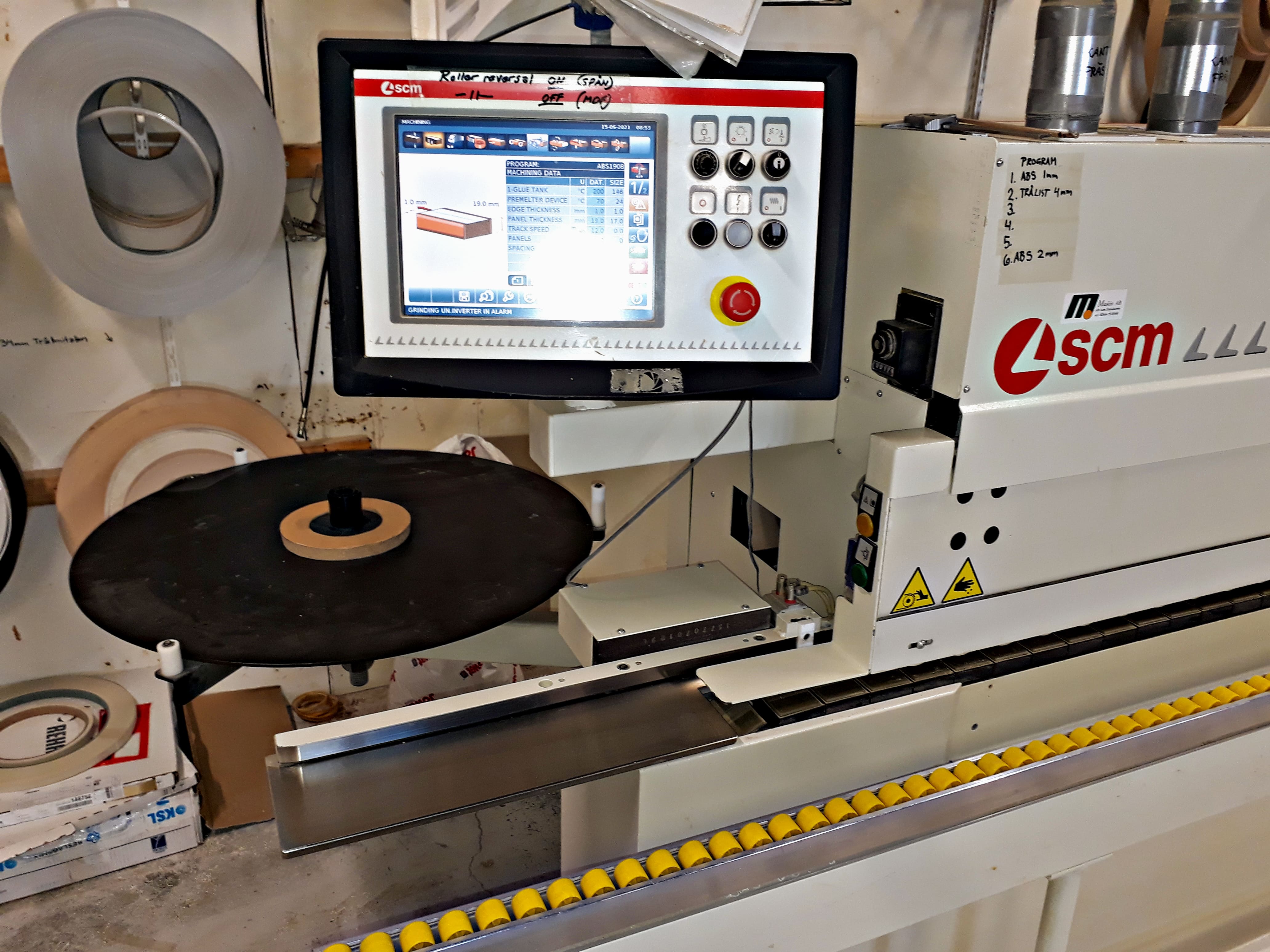

The machine is easily operated from a panel and controlled via an encoder
machine functions.
Glue container for granular glue
The caps (2 pcs) are adjustable 0-15 gr and loops on inclined steel
prismatically ground guides.
____
