Maho 500 C - Fresadora CNC - 1983
Especificaciones
| Fabricante | MAHO |
| Modelo | 500 C |
| Año | 1983 |
| Condición | Usado |
| Fabricado en | Alemania |
| Unidad de control | Philips 432/10 |
| Horas de trabajo | + -18800 |
| Recorrido del eje X | 500 mm |
| Recorrido del eje Y | 400 mm |
| Recorrido del eje Z | 300 mm |
| Mesa de trabajo | 700 x 350 mm |
| Cono del husillo | ISO 40 |
| Recorrido del husillo vertical | 50 mm |
| Velocidad del husillo | 20-4000 rpm |
| Rango de avance | 1-3000 mm/min |
| Avance de travesía | 5 m/min |
| Capacidad de carga de la mesa | 250 kg |
| Requerimiento total de potencia | 11.3 kW |
| Dimensiones | L 2100 x W 2000 x H 2000 mm |
| Peso | 2000 Kg |
| Disponibilidad | Inmediata |
| Observaciones | *¡La información puede ser a veces inexacta y cambiar sin previo aviso! |
Descripción
Metalworking - CNC Milling

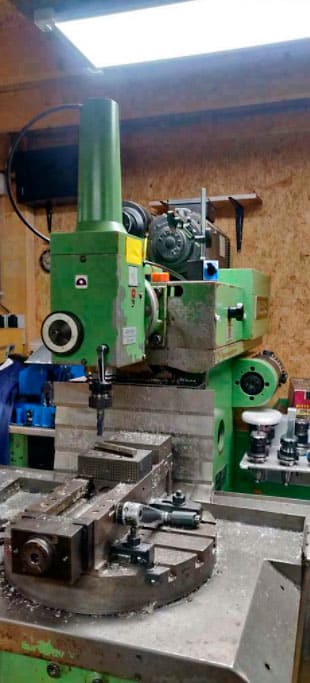

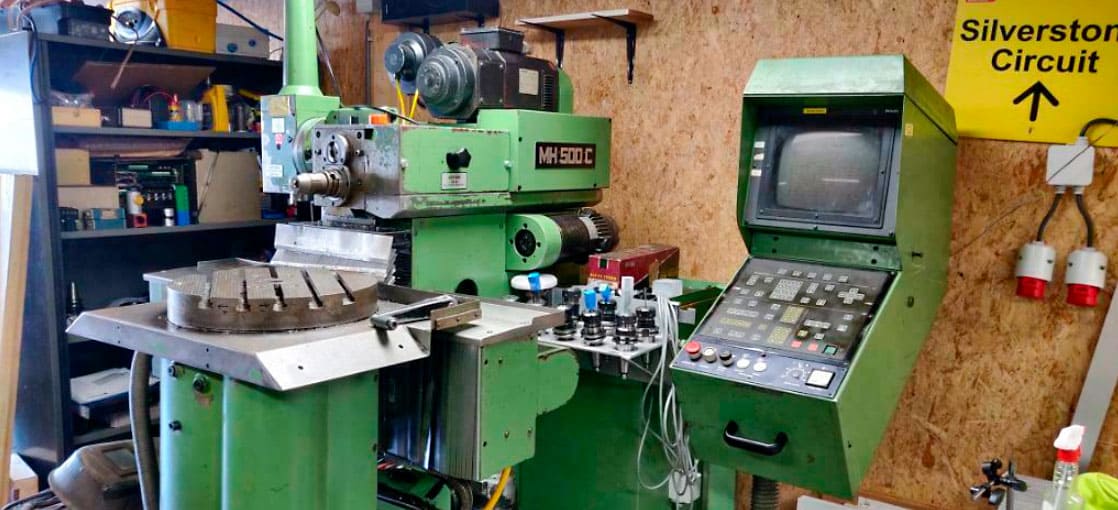

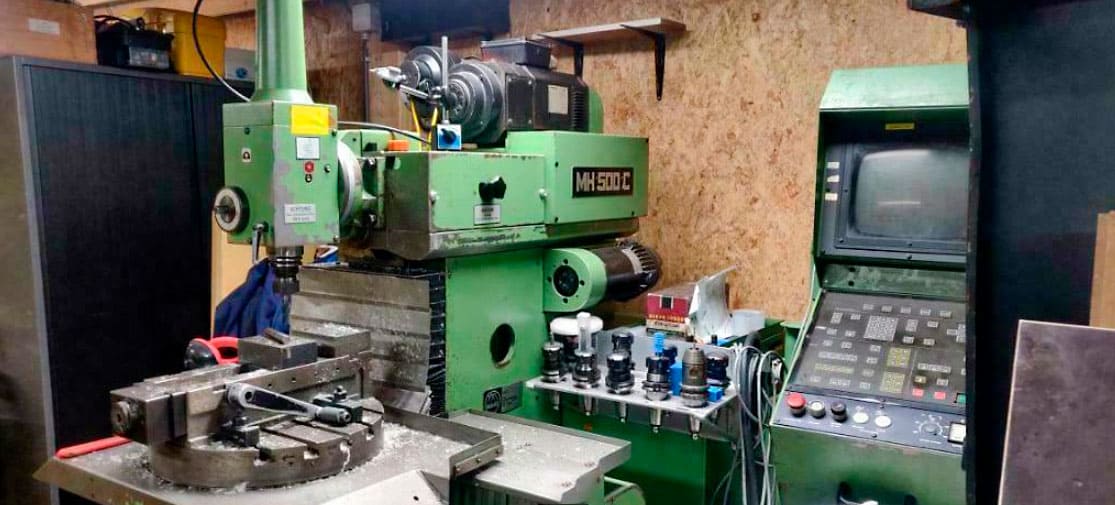

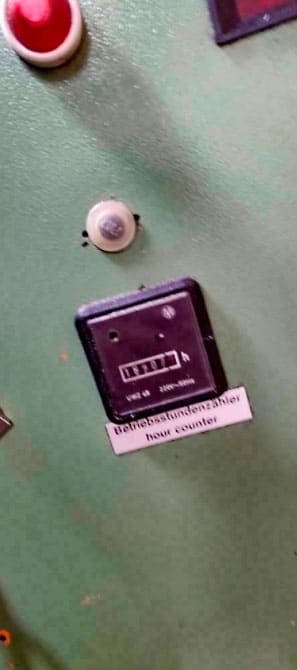

Used Maho – 500 C from 1983 is made in Germany, with working hour + -18800 H. This CNC milling is equipped with a control unit Philips 432/10. The machine has a work table 700 x 350 mm, total power requirement 11.3 kW and is equipped with the following:
The original heidenhain 271 rod has been replaced by a heidenhain 780

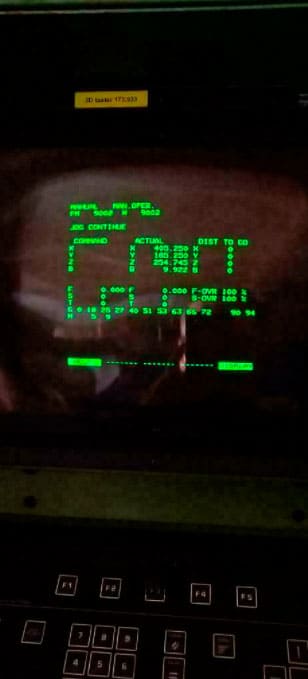

The 432/10 is equipped with a drip feed. This makes it possible to load files from the computer, so you don't suffer from limited memory.
- with all books, cable diagrams, both digital and analog.
Also, I have many spare parts with the machine.

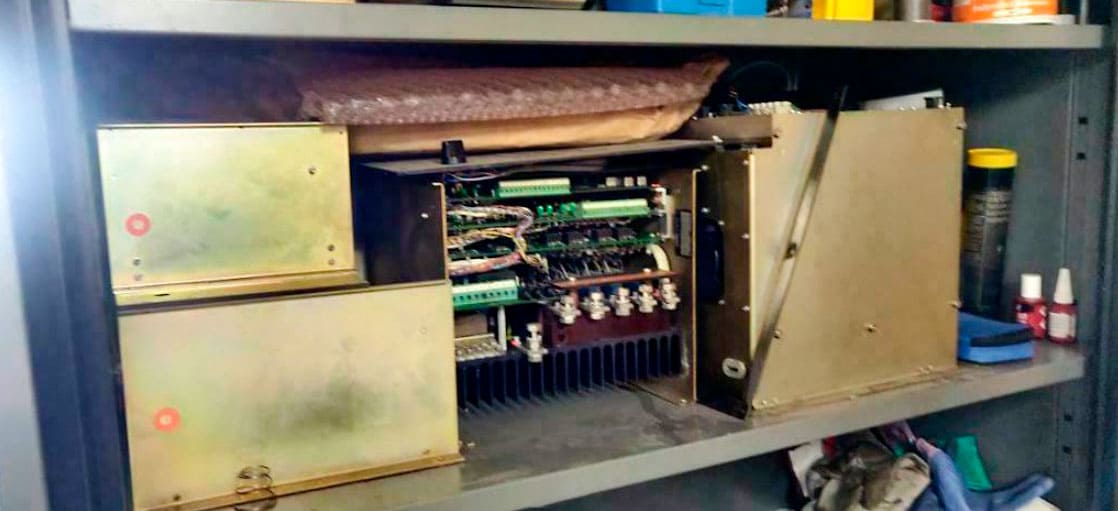

- all servo drives (x, y, z, b and spindle)
-full control (432/9)
-remote control
-all glass rulers
- The machine is sold without tool holders, but can be purchased at an additional cost. The same applies to a very neat hydraulic machine clamp.
