Axile V4 - Centro de Mecanizado Vertical - 2020
Vendido
Especificaciones
| Fabricante | Axile |
| Modelo | V4 |
| Año | 2020 |
| Condición | Usado |

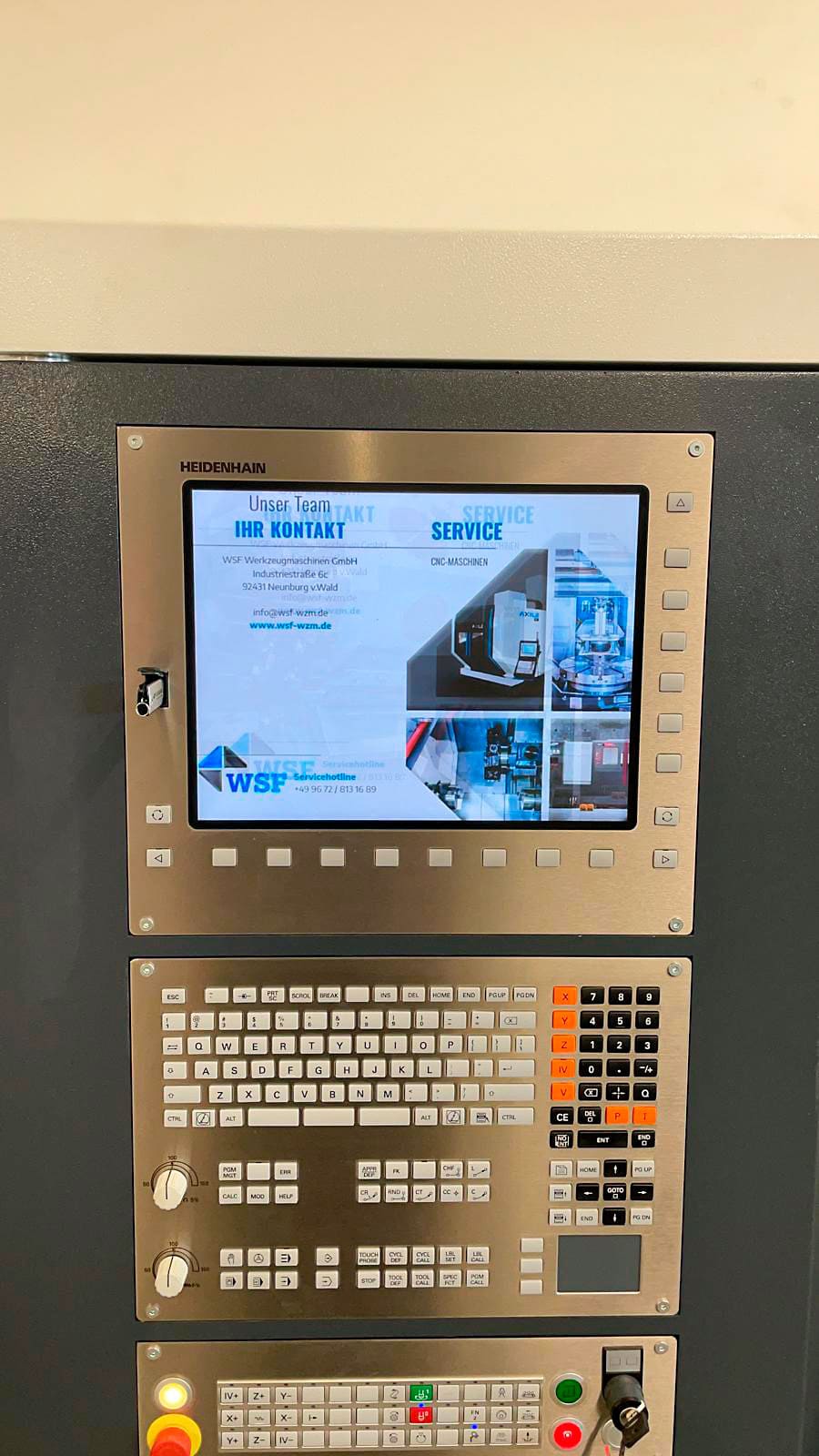

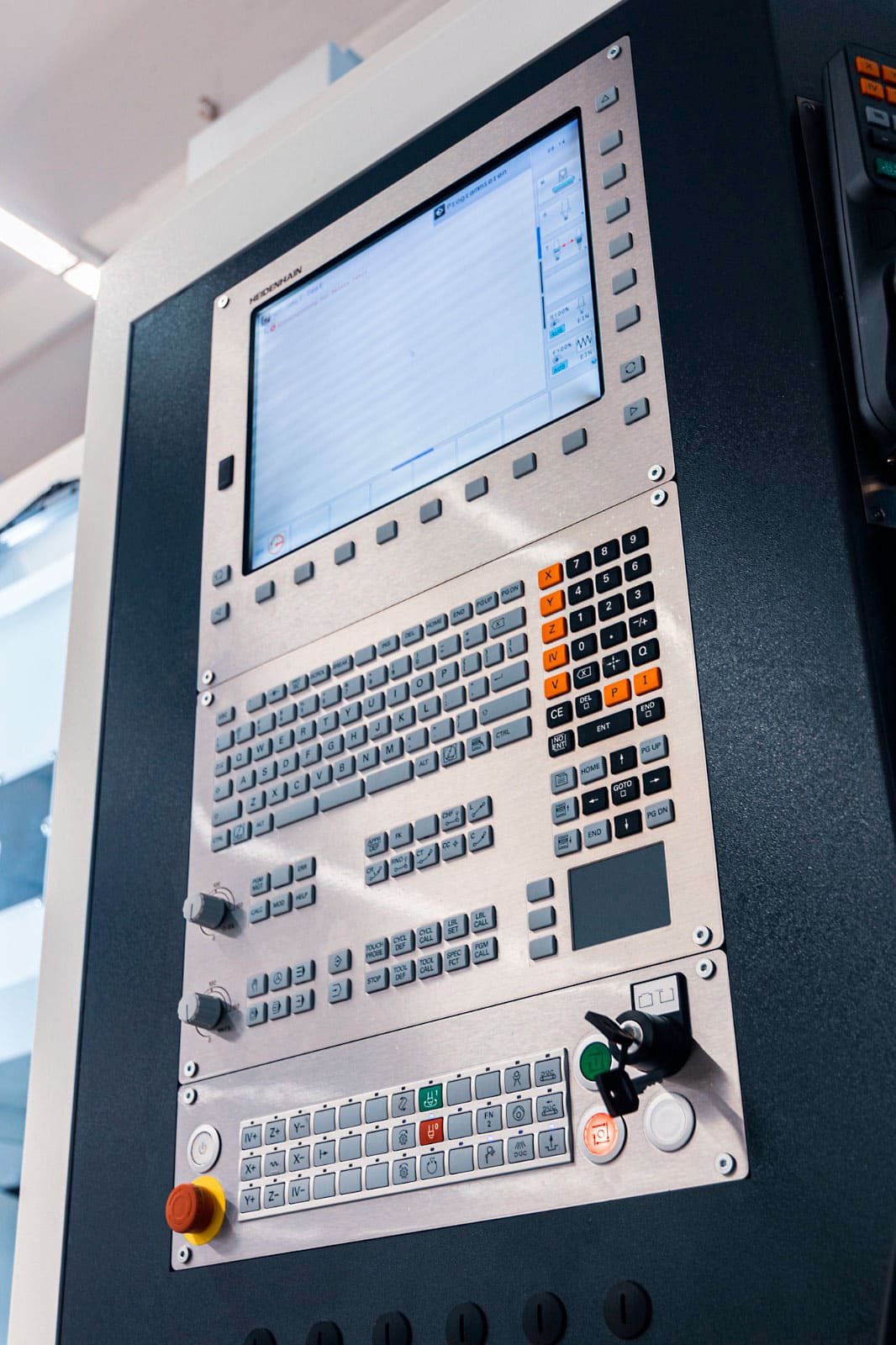

| Unidad de control | Heidenhain TNC640 |
| Recorrido en el eje X | 600 mm |
| Recorrido en el eje Y | 400 mm |
| Recorrido en el eje Z | 450 mm |
| Tamaño de la mesa | 770 x 410 mm |
| Carga máxima de la mesa | 400 kg |
| Cono del husillo | SK40 |

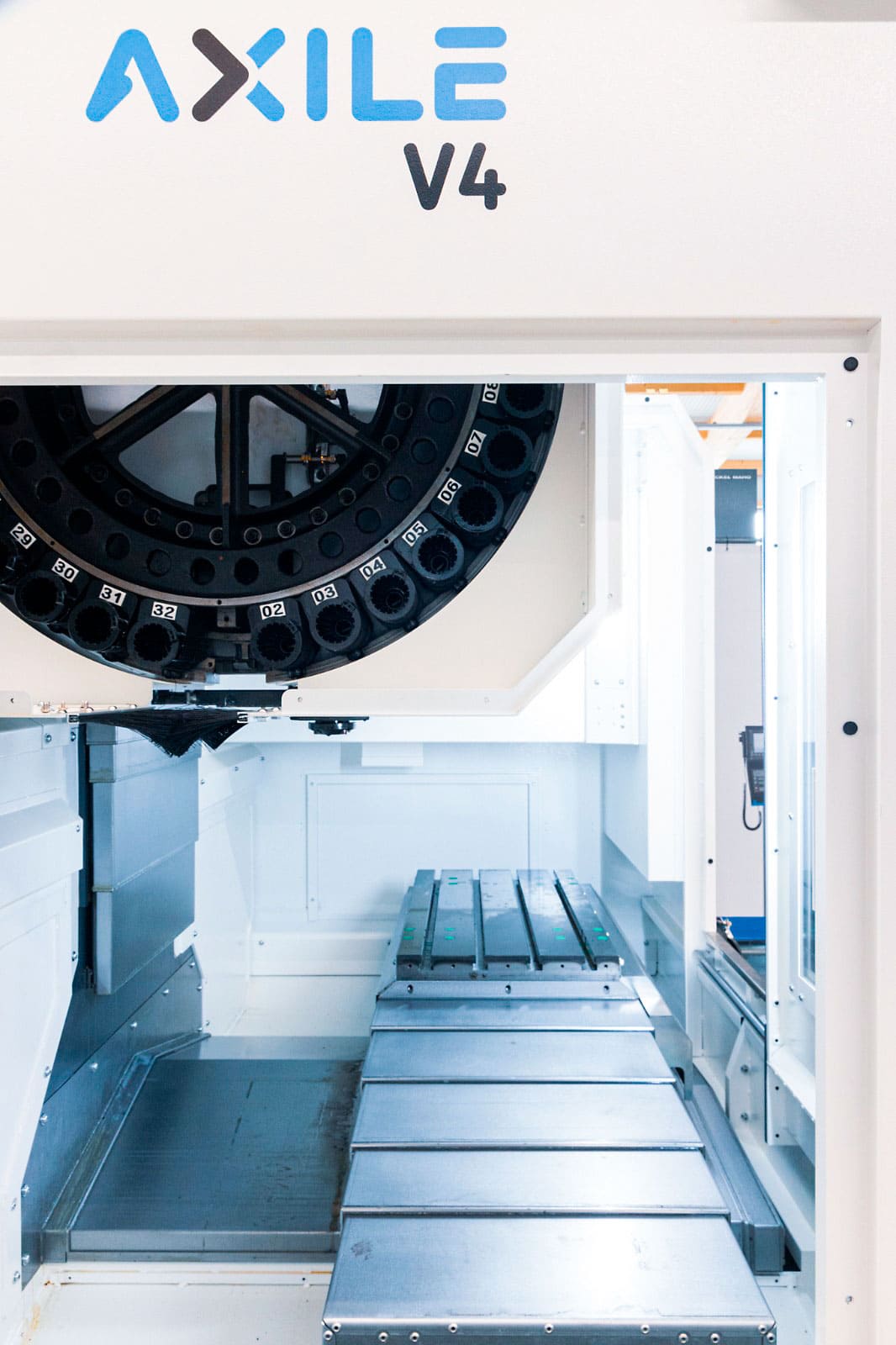

| Número de compartimentos para herramientas | 32 |
| Longitud máxima de herramienta | 200 mm |
| Peso máximo de herramienta | 8 kg |
| Velocidad del husillo | 12000 rpm |
| Motor del husillo | 10/14 KW |
| Dimensiones | L 3195 x W 2425 x H 1910 mm |
| Peso | 4350 Kg |
| Disponibilidad | Inmediata |
| Observaciones | *La información puede ser a veces inexacta y cambiar sin previo aviso! |
Descripción
industryworking -type

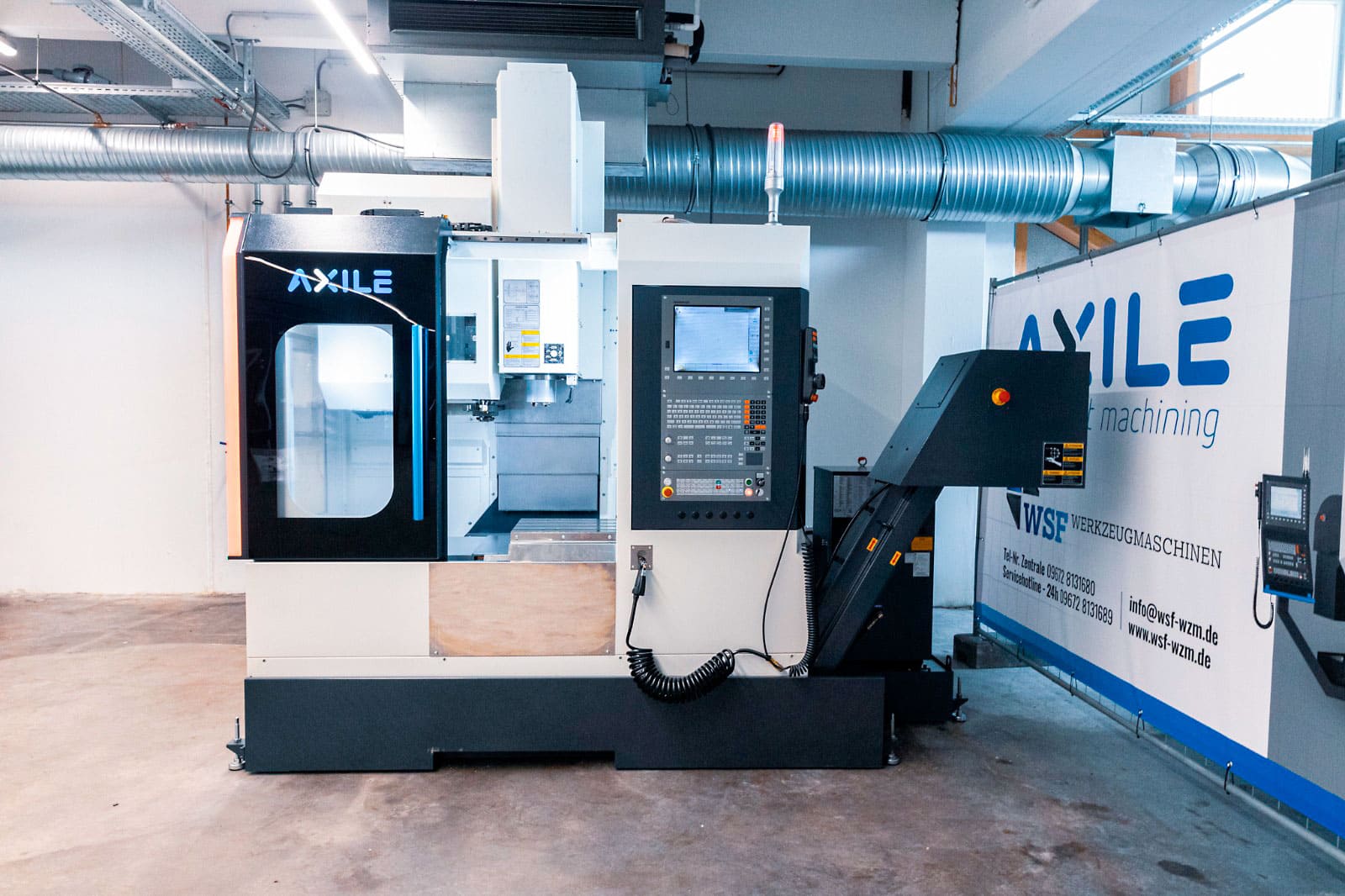

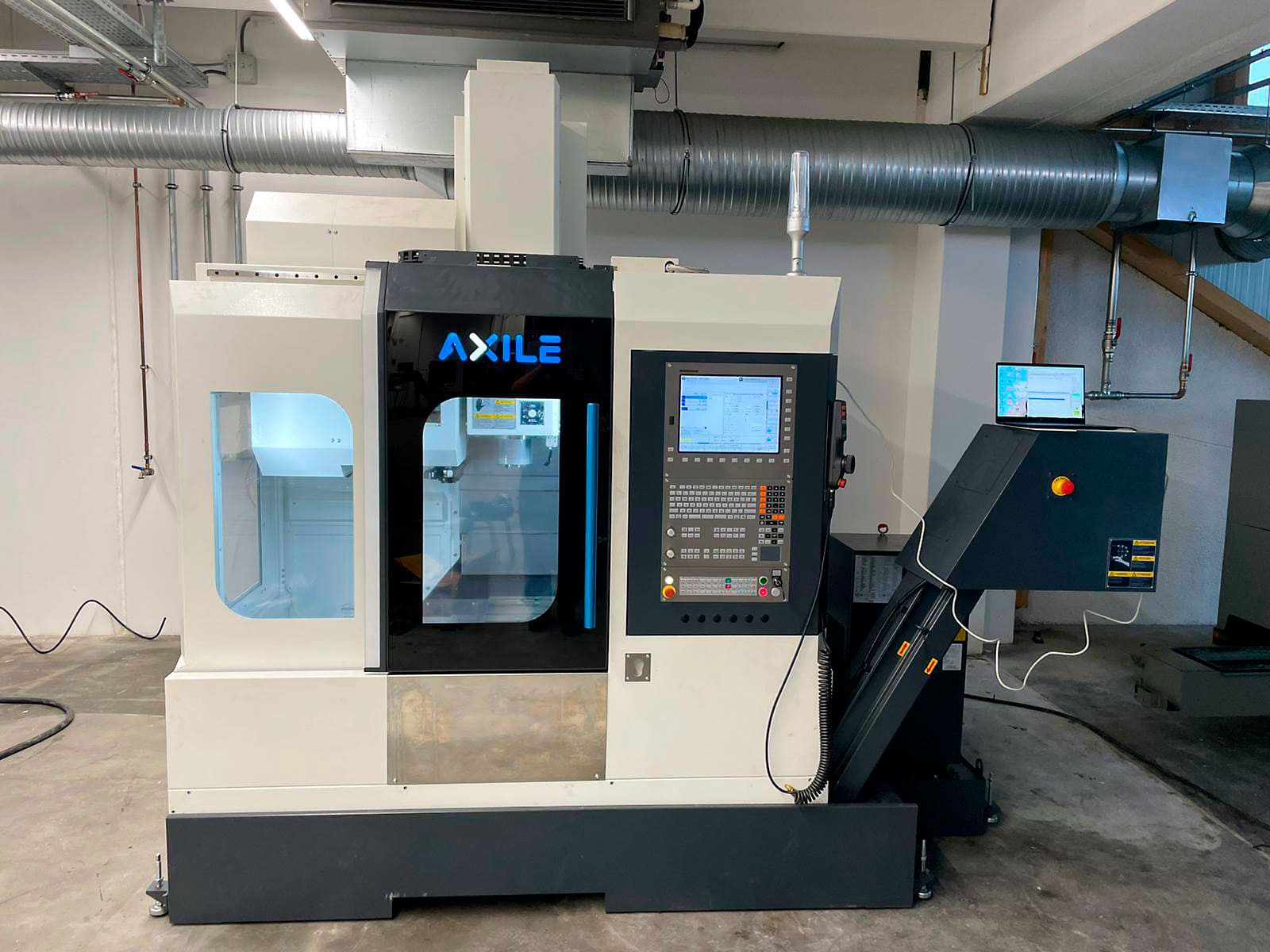

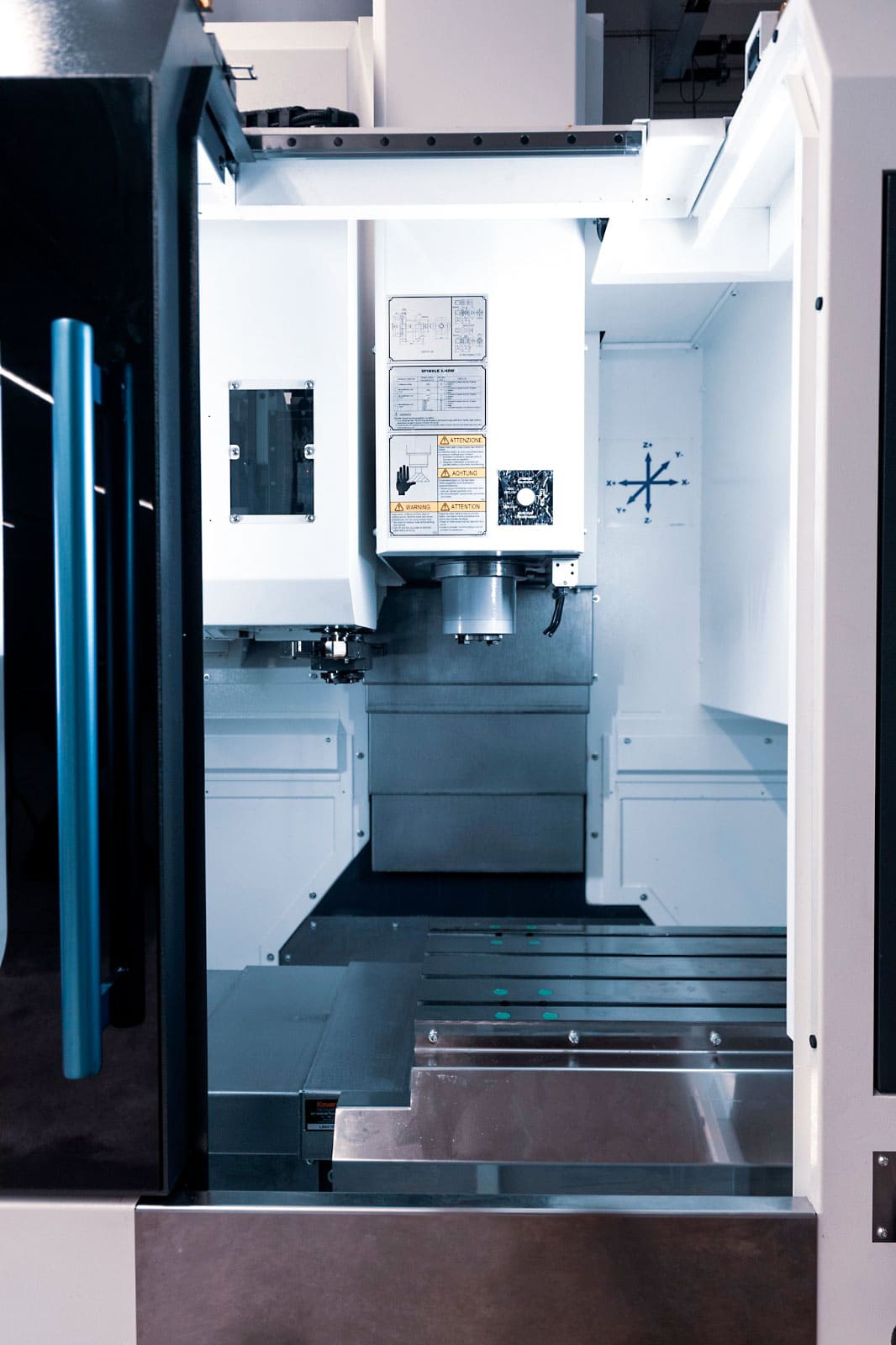

Used Axile – V4 from 2020 located in Germany. This vertical machining centre is equipped with a control unit Heidenhain TNC640 and has a table size of 770 x 410 mm, 12000 rpm spindle speed, spindle power 10/14 kW.
Includes the following:
- 15” LCD DISPLAY
- Heidenhain spindle servo motor and axes
- Spindle cooling
- Centre lubrication
- Type SK40 (JIS B6339 draw bolt)
- Opening for crane loading
- Coolant gun
- 20 bar internal coolant through spindle centre
- Chip conveyor
- Chip container
- High pressure washing
- 3 COLOUR LED lamp for end of cycle
- EMC + safety module for CE regulations
-Heat exchanger
____
* Please note that this description may have been translated automatically. The information of this classified ad are only indicative and change without notice! GLOMACHT recommends to check the details with the seller. Contact us for further information.*
