Italmac Nova 600 C - Sierra de doble inglete - 2013
Especificaciones
| Fabricante | Italmac |
| Modelo | Nova 600 C |
| Año | 2013 |
| Condición | Usado |
| Fabricado en | Italia |
| Discos de sierra | Ø 600 mm |
| Dimensión mínima de corte | 370 mm (45 ° - 90 °) - 460 mm (22 ° 30') |
| Dimensión máxima de corte | 4000 mm + longitudes de corte sobredimensionadas |
| Soporte móvil | 2500 mm |
| Tamaño de corte | 4000 mm |
| Motor de la hoja de corte | 3 kW |
| Inclinación neumática externa | 90°, 45°, 22°30’ |
| Requerimiento total de potencia | 6.5 kW, 400V |
| Dimensiones | L 5200 x W 1650 x H 2000 mm |
| Peso | 1750 kg |
| Disponibilidad | Inmediata |
| Observaciones | *La información puede ser a veces inexacta y cambiar sin previo aviso! |
Descripción
Metalworking - Double Mitre Saw

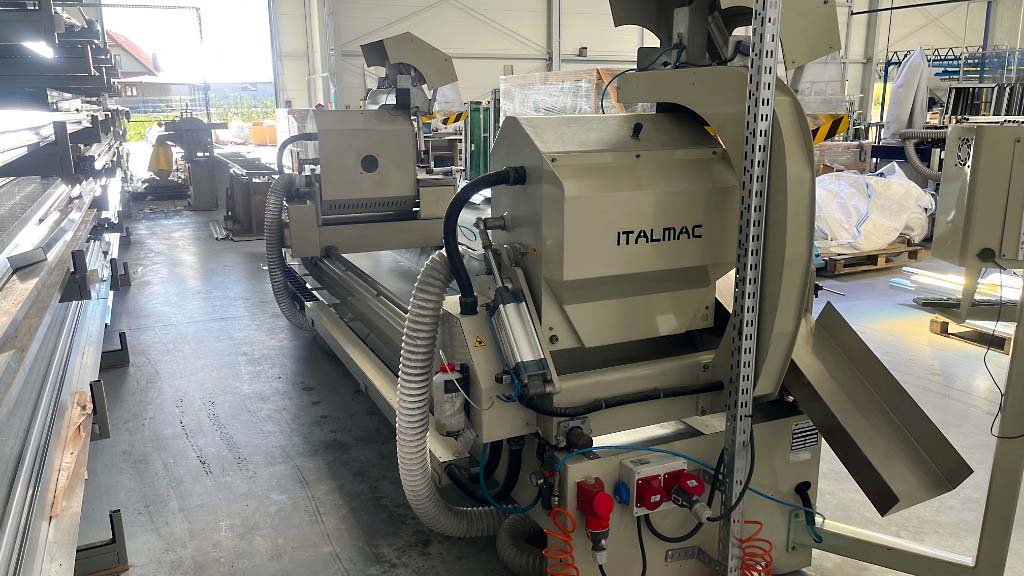

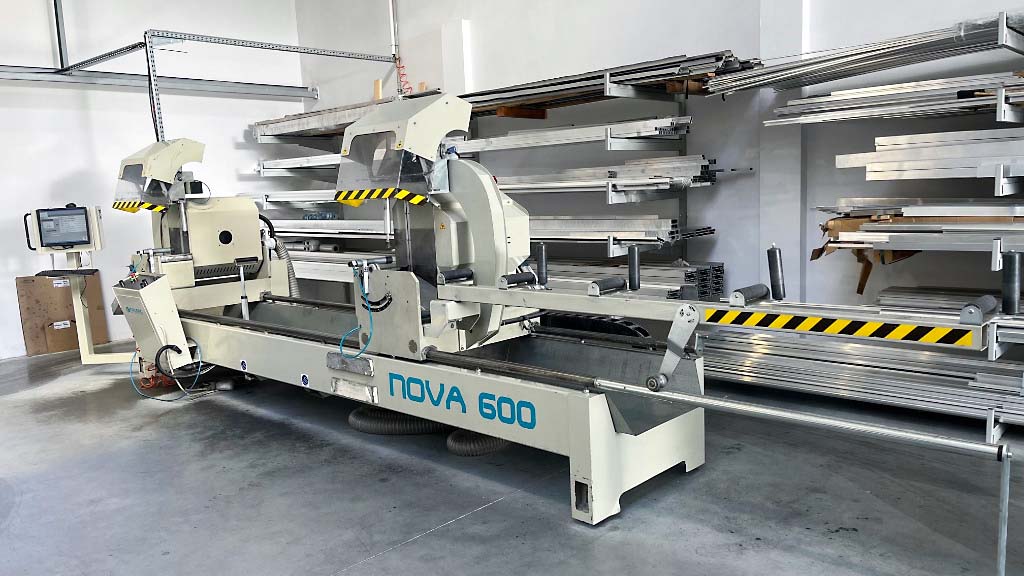

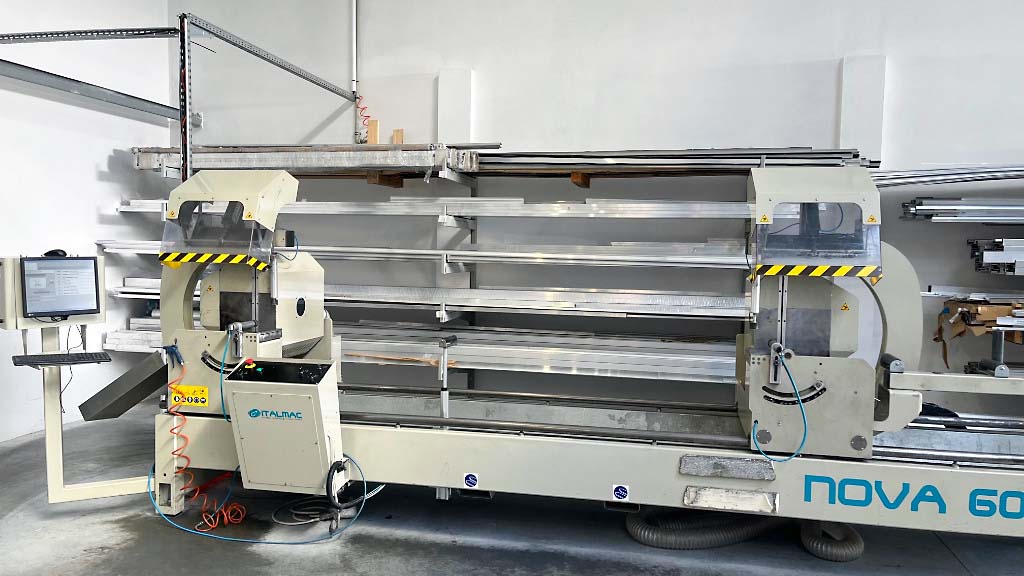

Used Italmac industrial machinery – Nova 600 C from 2013 located in Poland. This double mitre saw is equipped with an industrial computer with a movable console on the left side of the machine. 17 "LCD touch screen and has a saw blade diameter of 600 mm, 4000 mm cutting size and total power requirement of 6.5 kW.
More info:
Machine includes:
• Full protection of the cutting zone, pneumatically managed

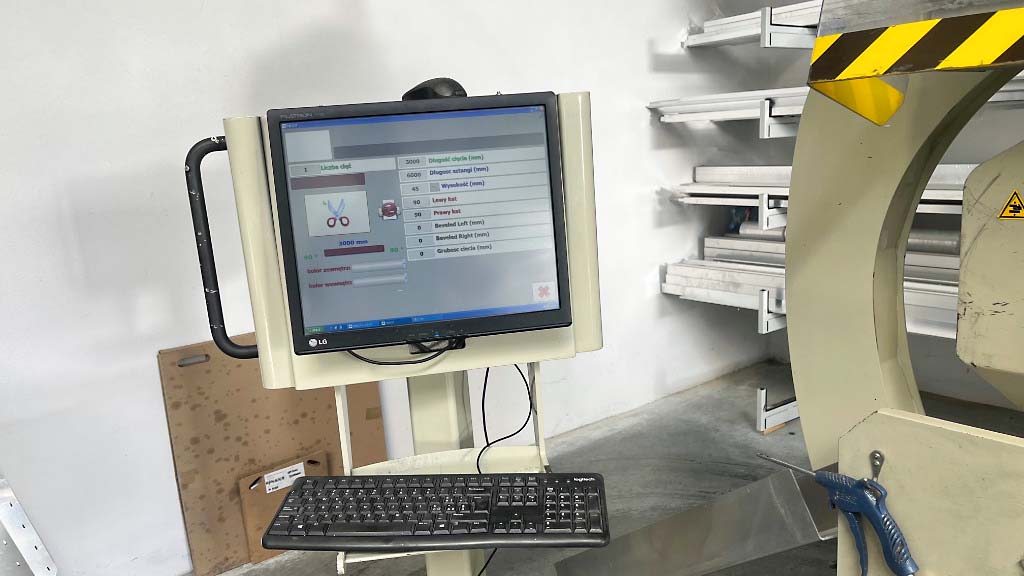

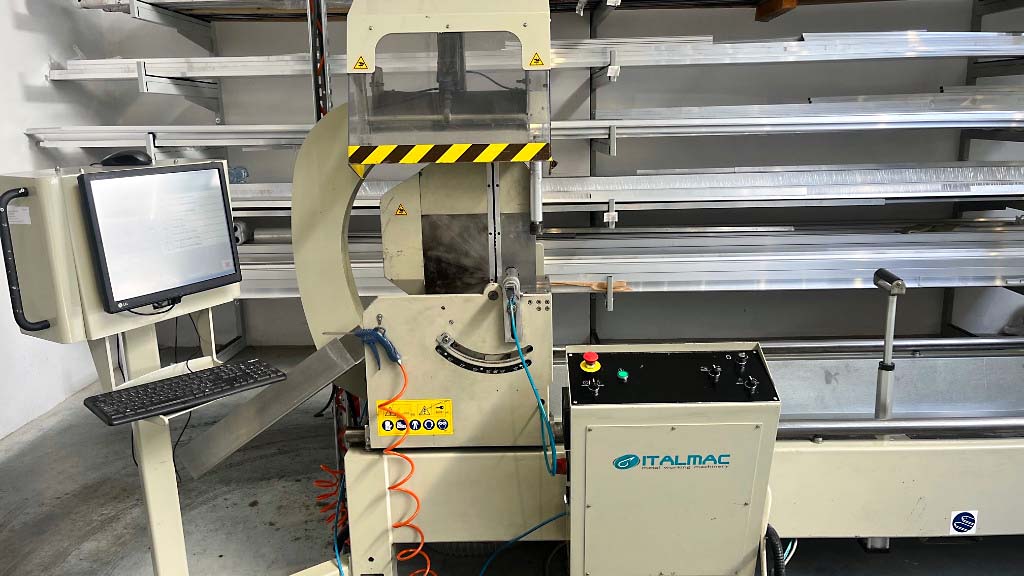

• Operator console located on the left side
• Vertical and horizontal clamps with low pressure safety device, disc guards
• Pneumatic sprinklers with lubrication pumps
• Serial RS 232 + USB port
• Preparation for automatic start of chip extraction.
• Pneumatic gun and pliers
• Waste tray
• Pneumatic center support for the profile

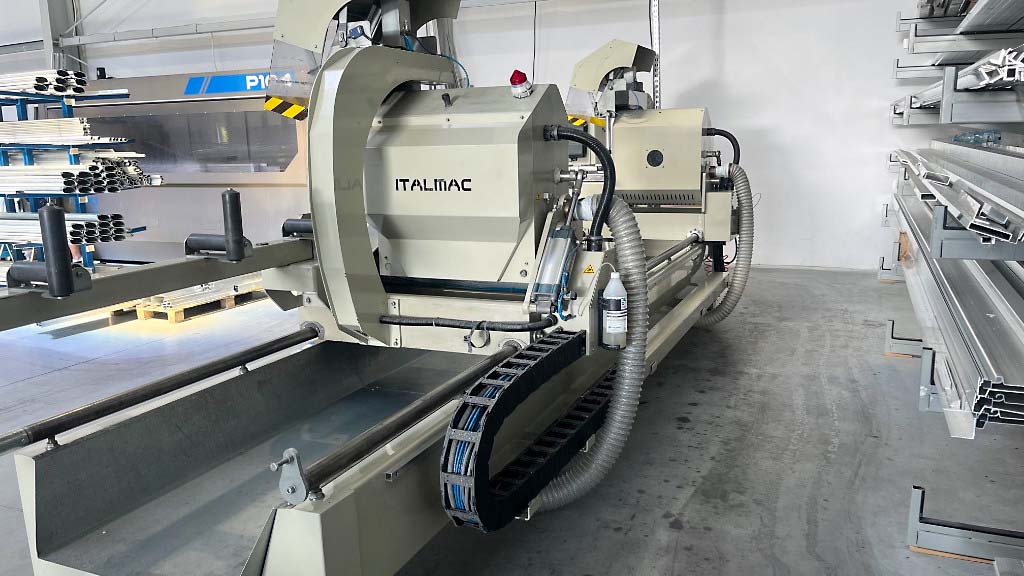

• Cutting heads move thanks to brushless motors while positioning along the X-axis managed electronically and in accordance with the parameters of the control system that reads the data from the cut list

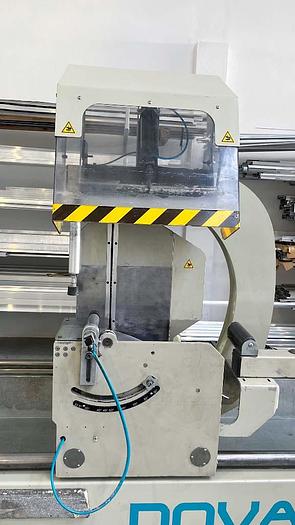

• Movable cutting heads are completely safe in the working area and the covers are lifted pneumatically
• User-friendly and legible graphic interface
• It is possible to install an additional license for the calculation program used by the client on the computer. This is possible thanks to the large capacity of the hard disk (80 GB SSD)
