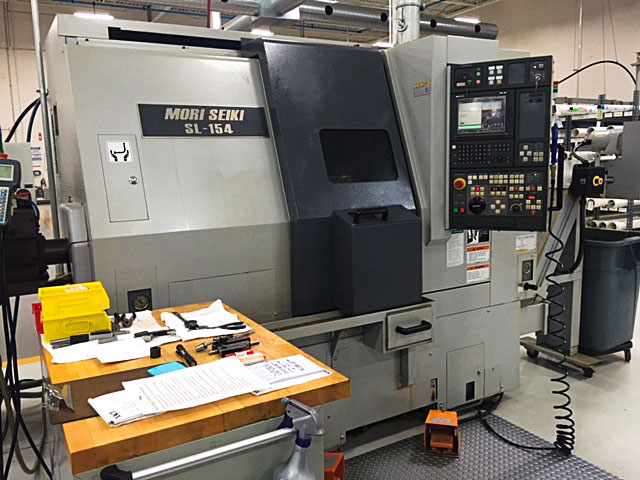

Mori seiki SL 154 SY - Torno CNC - 2004
Especificaciones
| Fabricante | Mori seiki |
| Modelo | SL 154 SY |
| Año | 2004 |
| Condición | Usado |
| Unidad de control | MSX 805 MAPPS |
| Longitud de torneado | 519 mm |
| Diámetro de torneado | 430 mm |
| Recorrido del eje X | 230 mm |
| Recorrido del eje Z | 520 mm |
| Agujero del husillo | 56 mm |
| Herramientas en el carro | 12 |
| Herramientas rotativas | 12 |
| Velocidad del husillo | 6000 rpm |
| Velocidad del husillo secundario | 6000 rpm |
| Potencia del motor del husillo | 15 kW |
| Tamaño del mandril | 55 mm |
| Dimensiones | L 2230 x W 1740 x H 1850 mm |
| Peso | 3900 Kg |
| Disponibilidad | Inmediatamente |
| Observaciones | *¡La información puede ser a veces inexacta y cambiar sin previo aviso! |
Descripción
Metalworking - CNC Lathe / Turning Machine
More info:
Machine with power tools, C axis. Y axis with + - 35 mm travel.
Integrated head motor 11 KW. Integrated sub-spindle motor 7.5 KW.
Head size A2-5. Bar pitch 52 mm. Prismatic guides on all axes.

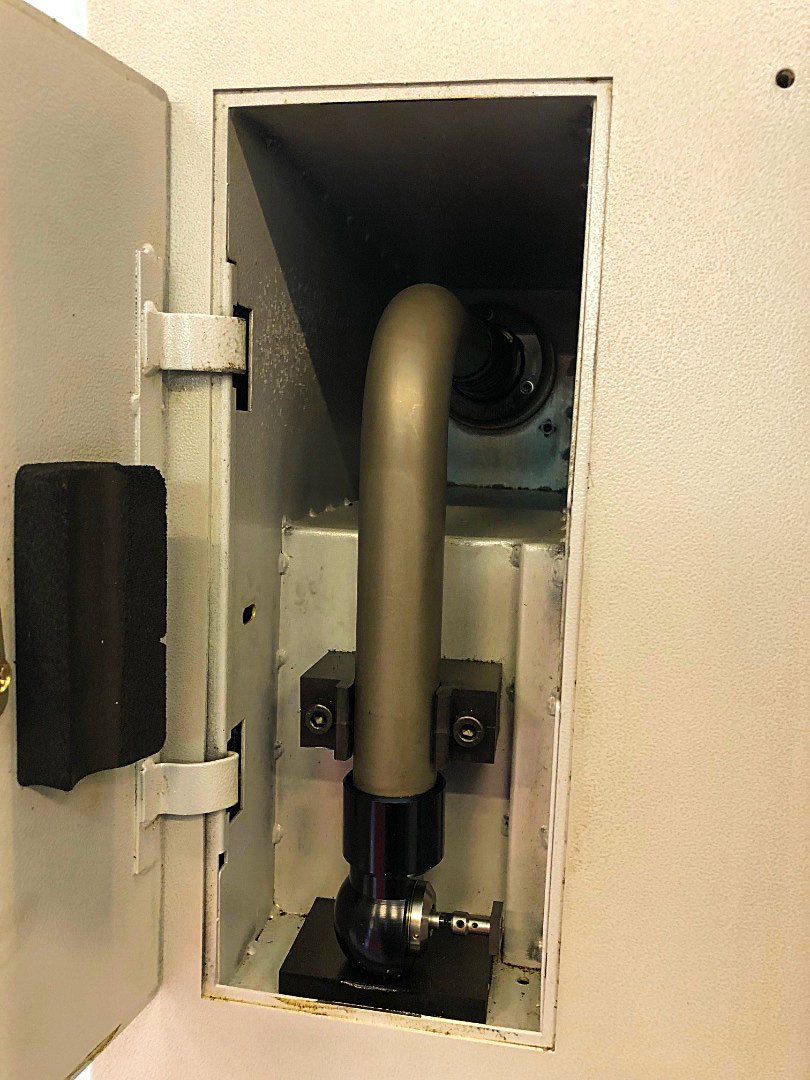

Renishaw tool automatic measuring arm.
Mapps 3 conversational automatic programming system.
Automatic effort control and tool consumption monitor.
Fast displacement speed 18 and 24 m / min.
Interface for bar loader installation.
Automatic parts collector, Finished part extractor.
Hainbuch chuck for subspindle. Chip extractor.
Outdoor and indoor tool holder. Axial and radial motorized blocks.
