Homag Drillteq V-500 I Vertical CNC Machining Center I 2022
Specifications
| Manufacturer | Homag |
| Model | Drillteq V-500 |
| Year | 2022 |
| Condition | Used |
| Made in | Germany |
| Workpiece length | 3050 mm |
| Workpiece width | 1250 mm |
| Workpiece thickness | 80 mm |
| Workpiece weight | 60 kg |
| Vector speed X-Y-Z | 50 - 50 - 15 m/min |
| Milling spindle | F1 - HSK F63 |
| Motor power | 10 kW |
| Drilling head | 25 pcs of drilling spindles |
| Drilling unit | 15 pcs of vertical drilling spindles, 6 pcs horizontal in the X axis, 4 pcs horizontal in the Y axis |
| Grooving saw in the X/Y axis rotatable | 90° |
| Tool magazine | 4 positions |
| Dimensions | L 6400 x W 3900 x H 2500 mm |
| Weight | 3500 kg |
| Availability | Immediately |
Description
Discover this used Homag Drillteq V-500 woodworking machinery from 2022, located in Slovakia. This vertical CNC machining center is a precision powerhouse, featuring a spacious working area of 3050 x 1250 mm, making it ideal for a diverse range of woodworking applications. Equipped with an F1 - HSK F63 milling spindle, this machine ensures high-speed and accurate milling operations for intricate designs. The robust motor power of 10 kW empowers you to tackle woodworking tasks with efficiency and precision. Invest in the reliable Homag Drillteq V-500 today to elevate your woodworking capabilities and achieve outstanding results in your projects.
Features:
- Double collet clamping system 2 pcs.
- Complete software for controlling the machine.
- Control system POWER Touch 24".
- Length measurement of the part and compensation.

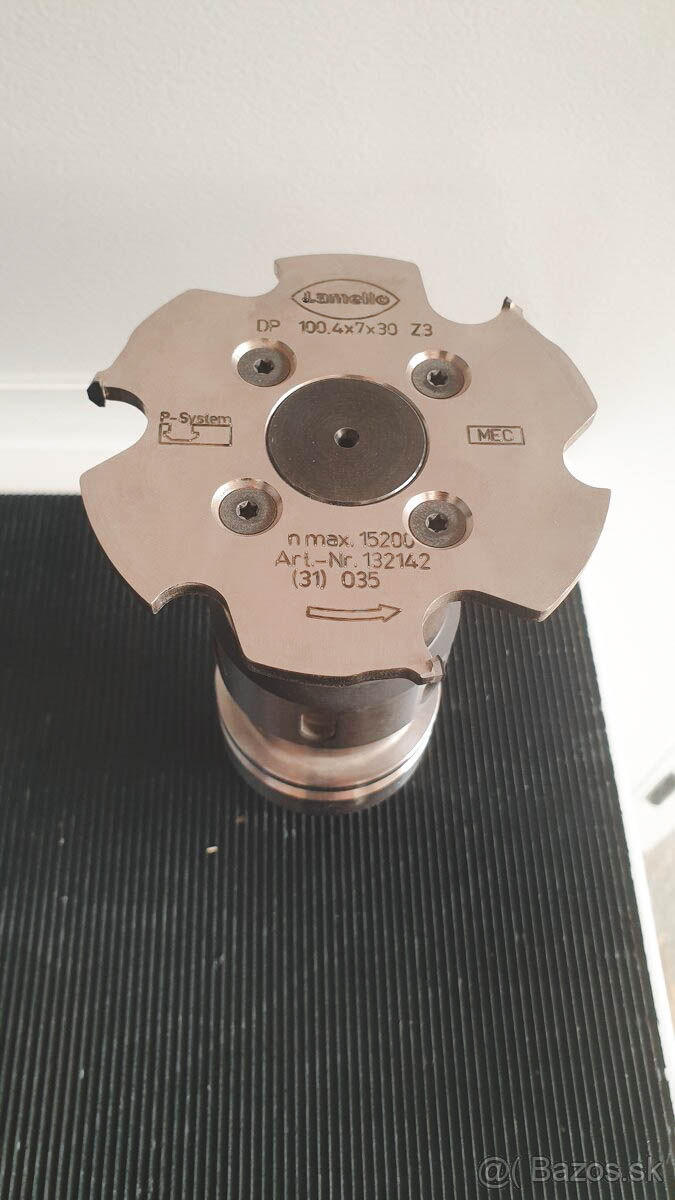

- Grooving milling unit for CLAMEX-P – rotatable by 90° in the direction of the X/Y axis without a tool.
- Starter package LAMELLO CLAMEX - P.
- Barcode reader.
- WoodWOP office software package.
Included with the Machine:
- Clamex
- Charging collar
Homag Machinery
Homag is a renowned brand in the woodworking and furniture production industry, specializing in the manufacturing of a diverse range of machinery and equipment. Their product lineup, encompasses edgebanders, CNC machining centers, panel saws, edge processing machines, drilling and dowel insertion machines, bore and dowel insertion machines, and sanders, all tailored for precision woodworking tasks. Homag is known for its commitment to quality, precision, and innovation in the field of woodworking machinery, catering to the needs of woodworking shops, furniture production, and custom woodworking.
