SCM Pratix S22-31 - CNC Machining Center - 2015
Specifications
| Manufacturer | SCM |
| Model | Pratix S22-31 |
| Year | 2015 |
| Condition | Used |
| Made in | Italy |
| X-Axis travel | 3086 mm |
| Y-Axis travel | 2155 mm |
| Z-Axis travel | 150 mm |
| Vectorial speed X-Y axes | 35 m/min |
| Milling head | 9.5 kW |
| Spindle speed | 24000 rpm |
| Tool holder | HSK-63 |
| Drilling head | F12 |
| Integrated blade in X | 120 Ø mm - 7500 rpm |
| Exhaust outlet diameter | 200 (250*) mm |
| Dimensions | L 5065 x W 3373 x H 2190 mm |
| Weight | 2550 kg |
| Availability | Immediately |
| Observations | *Information can sometimes be inaccurate and change without notice! |
Description
Woodworking - CNC Machining Center

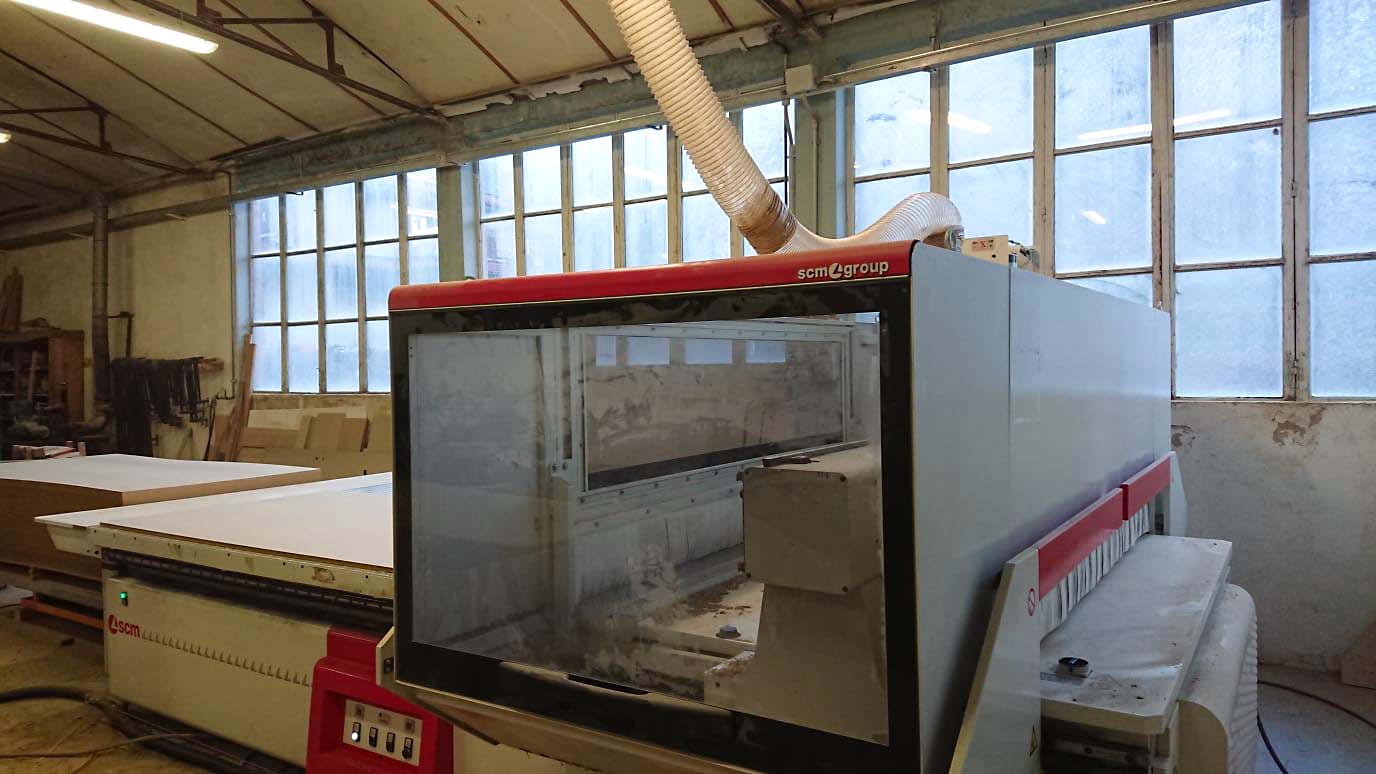

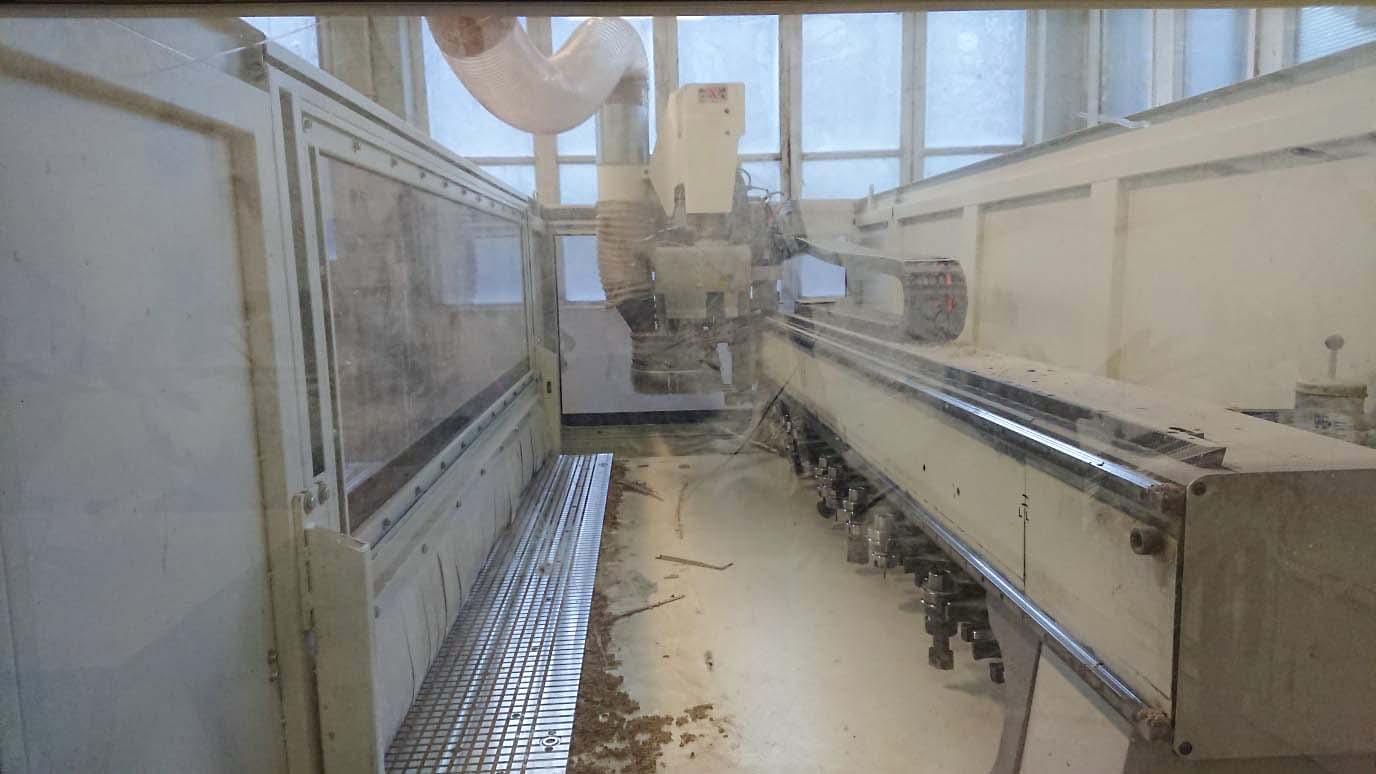

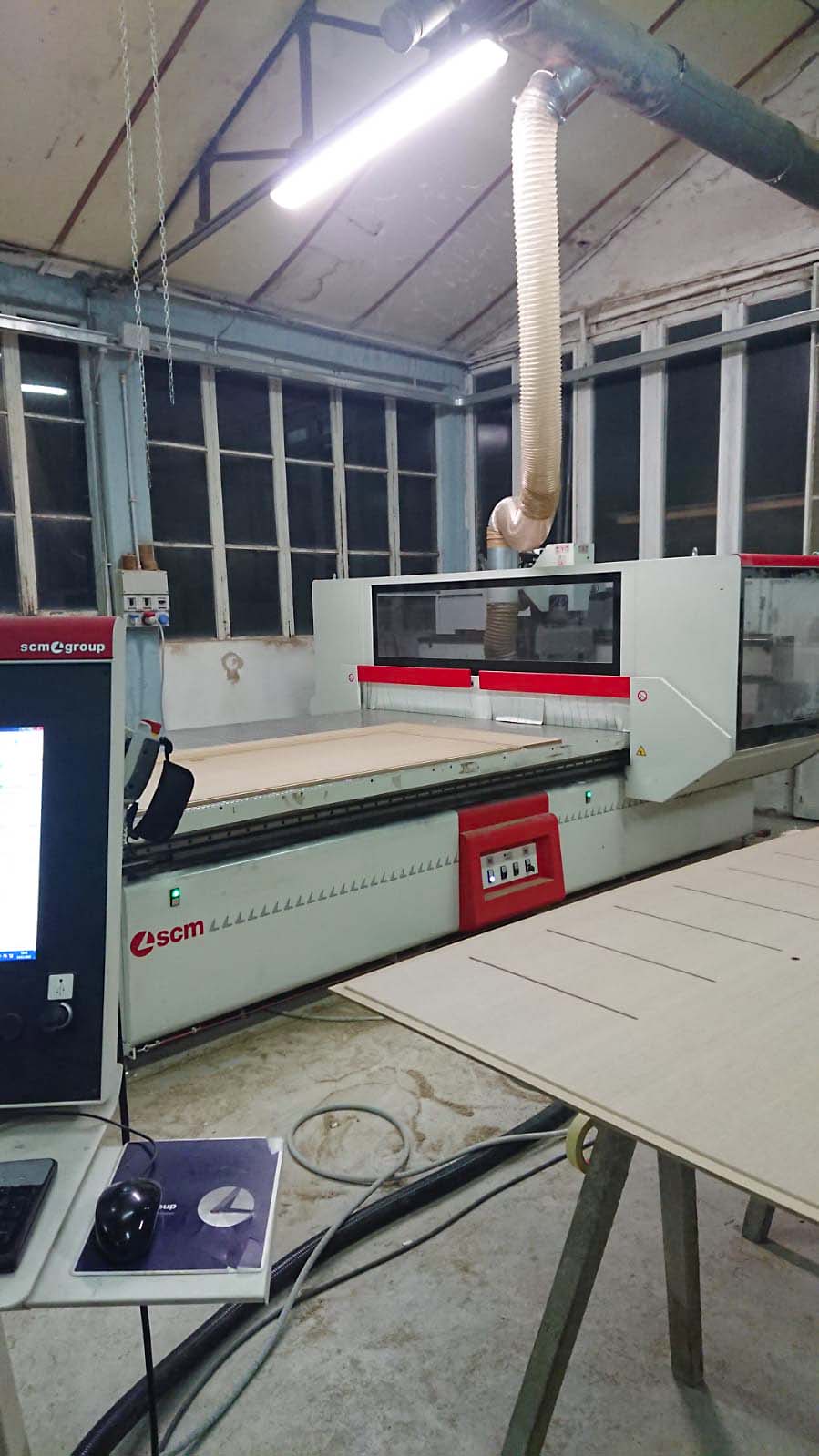

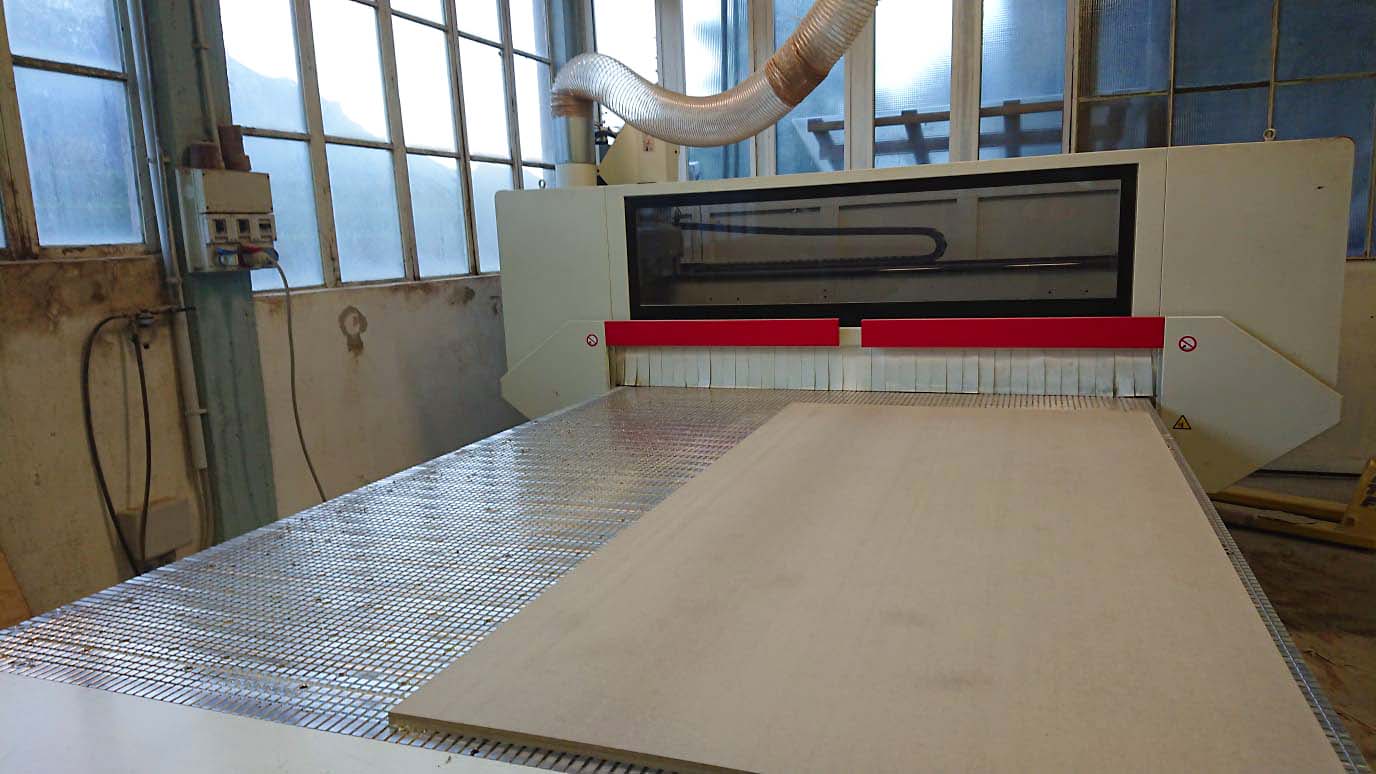

Used SCM industrial machinery – Pratix S22-31 from 2015 located in Spain. This CNC machining center has a working area of 3086 x 2155 mm, 24000 rpm spindle speed and milling head of 9.5 kW.
More info:

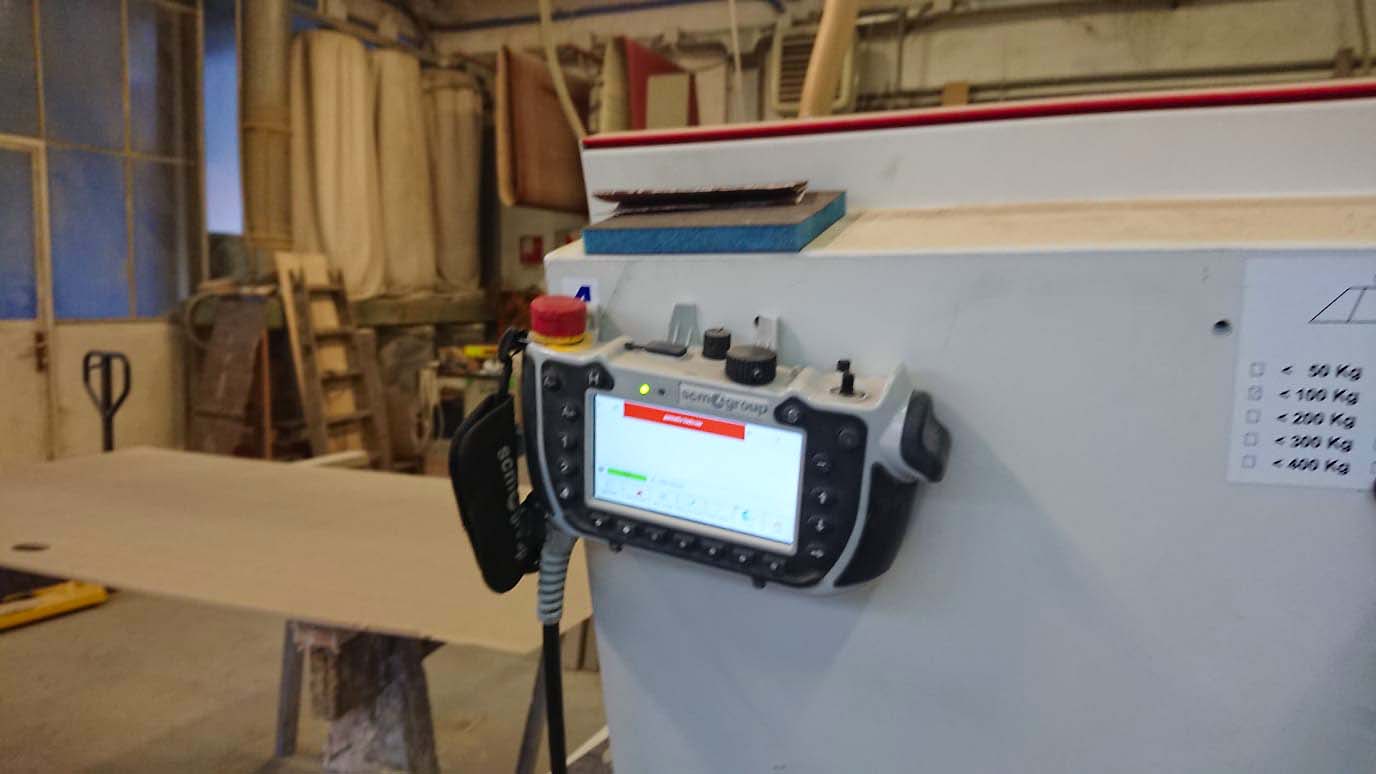

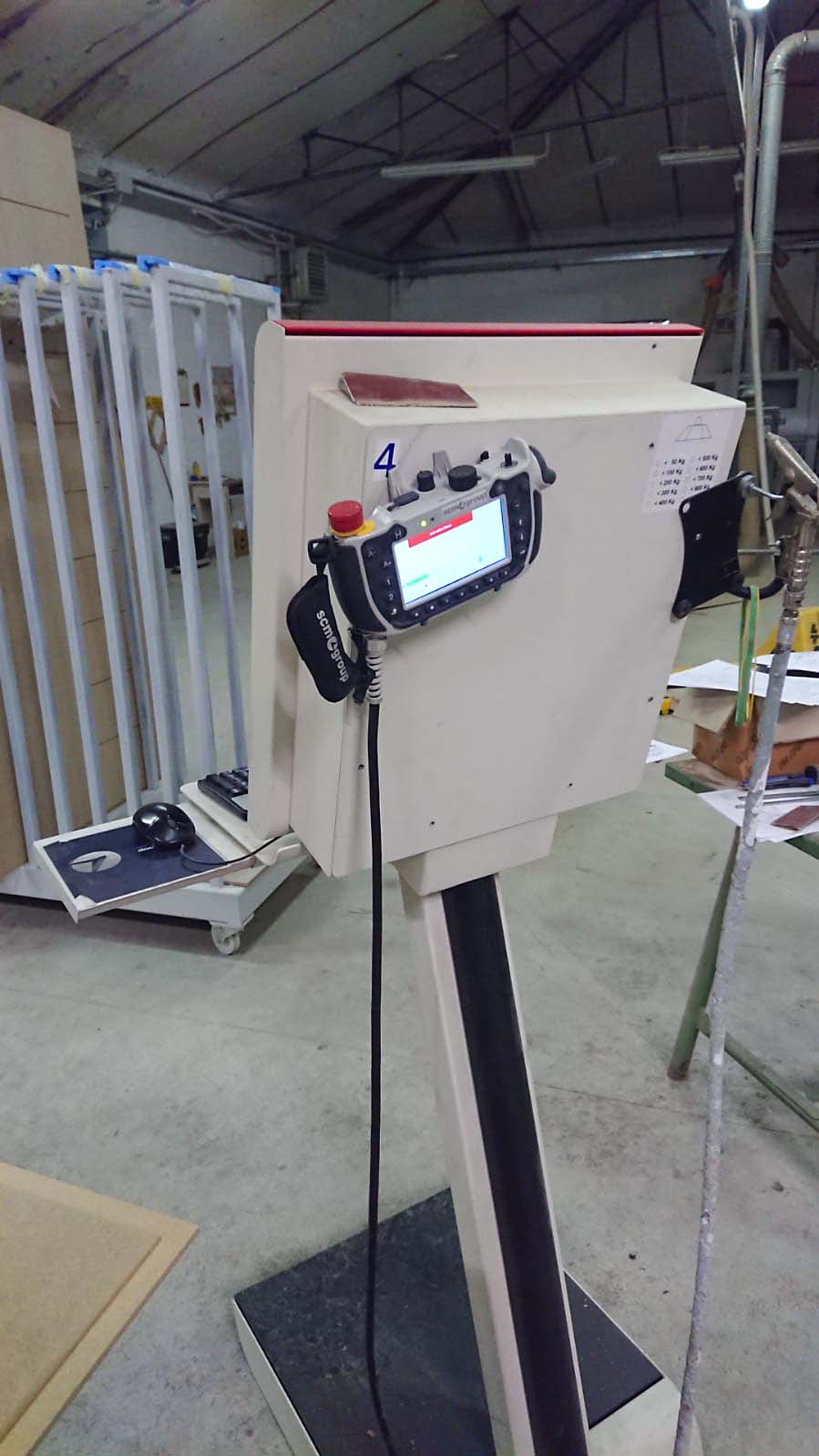

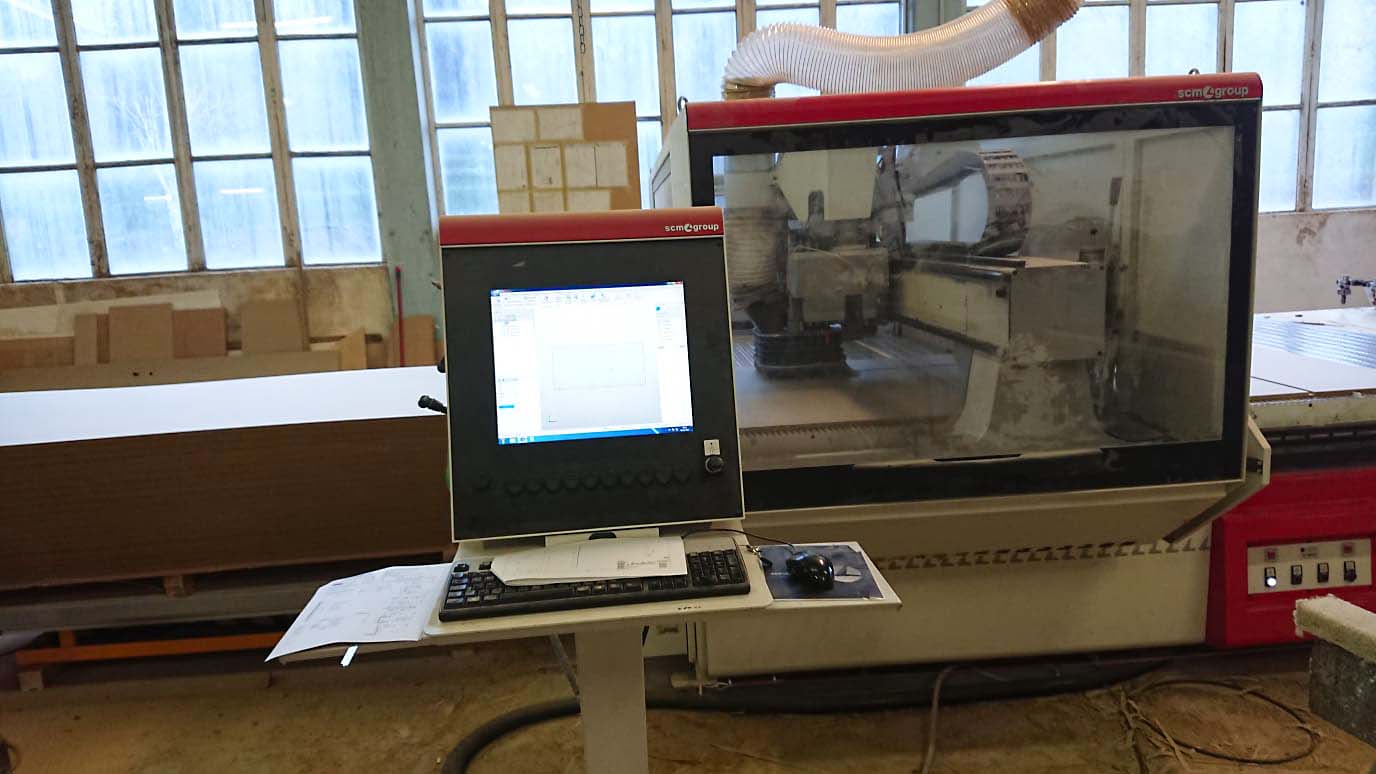

Machine with remote control, inverter for drilling head, predisposition for angular geared heads, blower on milling head, TR13 tool changer magazine for S22, N°1 tool holder DER. HSK-63 for elastic collets ER-32, high Efficiency (HE) multifunction table in high performance aluminium, N°4 rear stops DER. for zone "D", predisposition for up to 2 vacuum pumps, mobile console with PC-Panel and hardware key for Master CNC nesting USB.
Optional included in the machine: air conditioning for electrical cabinet, interpolating vector axis with digital control, blowers on electric spindle, side pick up loader with 1 pick up position, increased tool storage capacity, left rear stops for "a" zone, E and H field disappearing beaters controlled by nc, tool length sensor, suction cups MPS 90x90 H=25mm, suction cups MPS 130x50 H=25mm, suction cups MPS 130x130 H=25mm and nesting free-form module for Xilog master.
For more information please download the brochure.
