Soraluce Soramill 4 TF4 - Bed Milling - 1995
or
Call +31 6 8722 7638
Specifications
| Manufacturer | Soraluce |
| Model | Soramill 4 TF4 |
| Year | 1995 |
| Condition | Used |
| Made in | Spain |

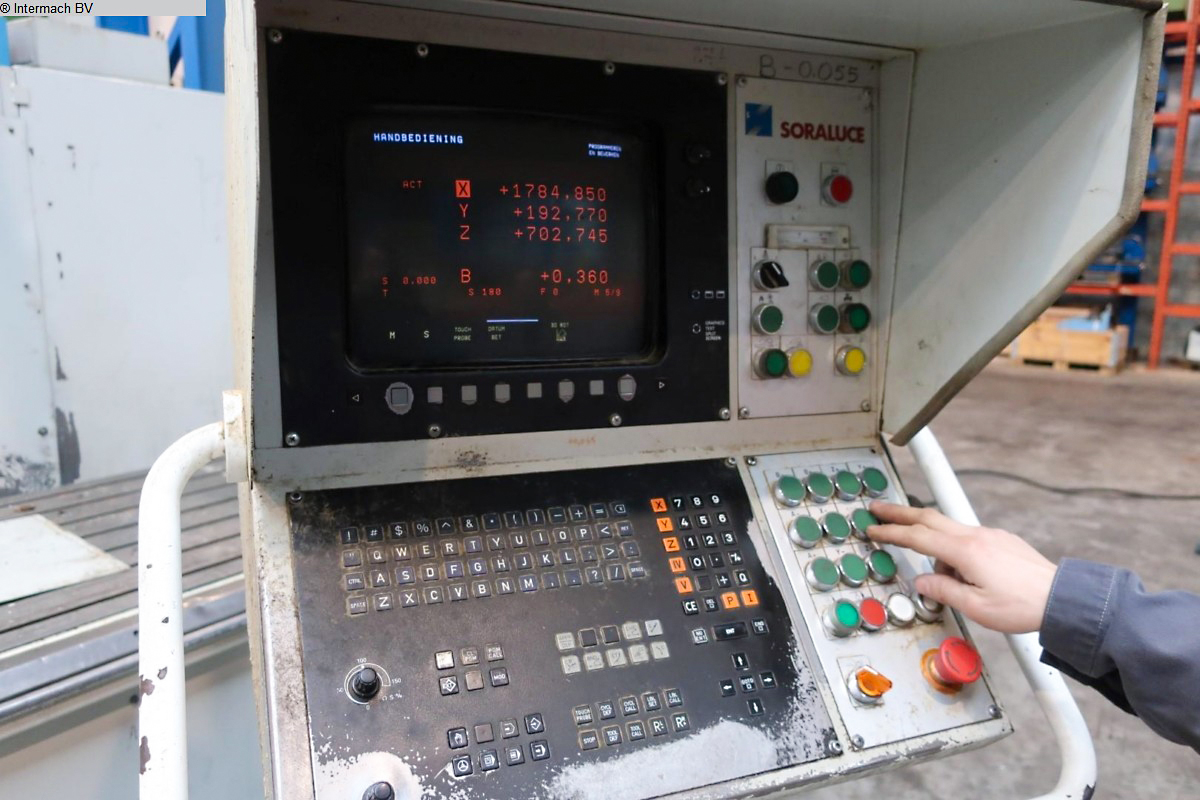

| Control unit | Heidenhain TNC 415 B |
| X-Axis travel | 4000 mm |
| Y-Axis travel | 1000 mm |
| Z-Axis travel | 1500 mm |
| Table length | 4000 mm |
| Table width | 1000 mm |
| Spindle speed | 3000 rpm |
| Spindle taper | ISO 50 |
| Motor power | 22 kW |
| Dimensions | L 10000 x W 6000 x H 4250 mm |
| Weight | 25000 kg |
| Availability | Immediately |
| Observations | *Information can sometimes be inaccurate and change without notice! |
Description
Metalworking - Bed Milling

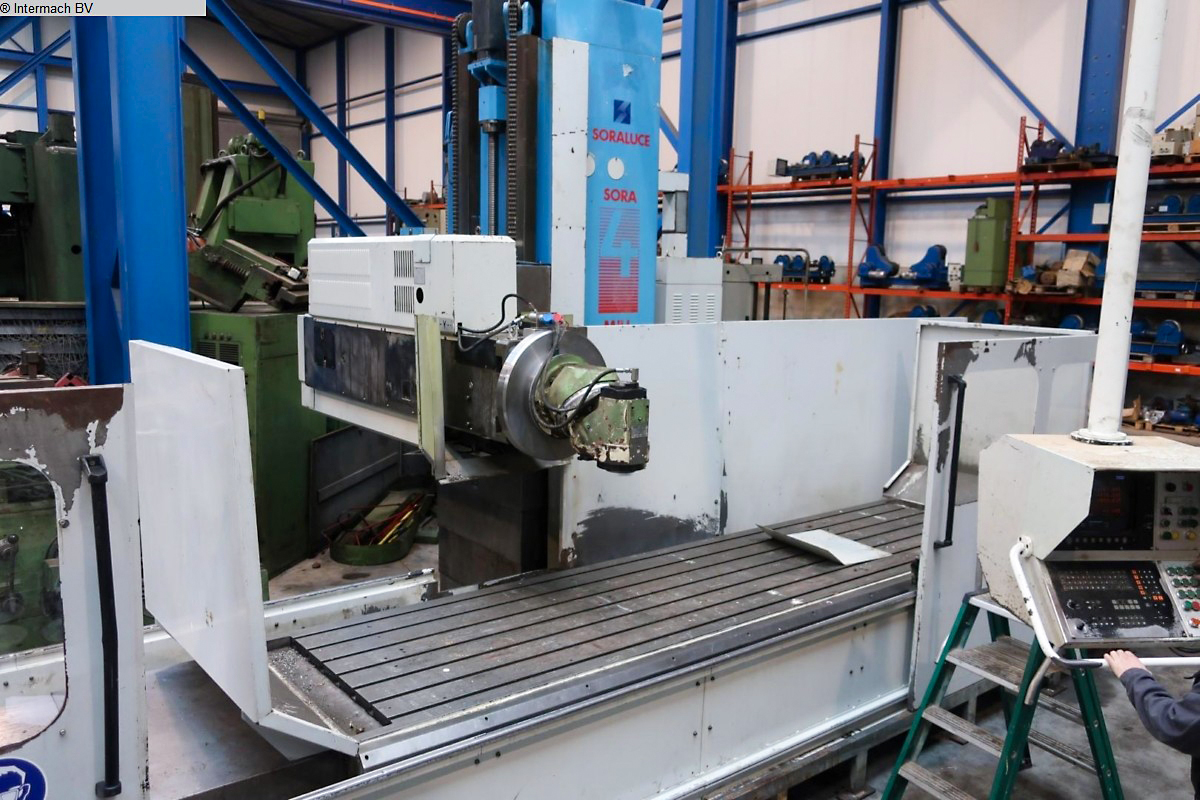

Used Soraluce industrial machinery – Soramill 4 TF4 from 1995 located in The Netherlands. This bed milling machine is equipped with a control unit Heidenhain TNC 415 B and has a working area of 4000 x 1000 mm, 3000 rpm spindle speed and motor power of 22 kW.
More info:

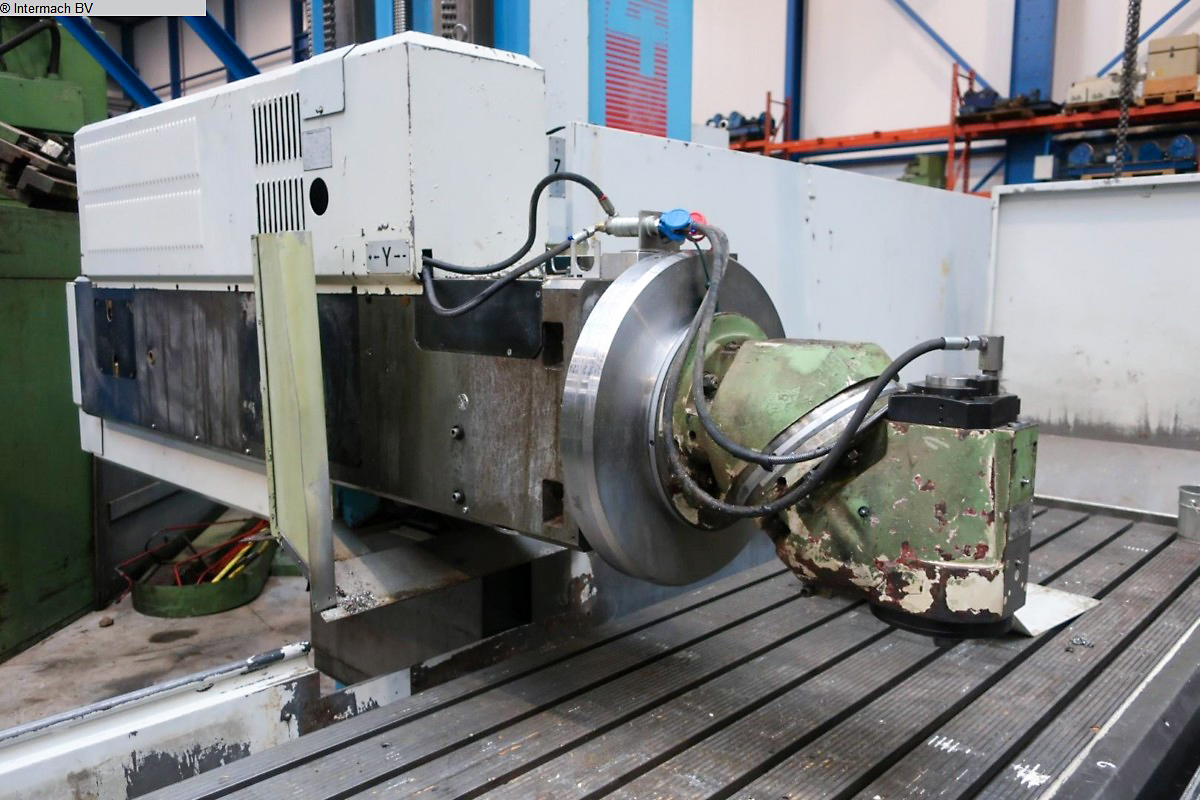

Machine with Huron milling head.
____
* Please note that this description may have been translated automatically. The information of this classified ad are only indicative and change without notice! GLOMACHT recommends to check the details with the seller. Contact us for further information.*
