Wemtech dynamic 150/300 H20 - Máquina de Corte por Plasma - 2022
Especificaciones
| Fabricante | Wemtech dynamic |
| Modelo | 150/300 H20 |
| Año | 2022 |
| Condición | Usado |
| Fabricado en | Polonia |
| Unidad de control | WIN |
| Área de trabajo | L 3050 x W 1550 mm |
| Capacidad de carga de la mesa | 3000 kg |
| Motores servo de accionamiento para el eje X | 4.5 Nm |
| Motores servo de accionamiento para el eje Y | 8.5 Nm |
| Motores servo de accionamiento para el eje Z | 4.5 Nm |
| Velocidad de alimentación | 25 m/min |
| Dimensiones | L 3600 x W 2260 x H 1380 mm |
| Peso | 1200 Kg |
| Disponibilidad | Inmediatamente |
| Observaciones | *La información puede ser a veces inexacta y cambiar sin previo aviso! |
Descripción

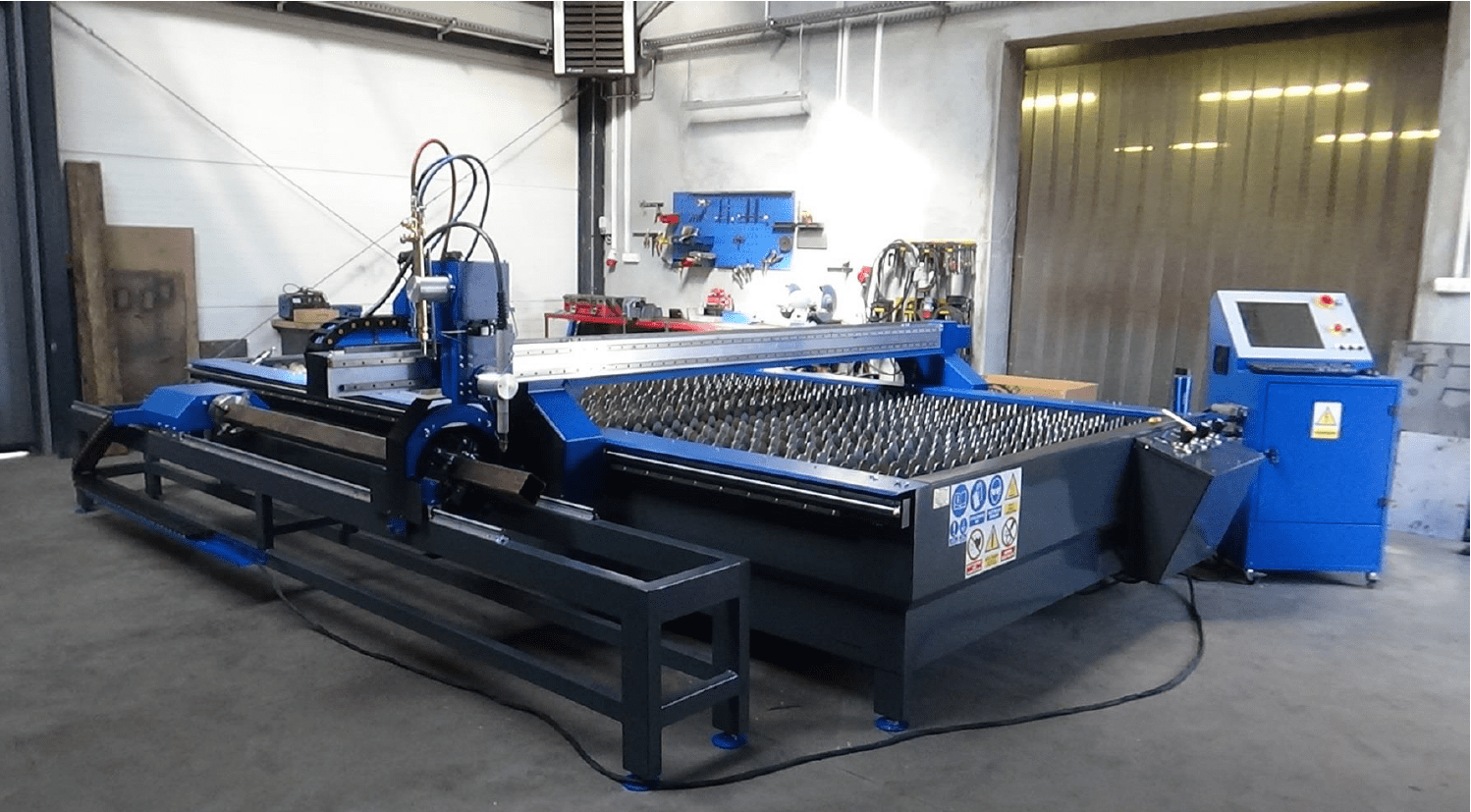

Metalworking - Plasma Cutting Machine
Used Wemtech dynamic machines – 150/300 H20 from 2022 made in Poland located in Poland. This plasma cutting machine is equipped with a control unit WIN and has a working area of L 3050 x W 1550 mm, 25 m/min feed speed.
Includes the following:
Table structure welded from thick-walled steel profiles.
Precise milling
All steel parts polyurethane coated and powder coated
DESKTOP EQUIPMENT
PC computer with LPT connector
Software System :WIN
Licensed control program My Plasm
Licensed software for generating
cutting paths SheetCam
All programs in Polish version
Monitor 17 or 19" LED
Controllers 3 * controllers for X Y axis
1* Z-axis driver
Control system
burner height control
THC by Proma Elektronika
Machine control
machine
With mouse and keyboard
- Polish construction
- Plate detection system
- THC cutting height control system
- Operator panel included
- Double-sided gate drive
- Drive realized on servo motors with encoders and toothed rails
- Travel speed G0 - 25m/min, high dynamics of the X, Y, and Z axes
- water table
- Software and lifetime personalized license My Plasm, SheetCam
- Warranty and post-warranty service
- Transport and unloading on the side of the buyer
- DTR , CE declaration of conformity
- Colors blue and grey
____
