SCM Tech z2-31 - Centro de Mecanizado CNC - 2011
Vendido
Especificaciones
| Fabricante | SCM |
| Modelo | Tech z2-31 |
| Año | 2011 |
| Condición | Usado |
| Fabricado en | Italia |

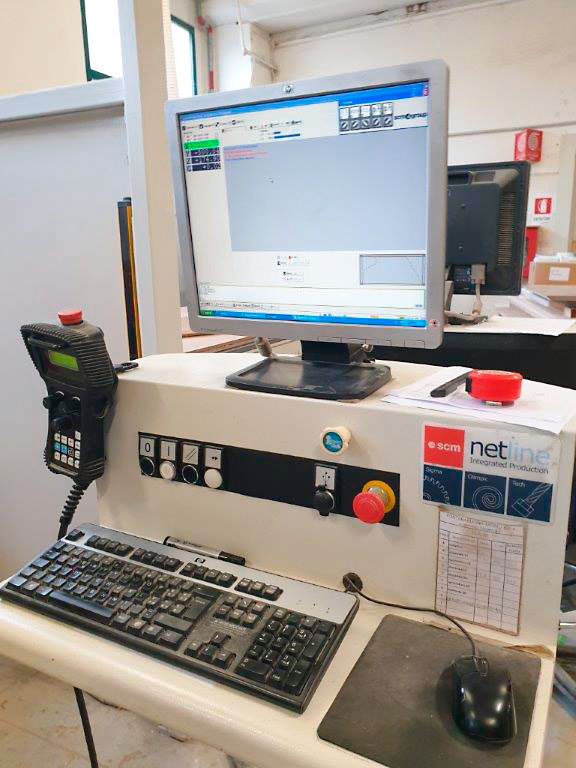

| Unidad de control | SCM XILOG PLUS, SPAI X-CAB BASE |
| Recorrido del eje X | 3460 mm |
| Recorrido del eje Y | 1735 mm |
| Recorrido del eje Z | 250 mm |
| Número de ejes | 4 con eje C |
| Longitud de la mesa | 3050 mm |
| Ancho de la mesa | 1300 mm |
| Cono del husillo | HSK-F63 |
| Potencia del motor | 10 HP |
| Bomba de vacío | 90 m³/h |
| Husillos de perforación vertical | 12 |

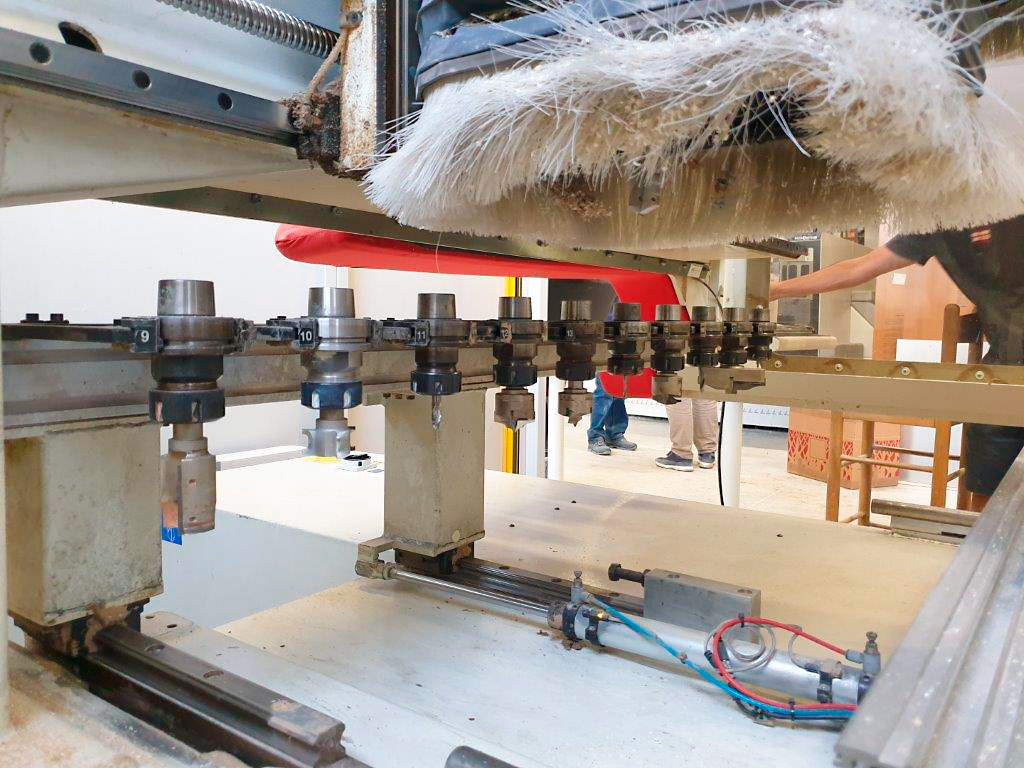

| Portaherramientas | 18 |
| Velocidad de rotación máxima | 24000 rpm |
| Dimensiones | L 6720 x W 3870 x H 2600 mm |
| Peso | 2500 kg |
| Disponibilidad | Inmediata |
| Observaciones | *¡La información puede ser a veces inexacta y cambiar sin previo aviso! |
Descripción
Woodworking - CNC Machining Centre
Used SCM industrial machinery – Tech z2-31 from 2011 located in Spain. This CNC machining centre is equipped with a control unit SCM XILOG PLUS, SPAI X-CAB BASE and has a working area of 3050 x 1300 mm, 24000 rpm rotation speed max, motor power 10 HP.
More info:
Machine with 4 axis, positioning assistance, SCM F 18, SCM RAPID 8, SCM TR 10.
For more information please download the brochure.
