Biesse Rover 335 - CNC Bewerking Centrum - 1993
Verkocht
Specificaties
| Fabrikant | Biesse |
| Model | Rover 335 |
| Jaar | 1993 |
| Conditie | Gebruikt |
| Gemaakt in | Italië |

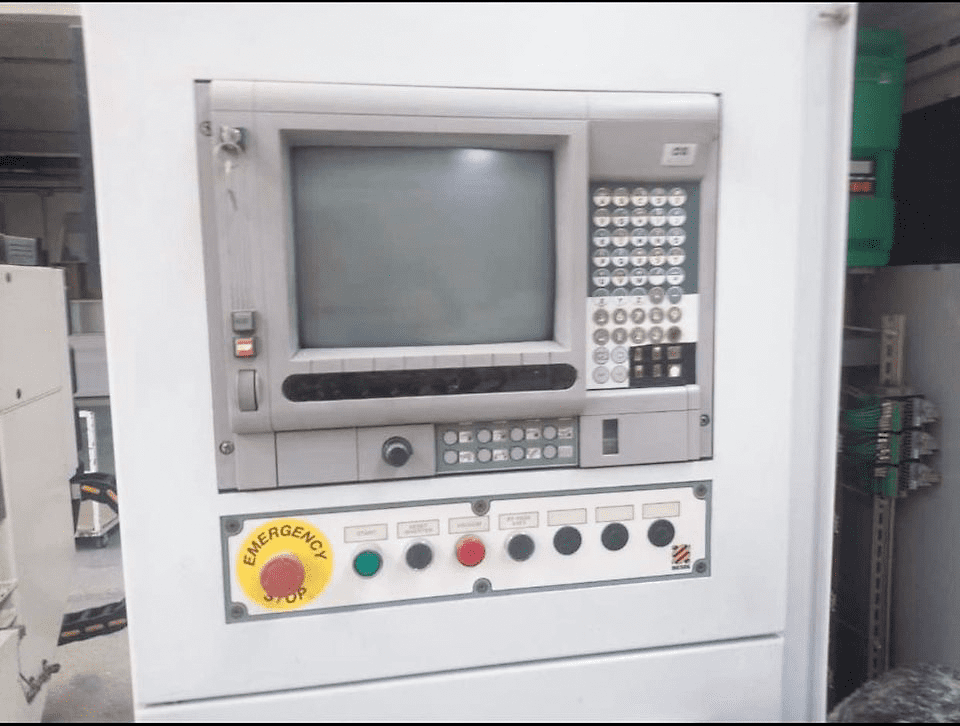

| Besturingseenheid | CNi RT480 |
| X-as verplaatsing | 3200 mm |
| Y-as verplaatsing | 946 mm |
| Z-as verplaatsing | 110 mm |
| Max programmeerbare snelheid X-as | 65 m/min |
| Max programmeerbare snelheid Y-as | 65 m/min |
| Max programmeerbare snelheid Z-as | 13.5 m/min |
| Verticale spindels | 24 |
| Spindelrotatiesnelheid | 4000 rpm |
| Vermogen rotatie/snelheid | 3 HP/12000 rpm |
| Geïnstalleerd vermogen | 25 kW |
| Vacuum pomp | 40 m3/h |
| Spanning | 380 V |
| Afmetingen | L 5435 x B 3577 x H 1700 mm |
| Gewicht | 3000 kg |
| Beschikbaarheid | Onmiddellijk |
| Opmerkingen | *Informatie kan soms onnauwkeurig zijn en zonder voorafgaande kennisgeving veranderen! |
Beschrijving

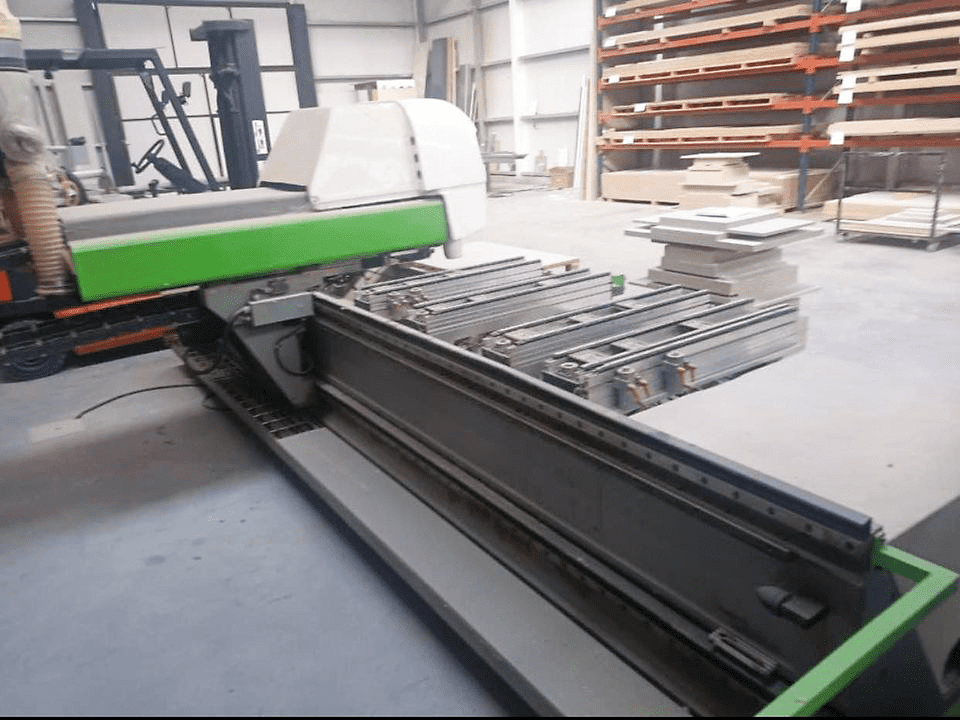

Woodworking - CNC Machining Centre
Used Biesse industrial machinery – Rover 335 from 1993 located in Spain. This CNC machining centre is equipped with a control unit CNi RT480 and has a spindle rotation speed of 4000 rpm and installed power 25 kW.
More info:
Cnc is in good condition, but it was deconfigured and does not have the disks to configure, it can be fixed by making a retrofit.
For more information please download the brochure.
