Loroch Evolution K850-M - Centros de mecanizado verticales - 2018
Especificaciones
| Fabricante | Loroch |
| Modelo | Evolution K850-M |
| Año | 2018 |
| Condición | Usado |
| Fabricado en | Alemania |
| Unidad de control | Solución CNC K850-T |
| Afilado de cuchillas | Ø (40) 130 – 850 mm |
| Afilado automático de cuchillas | Ø (75) 130 – 520 mm |
| Chaflanado de cuchillas | Ø (105) 145 – 850 mm |
| Paso de diente | 1 – 40 mm |
| Altura de diente | máx. 17 mm |
| Número de dientes | 2 – 998 |
| Grosor de cuchilla | hasta 8 mm |
| Capacidad de carga del magazín | 40 cuchillas |
| Número de ejes | 7 |
| Cuchilla | 130- 850 mm |
| Rueda de afilado | 3KW. |
| Valor de conexión eléctrica | 6.5-8.9 kw |
| Bomba de vacío | 6.5 bar a aprox: 36 l / min |
| Diámetro de cuchilla, cargador de afilado | 130-520 mm |
| Diámetro de cuchilla, afilado manual | 130 mm máx. |
| Diámetro de cuchilla, cargador de chaflanado | 145-520 mm |
| Diámetro de cuchilla, chaflanado manual | 145-máx. mm |
| Posibles agujeros de cuchilla en el magazín | 32-60 mm |
| Posibles agujeros de la cuchilla manual | 25-80 mm |
| Dimensiones | L 2.400 x W 1.700 x H 2.200 mm |
| Peso | 2.000 Kg |
| Disponibilidad | Inmediata |
| Observaciones | *La información puede ser a veces inexacta y cambiar sin previo aviso! |
Descripción
Metalworking - CNC Machining centers

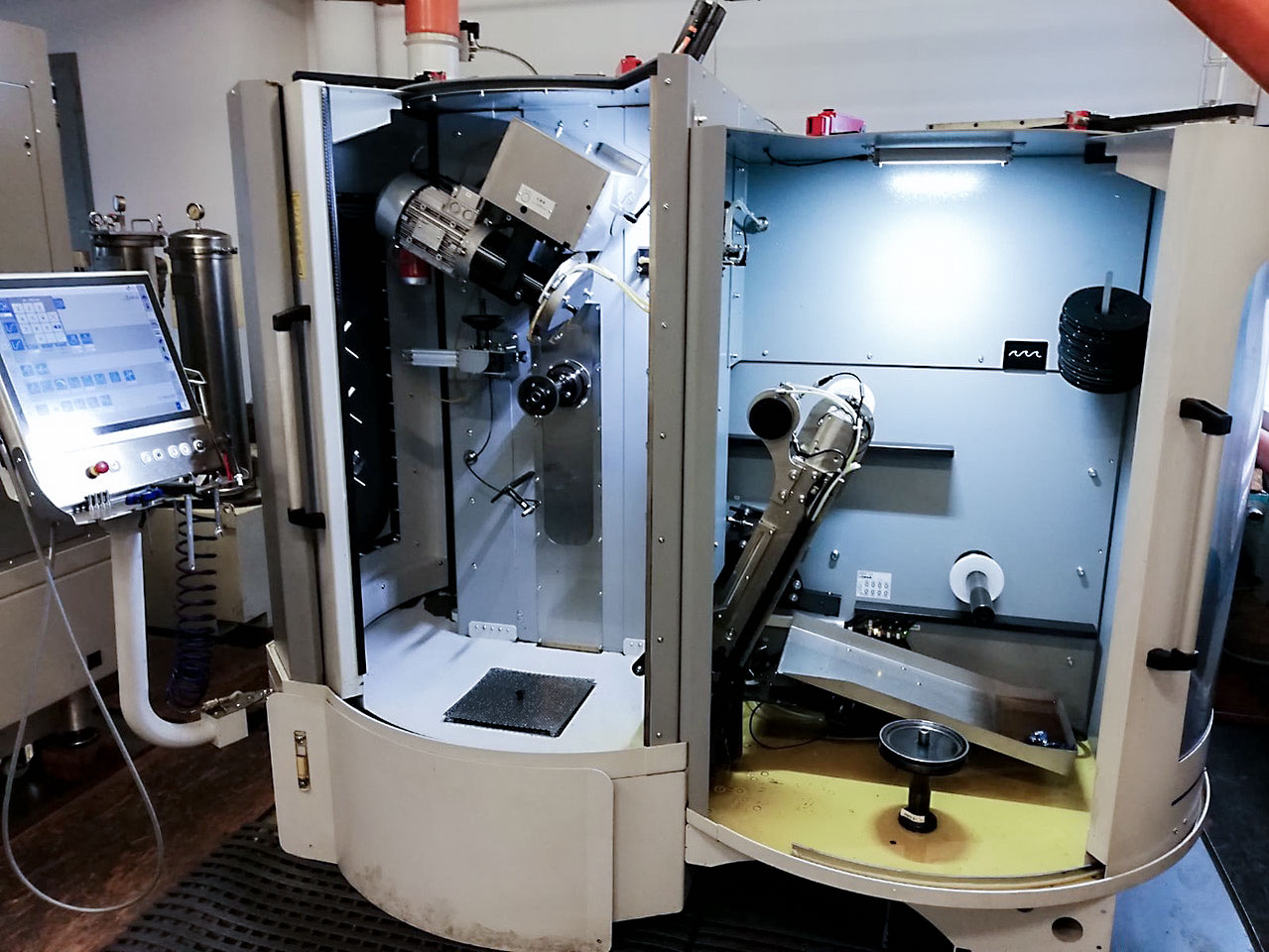

Used Loroch – Evolution K850-M from 2018 is made in Germany. This Machining Centres - Vertical is equipped with a ontrol unit: CNC solution K850-T. The machine has a power motor 6.5-8.9 kw and is equipped with the following:

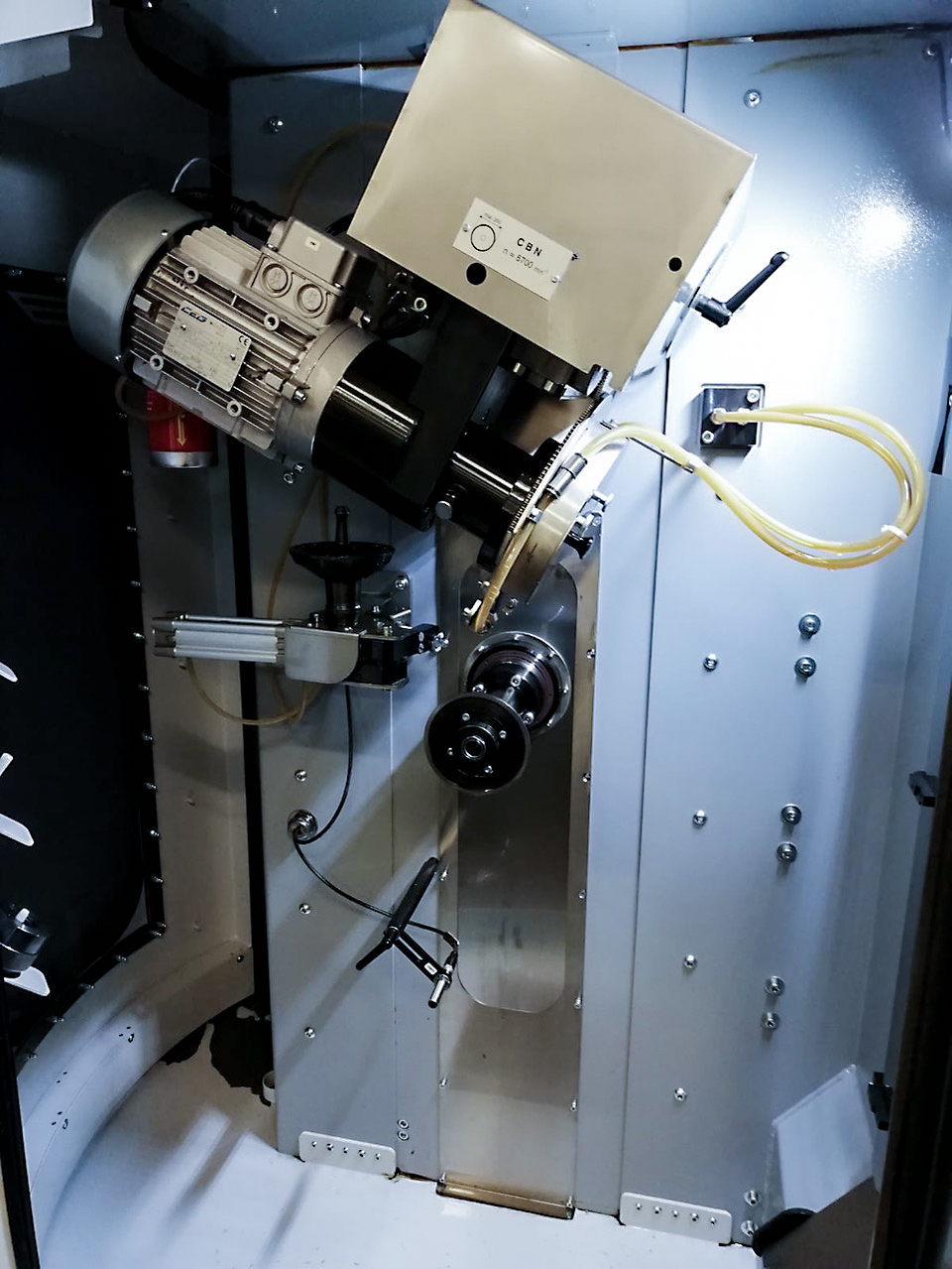

-Cylindrical grinding of saw blades to rectify existing teeth (can also be used in a limited way for
sharpening circular knives with a cutting angle of 45 °)
-Automatic peripheral speed switching between CBN and DIA grinding wheels
-1 set of operating tools
-High quality powder coating as well as stainless steel sheets.
-Standard paint: support dark gray RAL 7045, light gray door RAL 7047
Standard accessories:
Remote diagnosis via internet connection
-Machine with full enclosure and integrated machine room lighting
-Signal light to show the working status
-Automatic central lubrication
-2 magazine chucks: 50 mm,
magazine accessories diameter: 50 mm, as well as 20 intermediate layers of 180/52 mm
-Device for automatic chamfering of saw blades with regular teeth (saw blade diameter> = 145 mm when
Using saw blade holder F-1477a,> = 105 mm when using programs F-1445a for all
teeth.
