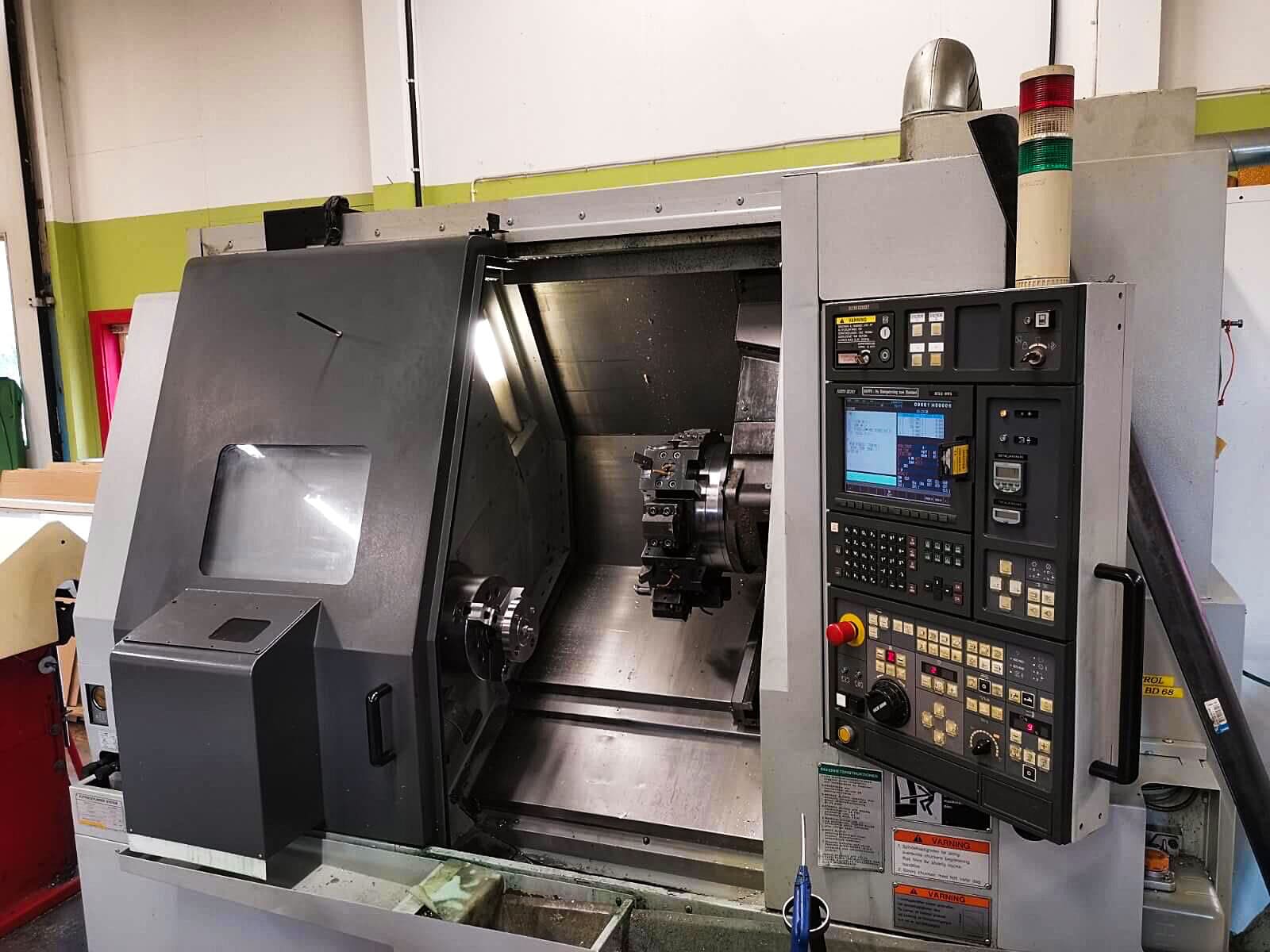

Mori seiki SL 2500 SY - CNC Draaibank - 2004
Specificaties
| Fabrikant | Mori seiki |
| Model | SL 2500 SY |
| Jaar | 2004 |
| Conditie | Gebruikt |
| Besturingseenheid | MSG 805 |
| Snijuren | 6250 H |
| Draaidiameter | 490 mm |
| Draailengte | 650 mm |
| X-As reis | 305 mm |
| Y-As reis | 120 mm |
| Z-As reis | 690 mm |
| Snelle verplaatsing | 24 m / min |
| Spiltoerental | 4000 rpm |
| Subspiltoerental | 6000 rpm |
| Snelheid aangedreven gereedschap | 4000 1/min |
| Afmetingen | L 2600 x B 2014 x H 2155 mm |
| Gewicht | 5300 Kg |
| Beschikbaarheid | Onmiddellijk |
| Opmerkingen | *Informatie kan soms onnauwkeurig zijn en zonder kennisgeving veranderen! |
Beschrijving
Metalworking - CNC Lathe / Turning Machine
More info:
Machine with Driven tools, C axis.
Integrated head motor 18.5 KW. 7.5 KW integrated sub spindle motor.
Head size A2-6. Bar pitch 73 mm.
Prismatic guides on all axes. 2 Renishaw tools automatic measuring arms.

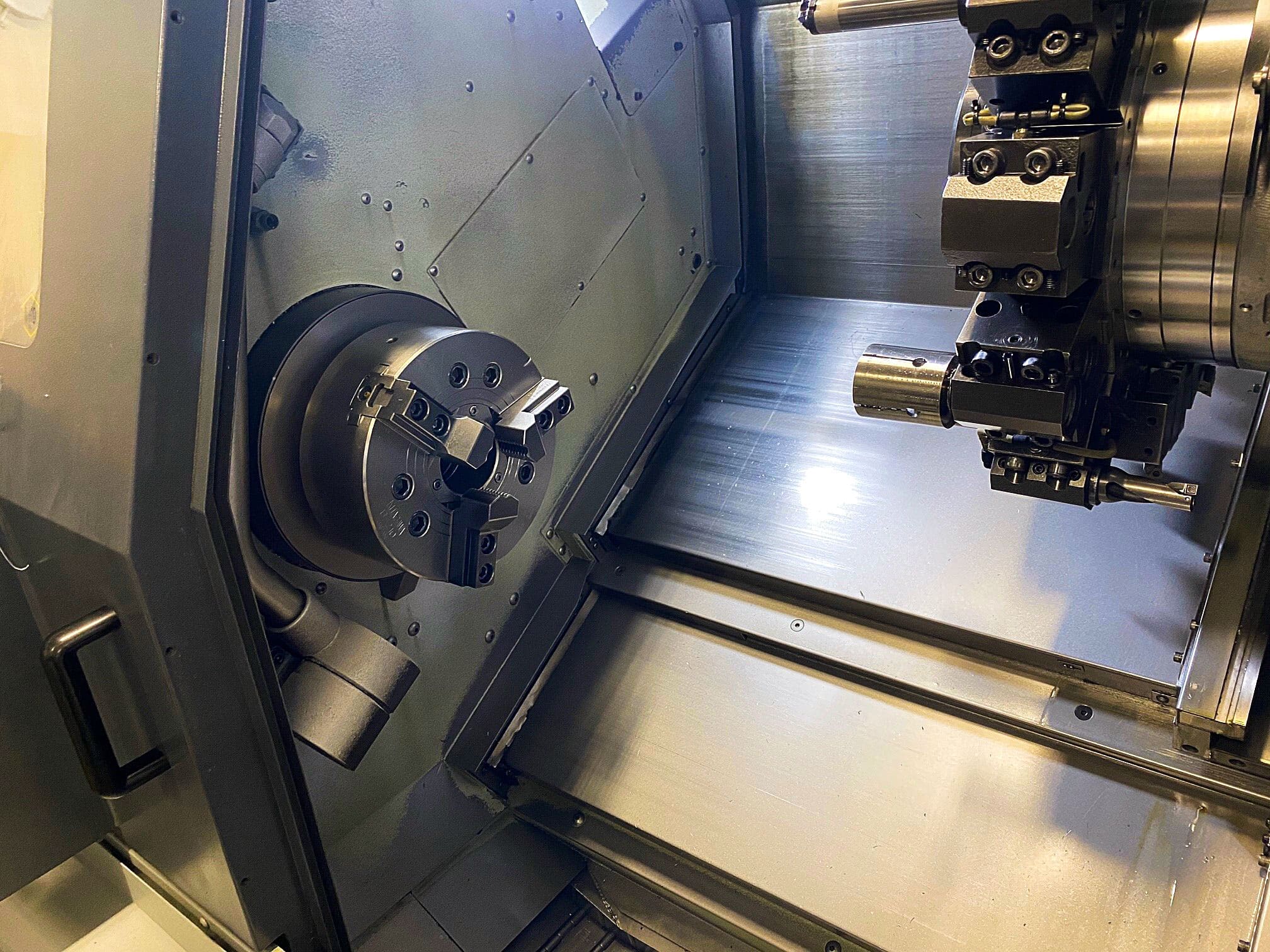

Kitagawa platter on a 10-inch main head. Kitagawa chuck on a 6-inch sub spindle.
Mapps 3 conversational automatic programming system.
Automatic effort control and tool consumption monitor. Head oil cooler.

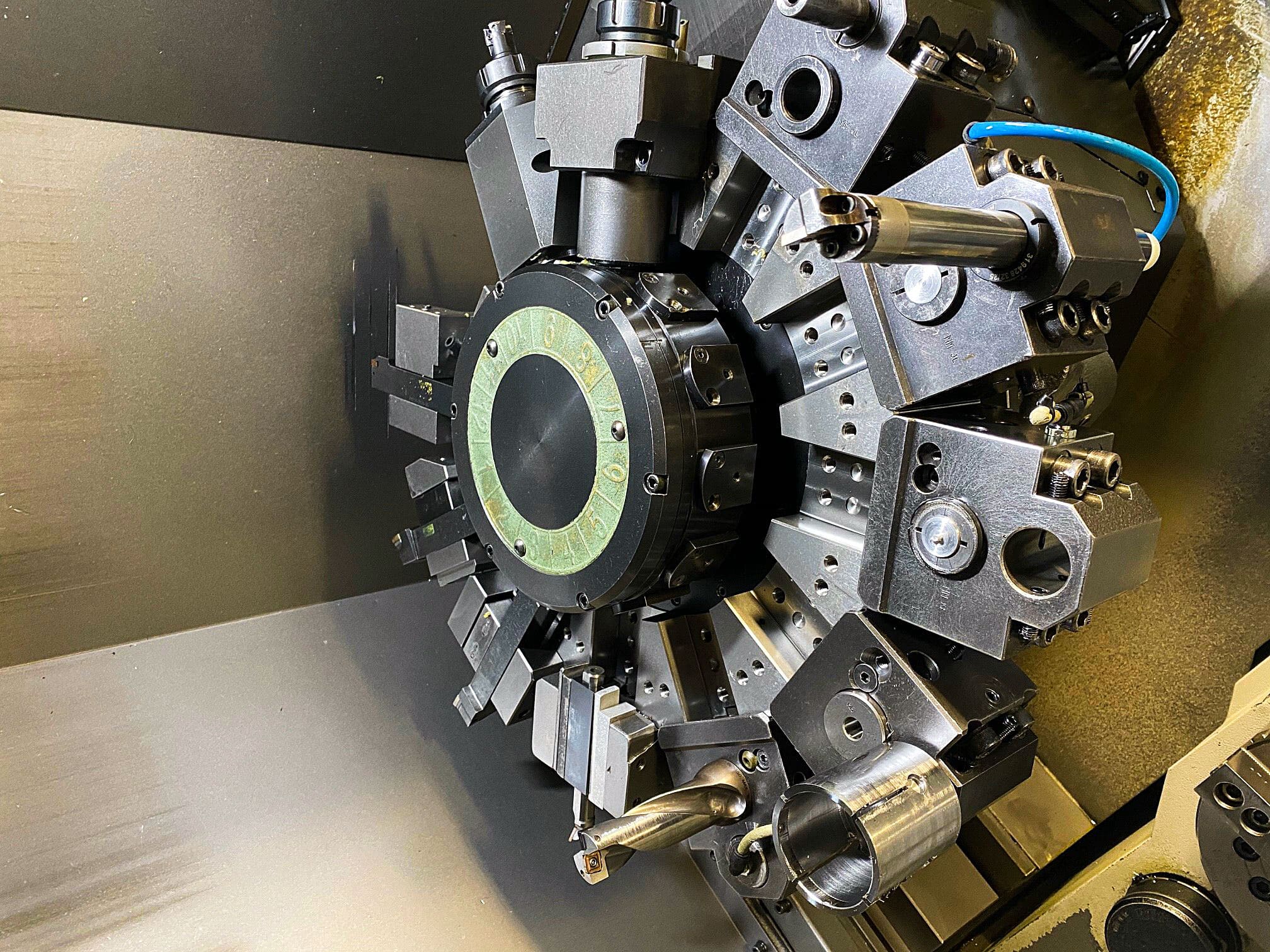

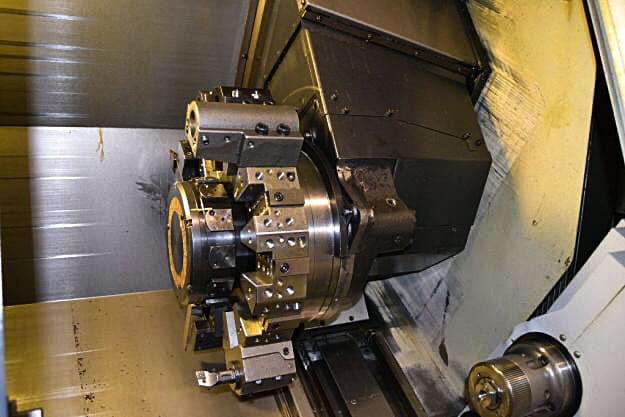

490 Nm of cutting torque. Turret with 12 positions, all of them motorized.
Motor motorized tools 5.2 Kw. Interface for bar loader installation.
Automatic parts collector, Finished part extractor. Flapper type chip extractor.
Equipment included:
- 2 radial motorized ports.
- 2 axial motorized ports.
- 3 exterior double doors.
- 2 interior double doors.
- 1 special bucking holder.
- 2 simple interior ports.
__
* Please note that this description may have been translated automatically. The information of this classified ad are only indicative and change without notice! GLOMACHT recommends to check the details with the seller. Contact us for further information.*
