Okuma LB 15 - Torno CNC
Vendido
Especificaciones
| Fabricante | OKUMA |
| Modelo | LB 15 |
| Condición | Usado |
| Hecho en | Japón |
| Unidad de control | OSP 5000L-G CNC |
| Transmisión de datos | RS232 |
| Torreta para herramientas | 12 posiciones, tipo BOLT ON |
| Chuck del torno | 250 mm |
| Velocidad del husillo | 70-3800 rpm. |
| Potencia del motor | 11 kW, 30 min; 7.5 kW - operación continua |
| Diámetro del agujero del husillo | 75 mm |
| Recorrido del eje X | 400 x 0.001 mm |
| Recorrido del eje Z | 500 x 0.001 mm |
| Velocidad de corte XZ | 0.01-1000 mm / rev. |
| Velocidad de avance XZ | 12000 mm / min |
| Suministro de energía | 3 x 400V |
| Corriente máxima de carga | 36 A |
| Dimensiones | L 2900 x A 1800 x H 1700 mm |
| Peso | 4500 Kg |
| Disponibilidad | Inmediata |
| Observaciones | *¡La información puede ser inexacta y cambiar sin previo aviso! |
Descripción
Woodworking - CNC Lathe

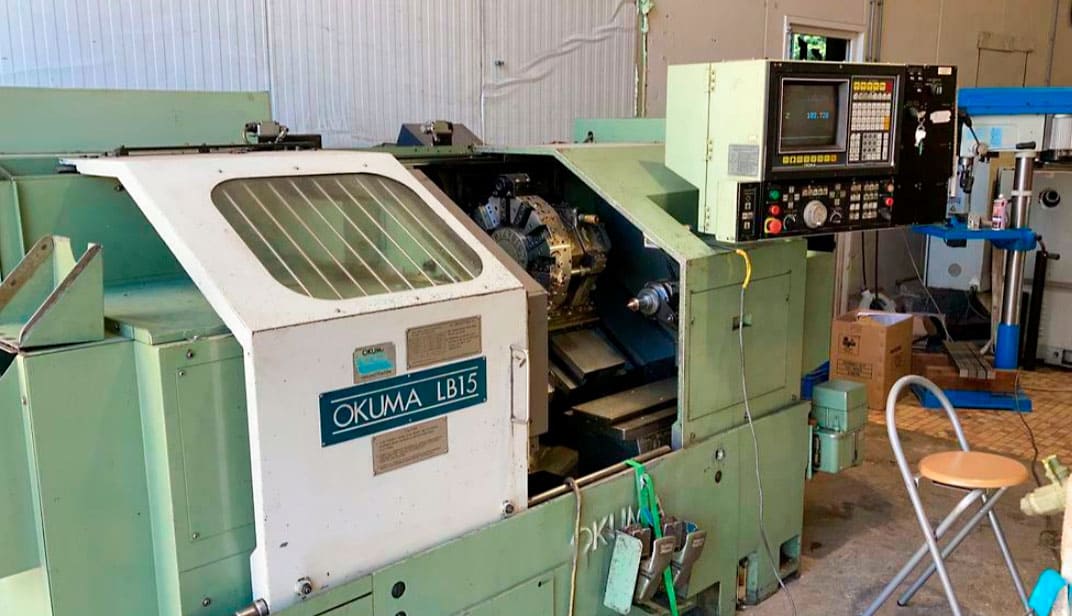

Used Okuma – LB15 is made in Japan, with data transmission RS232. This CNC lathe is equipped with a control unit OSP 5000L-G CNC . The machine has a work area 400 x 500 mm, ppindle speed 70-3800 rpm. and is equipped with the following:
- tool
- chip conveyor
- measure arm
- including chisel holders
- diameter 75mm
____
* Please note that this description may have been translated automatically. The information of this classified ad are only indicative and change without notice! GLOMACHT recommends to check the details with the seller. Contact us for further information.*
