Daewoo Lynx 200 - CNC Draaibank - 2001
Verkocht
Specificaties
| Fabrikant | Daewoo |
| Model | Lynx 200 |
| Jaar | 2001 |
| Conditie | Gebruikt |
| Gemaakt in | Zuid-Korea |

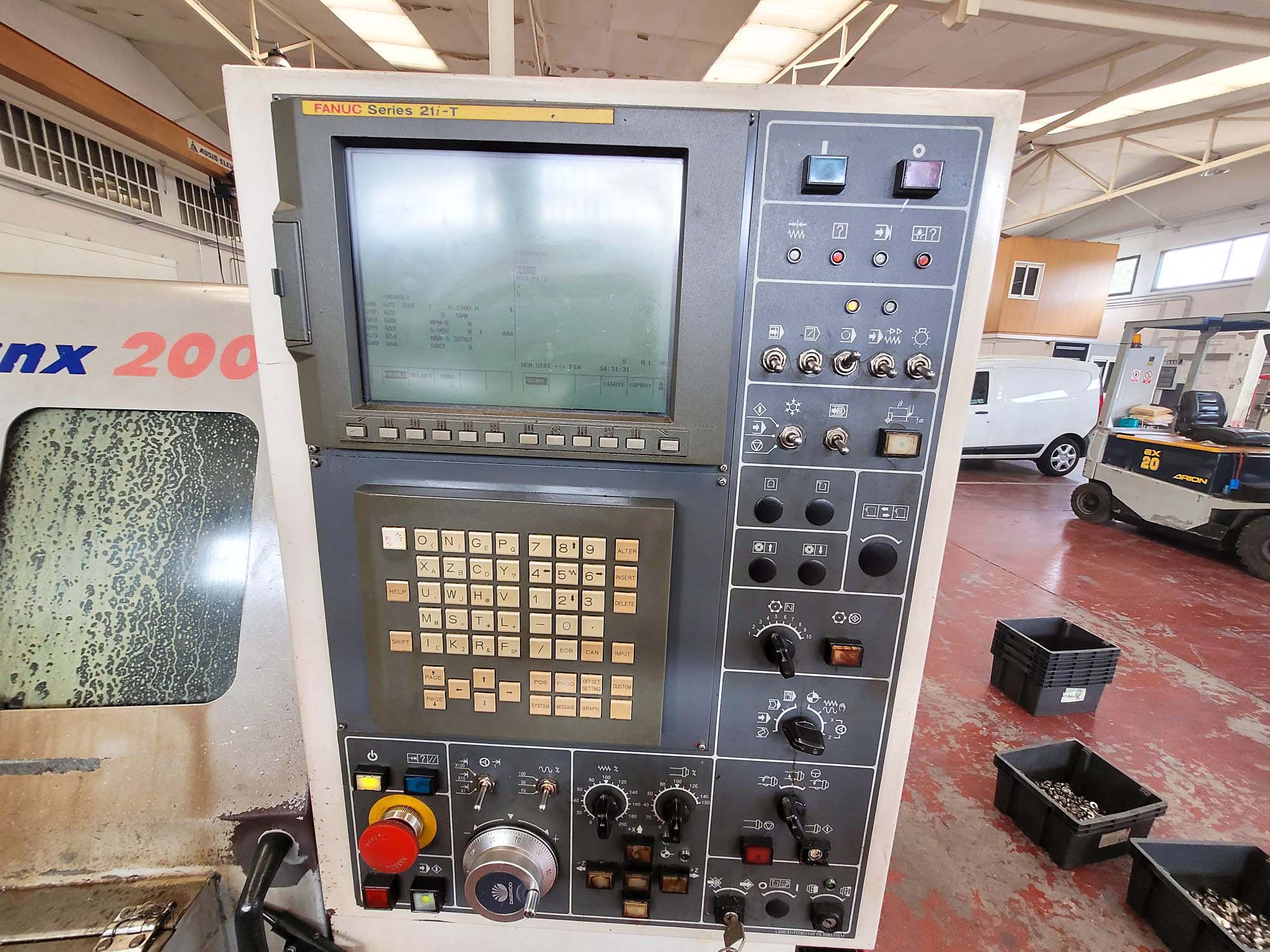

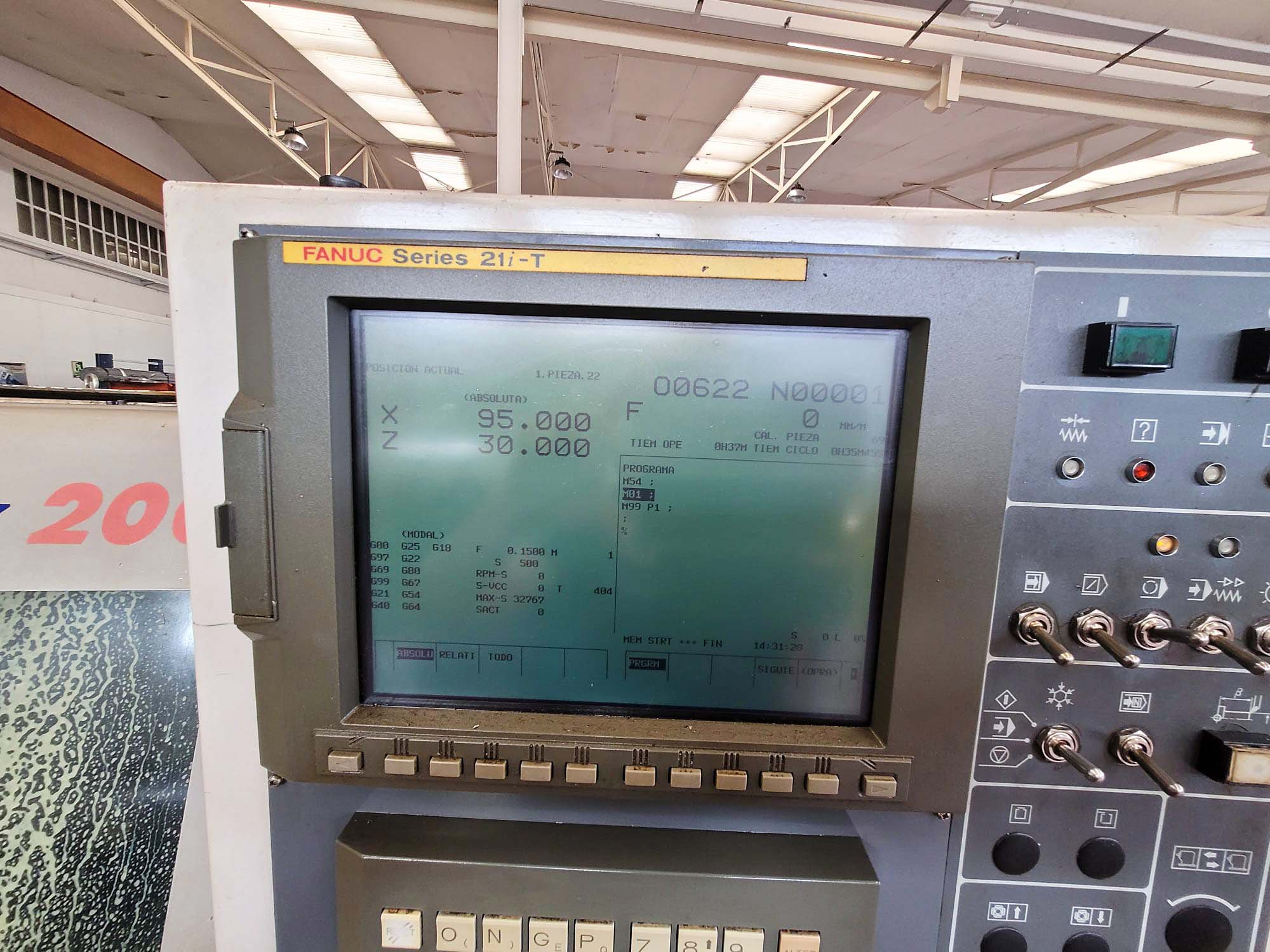

| Besturingseenheid | Fanuc 21iT |
| X-as verplaatsing | 160 mm |
| Z-as verplaatsing | 330 mm |
| Draaidiameter | 280 mm |
| Draailengte | 300 mm |
| Toren | 10 stations |
| Spiltoerental | 5000 rpm |
| Motorvermogen | 5.5 - 7.5 kW |
| Spilboring | 52 mm |
| Zwaai over bed | 460 mm |
| Afmetingen | L 2590 x B 1600 x H 1600 mm |
| Gewicht | 3170 kg |
| Beschikbaarheid | Onmiddellijk |
| Opmerkingen | *Informatie kan soms onnauwkeurig zijn en zonder kennisgeving worden gewijzigd! |
Beschrijving
Metalworking - CNC Lathe

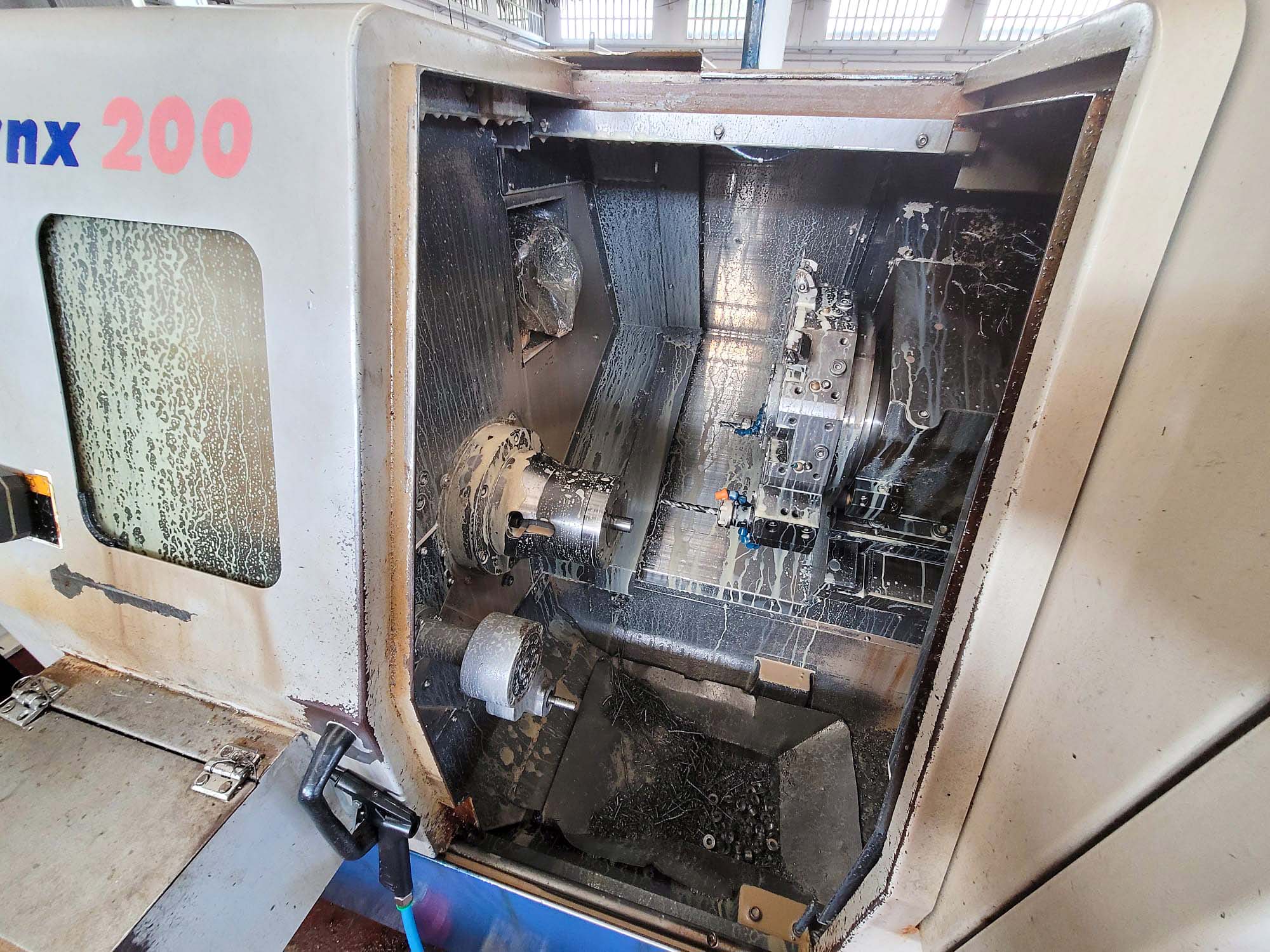

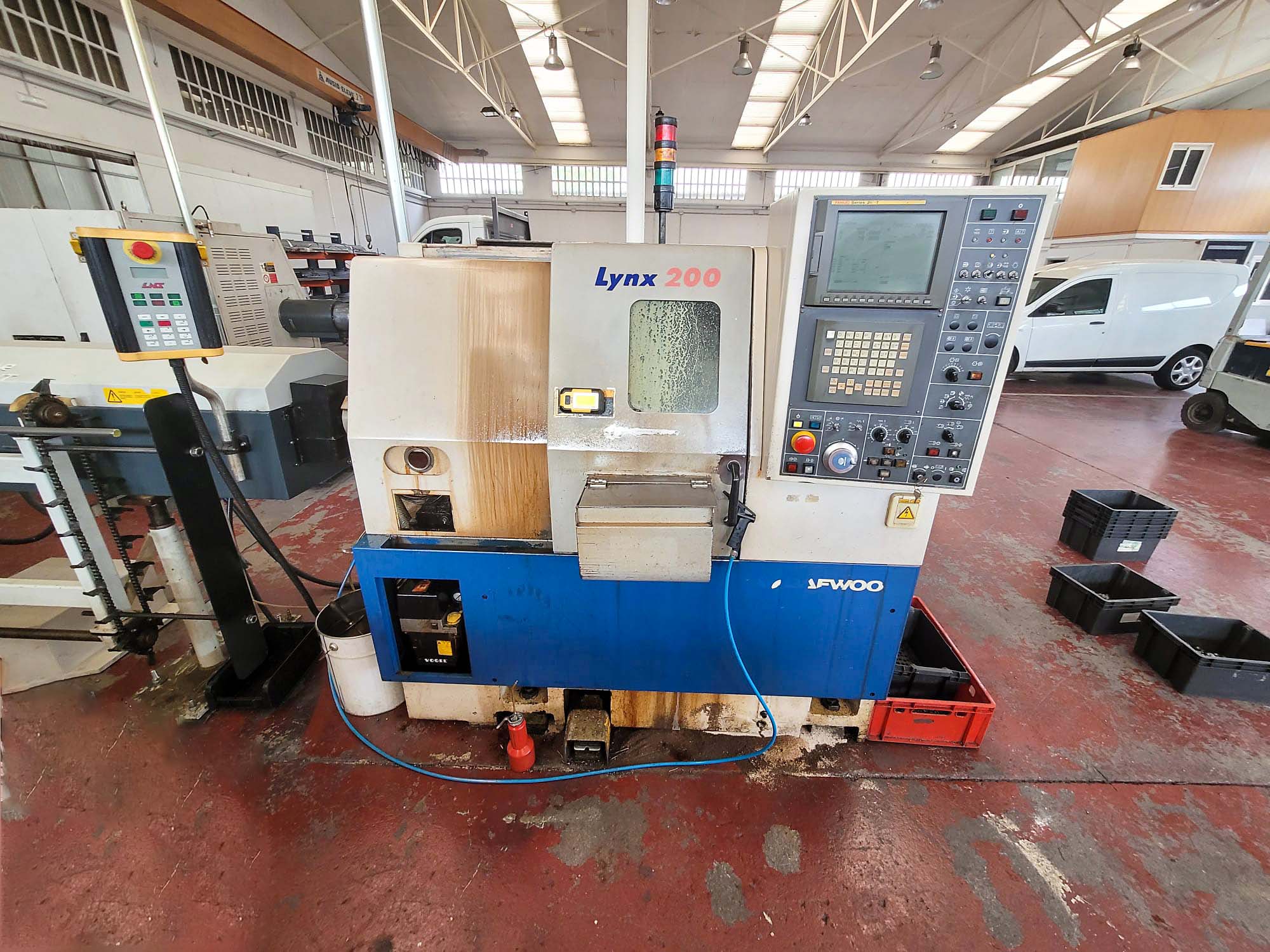

Used Daewoo industrial machinery – Lynx 200 from 2001 located in Spain. This CNC Lathe is equipped with a control unit Fanuc 21iT and has a turning length of 300 mm, 5000 rpm spindle speed and motor power of 5.5 - 7.5 kW.
More info:

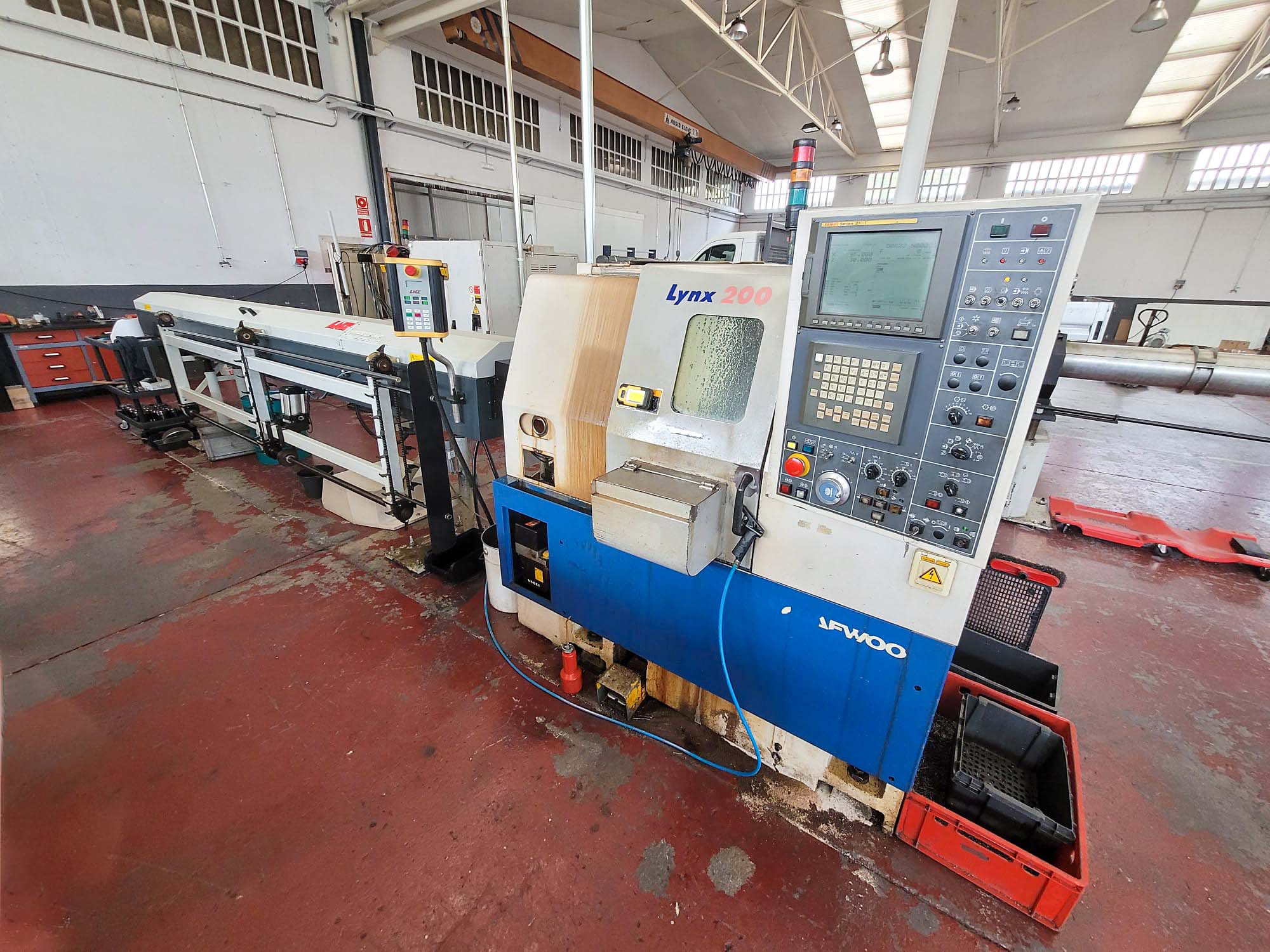

Machine with bar feeder lns mini-sprint model.
____
* Please note that this description may have been translated automatically. The information of this classified ad are only indicative and change without notice! GLOMACHT recommends to check the details with the seller. Contact us for further information.*
