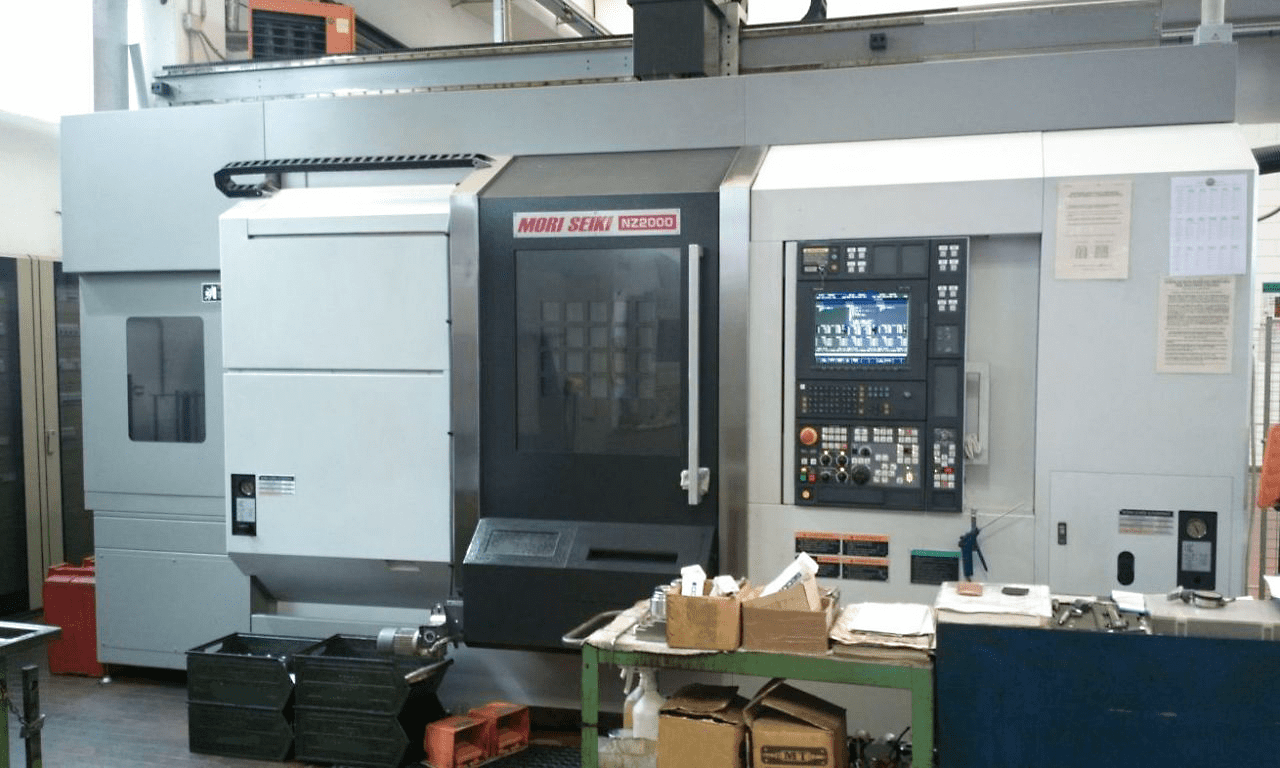

Mori Seiki NZ 2000 T3 Y3 - CNC Draaibank - 2011
Specificaties
| Fabrikant | Mori Seiki |
| Model | NZ 2000 T3 Y3 |
| Jaar | 2011 |
| Conditie | Gebruikt |
| Gemaakt in | Japan |
| Besturingseenheid | Mori Seiki MSX-701 III |
| X1,2,3 as verplaatsing | 210, 210, 210 mm |
| Y1,2,3 as verplaatsing | +65 / -45, -65 / +45, +65 / -45 mm |
| Z1,2,3 as verplaatsing | 300, 810, 300 mm |
| Snelle verplaatsing X1, X2, X3 | 30000 mm/min |
| Snelle verplaatsing Y1, Y3 | 20000 mm/min |
| Snelle verplaatsing Y2 | 16000 mm/min |
| Snelle verplaatsing Z1, Z2, Z3 | 50000 mm/min |
| Max. draaidiameter | 320 mm |
| Draailengte | 810 mm |
| Spiltoerental | 5000 rpm |
| Motorvermogen | 22 kW |
| Afstand hoofdspil-tegenspil | 1130 mm |
| Staafdiameter | 65 mm |
| Aantal aangedreven gereedschapsstations | 3 x 16 |
| Snijmoment | 340 Nm |
| Bij benadering afmetingen | L 7500 x B 3500 x H 2500 mm |
| Bij benadering gewicht | 9500 kg |
| Beschikbaarheid | Onmiddellijk |
| Opmerkingen | *Informatie kan soms onnauwkeurig zijn en zonder kennisgeving veranderen! |
Beschrijving
Metalworking - CNC Lathe
Used Mori Seiki industrial machinery – NZ 2000 T3 Y3 from 2011 located in Spain. This CNC lathe is equipped with a control unit Mori Seiki MSX-701 III and has a turning length of 810 mm, 5000 rpm spindle speed and motor power of 22 kW.
More info:

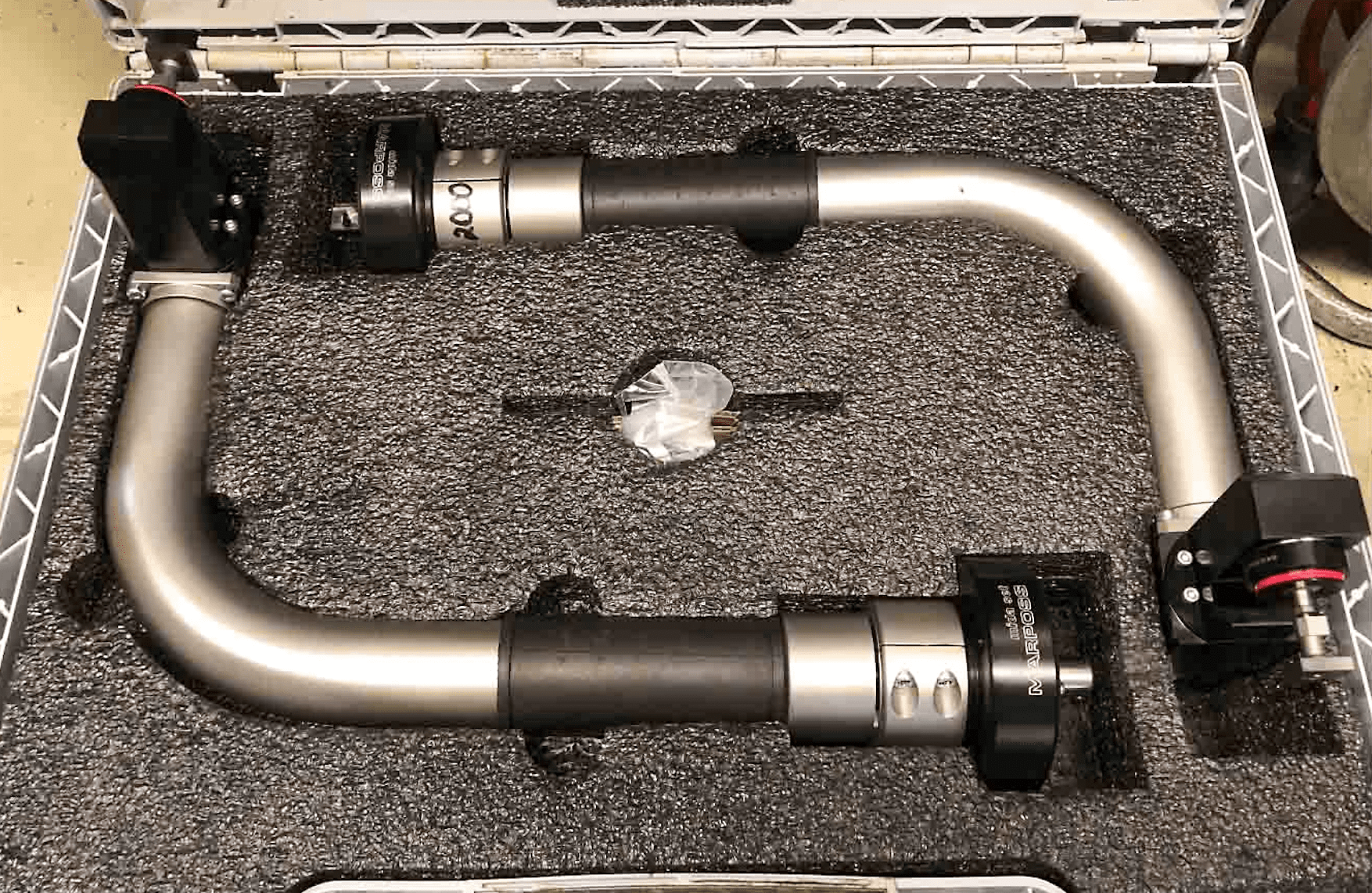

Machine with two Renishaw automatic tool measuring arms, automatic conversational programming system Mapps 3, automatic stress control and tool consumption monitor, spindle oil cooler, interface for bar loader installation, automatic parts collector, finished part extractor, external and internal tool holder, robot automatic part loader, Kitagawa B20 hydraulic chucks, outdoor and indoor tool holders, axial and radial motorised blocks, chip conveyor and a lot of 25,000 euros in portas.
