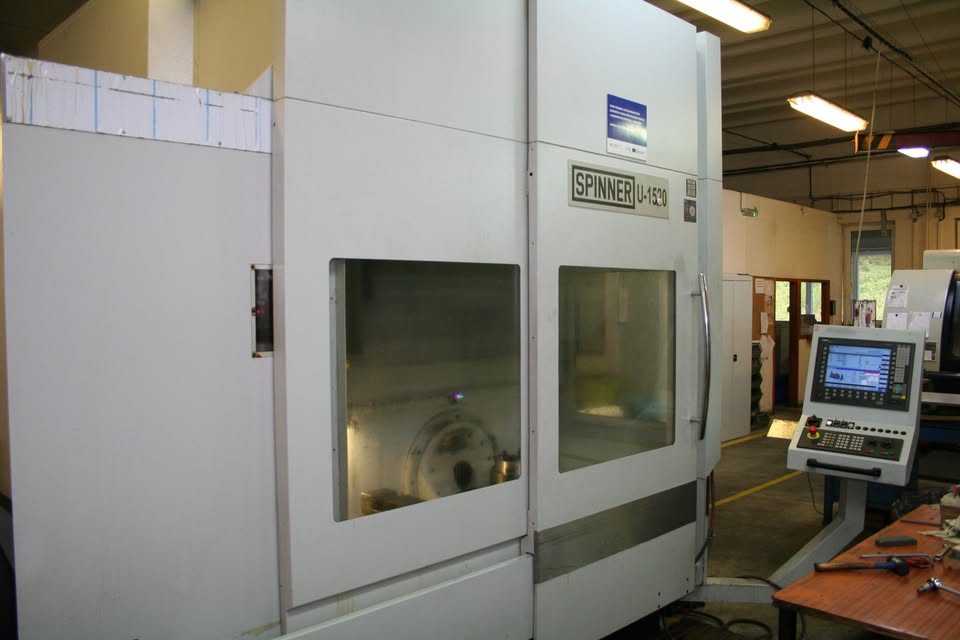

Spinner U5-1520 I Vertical Machining Center
Specifications
| Manufacturer | Spinner |
| Model | U5-1520 |
| Year | 2012 |
| Condition | Used |
| Stock Number | 600874866 |
| Made in | Germany |
| Control unit | Siemens Sinumerik 840D |
| X-Axis travel | 1520 mm |
| Y-Axis travel | 520 mm |
| Z-Axis travel | 420 mm |
| Number of axes | 5 Axis |
| Table length | 920 mm |
| Table width | 540 mm |
| Table load | 500 kg |
| Spindle taper | SK 40 |
| Spindle speed | 9000 rpm |
| Motor power | 22 kW |
| X-Y-Z rapid traverse | 32 m/min |
| Tool magazine | 32 positions |
| Dimensions | L 4530 x W 2470 x H 3035 mm |
| Weight | 8500 kg |
| Availability | Immediately |
Description
We hereby offer this used Spinner U5-1520 vertical machining center from 2012, located in the Czech Republic. This high-precision CNC machine is equipped with a Siemens Sinumerik 840D control unit, offering advanced programming capabilities and user-friendly operation. It features a working area of 920 x 540 mm, making it ideal for a wide range of milling and drilling applications in metalworking. The machine is powered by a robust 22 kW motor and operates at a spindle speed of up to 9000 rpm, ensuring efficient material removal and excellent surface finish.
Features:
- Integrated cooling system.
- Chip conveyor.
- Robust design.
Spinner Machinery
Spinner is a German machine tool manufacturer known for producing a variety of high-precision machining centers and turning machines. The company specializes in the development and production of CNC (Computer Numerical Control) machines designed for precision machining applications. Spinner's product range includes vertical machining centers (VMCs), horizontal machining centers (HMCs), and turning centers (lathes). These machines are used in a wide range of industries, including aerospace, automotive, medical, and general manufacturing. Spinner machines are recognized for their advanced technology, reliability, and versatility, making them suitable for various machining tasks such as milling, drilling, and turning. The brand is committed to providing cutting-edge solutions that meet the demanding requirements of modern machining processes.
