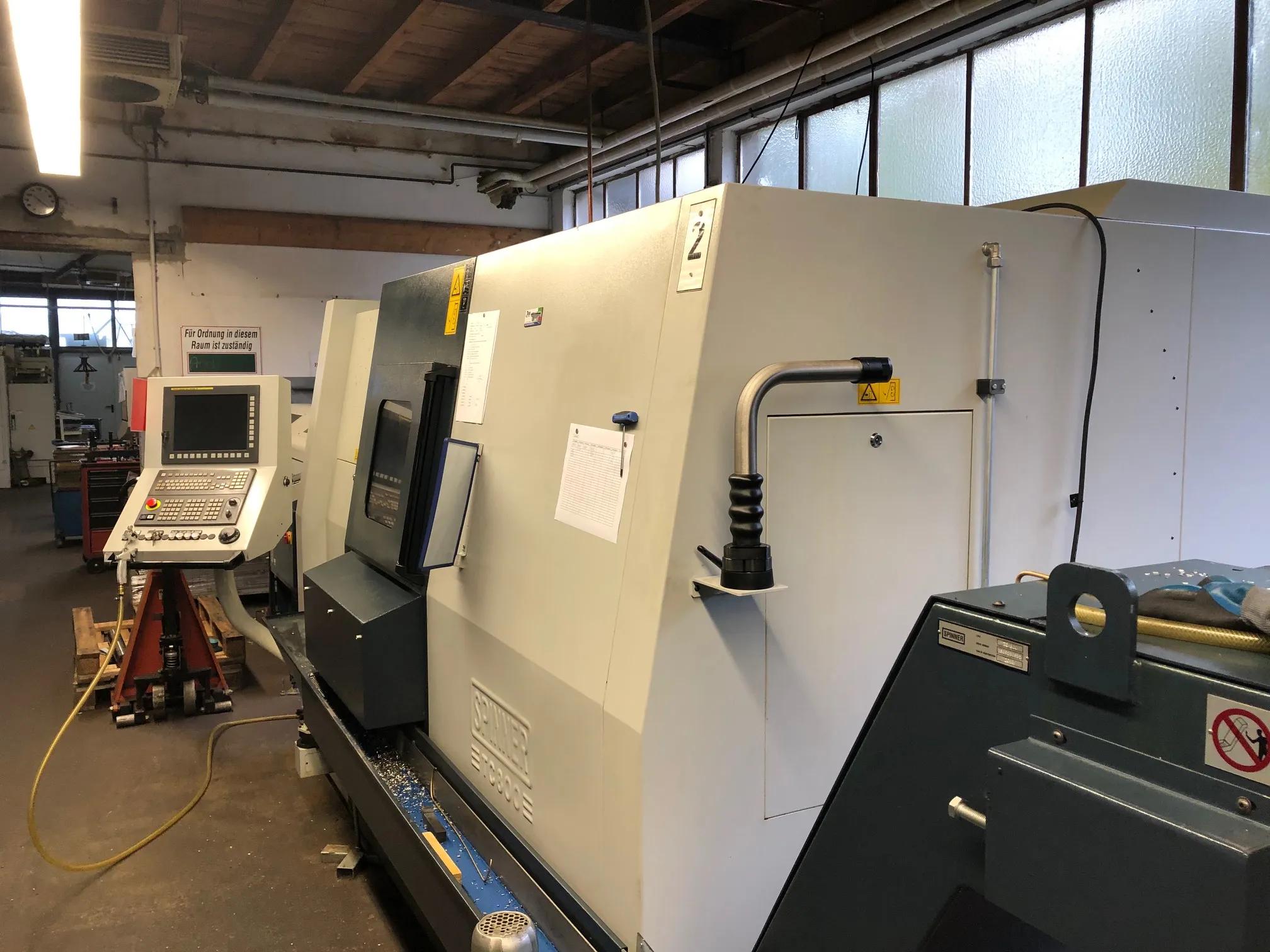

Spinner TC800-85 I CNC Draaibank
Specificaties
| Fabrikant | Spinner |
| Model | TC800-85 |
| Jaar | 2015 |
| Conditie | Gebruikt |
| Voorraad nummer | 5809456 |
| Conditie | Gebruikt |
| Werkuren | 12980 U |
| Besturingseenheid | Fanuc 32i-TB |
| Draailengte | 900 mm |
| Draaidiameter | 500 mm |
| Swing diameter | 800 mm |
| X-as verplaatsing | 360 mm |
| Y-as verplaatsing (optie) | +65 / -55 mm |
| Z-as verplaatsing | 900 mm |
| Snelle verplaatsing X-Z | 15/24 m/min |
| Spindeltap | A8/DIN |
| Spindelsnelheid | 3400 t/min |
| Motorvermogen | 95 kW |
| Chuck diameter | 250 mm |
| Spindelpassage | 85 mm |
| Spindelsnelheid 2 | 5000 t/min |
| Spindeltap 2 | A6/DIN |
| Motorvermogen spindel 2 | 23.5 kW |
| Gereedschapshouder | VDI50 |
| Gereedschappen op turret | 12 posities |
| Beschikbaarheid | Onmiddellijk |
Beschrijving
We hereby offer this used Spinner TC800-85 CNC lathe from 2015, located in Germany. This precision machine is equipped with a cutting-edge Fanuc 32i-TB control unit, ensuring seamless operation and unparalleled performance for diverse industrial applications. With a generous turning length of 900 mm, this CNC Lathe offers the flexibility and precision required for a wide range of machining tasks. Boasting a powerful 3400 rpm spindle speed and a robust 95 kW motor, this machine delivers the efficiency and reliability essential for high-quality production processes.
Features:

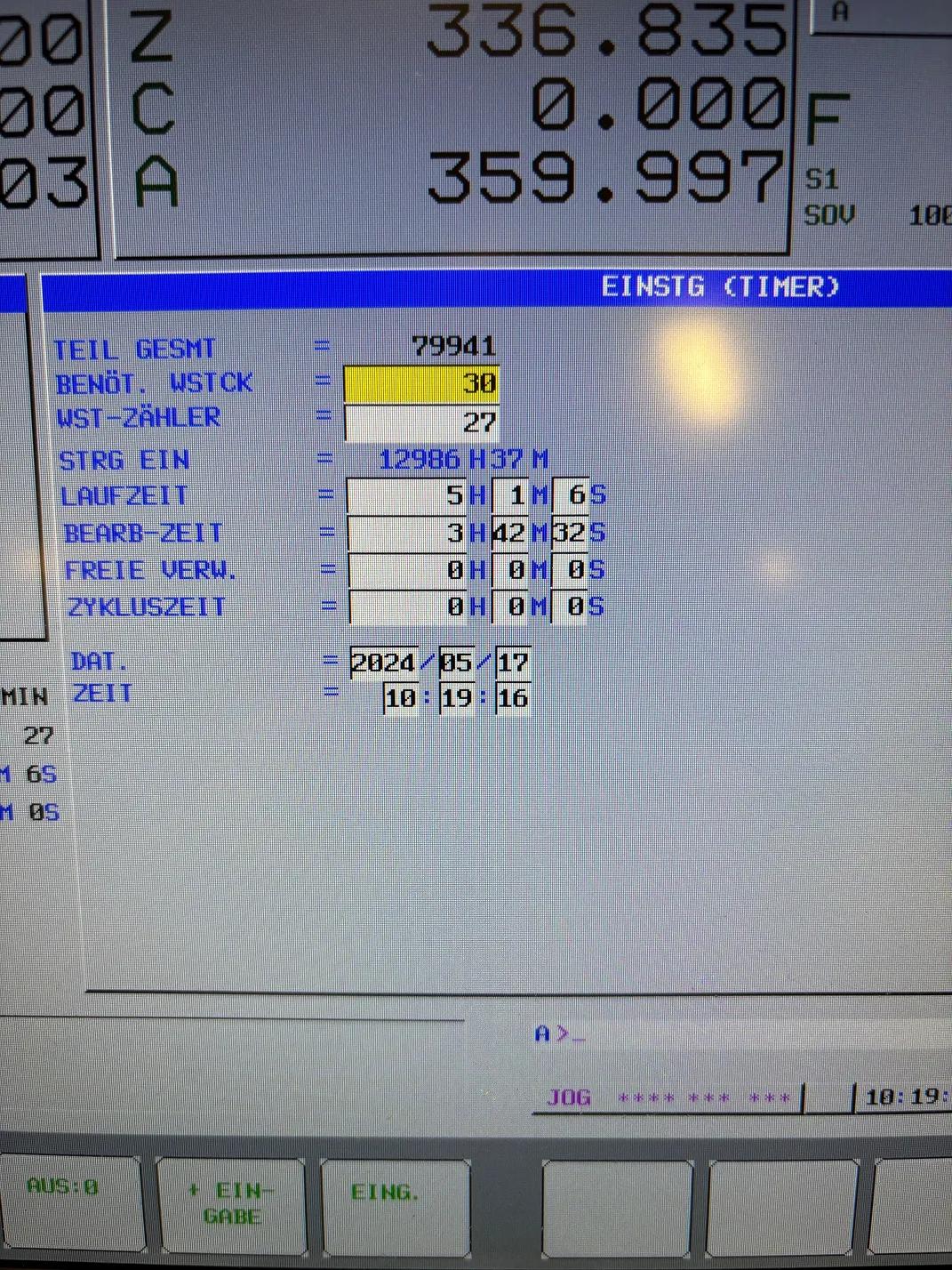

- 12980 operating hours.

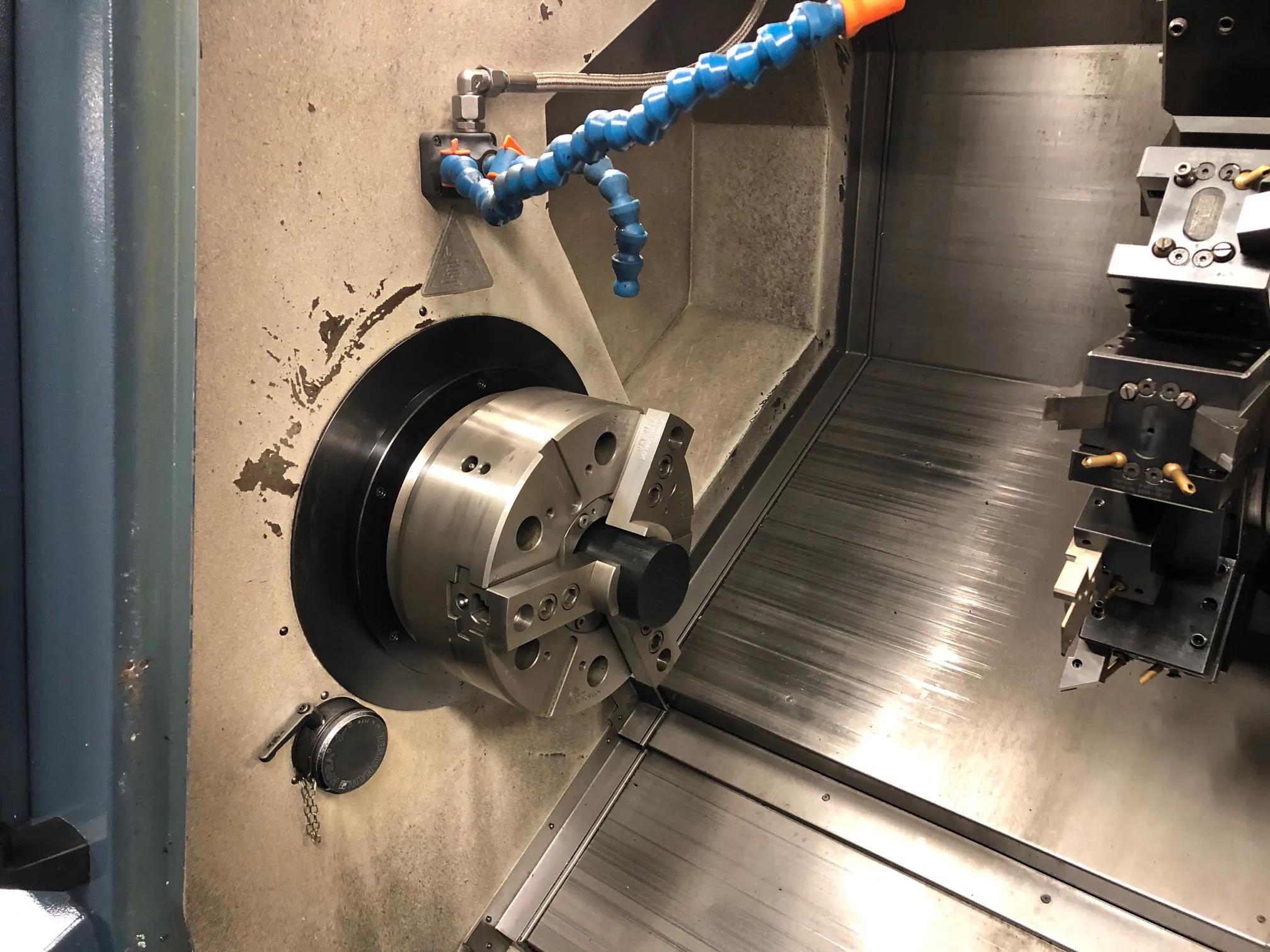

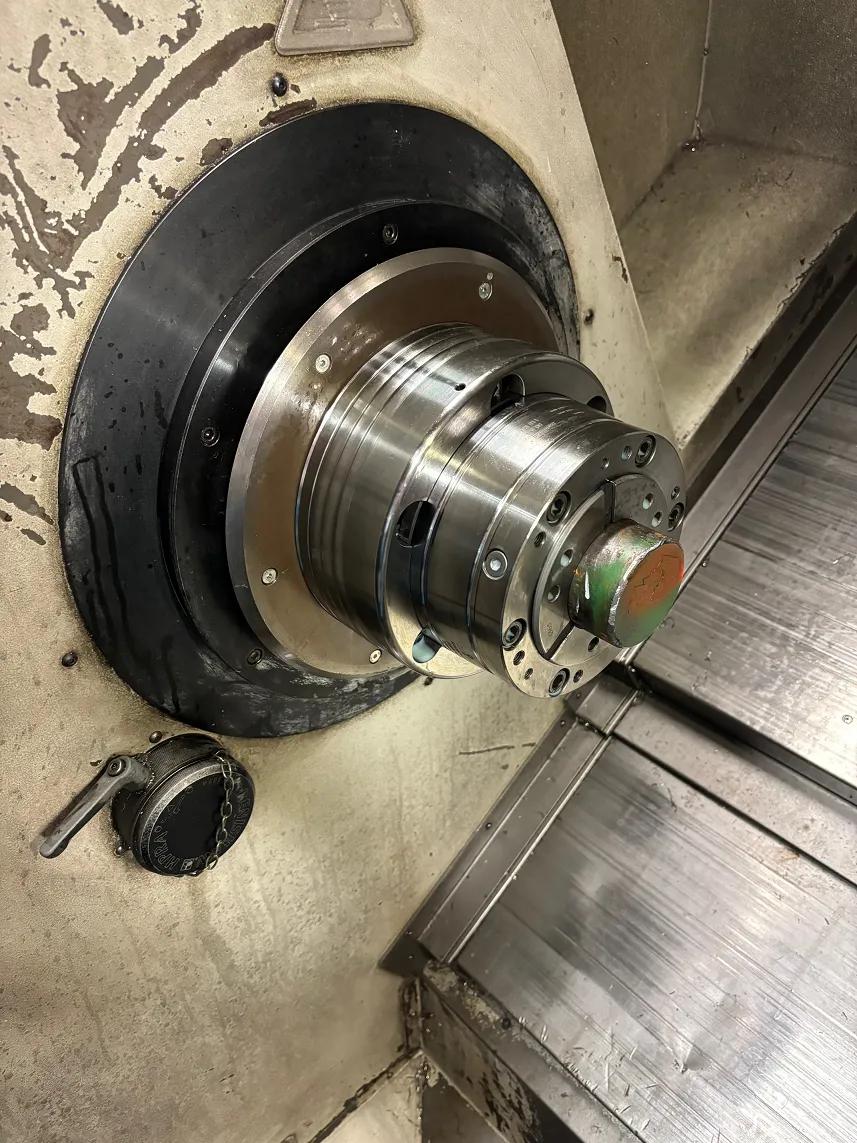

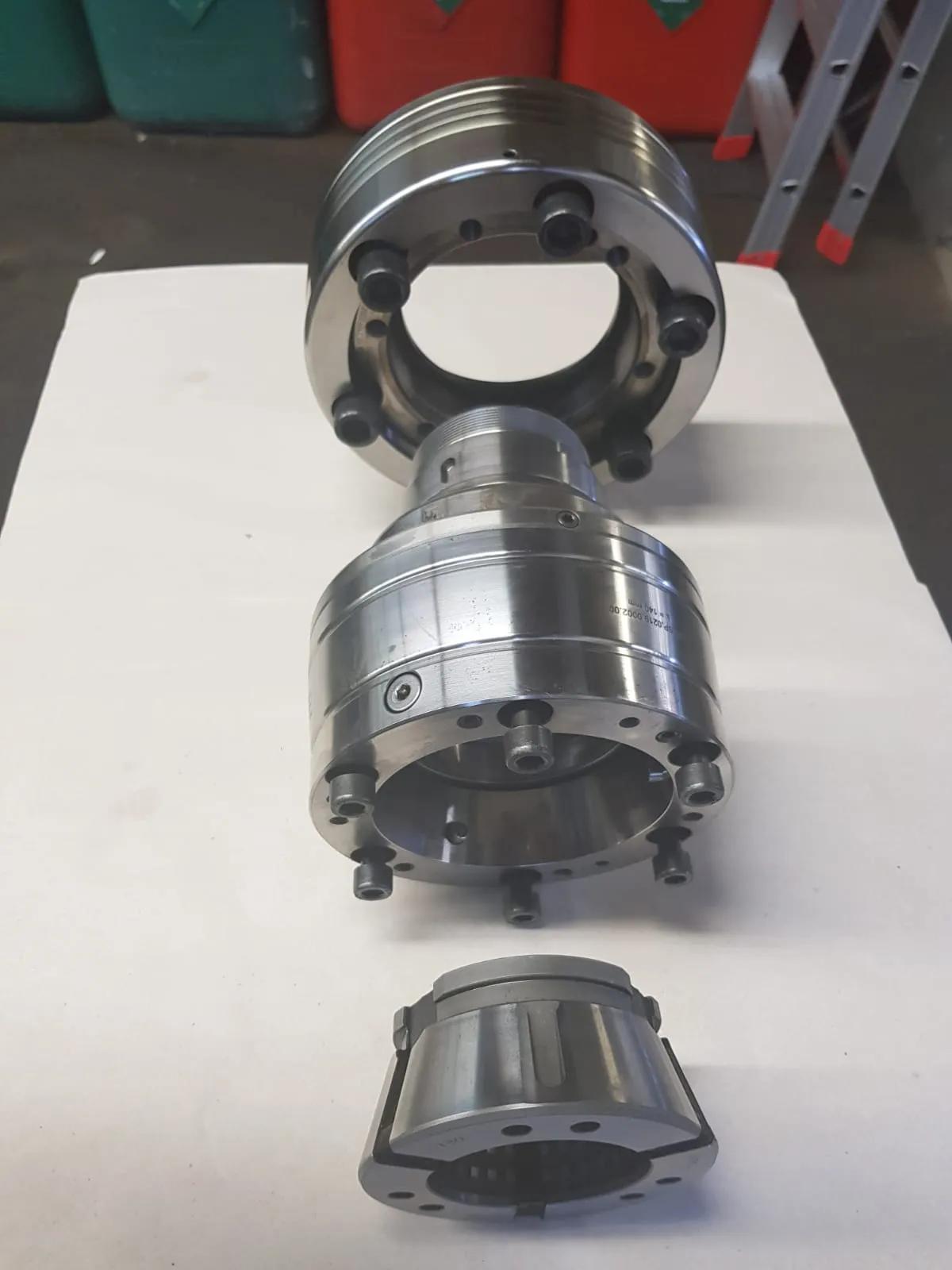

- Main spindle spindle outlet with Hainbuch chuck up to Ø80mm changeable to 3-jaw SMW Autoblok chuck up to Ø315mm.

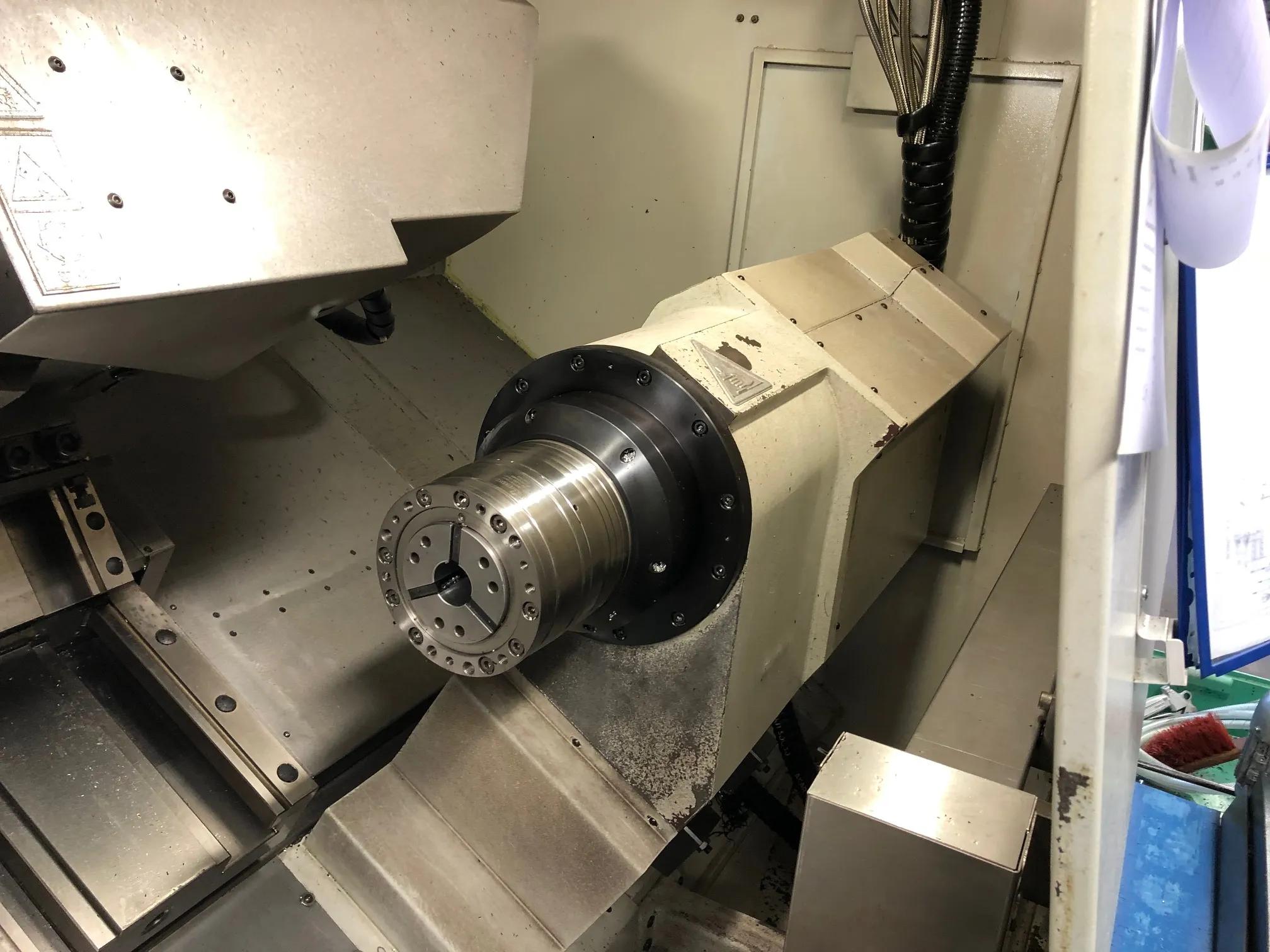

- Counter spindle with Hainbuch chuck tap up to Ø65mm.

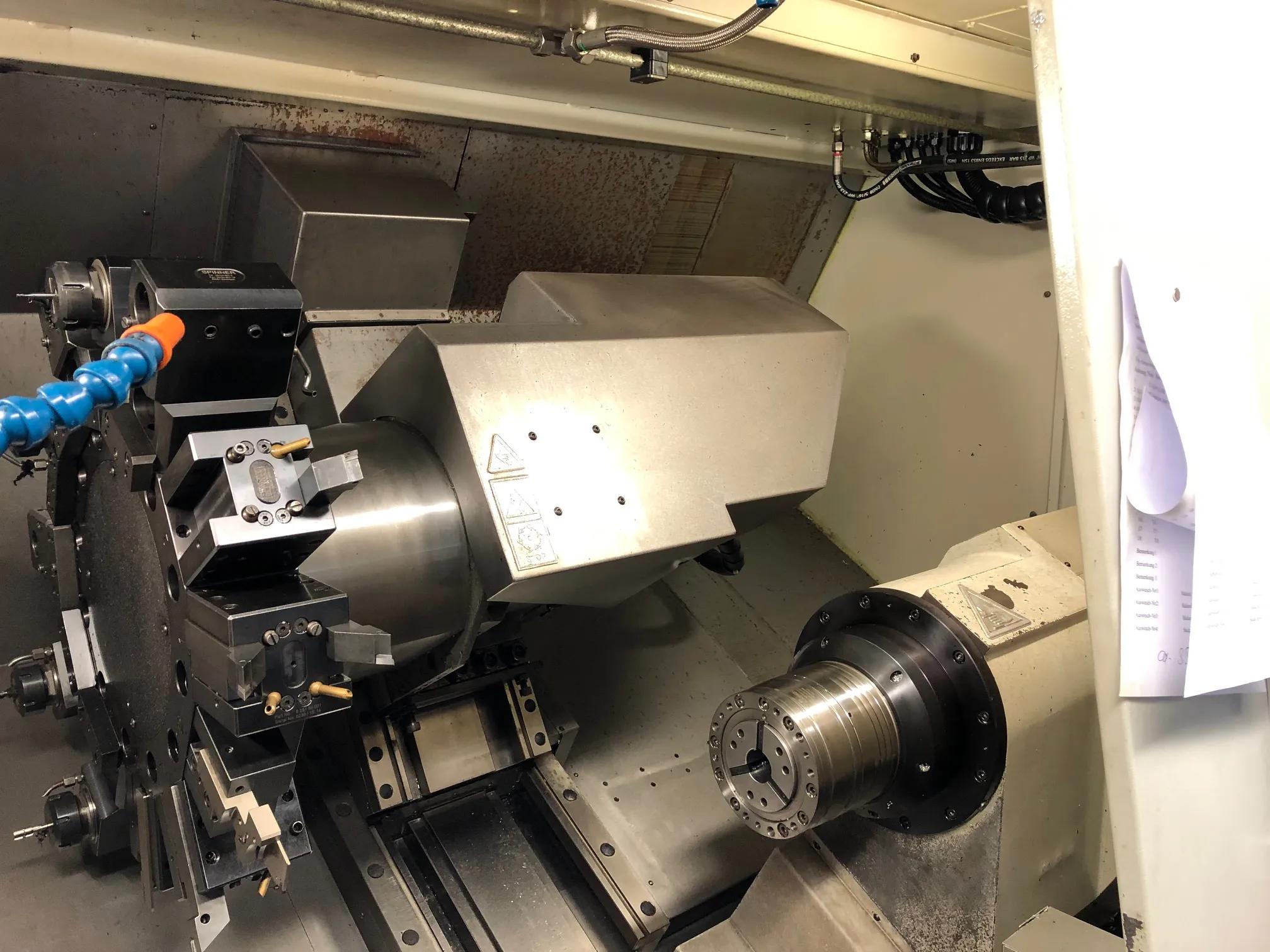

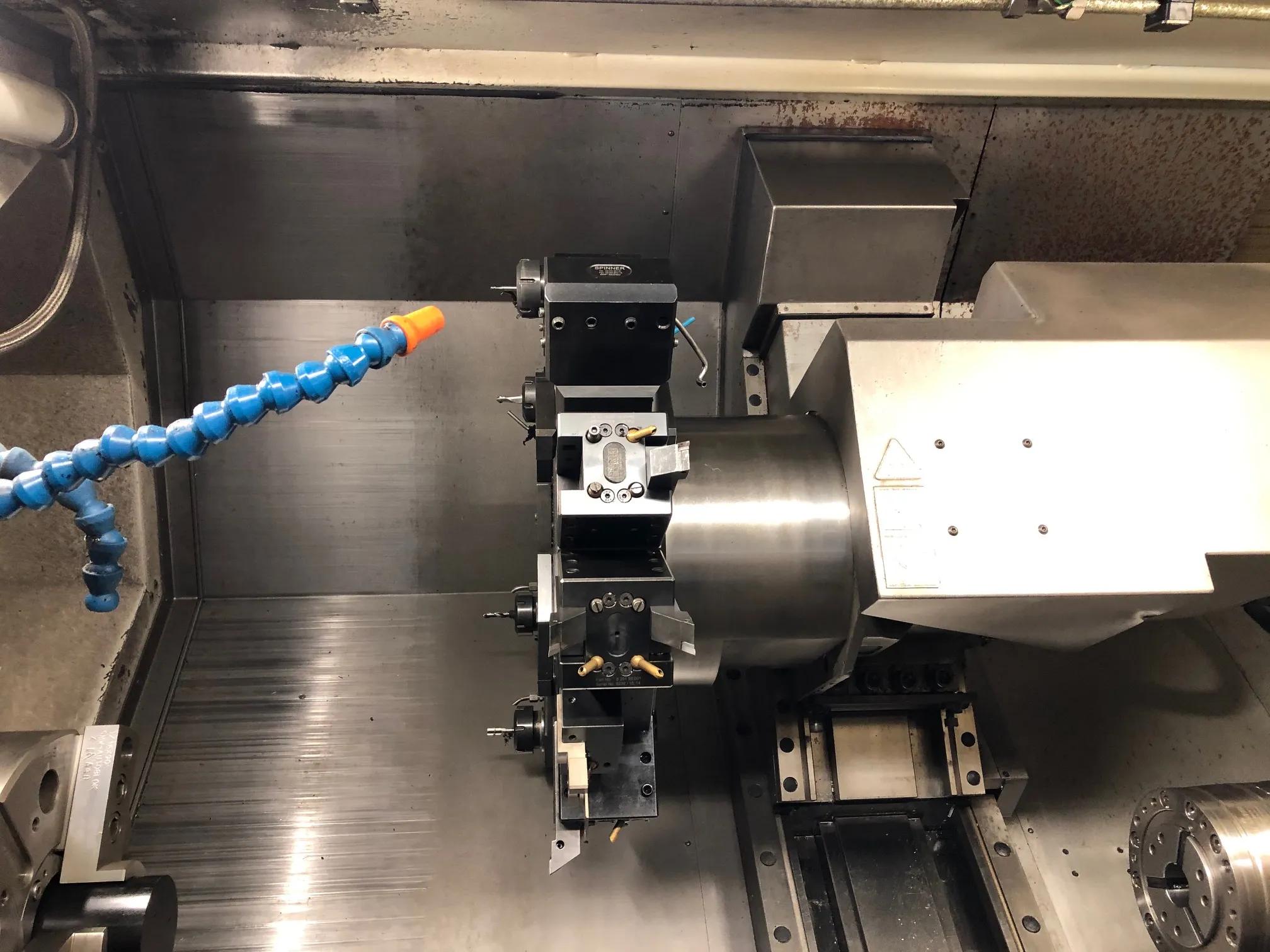

- 12-position turret with VDI50 holder, each station can be equipped with driven tools.
Included with the Machine:

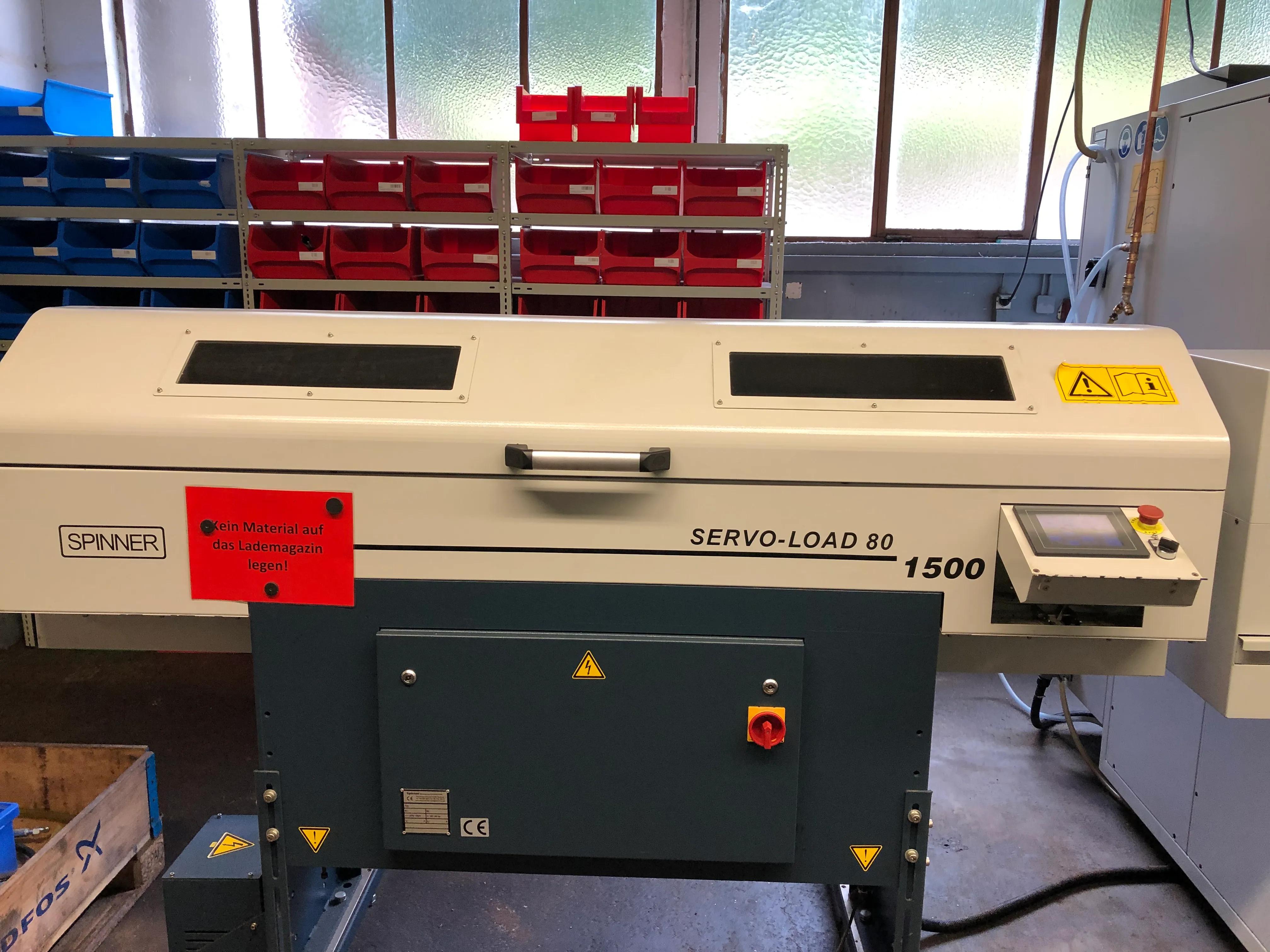

- Spinner Servo Load 80-1500 short loader.
- Manual guide.

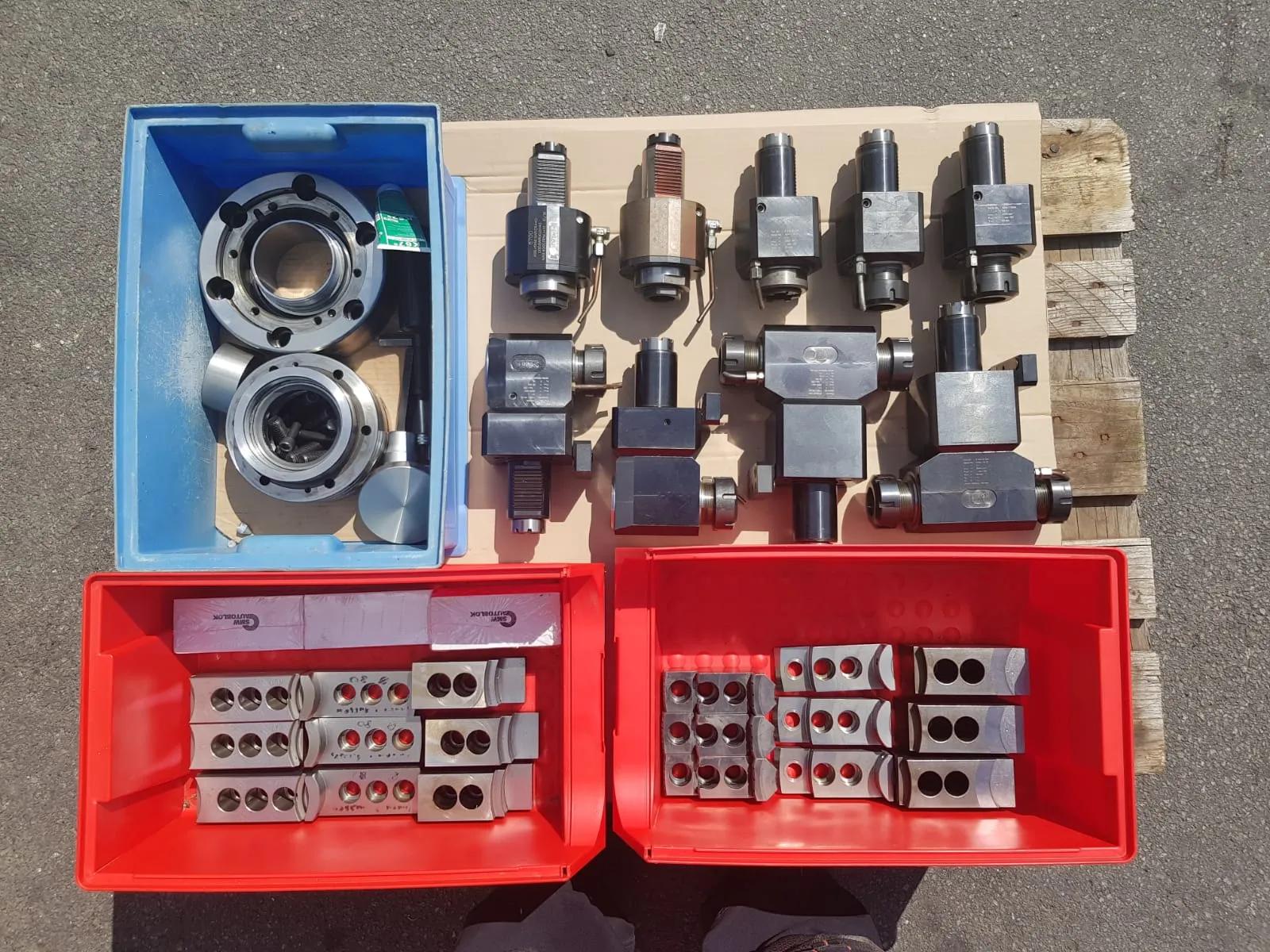

- Accessories.
- Driven tools.
Spinner is a German machine tool manufacturer known for producing a variety of high-precision machining centers and turning machines. The company specializes in the development and production of CNC (Computer Numerical Control) machines designed for precision machining applications. Spinner's product range includes vertical machining centers (VMCs), horizontal machining centers (HMCs), and turning centers (lathes). These machines are used in a wide range of industries, including aerospace, automotive, medical, and general manufacturing. Spinner machines are recognized for their advanced technology, reliability, and versatility, making them suitable for various machining tasks such as milling, drilling, and turning. The brand is committed to providing cutting-edge solutions that meet the demanding requirements of modern machining processes.
