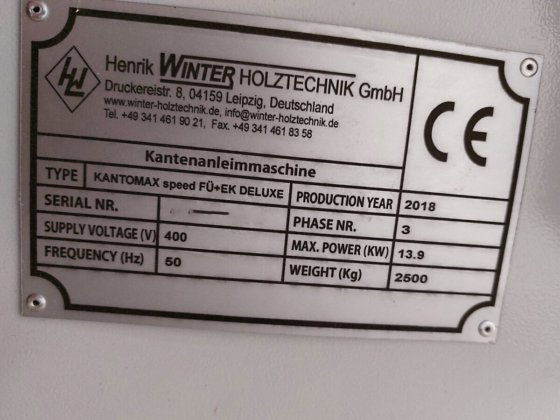

Winter Kantomax Speed Fü-Deluxe - Kantenband - 2018

Woodworking - Edgebanding

Used Winter industrial machinery – Kantomax Speed Fü-Deluxe from 2018 located in Germany. This edgebanding has an edge thickness of 0.4 - 3 mm, 12/16/20 m/min stepless feed speed and motor feed of 2.2 kW.

More info:

Machine with chain feed, support divider for PVC and ABS edging, pneumatic roller cutting, control lamp for workpiece distance, joint milling device with 2 DIA joining measuring heads for attachment in front of the glued part, vertical spindle adjustment, horizontal electro-pneumatic control, 2 motors each 1.8 kW, 200 Hz, 12,000 rpm (1x synchronous, 1x counter-rotation), max. clamping decrease / stroke 3 mm, mitre saw unit for front and rear edge overhang, high-precision linear guide, 2 motors each 0.5 kW, 200 Hz, 12,000 rpm, pulling chop cut for high accuracy, flush trimming unit top and bottom with vertical and horizontal scanning, 2 motors each 0.75 kW, 200 Hz, 12,000 rpm, radius milling device top and bottom with vertical and horizontal scanning, 2 motors each 0.75 kW, 200 Hz , 12,000 rpm, radius scraper unit with chip catcher, scanning from above, below and laterally, for rounding of pre-milled PVC edges, surface scraping unit, scanning from above and below, for removing the adhesive residue for a clean adhesive joint and buffing unit for making the edges grippy at the top and bottom, 2 motors each 0.18 kW, 50 Hz, 1400 rpm, tilt and height adjustable.
