Ibarmia ZVL 3000 - Reizende Kolom Bewerkingscentrum - 1997
of
Bel +31 6 8722 7638
Specificaties
| Fabrikant | Ibarmia |
| Model | ZVL 3000 |
| Jaar | 1997 |
| Conditie | Gebruikt |
| Gemaakt in | Spanje |

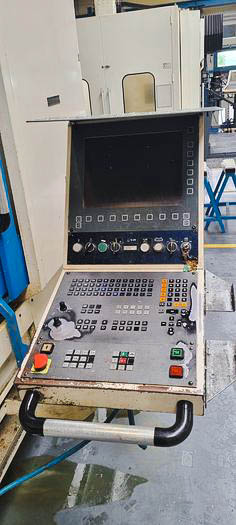

| Besturingseenheid | Heidenhain TNC 426 CB |
| X-As reizen | 2200 mm |
| Y-As reizen | 800 mm |
| Z-As reizen | 600/800 mm |
| Tafellengte | 2600 mm |
| Tafelbreedte | 850 mm |
| Tafellast | 3500 kg |
| Spilkegel | SK 40 |
| Spilsnelheid | 4000 rpm |

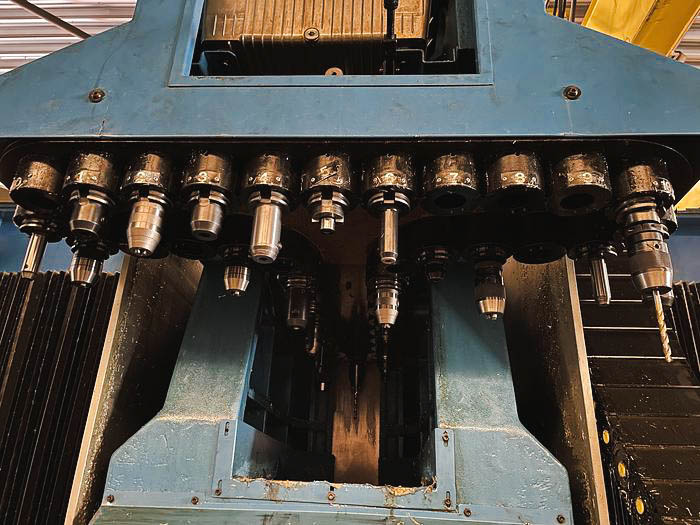

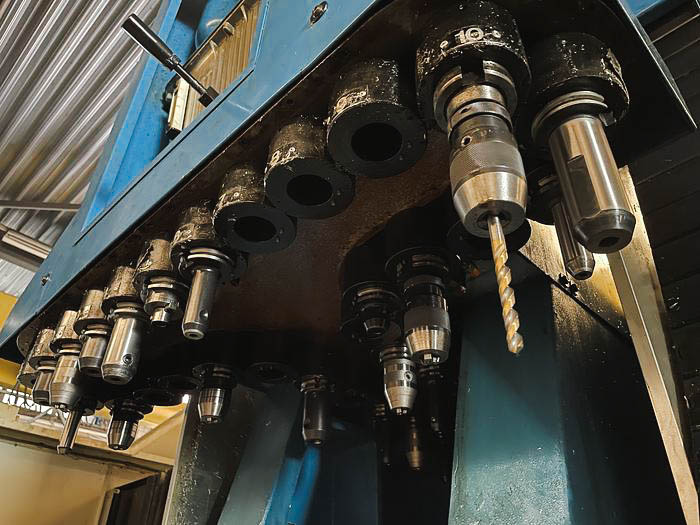

| Gereedschapsmagazijn | 40 posities |
| Vermogen | 47 kW |
| Afmetingen | L 6250 x B 3050 x H 3400 mm |
| Gewicht | 12000 kg ongeveer |
| Beschikbaarheid | Onmiddellijk |
| Opmerkingen | *Informatie kan soms onnauwkeurig zijn en zonder kennisgeving veranderen! |
Beschrijving
Metalworking - Travelling Column Machining Centre

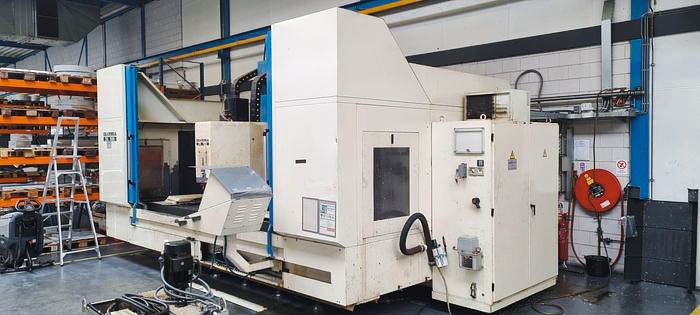

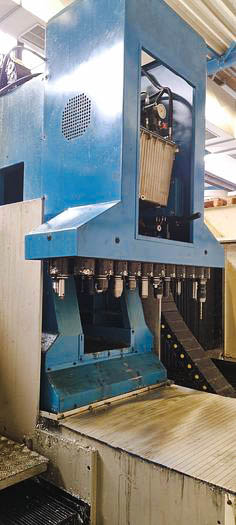

Used Ibarmia industrial machinery – ZVL 3000 from 1997 located in The Netherlands. This travelling column machining centre is equipped with a control unit Heidenhain TNC 426 and has a working area of 2600 x 850 mm, 4000 rpm spindle speed and power of 47 kW.
More info:

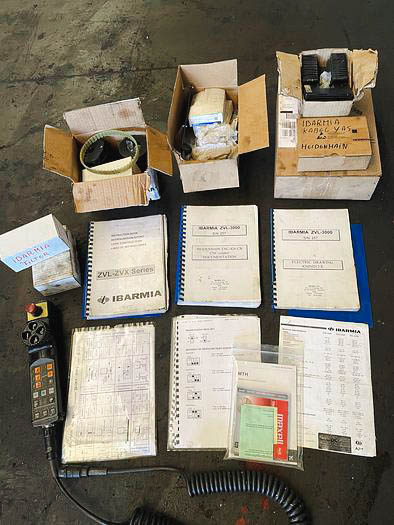

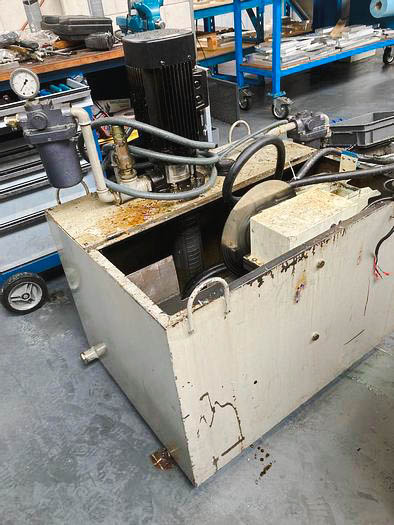

Machine with documentation, parameters, tool holders, chip conveyor and central lubrication.
____
* Please note that this description may have been translated automatically. The information of this classified ad are only indicative and change without notice! GLOMACHT recommends to check the details with the seller. Contact us for further information.*
