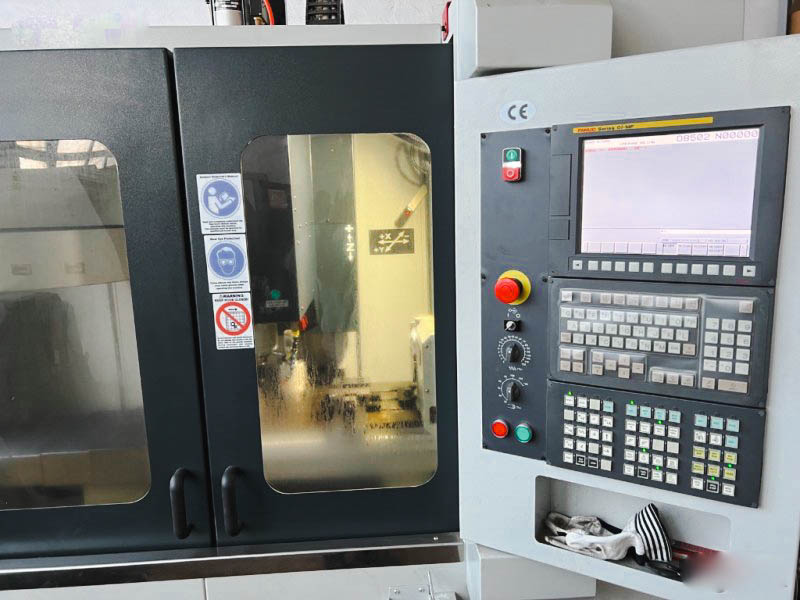

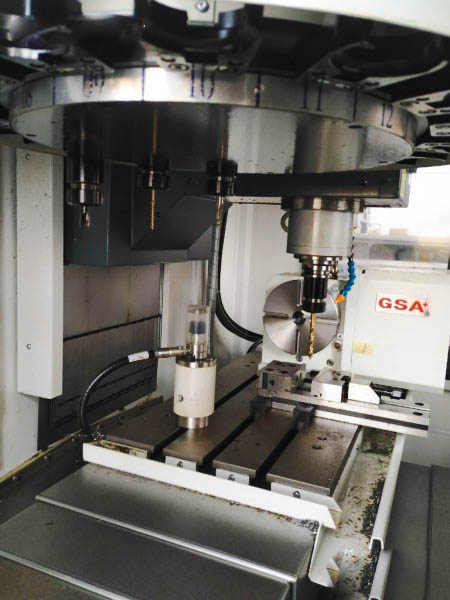

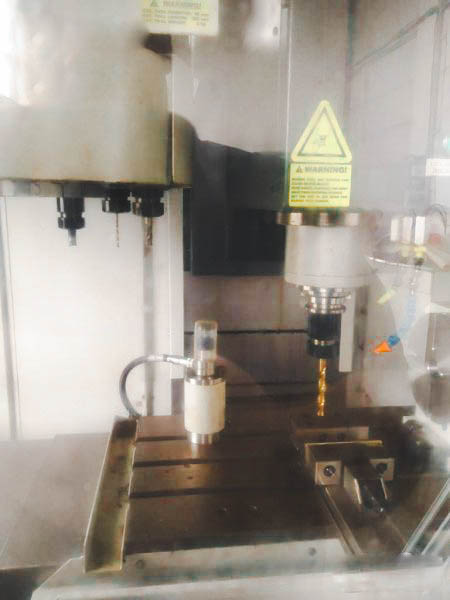

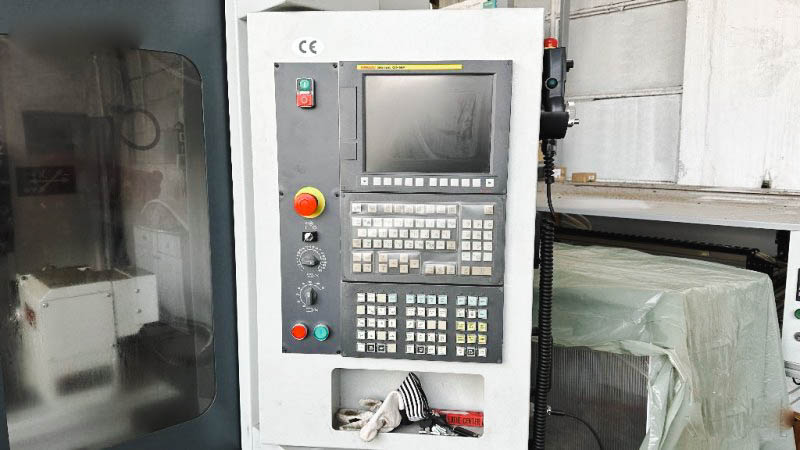

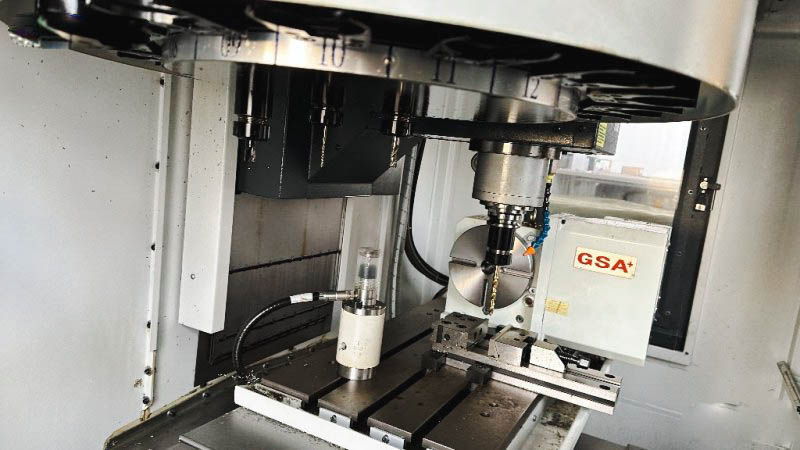

Rais M400 I Verticaal bewerkingscentrum

Specificaties
Fabrikant | Rais |
Model | M400 |
Conditie | Gebruikt |
Gemaakt in | Bulgarije |
Besturingseenheid | Fanuc 0iMF |
X-as verplaatsing | 500 mm |
Y-as verplaatsing | 400 mm |
Z-as verplaatsing | 500 mm |
Snelle verplaatsing X-Y-Z | 30 - 30 - 20 m/min |
Spilneus tot tafel | 150 - 650 mm |
Tafelafmeting | 760 x 400 mm |
Tafelbelasting | 350 kg |
Spil snelheid | 10000 / 12000*/ 15000** rpm |
Spilconus | SK40 / ISO40 / BT40 |
Gereedschapsmagazijn | 24 mm |
Gereedschapsdiameter | 90 mm |
Afmetingen | L 2230 x B 2000 x H 2400 mm |
Gewicht | 3100 kg |
Beschikbaarheid | Onmiddellijk |
Beschrijving
Discover this used Rais M400 vertical machining center, located in Bulgaria. This precision machinery is equipped with a cutting-edge Fanuc 0iMF control unit, ensuring optimal performance. With a generous working area of 760 x 400 mm, a high-speed 10000 rpm spindle, and a robust table load capacity of 350 kg, the Rais M400 delivers efficiency and precision in every operation. Invest in this reliable vertical machining center to enhance your manufacturing processes.
Features:
- Precision Machining: Capable of accurate and intricate metalworking.
- High-Speed Spindle: 10000 rpm for efficient cutting and milling operations.
- Versatile Working Area: 760 x 400 mm provides flexibility for various applications.
- Advanced Control: Equipped with a Fanuc 0iMF control unit for precise command execution.
- Table Load Capacity: Sturdy construction with a capacity of 350 kg for handling diverse workpieces.
- Reliable Performance: Built for consistent and dependable machining processes.
- Suitable for Various Industries: Ideal for metalworking applications in manufacturing and fabrication.
Included with the Machine:
- All accesories
____
*Information may be inaccurate and subject to change without notice. This description could have been automatically translated, and details in this classified ad are indicative and subject to change. GLOMACH advises verifying specifications or else.
**Bidding is subject to specific circumstances and negotiation terms.
