Ravensburg KL 3-800 CNC I Zware CNC Draaibank I 1988
Specificaties
| Fabrikant | Ravensburg |
| Model | KL 3-800 CNC |
| Jaar | 1988 |
| Conditie | Gebruikt |
| Conditie | Gebruikt |
| Gemaakt in | Duitsland |
| Werkuren | 88000 H |

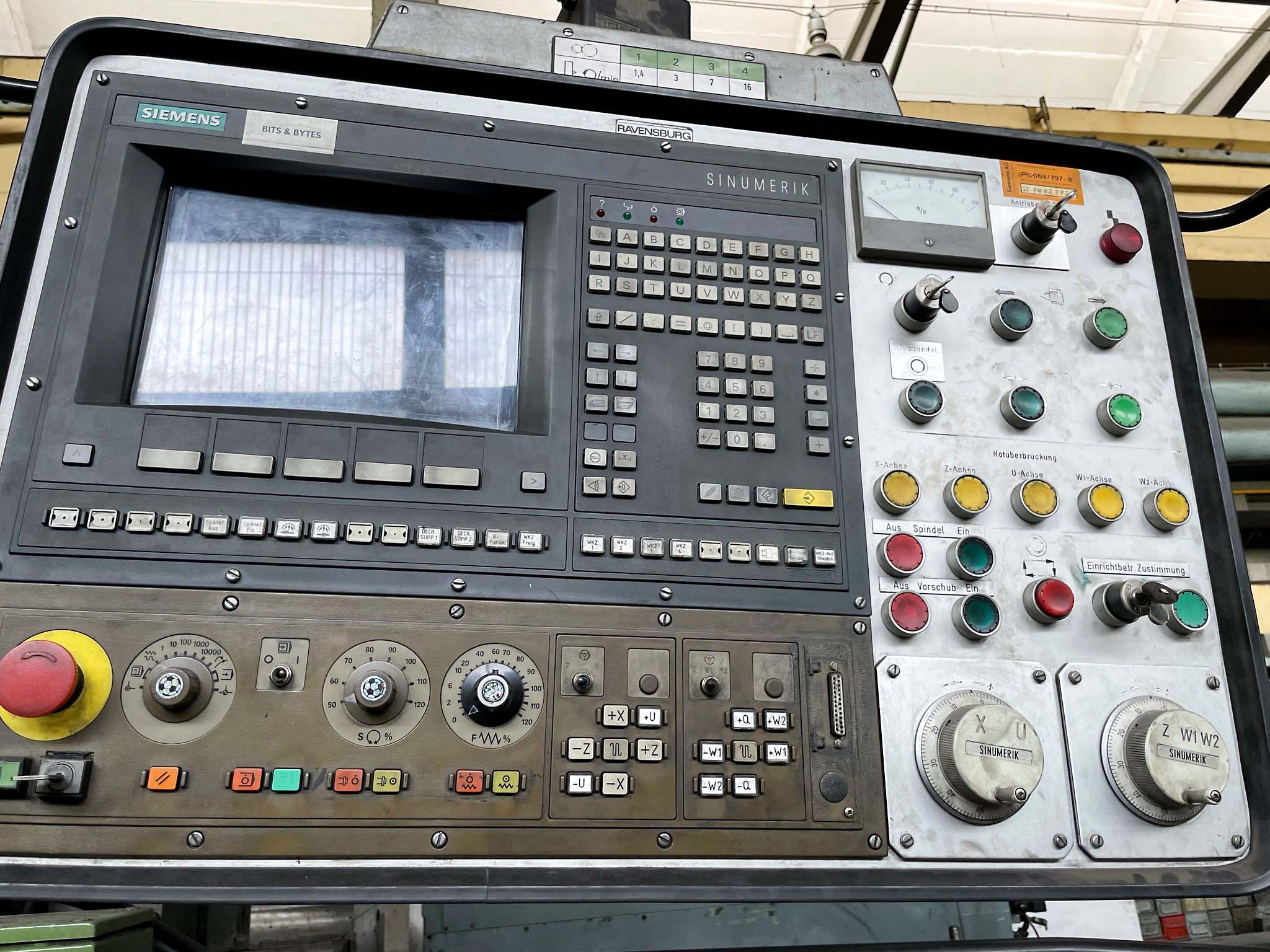

| Besturingseenheid | Siemens 8T |
| Draaidiameter over bed | 2500 mm |
| Draaidiameter over telescopische afdekkingen | 2200 mm |
| Draaidiameter over slede | 1400 mm |
| Draailengte | 6000 mm |
| Klemmen 3 klauw tafel | 2000 mm |
| Spindelboorgat | 200 mm |
| Gewicht van het werkstuk | 4.500 - 40.000 kg |
| Revolverkop | 4 stuks |
| Spindelsnelheid | 4 - 400 rpm |
| Hoofdmotorvermogen | 95.5 kW |
| Max koppel | 40000 Nm |
| Totaal vermogen | 125 kW |
| Afmetingen | L 13000 x B 4000 mm |
| Gewicht | 43000 kg |
| Beschikbaarheid | Onmiddellijk |
Beschrijving
Discover this top-quality used Ravensburg KL 3-800 CNC heavy duty CNC lathe from 1988, located in Serbia. This 1988 heavy-duty high-precision lathe is equipped with a state-of-the-art Siemens 8T control unit, ensuring precision and efficiency. With an impressive turning length of 6000 mm and a versatile spindle speed ranging from 4 to 400 rpm, all powered by a substantial 95.5 kW main motor, the Ravensburg KL 3-800 is your ultimate solution for precision turning and high-performance manufacturing.
Features:
- Precision turning.
- High-performance manufacturing.
- Heavy-duty lathe.

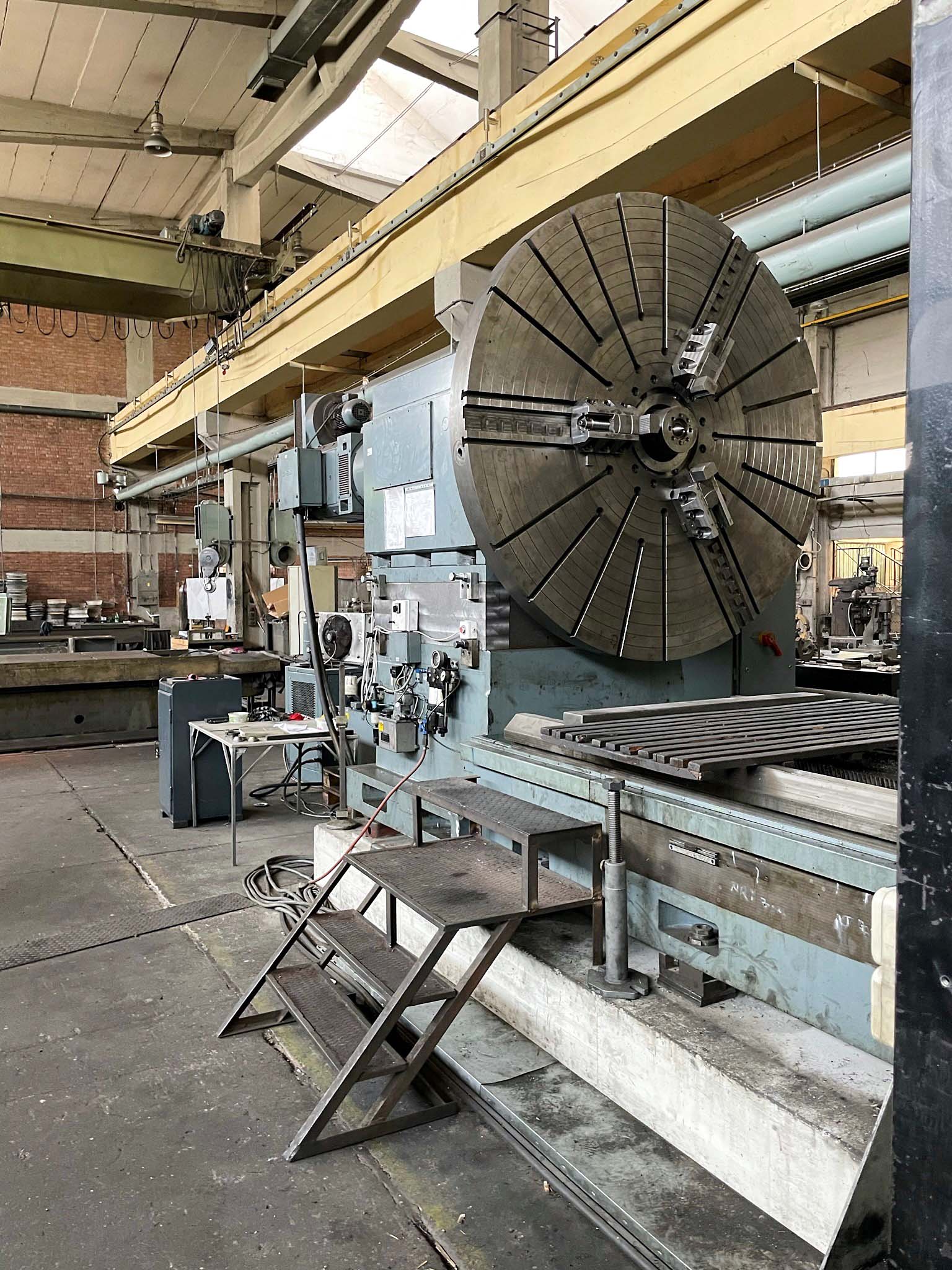

- Machine modified with 2000 mm face clamping plate.
- CNC 6 axes
Included with the Machine:
- Hydraulic clamping system Rohm.
- Slide with two working positions.
- Sauter 4 side tool holder.
- Circular turning unit.
- Tailstock.
- Chip conveyor.
- COF device.
____
*Information may be inaccurate and subject to change without notice. This description could have been automatically translated, and details in this classified ad are indicative and subject to change. GLOMACHT advises verifying specifications or else.
**Bidding is subject to specific circumstances and negotiation terms.
