Nissei NEX 50-5E - Spuitgieten - 2008
Verkocht
Specificaties
| Fabrikant | Nissei |
| Model | NEX 50-5E |
| Jaar | 2008 |
| Conditie | Gebruikt |
| Gemaakt in | Japan |
| Werkuren | 67660 |
| Schroefdiameter | 22 mm |
| Injectiecapaciteit | 35 cm3 |
| Max. injectiedruk | 280 MPa |
| Sluitkracht | 490 kN |
| Slag van de sluiting | 250 mm |
| Mould dikte | 170 - 360 mm |
| Max. daglicht opening | 610 mm |
| Tie bar afstand(H×V) | 360 x 360 mm |
| Matrijsplaat afmetingen (H×V) | 505 x 505 mm |
| Uitwerper slag | 70 mm |
| Motorvermogen | 15 kW |
| Afmetingen | L 3570 x B 1080 x H 1600 mm |
| Gewicht | 2600 kg |
| Beschikbaarheid | Onmiddellijk |
| Opmerkingen | *Informatie kan soms onnauwkeurig zijn en zonder kennisgeving veranderen! |
Beschrijving
Plastic - Injection Moulding

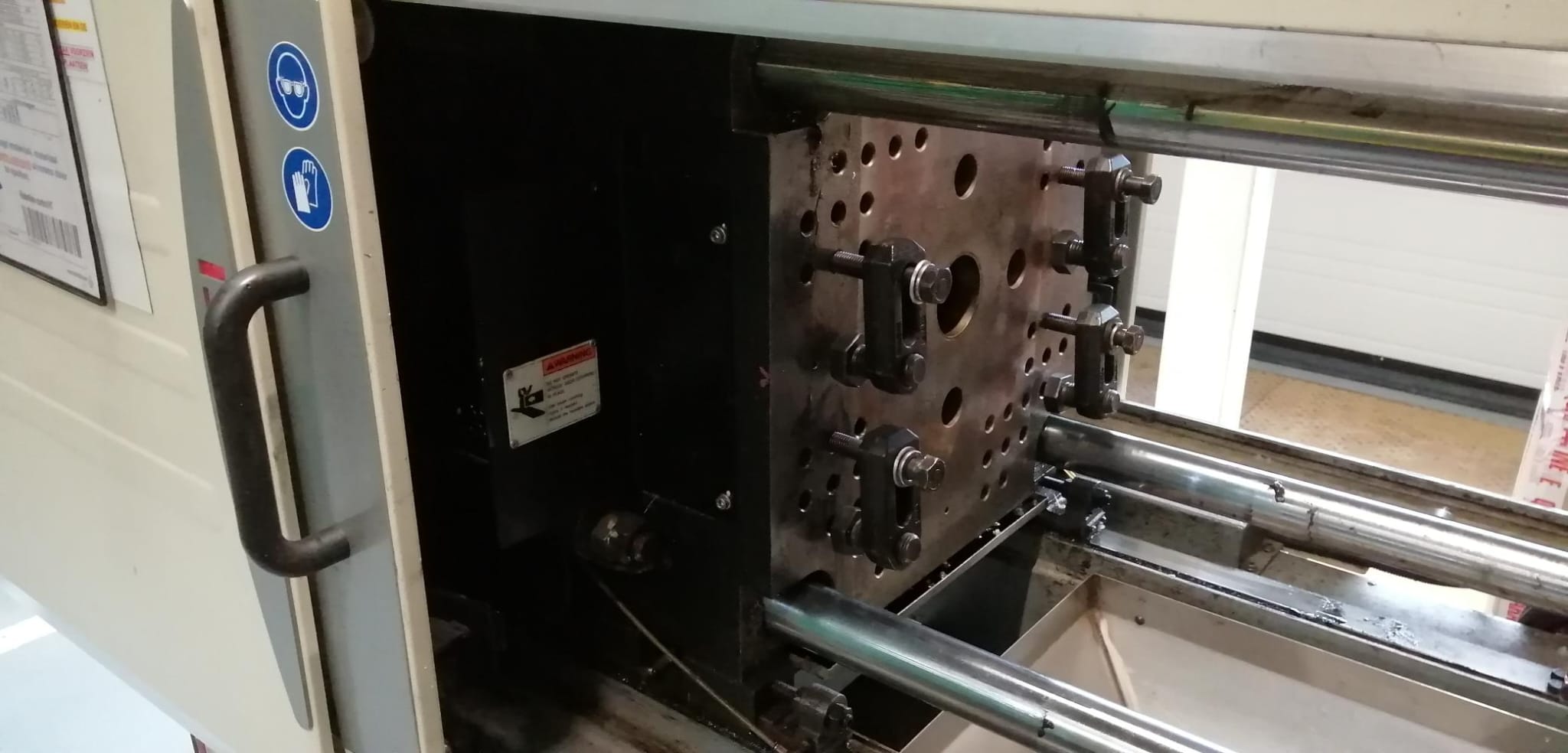

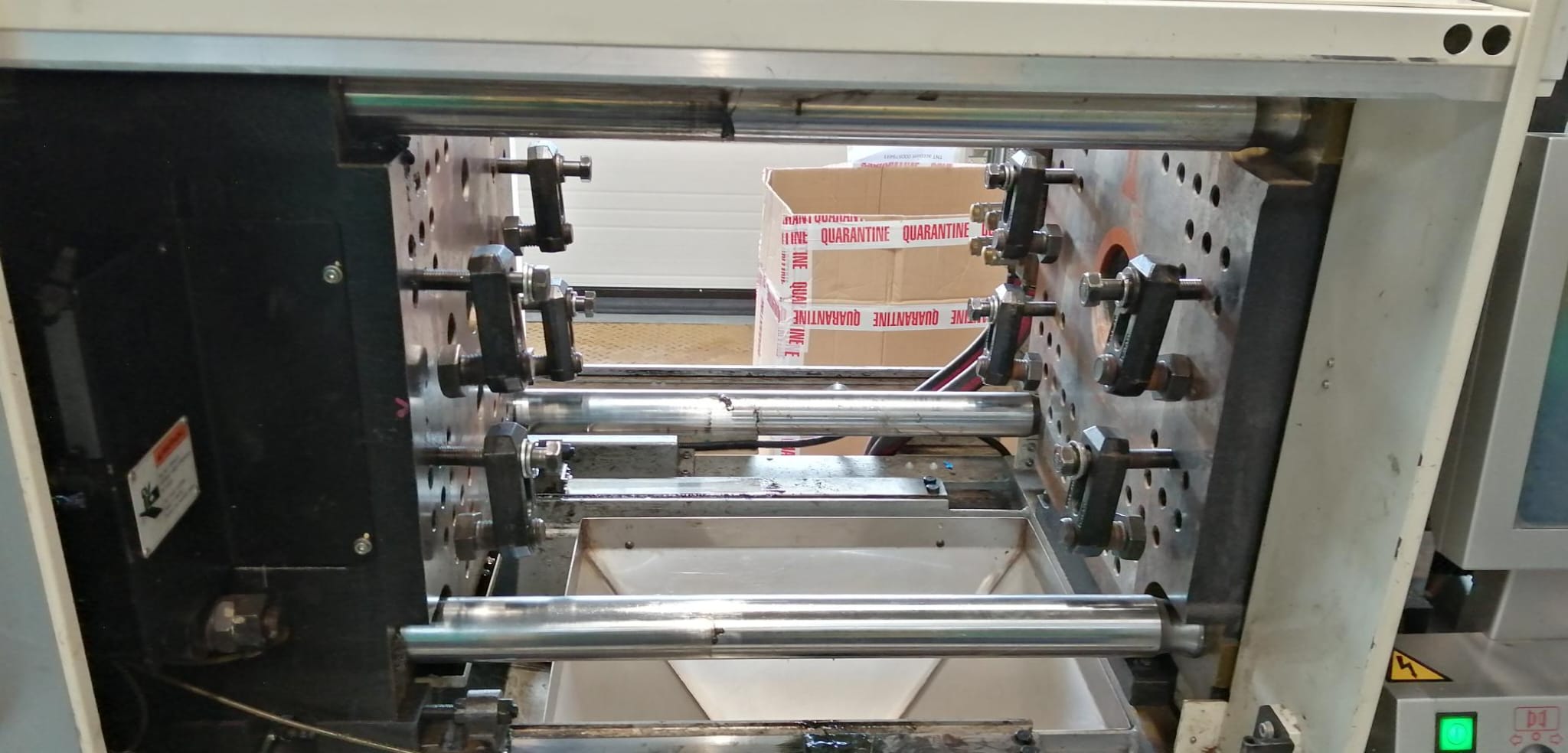

Used Nissei industrial machinery – NEX 50-5E from 2008 located in Belgium. This injection moulding machine has a screw diameter of 22 mm, 35 cm3 injection capacity and motor power of 15 kW.
More info:
Machine with manuals in english and the software is in english and japanese.
For more information please download the brochure.
