MARTIN T26 DUO CONTROL - 2003
Specificaties
| Fabrikant | MARTIN |
| Model | T26 DUO CONTROL |
| Jaar | 2003 |
| Conditie | Gebruikt |
| Tafelafmetingen | 1255 x 900 mm |
| Tafelhoogte | 900 mm |
| Spilhoogte | 150 mm |
| Gereedschapsdiameter | 250 mm |
| Inclinatie | 45 ° |
| Spilmotor | 7.5 - 9.5 kW |
| Gereedschapshouder | SK40 |
| Gewicht | 1150 Kg |
| Beschikbaarheid | Direct beschikbaar |
| Opmerkingen | *Informatie kan soms onnauwkeurig zijn en zonder kennisgeving veranderen! |
Beschrijving

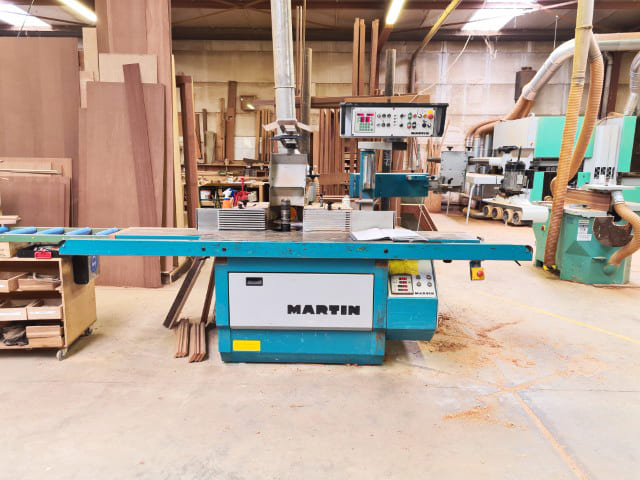

CNC Milling machine - Year: 2003
More info:

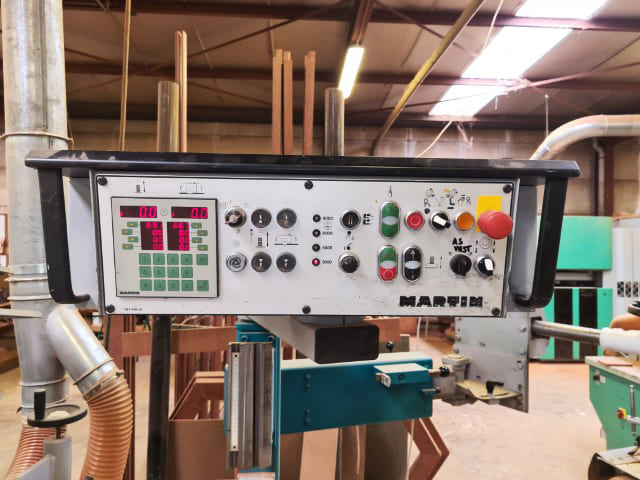

Digital display for spindle height and chamfer, as well as display for milling depth correction values when swiveling.
Electro-pneumatic locking of the milling spindle by means of selector switch.
Protection device FRS95 for milling with thrust ring provided with extraction nozzle and guide, quick tensioning system for the V-belts (with constant belt tension).
Ample tool storage space. Extraction nozzle on the guide 120mm Ø, extraction nozzle under the table 120mm Ø.
Minimum extraction capacity for both extraction nozzles 24 m³ / min. At 1000 Pa.
Low-noise machine - values according to prEN ISO 11202 (WZ Ø 125mm, Z = 2, rpm = 6000).
