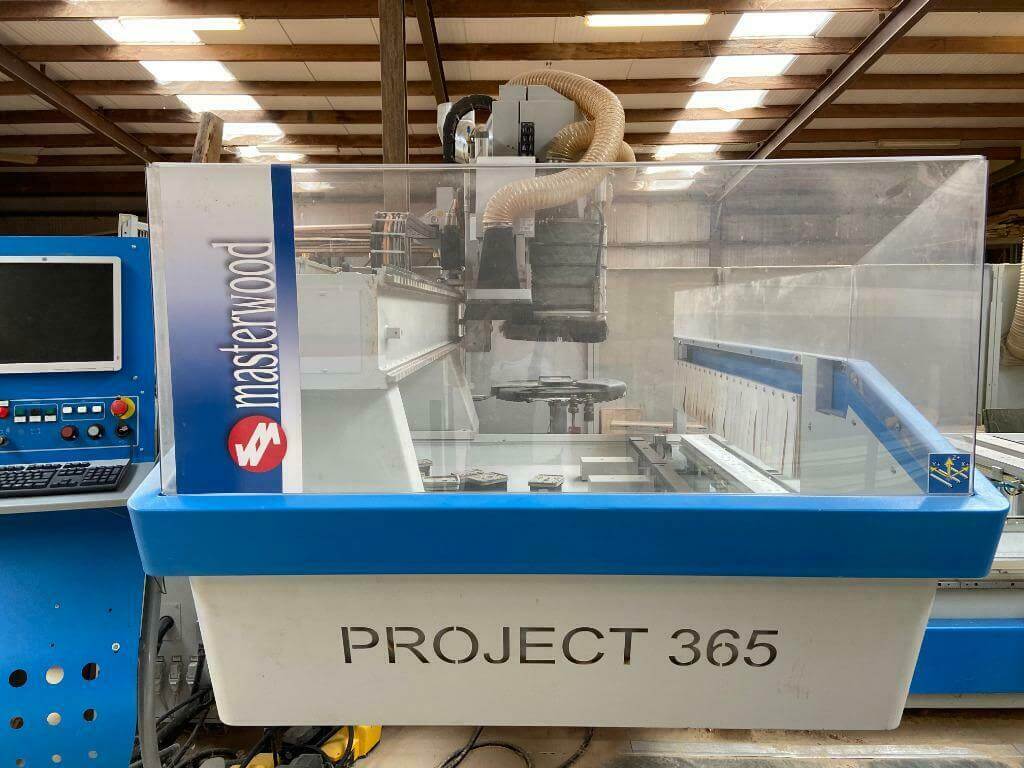

MASTERWOOD PROJECT 365 L - 2013
Verkocht
Specificaties
| Fabrikant | MASTERWOOD |
| Model | PROJECT 365 L |
| Jaar | 2013 |
| Conditie | Gebruikt |
| Werkuren | Ongeveer 400 |
| Gemaakt in | Italië |
| X-as verplaatsing | 5000 mm |
| Y-as verplaatsing | 1520 mm |
| Z-as verplaatsing | 200 mm |
| Diameter van gaten | 2 - 35 mm |
| Snijdiameter | 125 mm |
| Verplaatsingssnelheden | 80 - 80 - 25 m/min |

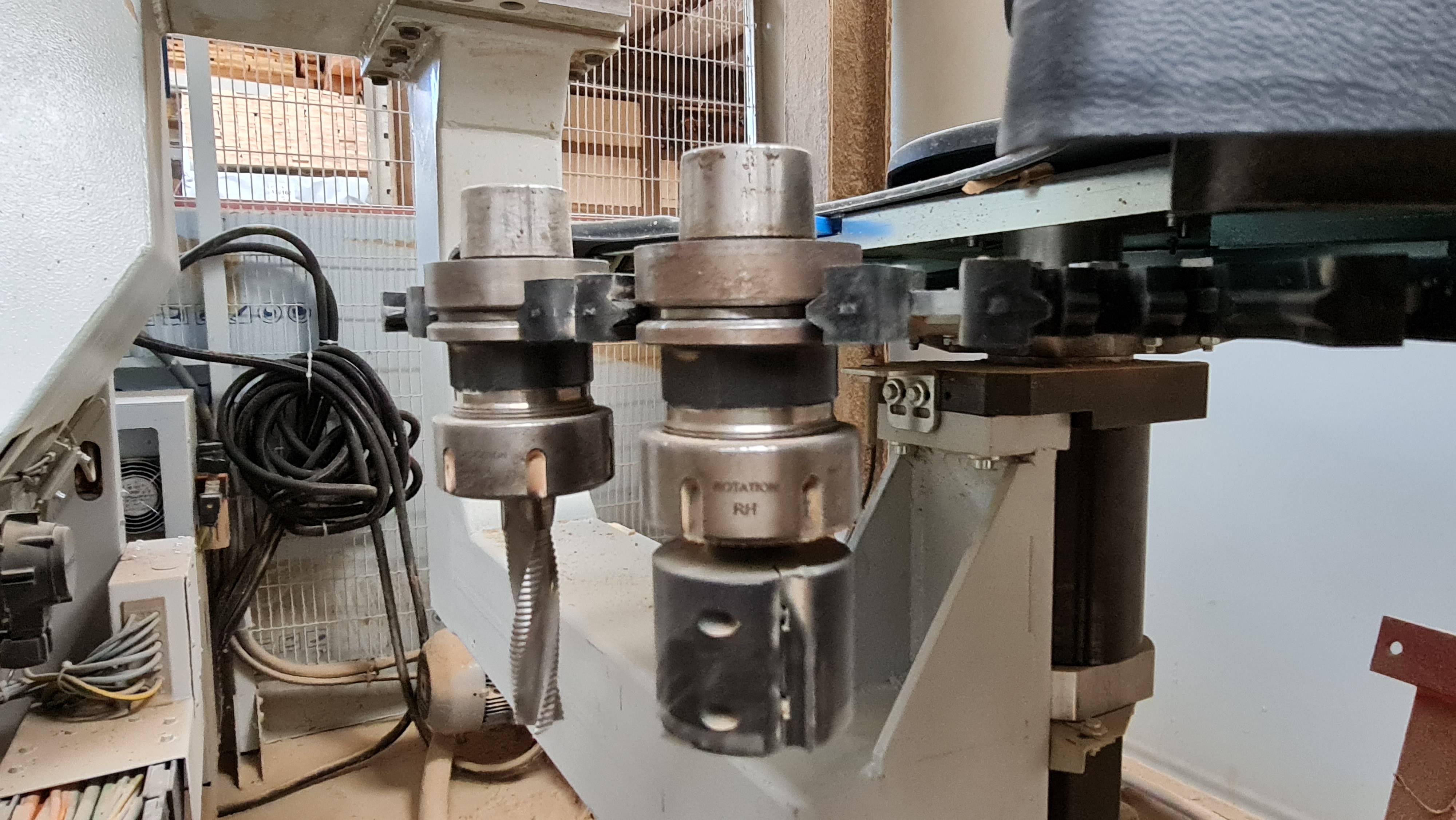

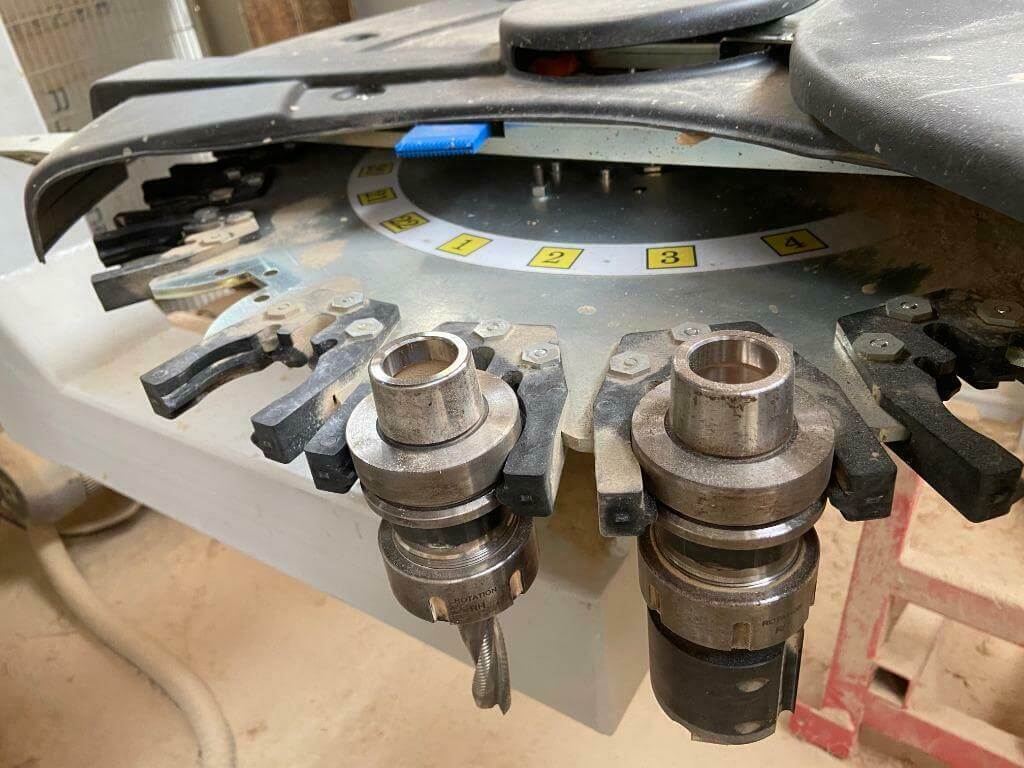

| Gereedschapswisselaar | 22 Posities |
| Hoofdmotorvermogen | 12 kW |

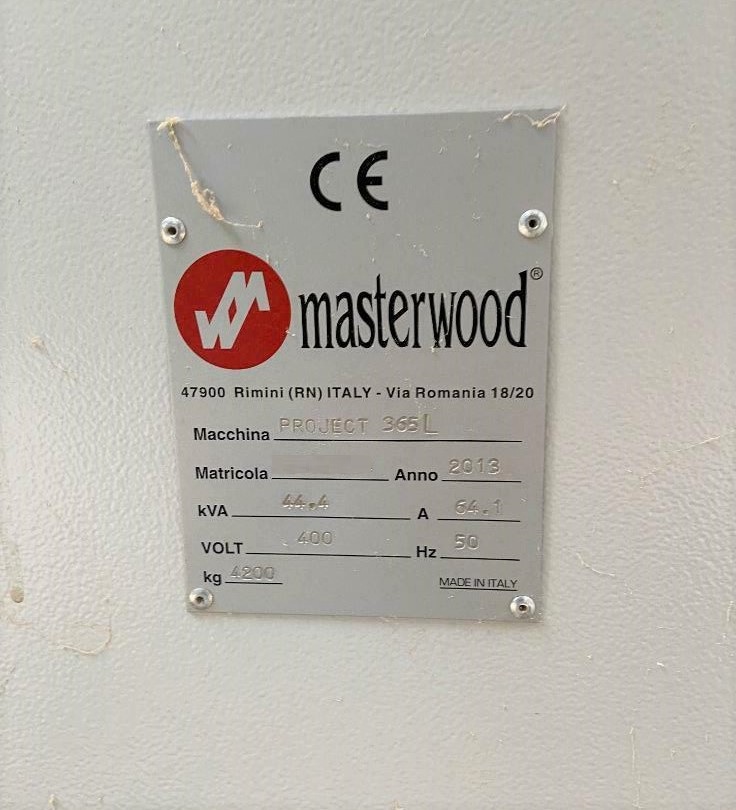

| Vermogen | 44.4 kVA |
| Spanning | 380 Vtl 50 Hz |
| Afmetingen | L 8300 x B 4250 x H 3100 mm |
| Gewicht | 4200 Kg |
| Beschikbaarheid | Onmiddellijk |
| Opmerkingen | *Informatie kan soms onnauwkeurig zijn en zonder kennisgeving veranderen! |
Beschrijving
CNC Machining centers - Year: 2013
More info:

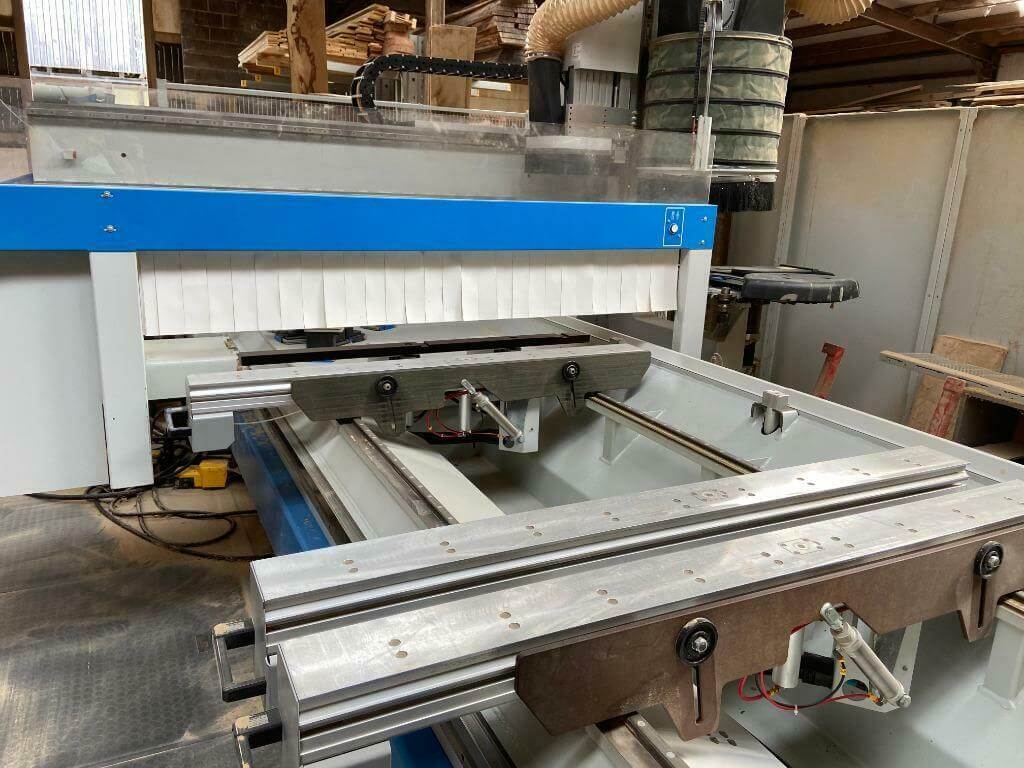

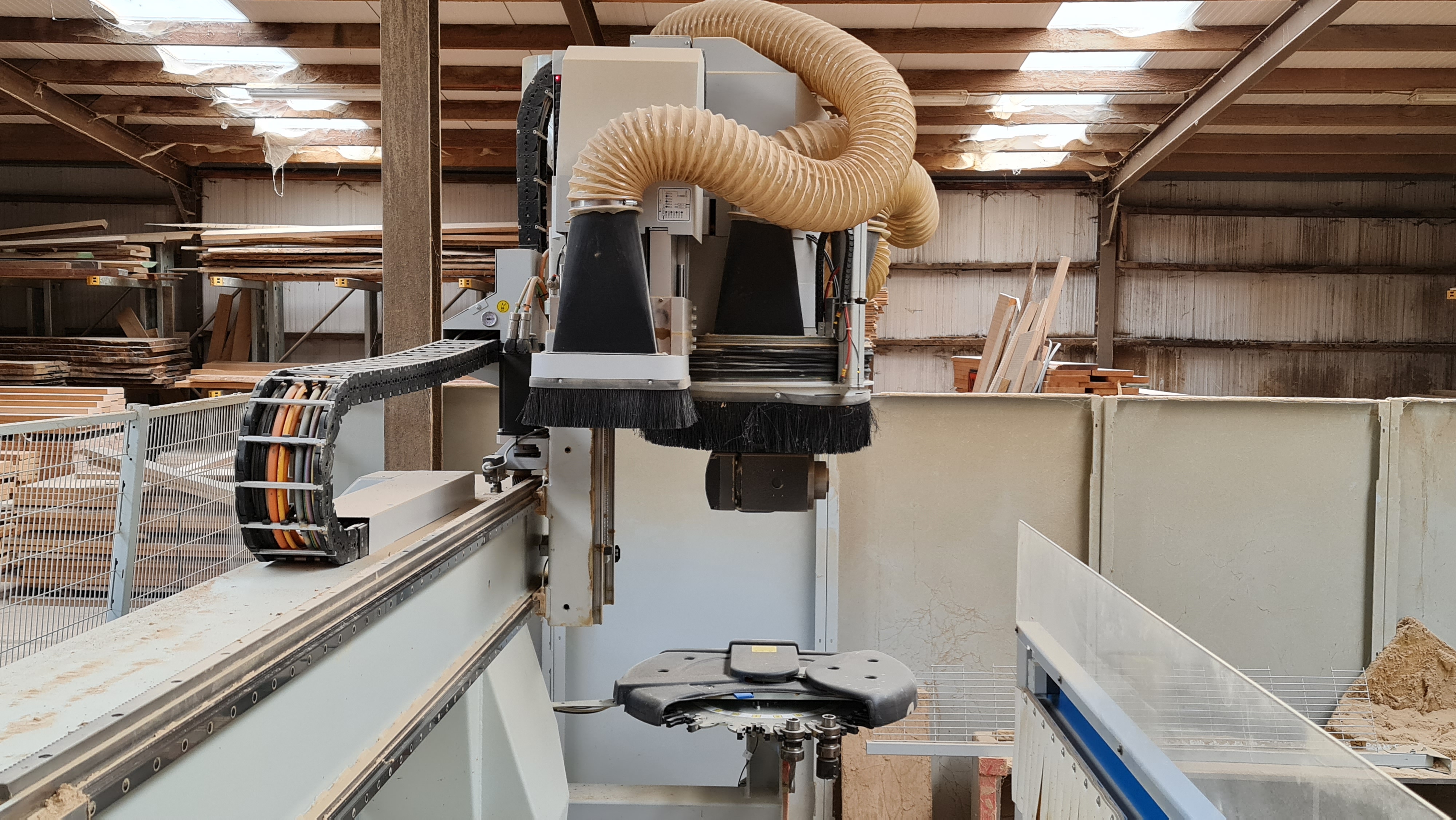

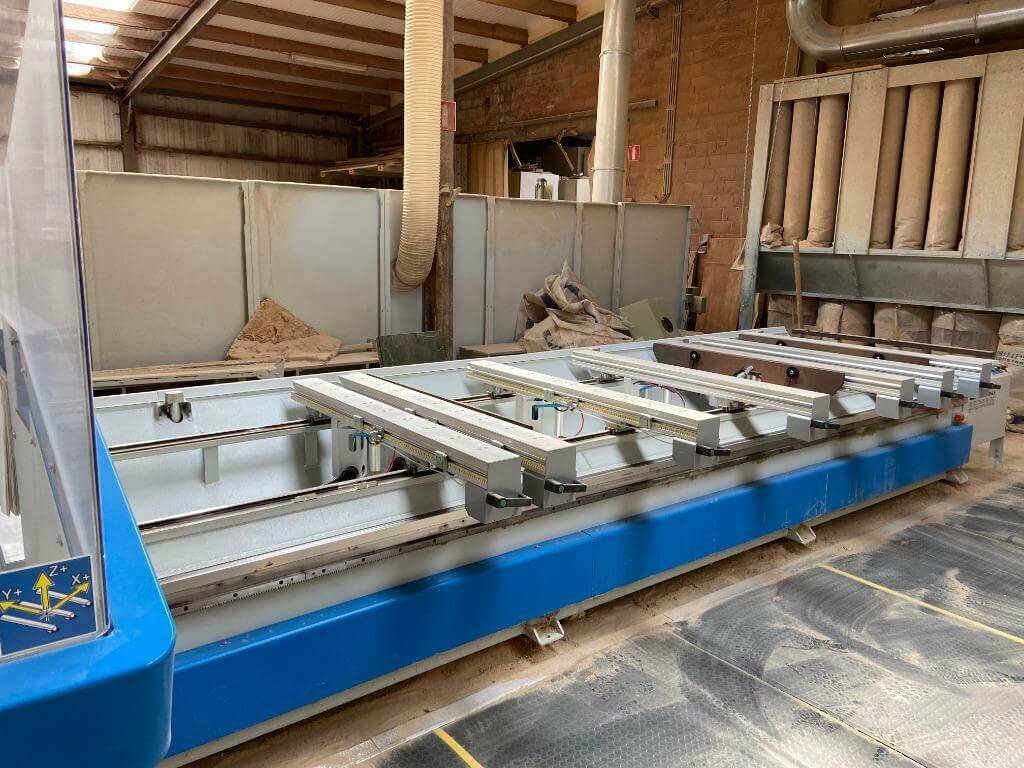

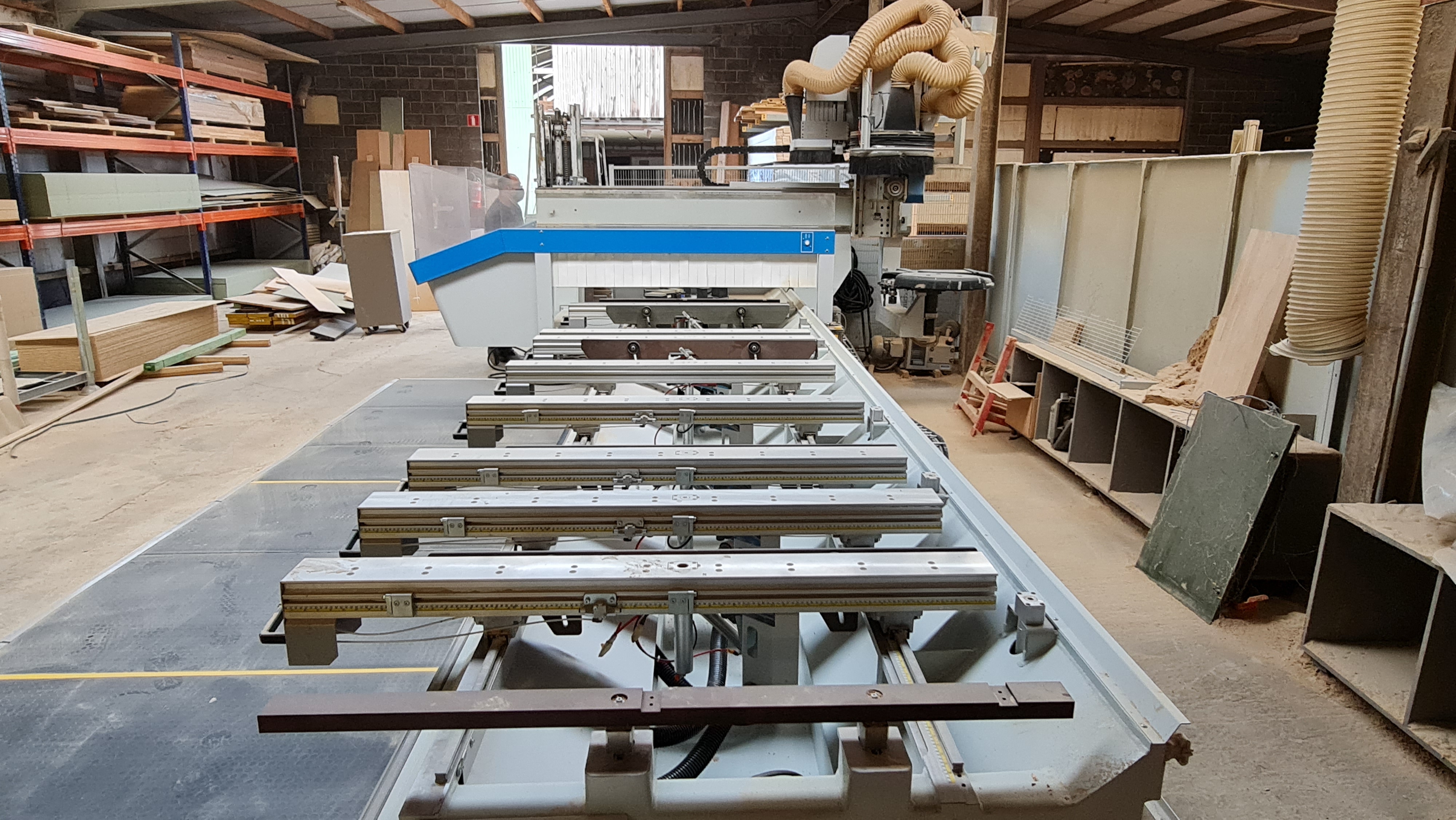

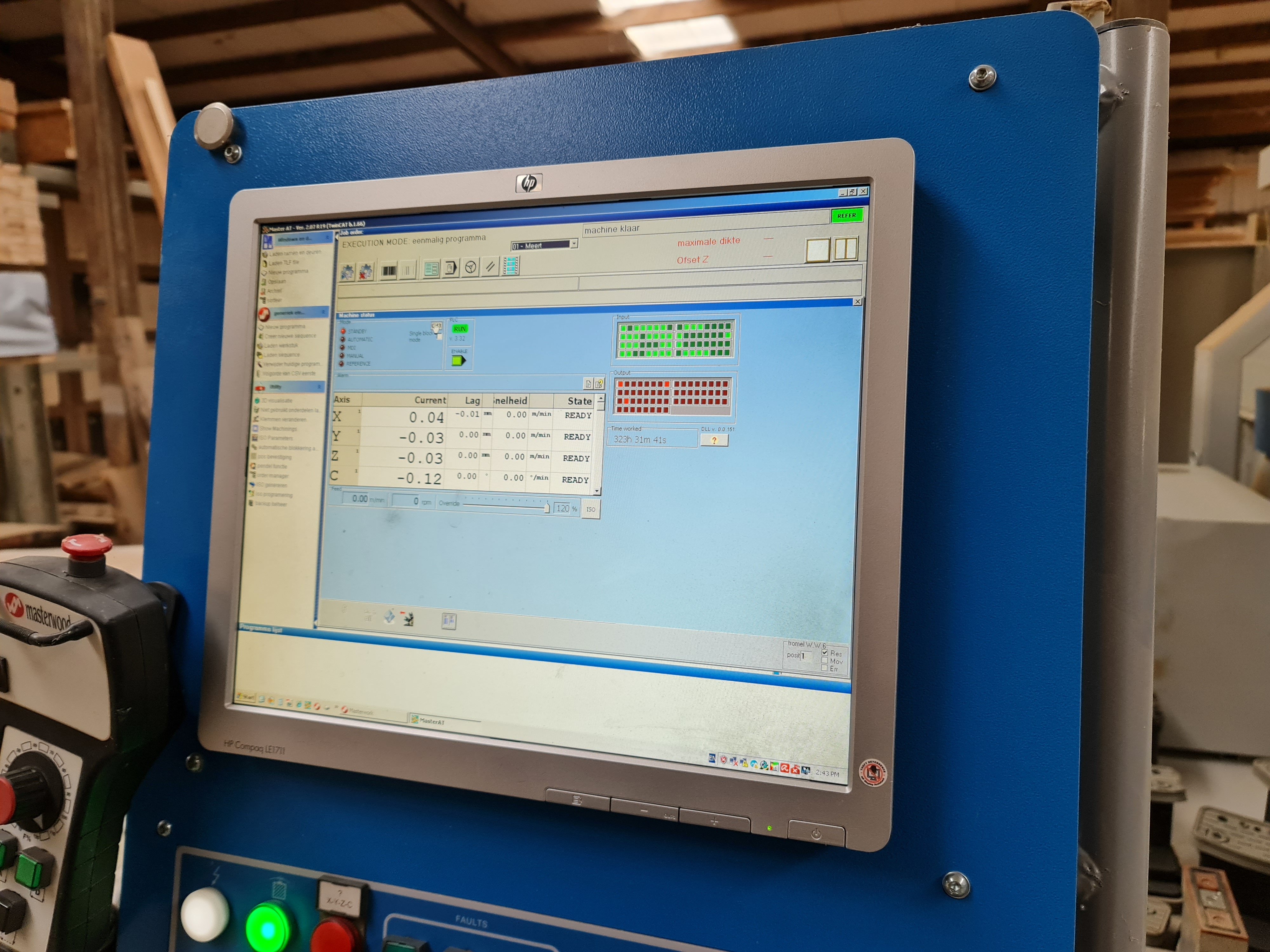

5 Axis woodworking center, with computer included.
Equipment used in the machining of wood panels and their derivatives, in addition to solid wood, plastic and composite materials, for the manufacture of parts and components with surfaces to be interpolated in 3, 4 and 5 axes, allowing to create wave-like effects, spherical, figures and countless other types of effects in high and low relief, in addition to using cutters, drills and various tools without the need to use the aggregate, thanks to axes A and C. ideal for working with different panels, doors and frames.
ONLY 400 WORKING HOURS!
