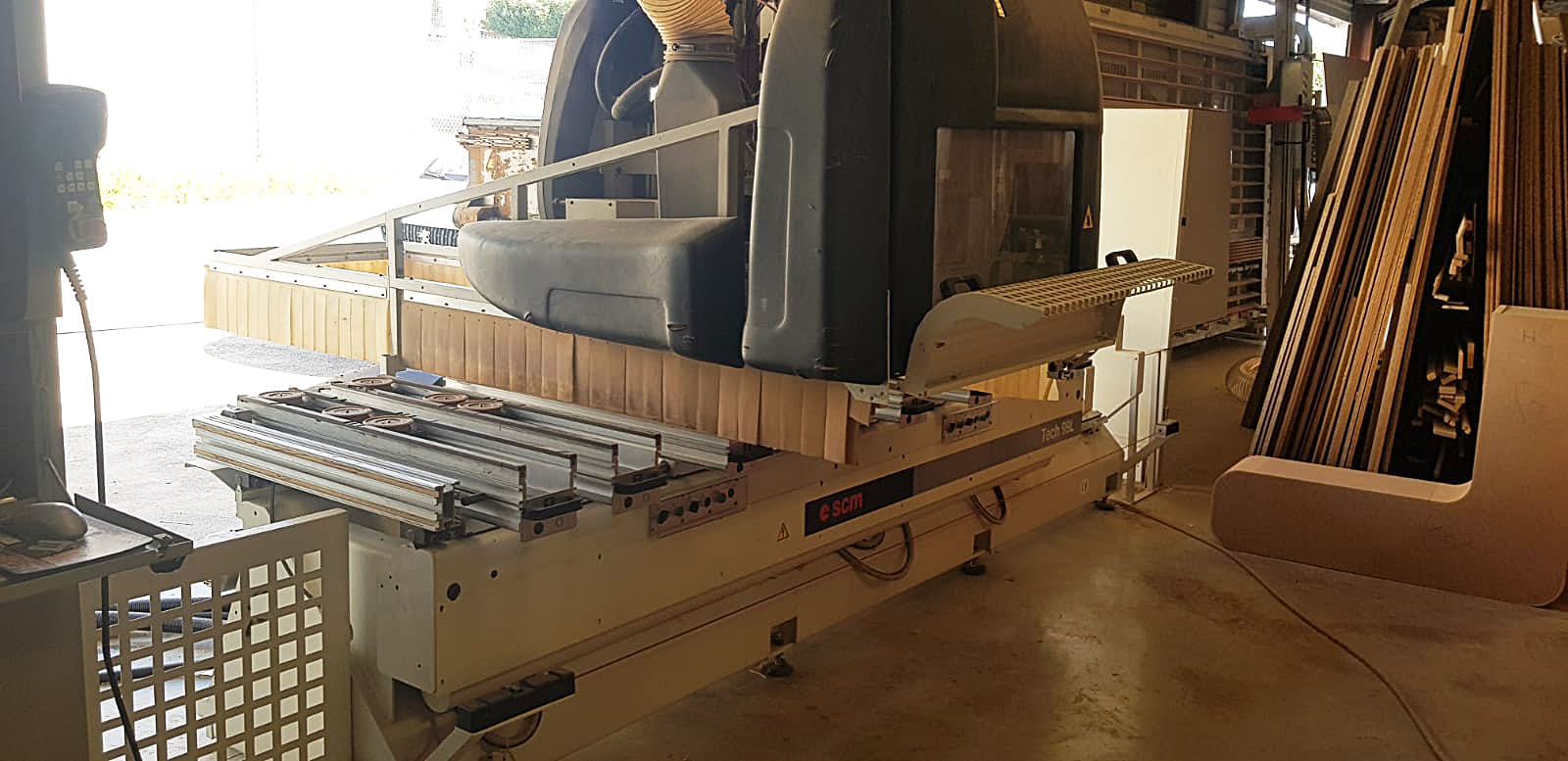

Scm Tech 99 L - CNC Bewerkingscentra - 2001
Verkocht
Specificaties
| Fabrikant | SCM |
| Model | TECH 99 L |
| Jaar | 2001 |
| Conditie | Gebruikt |

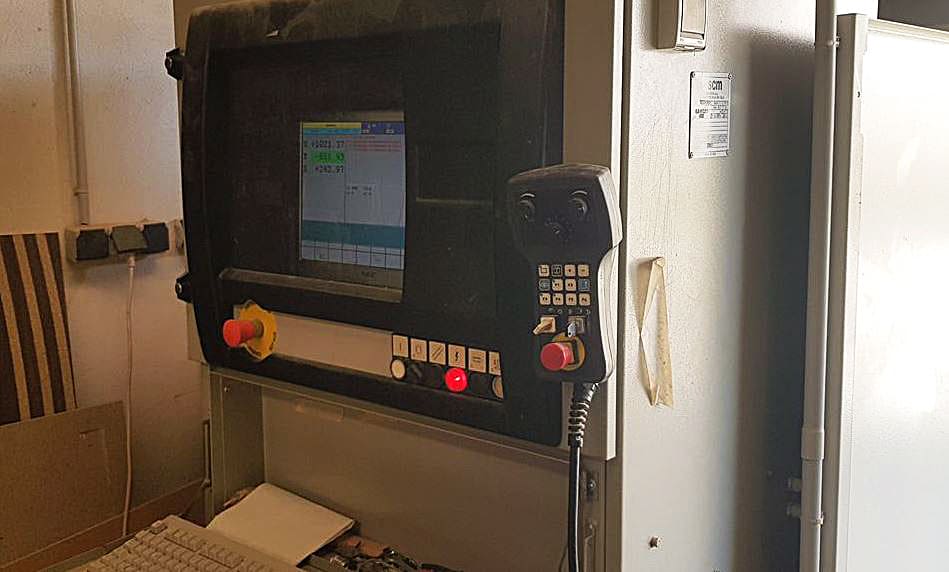

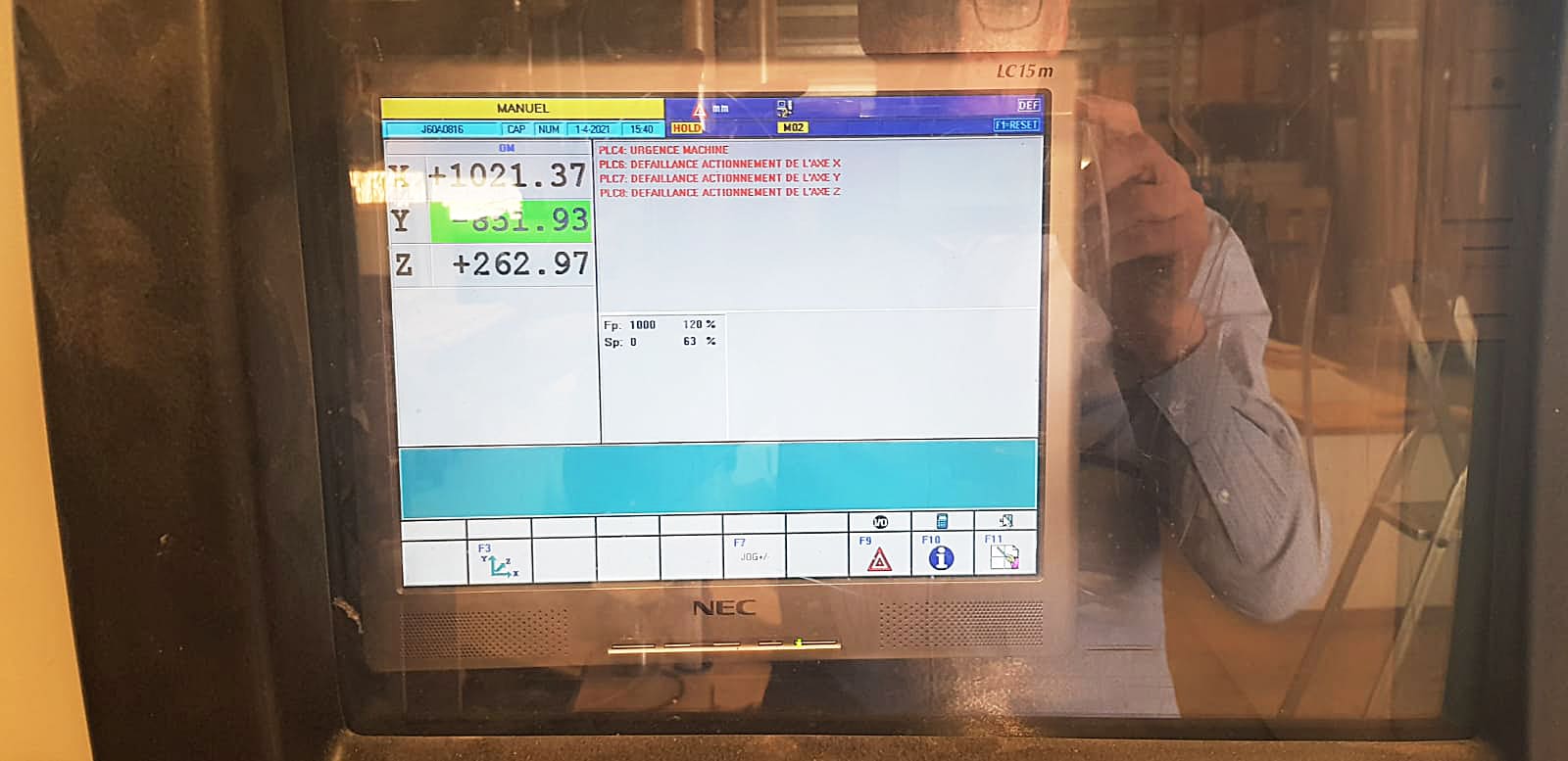

| Besturingseenheid | NEC -LC 15m |
| Werkgebied | 2900 x 1150 mm |
| X-as verplaatsing | 3080 mm |
| Y-as verplaatsing | 1180 mm |
| Z-as verplaatsing | 180 mm |

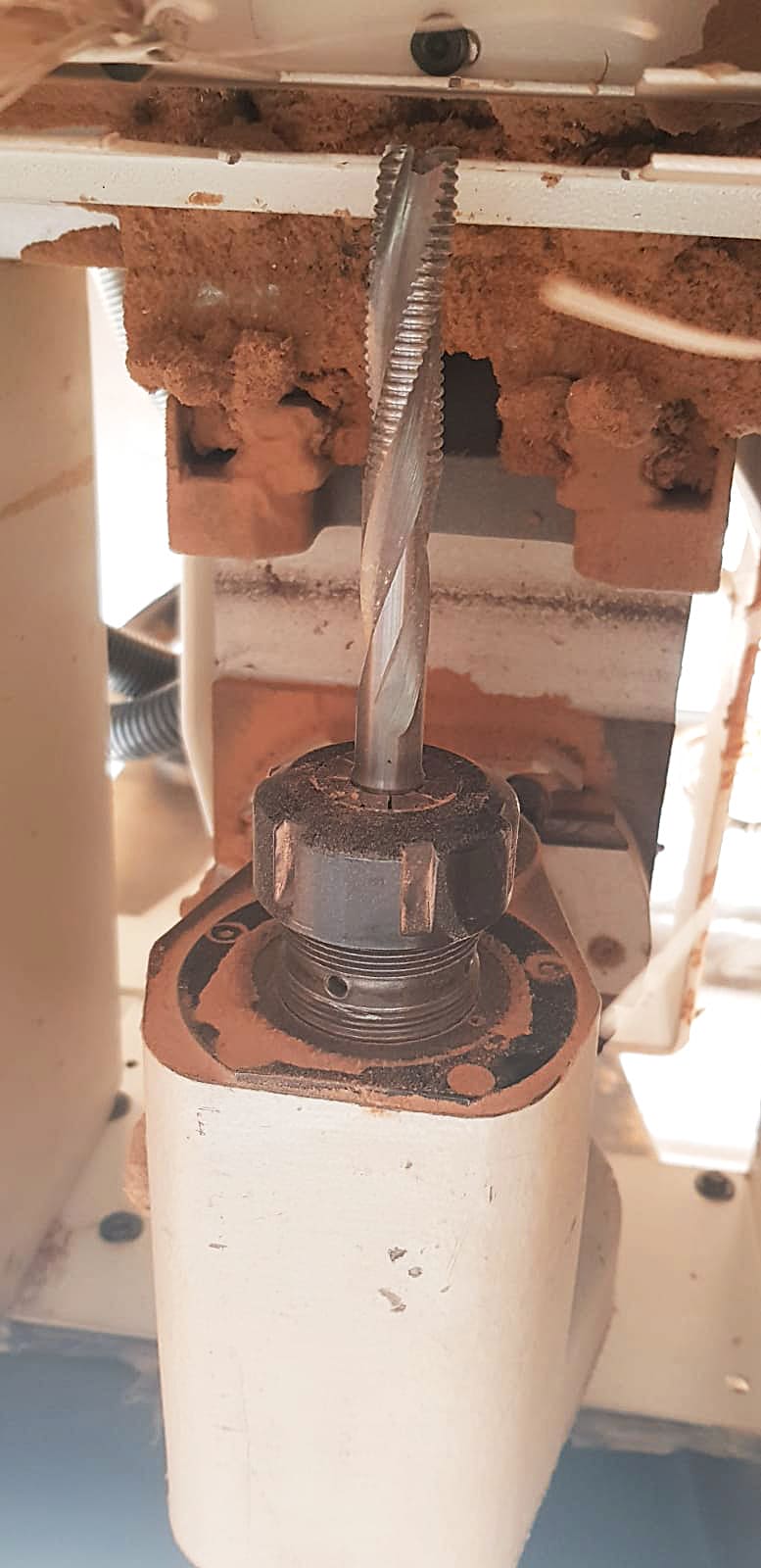

| Elektrospindel | 9pk 4-positie |
| Vacuümpomp | 100 m³/h |
| Spiltoerental | 24000 rpm |
| Afmetingen | L 5900 x B 2600 x H 2070 mm |
| Gewicht | 2978 Kg |
Beschrijving
CNC Machining Centers - Year: 2001

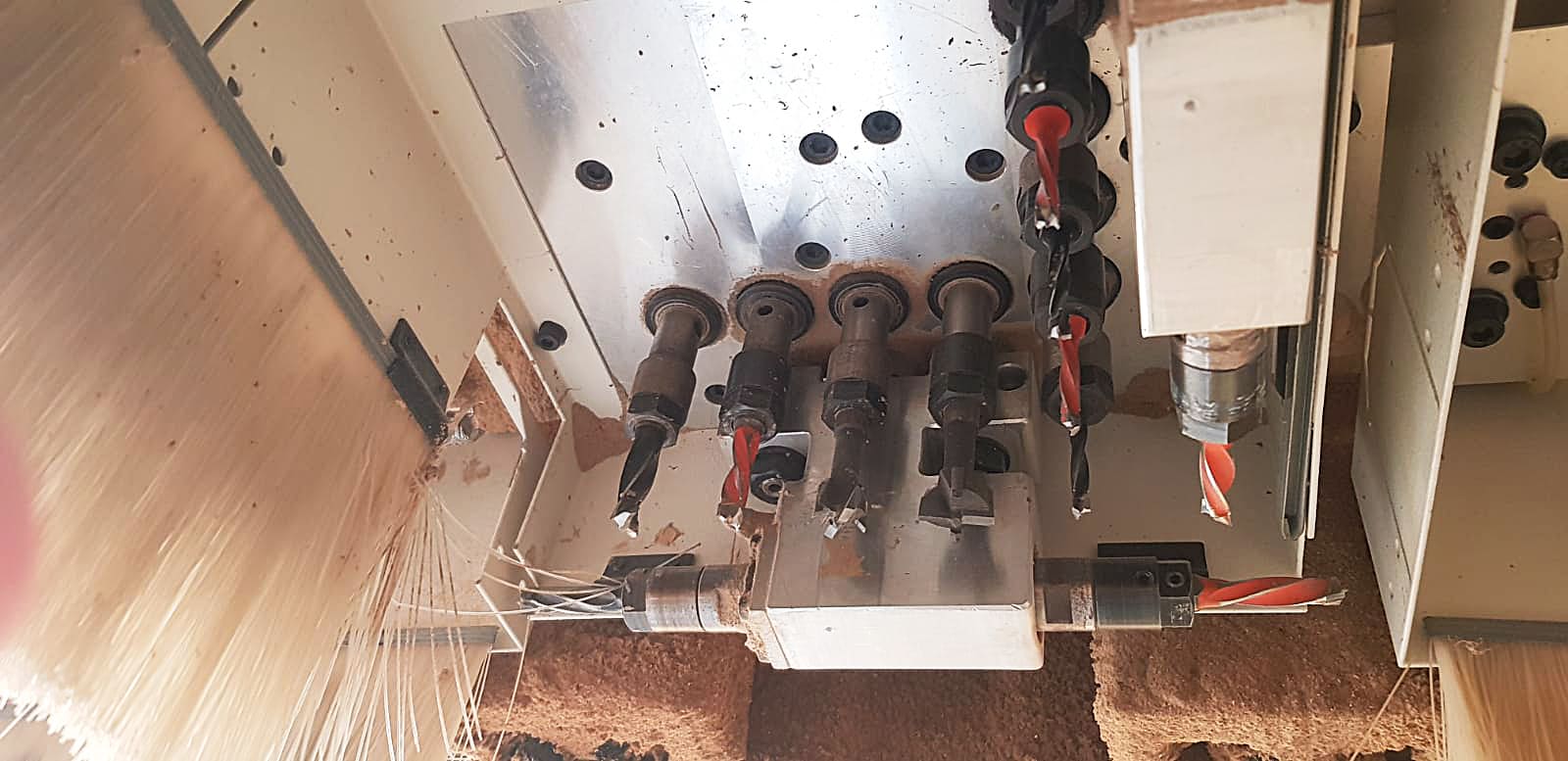

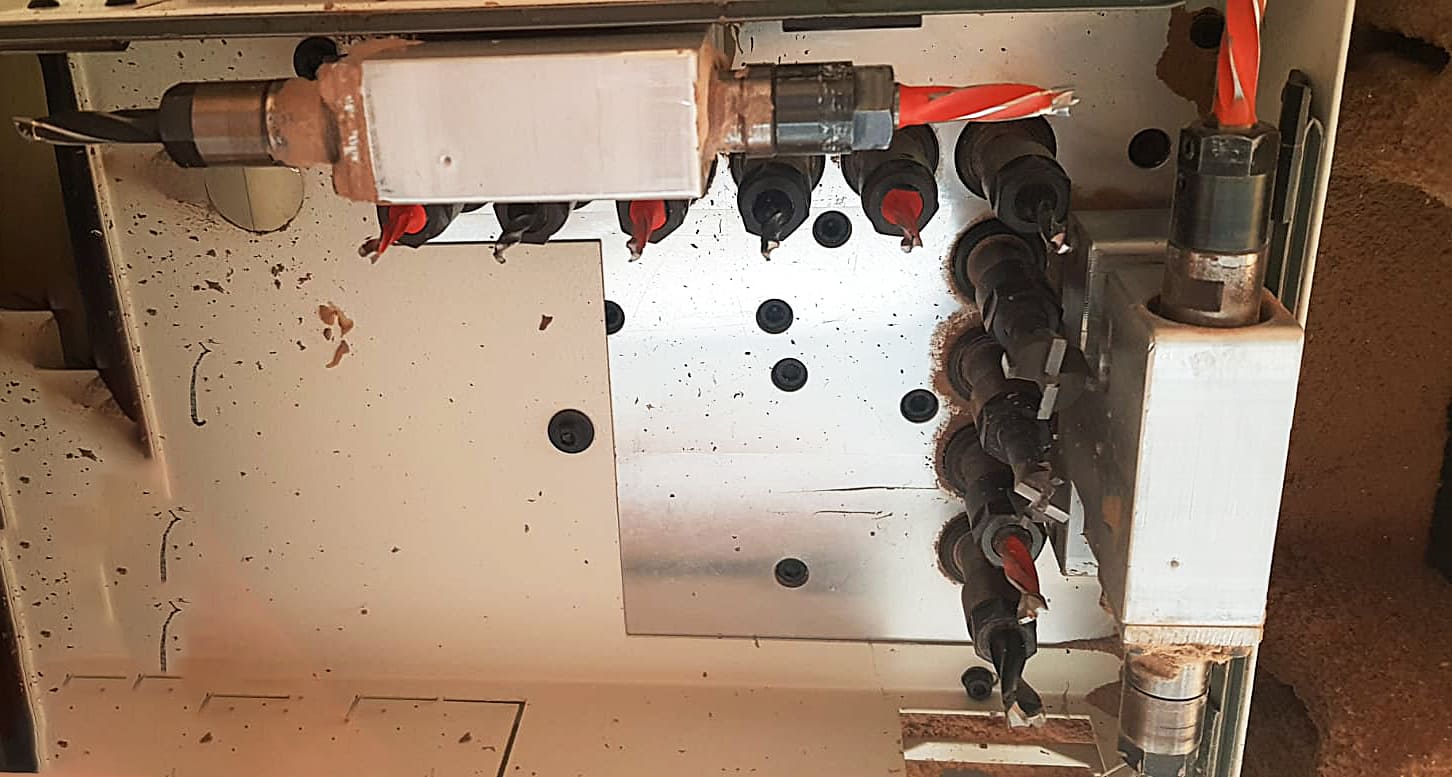

Machine with drilling group 18 independent chucks for drilling horizontally and vertically. 8mm grooving blade tiltable in X and Y Horizontal milling motor dedicated to the mortising of hinges and lock cases. Worktop with suction cups and vacuum pump 100m3 / h Aspan programming software for drawing and programming from drawings based on Autocad.
___
* Please note that this description may have been translated automatically. The information of this classified ad are only indicative and change without notice! GLOMACHT recommends to check the details with the seller. Contact us for further information.*
