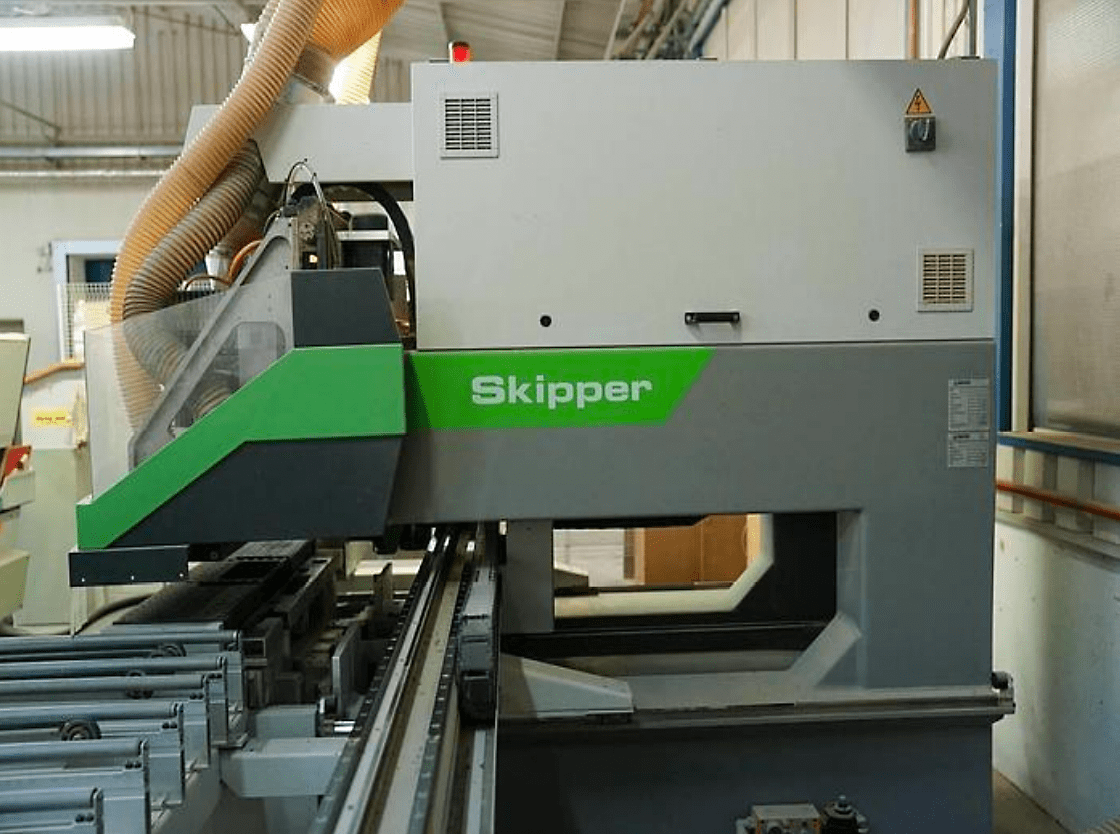

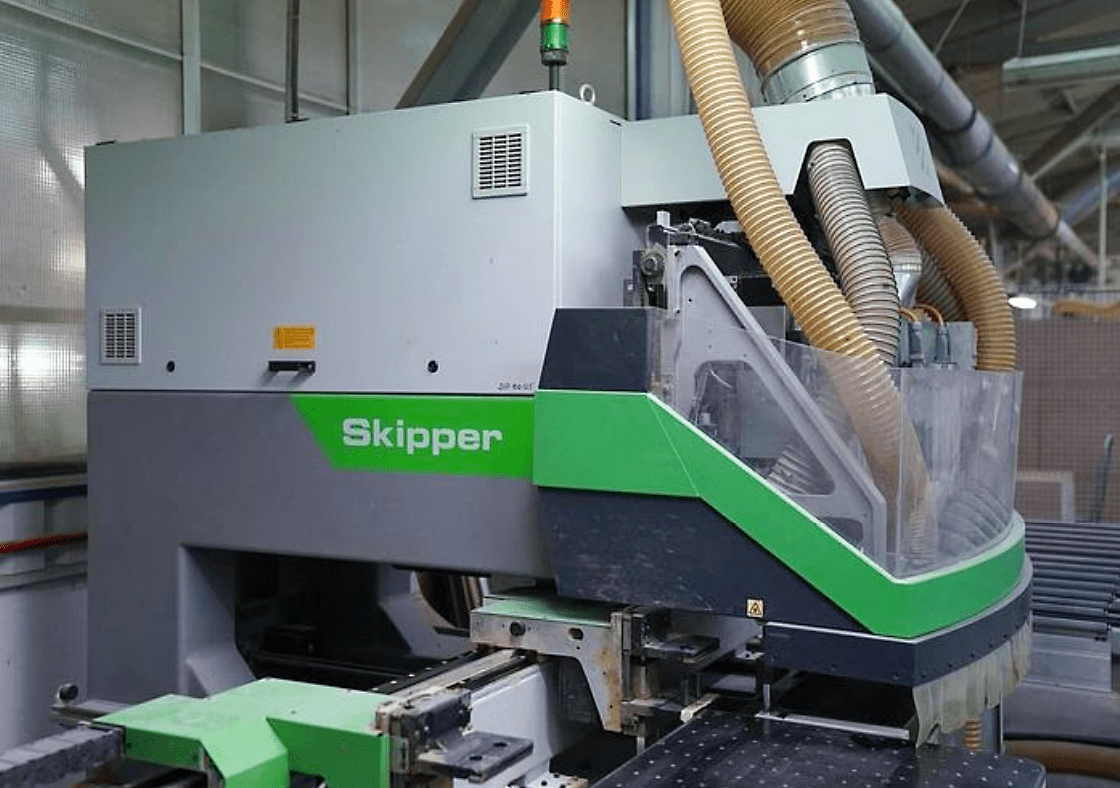

Biesse Skipper 130 - CNC Bewerkingscentrum - 2013
Specificaties
| Fabrikant | Biesse |
| Model | Skipper 130 |
| Jaar | 2013 |
| Conditie | Gebruikt |
| Gemaakt in | Italië |
| X-as reizen | 3000 mm |
| Y-as reizen | 1300 mm |
| Z-as reizen | 90 mm |
| Spil snelheid | 24000 rpm |
| Motorvermogen | 4.5 kW |
| Software | Biesseworks |
| Horizontale rijen in "X" | 16 |
| Horizontale rijen in "Y" | 4 |
| Verticale rijen in "X" | 17 |
| Verticale rijen in "Y" | 12 |
| Vermogen | 24 kW |
| Afmetingen | L 7900 x B 4800 x H 2250 mm |
| Beschikbaarheid | Onmiddellijk |
| Opmerkingen | *Informatie kan soms onnauwkeurig zijn en zonder kennisgeving veranderen! |
Beschrijving
Woodworking - CNC Machining Center

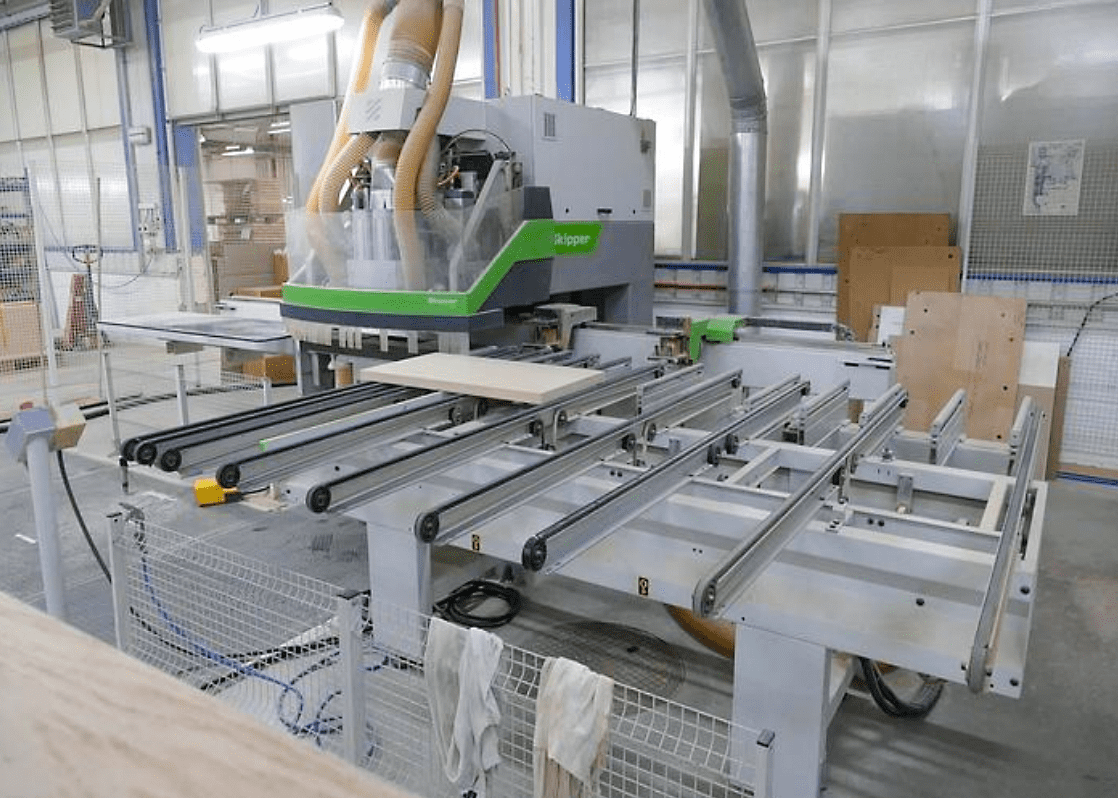

Used Biesse industrial machinery – Skipper 130 from 2013 located in Spain. This CNC machining centre has a working area of 3000 x 1300 mm, 24000 rpm spindle speed, motor power 4.5 kW.
More info:

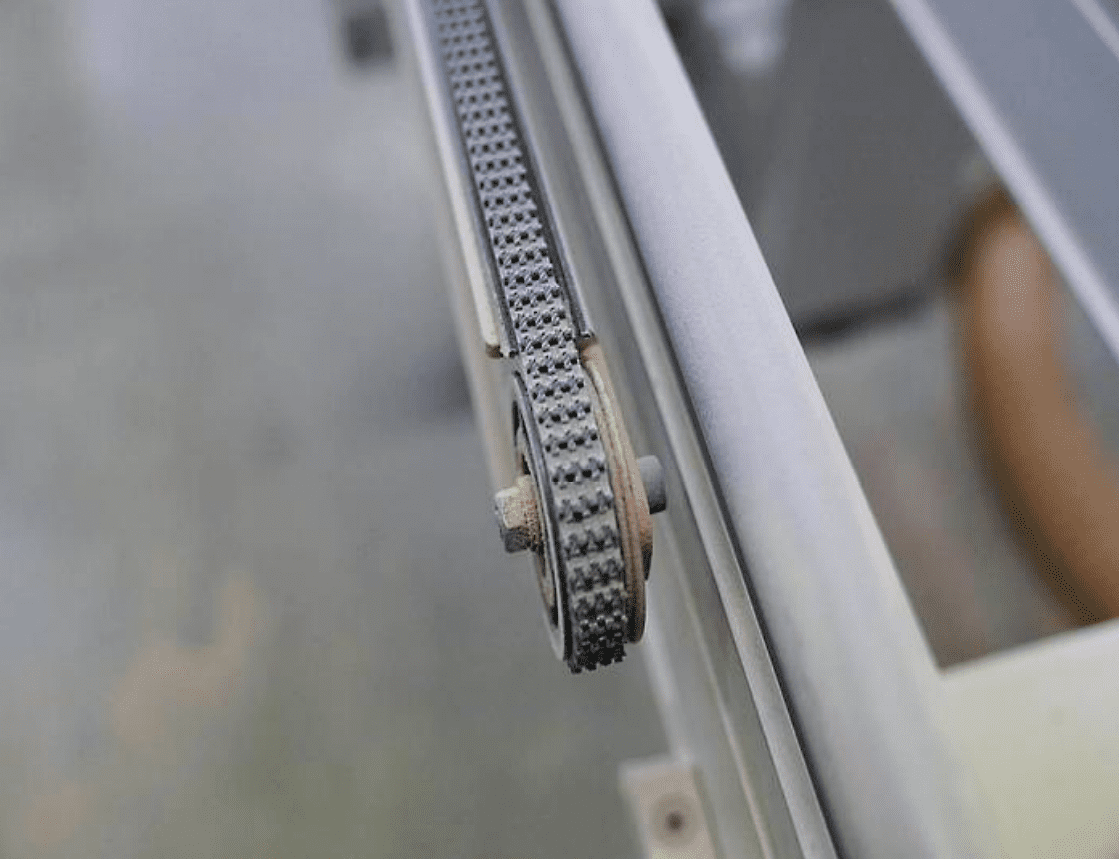

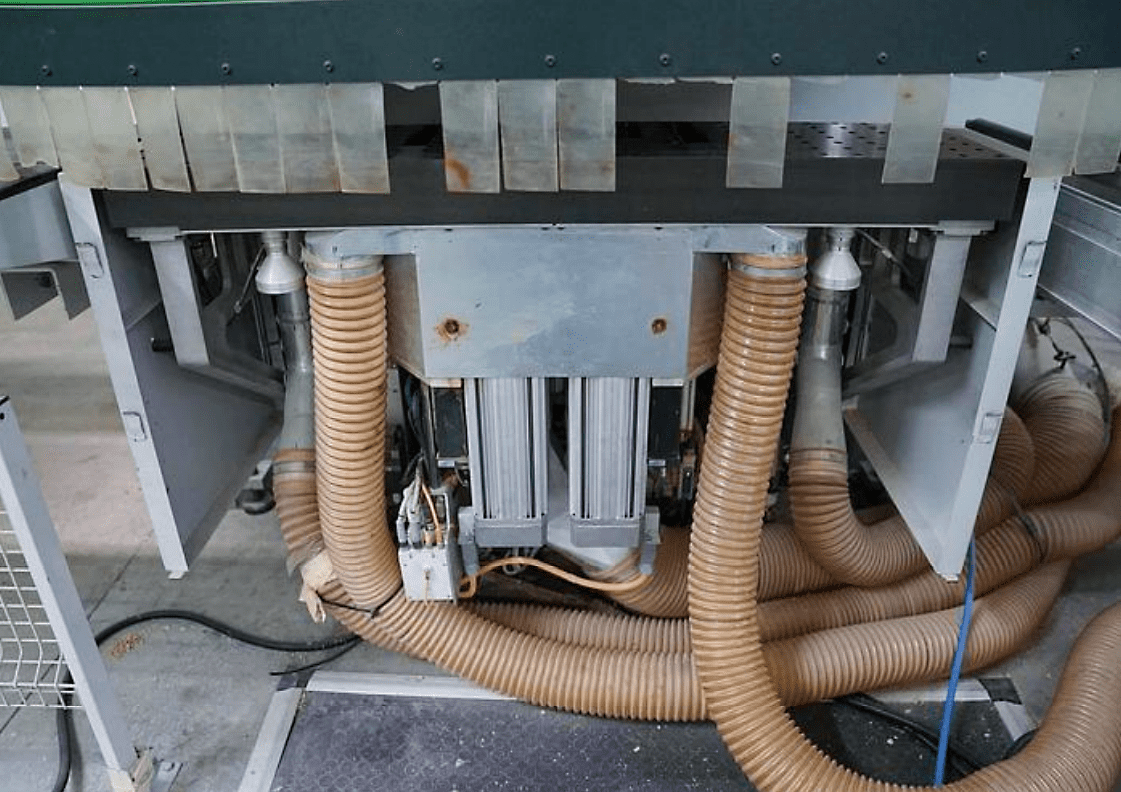

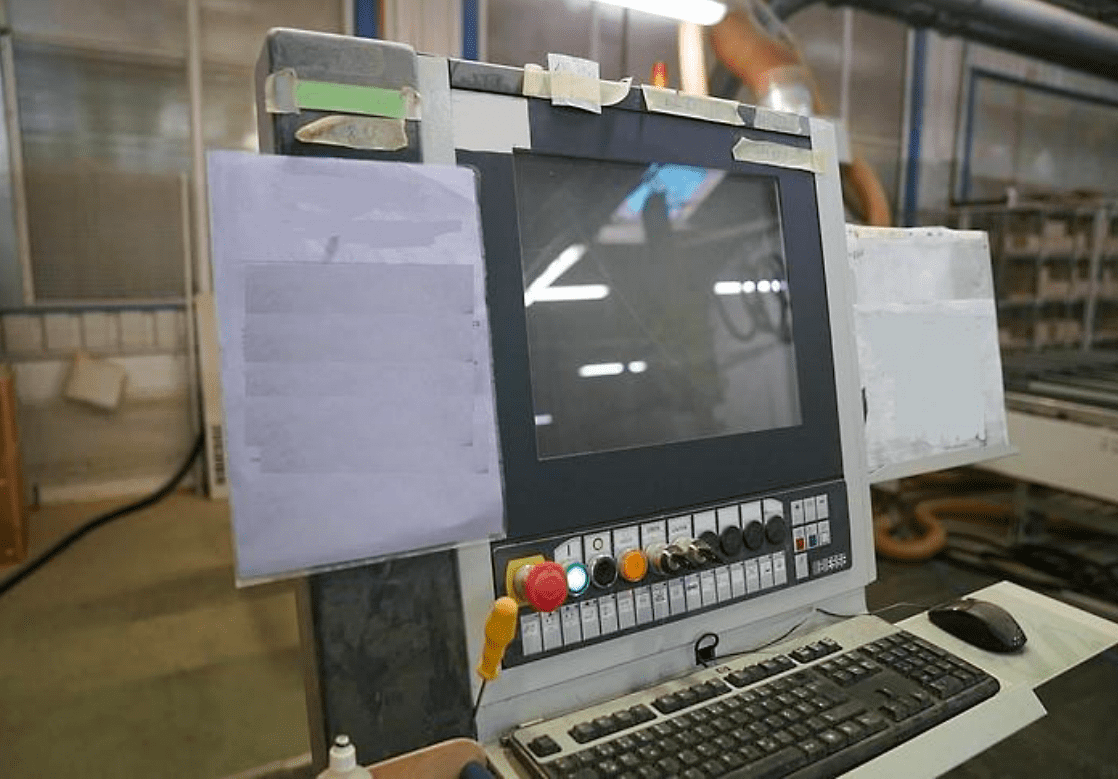

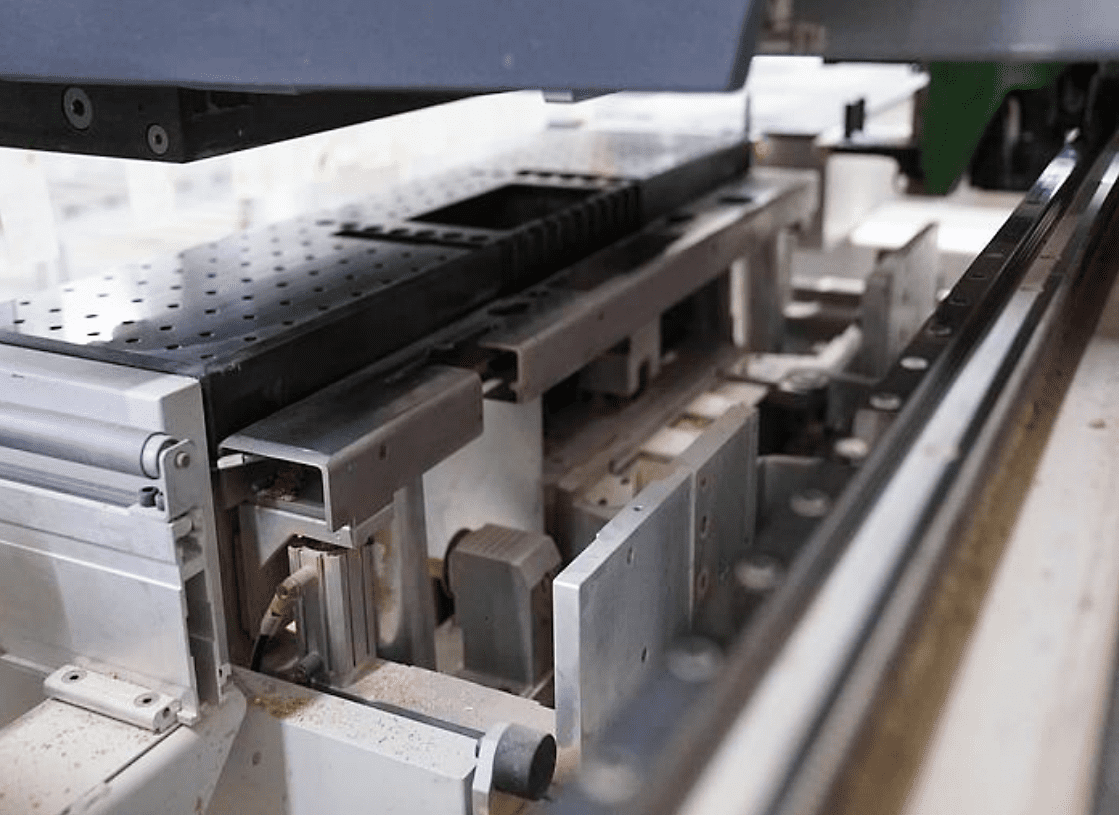

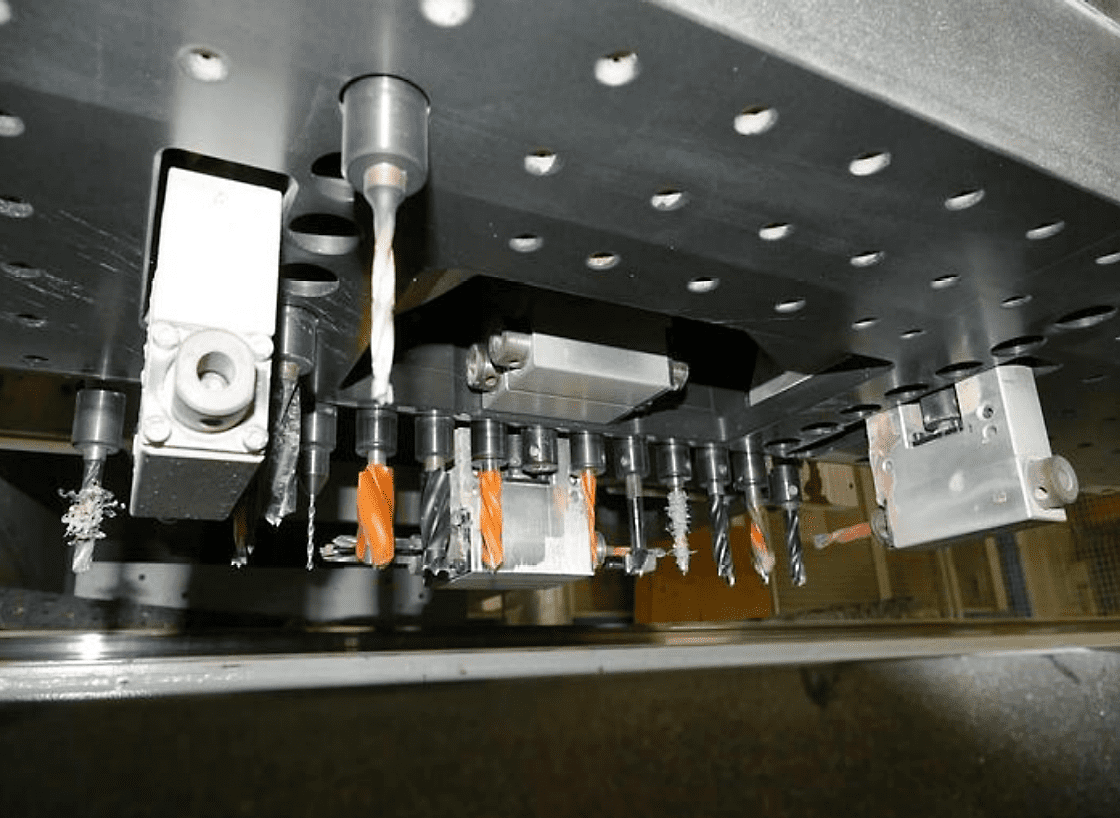

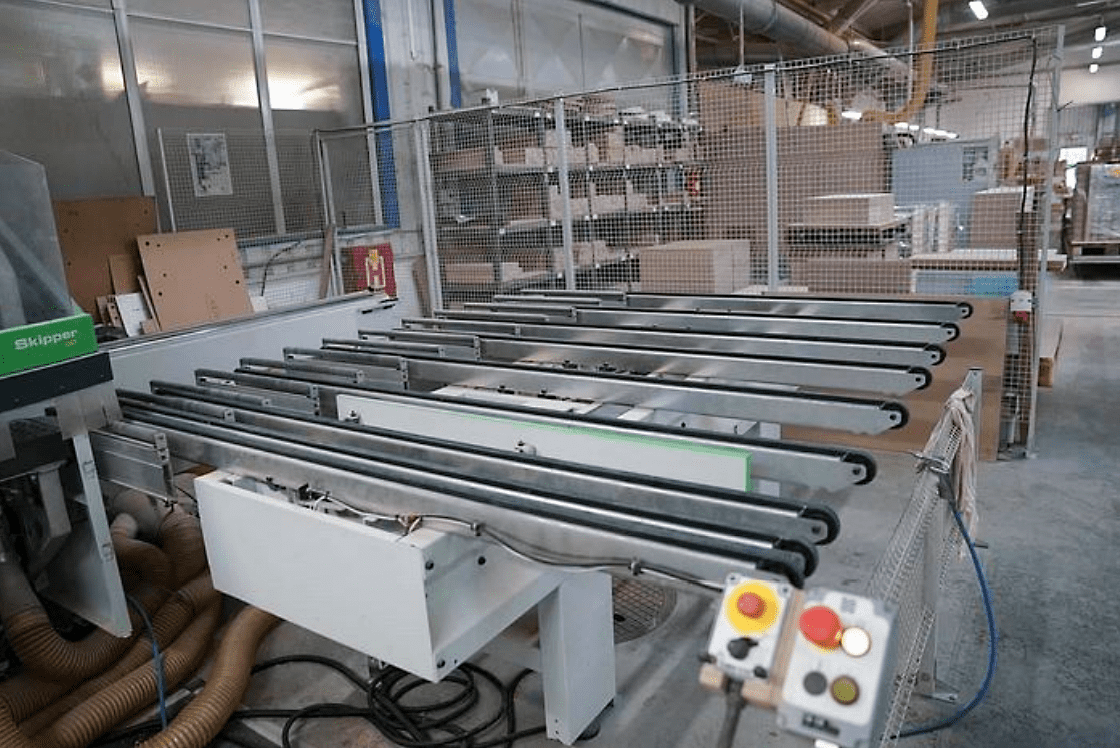

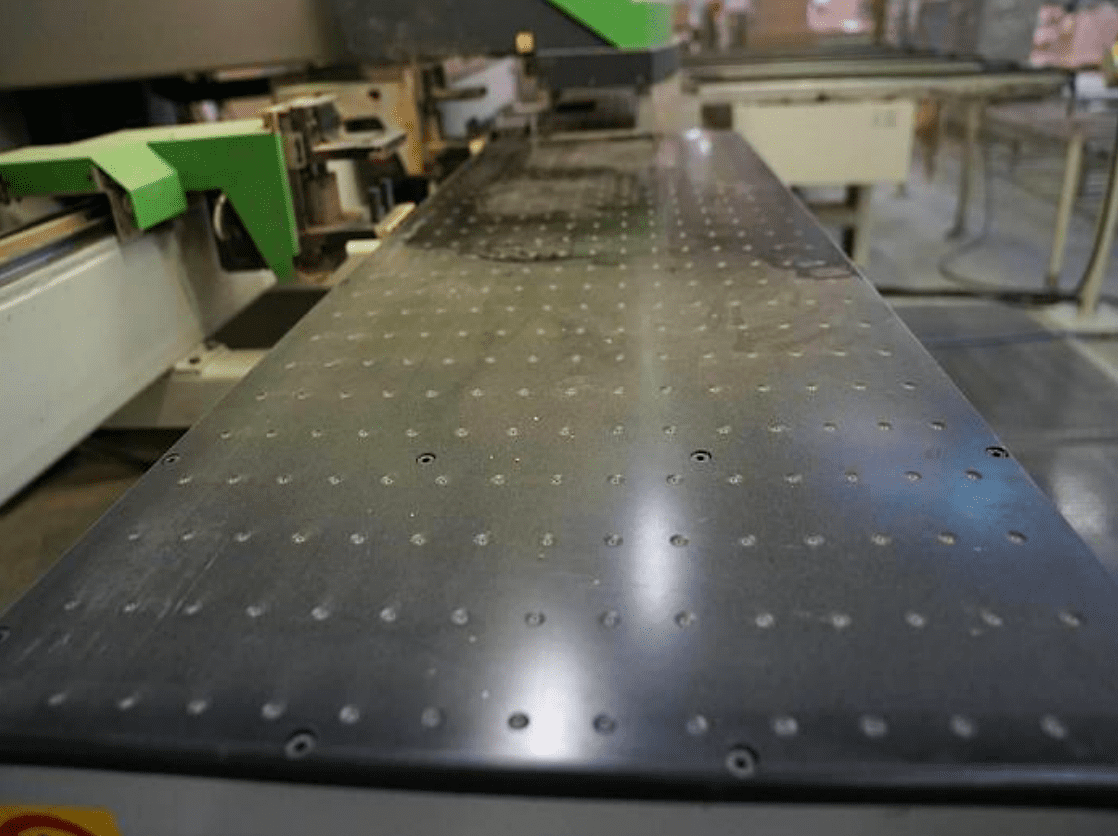

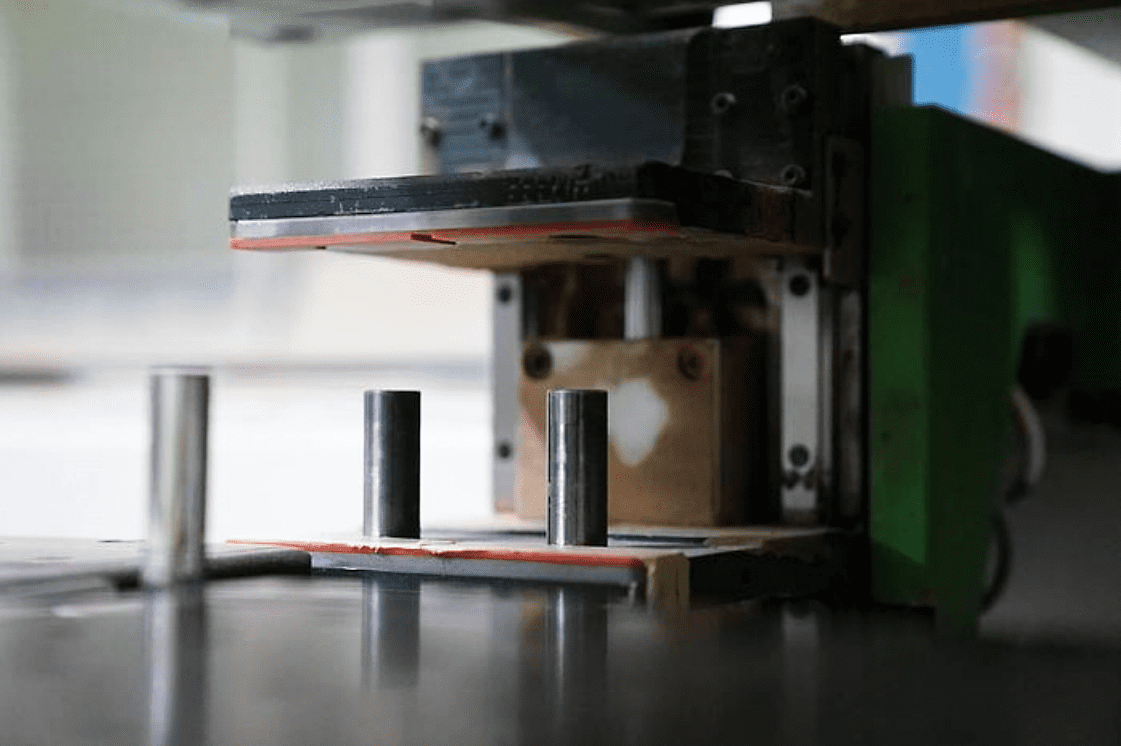

Machine with computer control, possibility to work 2 overlapping panels at the same time, air blowing bench for panel insertion into the machine, 2 clamps to lock the panel, 2 pantograph units (1 upper + 1 lower) KW 4.5, 2 "Y" horizontal boring/milling units, 2 groups of blades on "X" axis diameter 160 mm (1 upper + 1 lower), automatic unloading system by motorised belts, perimeter safety grids, front safety mats and CE regulations.
For more information please download the brochure.
