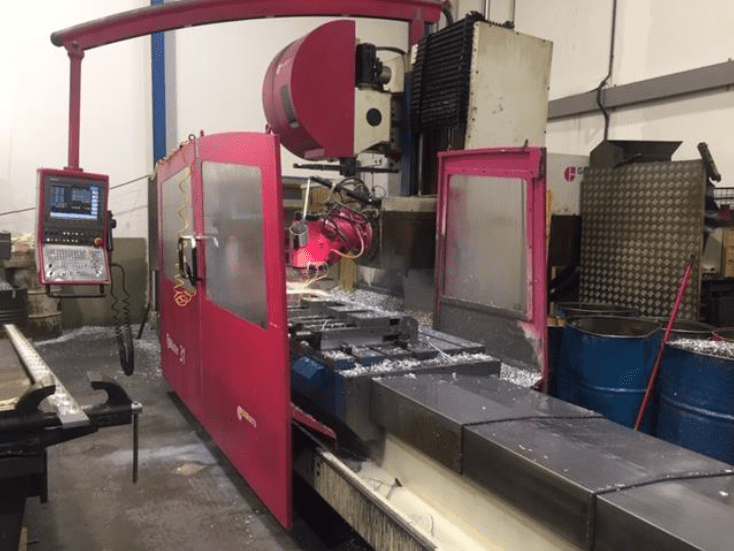

Goratu G Master 31 - Freesmachine - 2005
Verkocht
Specificaties
| Fabrikant | Goratu |
| Model | G Master 31 |
| Jaar | 2005 |
| Conditie | Gebruikt |
| Besturingseenheid | CNC Heidenhain 530 |
| X-as reis | 3000 mm |
| Y-as reis | 900 mm |
| Z-as reis | 1500 mm |
| Tafelafmetingen | 3000 x 900 mm |
| T-sleuven | 5 x 22 x 160 mm |
| Max. gewicht op tafel | 6000 Kg |
| Spiltoerental | 3000 rpm |
| Voedingssnelheid | 20000 mm/min |
| Gereedschapswisselaar | 24 |
| Hoofdmotorvermogen | 22/27 kW |
| Afmetingen | L 8100 x B 3800 x H 3395 mm |
| Gewicht | 17000 Kg |
| Beschikbaarheid | Onmiddellijk |
| Opmerkingen | *Informatie kan soms onnauwkeurig zijn en zonder kennisgeving veranderen! |
Beschrijving
Metalworking - Milling Machine
Used Goratu industrial machinery – DNM750L from 2005 located in Spain. This milling machine is equipped with a control unit CNC Heidenhain 530 and has a working area of 3000 x 900 mm, 3000 rpm spindle speed, spindle power 22/27 kW.
____
* Please note that this description may have been translated automatically. The information of this classified ad are only indicative and change without notice! GLOMACHT recommends to check the details with the seller. Contact us for further information.*
