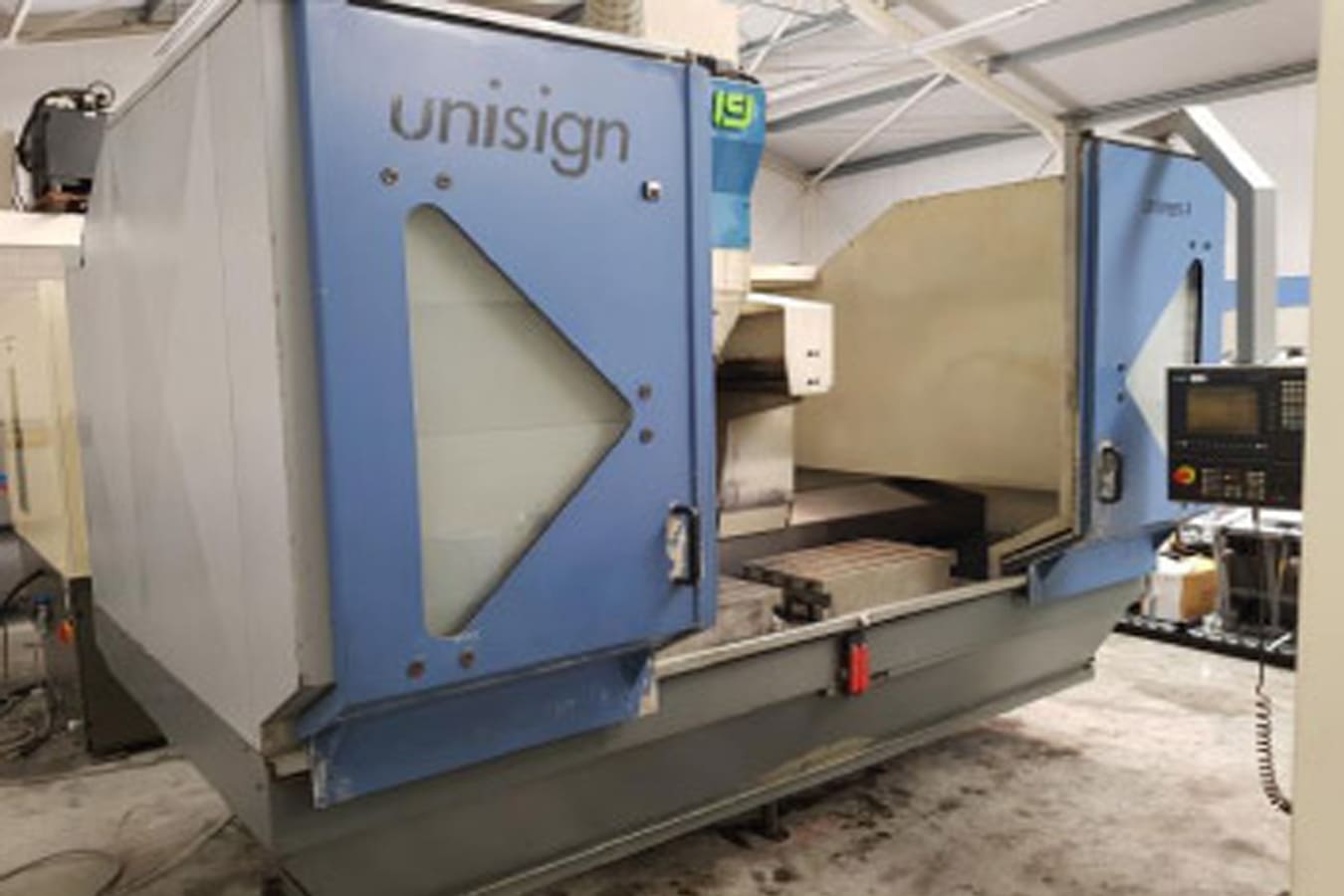

1998 UNISIGN UNIVERS 4
Verkocht
Specificaties
| Fabrikant | UNISIGN |
| Model | UNIVERS 4 |
| Jaar | 1998 |
| Conditie | Gebruikt |
| Besturingseenheid | Siemens Sinumerik 810D |
| X-as verplaatsing | 1600 mm |
| Y-as verplaatsing | 400 mm |
| Z-as verplaatsing | 400 mm |
| Afstand spilneus | 150 - 550 mm |
| Klemtafel | 2 x 700 x 400 mm |
| T-gleuven | 18 mm, 4 stuks, steek 100 mm |
| Tafelbelasting | 600 kg |
| Hoofdspil | 14 kW |
| Spilsnelheid | 12000 Rpm |
| Gereedschapsposities | 44 posities |
| Gereedschapsafmetingen | Ø 70 x 300 mm |
| Gereedschapsgewicht | 7 Kg |
| E-verbinding | 400V, 3Ph, 50Hz |
| Luchtdruk | 6 bar |
| Afmetingen | L 3700 x H 2200 x B 3000 mm |
| Gewicht machine | 9000 Kg |
| Beschikbaarheid | direct |
Beschrijving
CNC Machining Centres -- YOM: 1998
More info:
Manual pulse generator BHG, electronic handwheel, Siemens.
Mounting surface for separation.
External coolant system with nozzles near spindle nose.
Tool loading/unloading possibility on rear side of machine.
Link type chip conveyor with exit level at approx. 1.100 mm.
Open top carenage around the working area, including electronically controlled front sliding doors with windows.
*Information can sometimes be inaccurate and change without notice!
