Milltronics VM 30 - Verticale bewerkingscentra - 1998
Verkocht
Specificaties
| Fabrikant | MILLTRONICS |
| Model | VM30 |
| Jaar | 1998 |
| Conditie | Gebruikt |
| Gemaakt in | Verenigde Staten |
| Besturingseenheid | YASKAWA |
| X-as reizen | 1020 mm |
| Y-as reizen | 750 mm |
| Z-as reizen | 600 mm |
| Tafellengte | 1676 mm |
| Tafelbreedte | 660 mm |
| Tafelcapaciteit | 1.587 kg |
| Aantal assen | 3 |
| Motorvermogen | 17.9 kW |
| Spilsnelheid | 8000 rpm |
| Gereedschapswisselaar capaciteit | 24 |
| Spilkegel | CT-40 |
| Afmetingen | L 4876 x B 2946 x H 3000 mm |
| Gewicht | 9000 mm |
| Beschikbaarheid | Onmiddellijk |
| Opmerkingen | *Informatie kan soms onnauwkeurig zijn en zonder kennisgeving veranderen! |
Beschrijving
Metalworking - Vertical machining centers

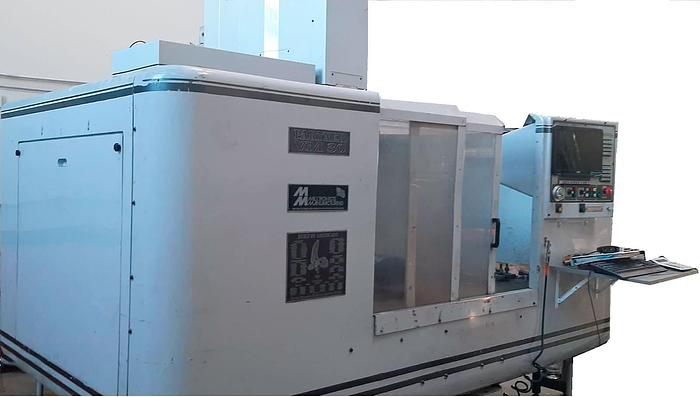

Used Milltronics – VM 30 from 1998 is made in the United states, with numbers axis 3. This vertical machining centers is equipped with a YASKAWA control unit. The machine has a working area 1676 x 660 mm, motor power 17.9 kw and is equipped with the following:
• A face mill ø50mm for 4 widia inserts.
• 16 BT-ISO40-ER32 chuck.
• 1 BT-ISO40-ER40 Chuck
• Set of ER32 clamps (up to 20mm / several for more common triplicate diameters).
___
* Please note that this description may have been translated automatically. The information of this classified ad are only indicative and change without notice! GLOMACHT recommends to check the details with the seller. Contact us for further information.*
