Huron K2X8 Five - Verticaal bewerkingscentrum - 2006
Verkocht
Specificaties
| Fabrikant | Huron |
| Model | K2X8 Five |
| Jaar | 2006 |
| Conditie | Gebruikt |
| Gemaakt in | Frankrijk |

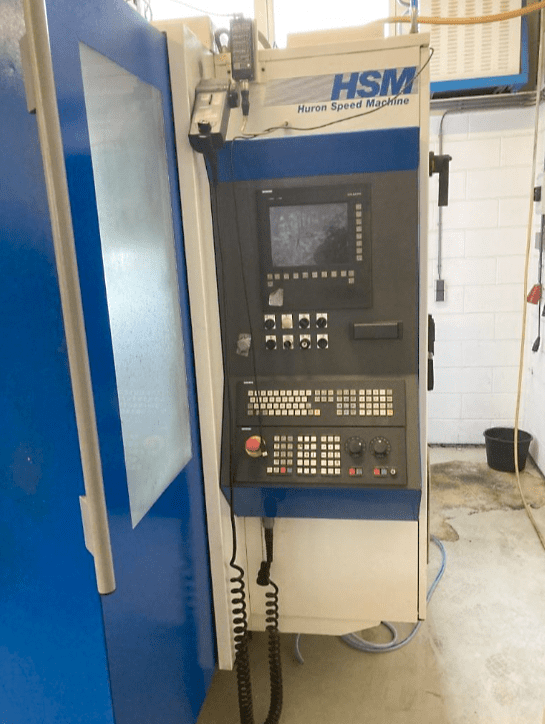

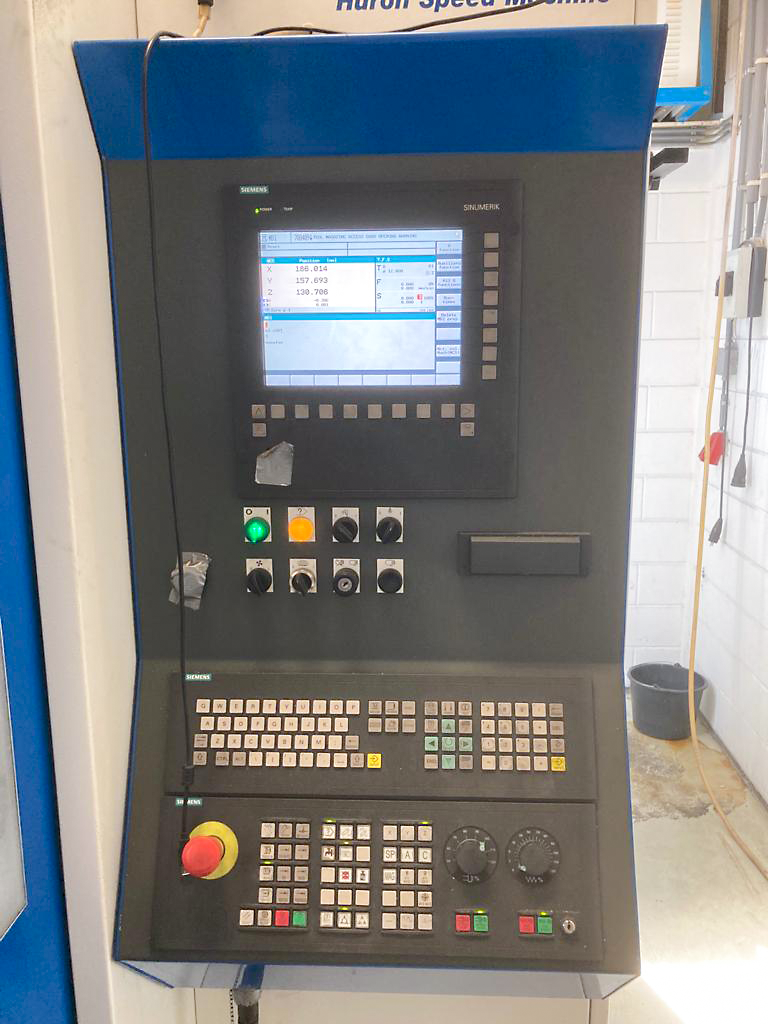

| Besturingseenheid | Siemens 840D |

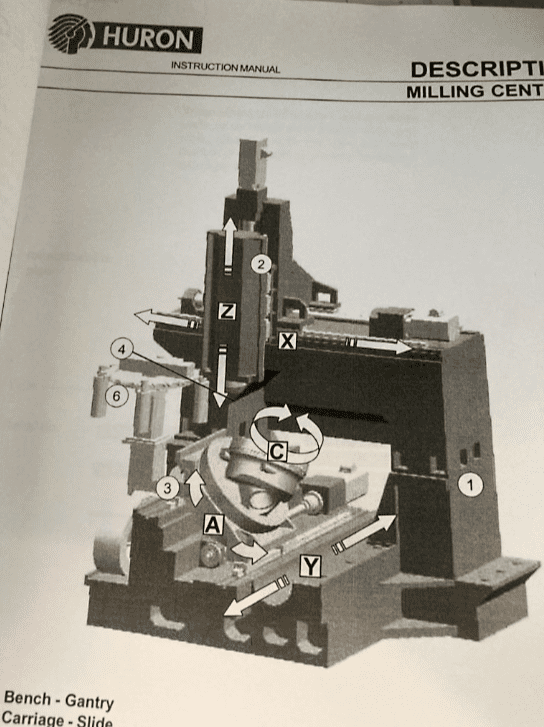

| X-as verplaatsing | 650 mm |
| Y-as verplaatsing | 700 mm |
| Z-as verplaatsing | 450 mm |

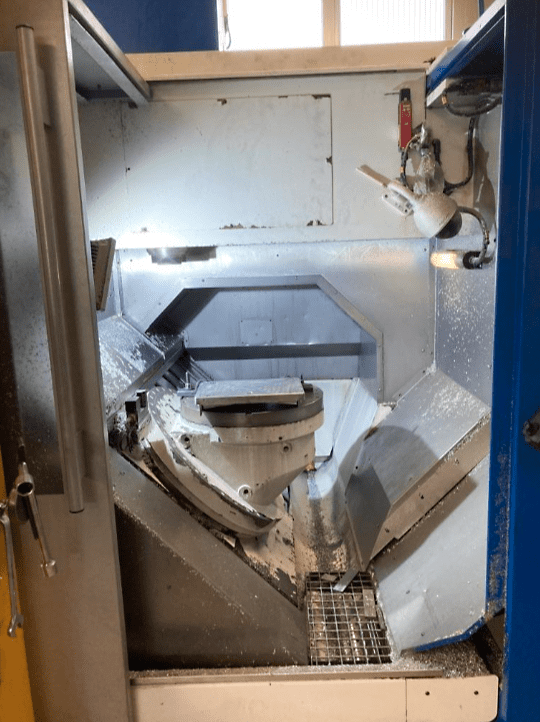

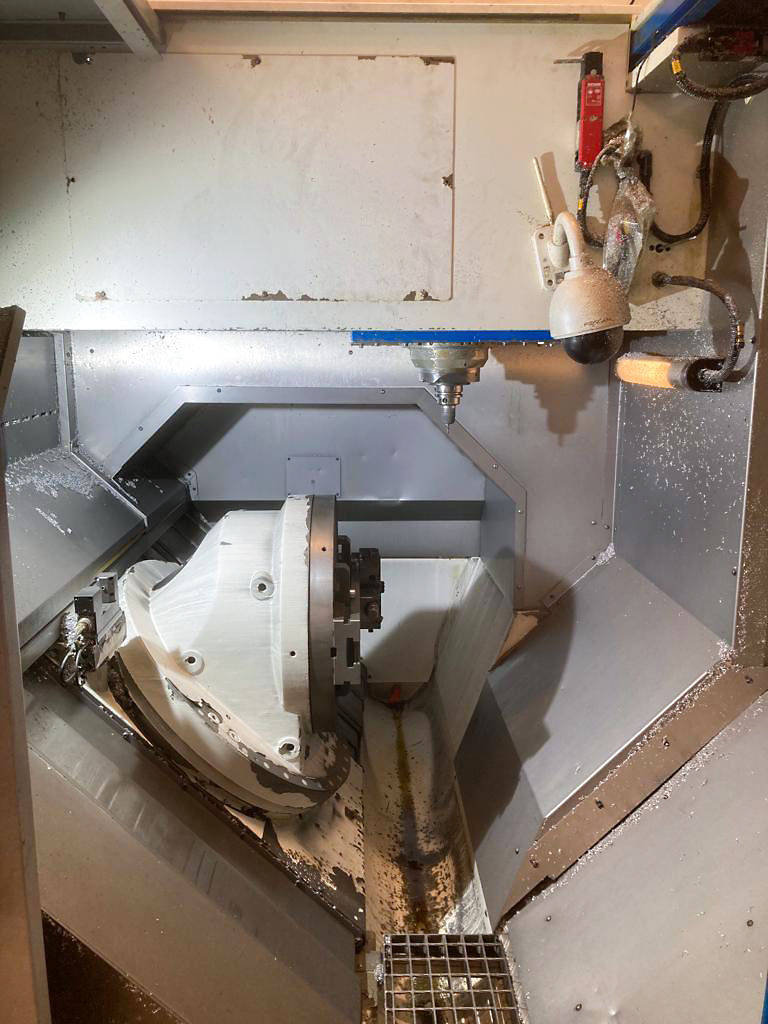

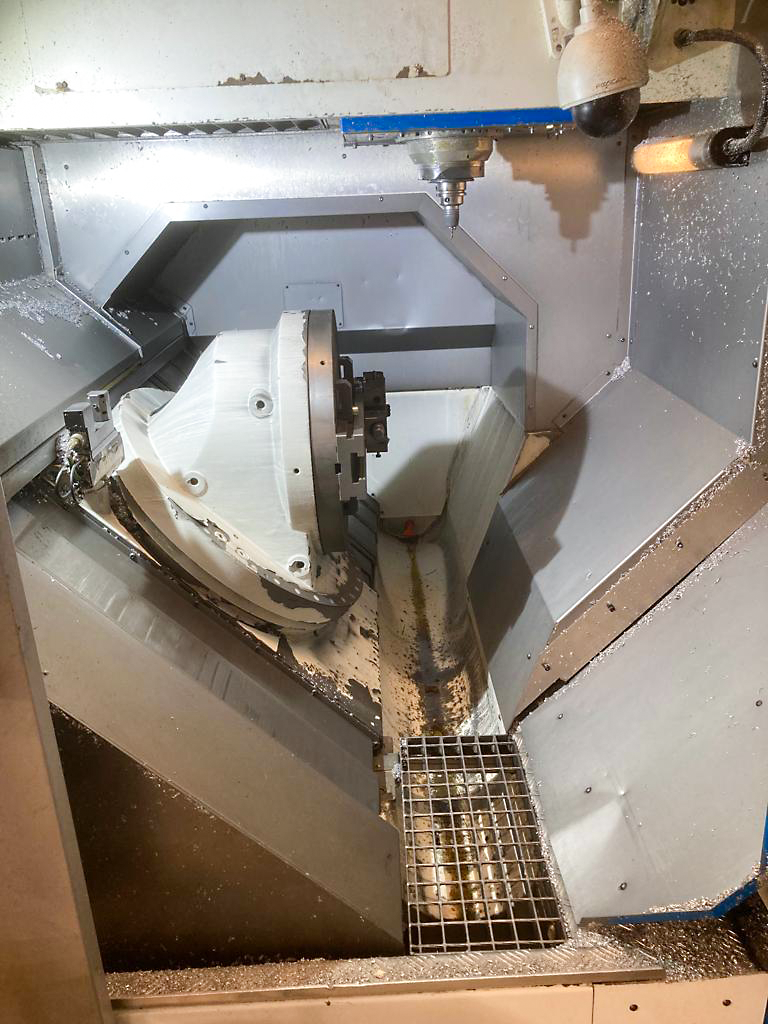

| A-as verplaatsing | -45°/+180° |
| C-as verplaatsing | 360° |
| Spiltafel hoek | 0°/90° |
| Tafeldiameter | 500 mm |
| Maximaal werkstukgewicht | 250 kg |
| Spilconus | HSK-63A |
| Spilsnelheid | 24.000 rpm |
| Motorvermogen | 18.5 / 24 kW |
| Maximale snelle verplaatsingssnelheid | 50 m/min |

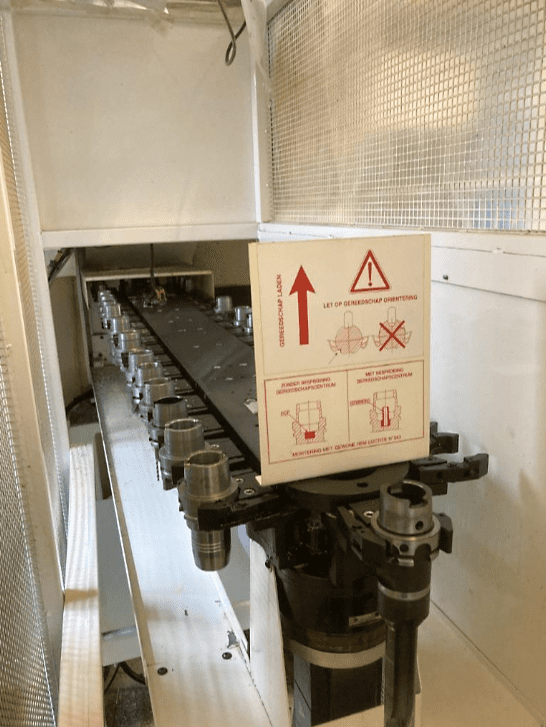

| Gereedschapswisselaar | 40 posities |
| Afmetingen | L 5260 x B 2690 x H 2600 mm |
| Gewicht | 9700 kg |
| Beschikbaarheid | Korte termijn |
| Opmerkingen | *Informatie kan soms onnauwkeurig zijn en zonder kennisgeving veranderen! |
Beschrijving
Metalworking - Vertical Machining Centre

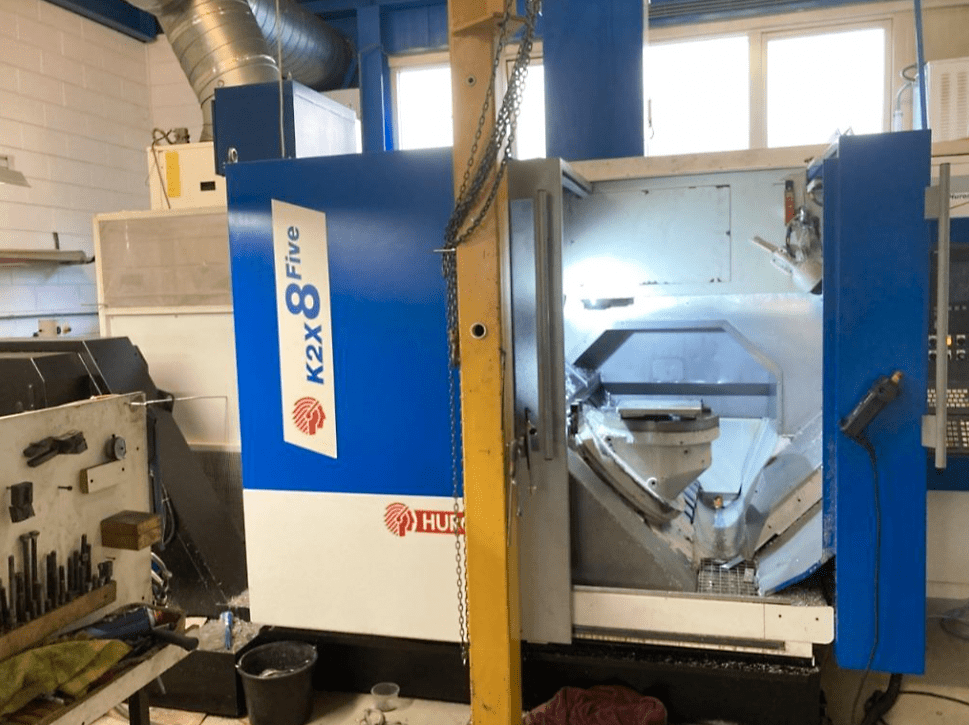

Used Huron industrial machinery – K2X8 Five from 2006 located in The Netherlands. This vertical machining centre is equipped with a control unit Siemens 840D and has a table diameter of 500 mm, 24000 rpm spindle speed, motor power 18.5/24 kW.
More info:

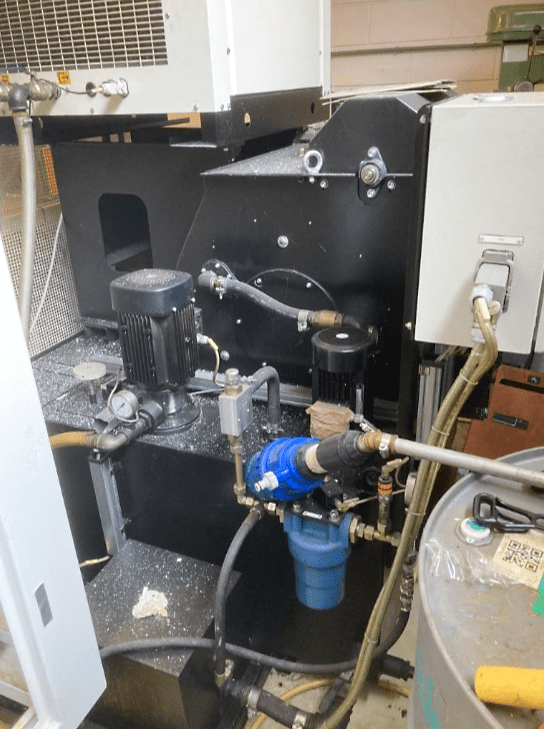

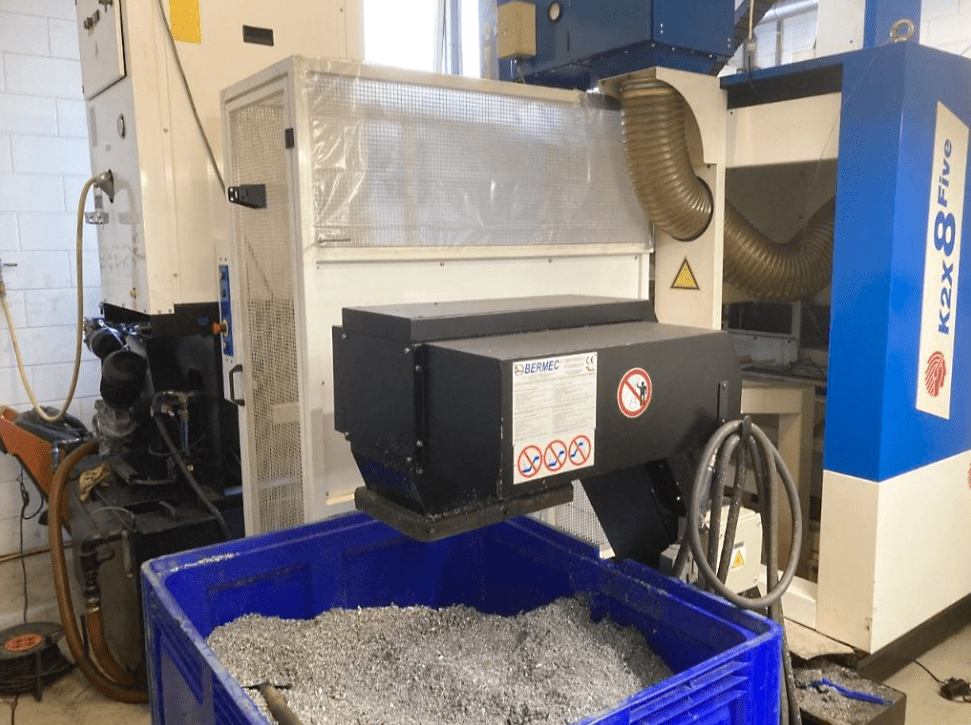

Machine with 5 axis equipped with cooling through the spindle with separate fine filter system and a clamping conveyor with left ejection.
____
* Please note that this description may have been translated automatically. The information of this classified ad are only indicative and change without notice! GLOMACHT recommends to check the details with the seller. Contact us for further information.*
