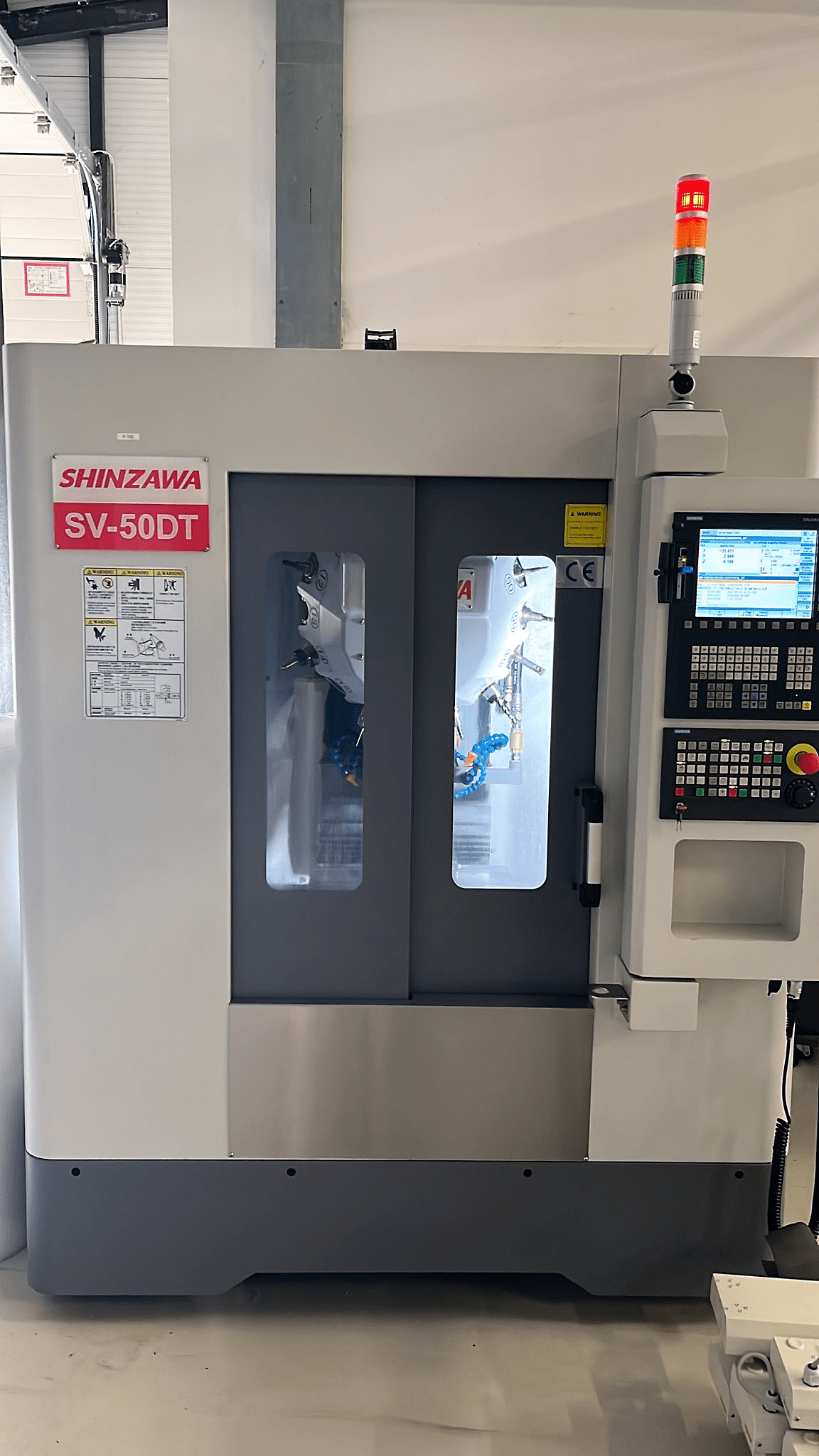

Shinzawa SV-50DT - Verticaal bewerkingscentrum - 2018
Specificaties
| Fabrikant | Shinzawa |
| Model | SV-50DT |
| Jaar | 2018 |
| Conditie | Gebruikt |
| Gemaakt in | Taiwan |
| Besturingseenheid | Siemens Sinumerik 828D |
| X-as verplaatsing | 550 mm |
| Y-as verplaatsing | 430 mm |
| Z-as verplaatsing | 340 mm |
| Werkgebied | 550 x 400 mm |
| Tafelbelasting capaciteit | 250 kg |
| Afstand tussen spindel en tafel | 150 - 490 mm |
| Spindelsnelheid | 10000 rpm |
| Spindelmotor | 3.7 / 5.5 kW |
| Spindelconus | BT 30 |
| Automatische gereedschapswisselaar | 16 gereedschappen |
| Afmetingen | L 1650 x B 2500 x H 2370 mm |
| Gewicht | 2850 kg |
| Beschikbaarheid | Onmiddellijk |
| Opmerkingen | *Informatie kan soms onnauwkeurig zijn en zonder kennisgeving veranderen! |
Beschrijving
Metalworking - Vertical Machining Center
Used Shinzawa industrial machinery – SV-50DT from 2018 located in Hungary. This vertical machining centre is equipped with a control unit Siemens Sinumerik 828D and has a working area of 550 x 400 mm, 10000 rpm spindle speed and motor power of 3.7 / 5.5 kW.
More info:

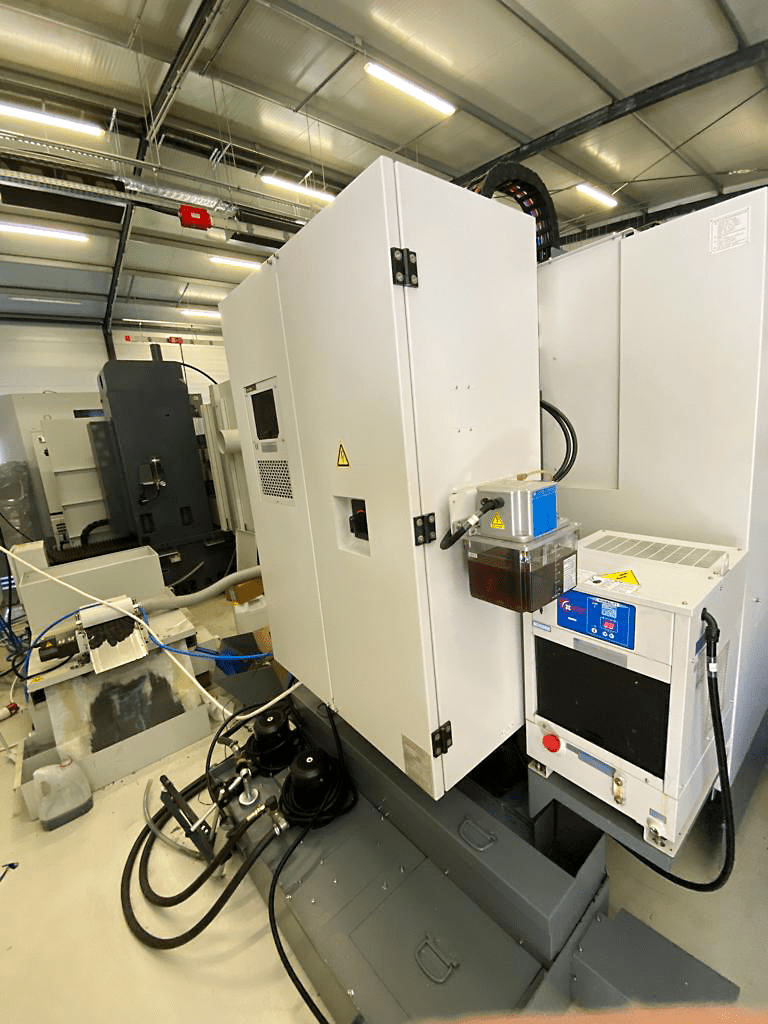

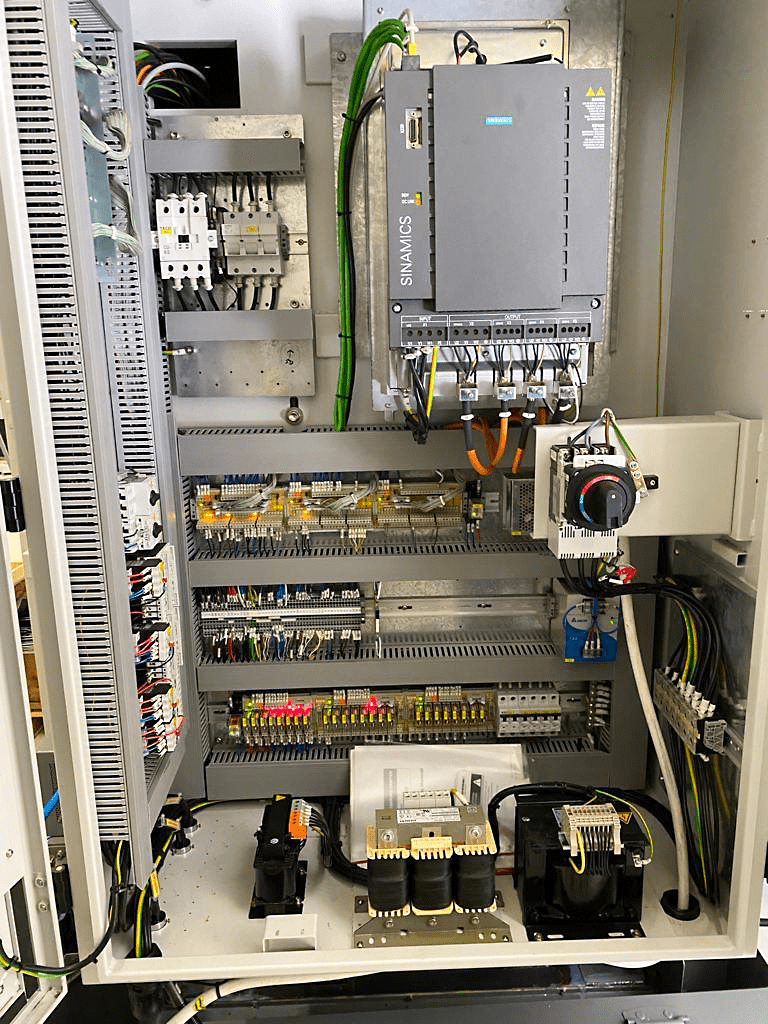

Machine with RS232 interface + MPG + CF card, tapping without compensation, automatic shutdown, spindle cooling system, cooling system flushing, 2 cooling pumps, compressed air through a spindle, heat exchanger for electrical cabinet, closed enclosure, automatic lubrication system, LED machine light, flushing gun, toolbox

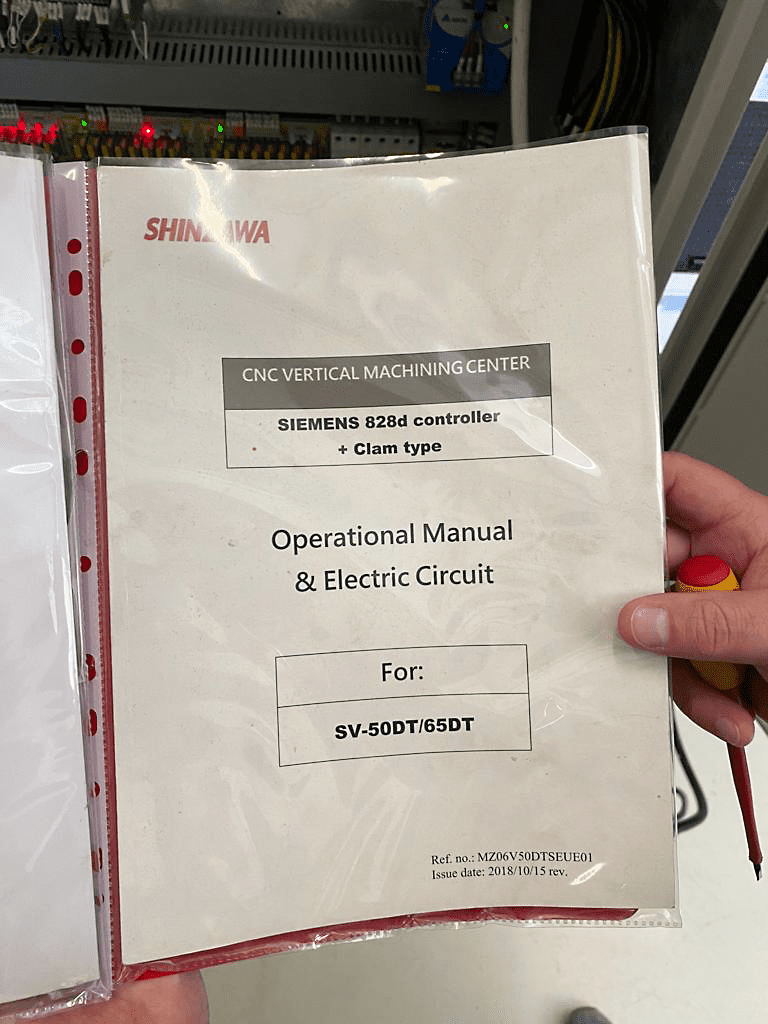

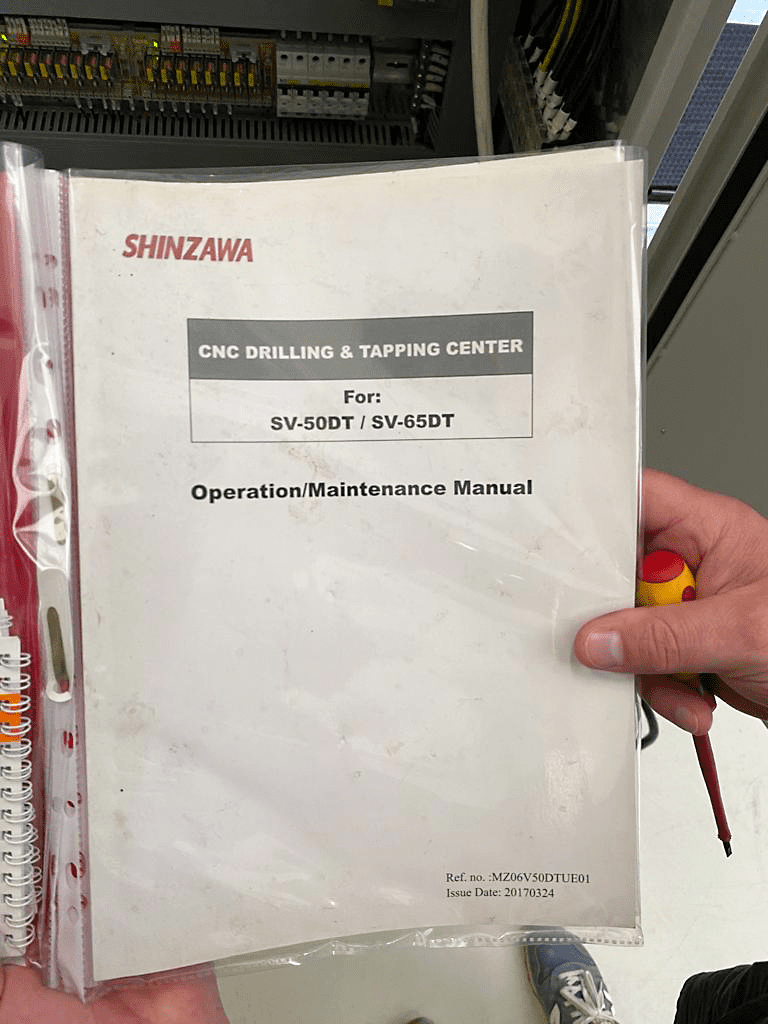

The machine will be cleaned and packed. Address in English, manual in English.
For more information please download the brochure.
