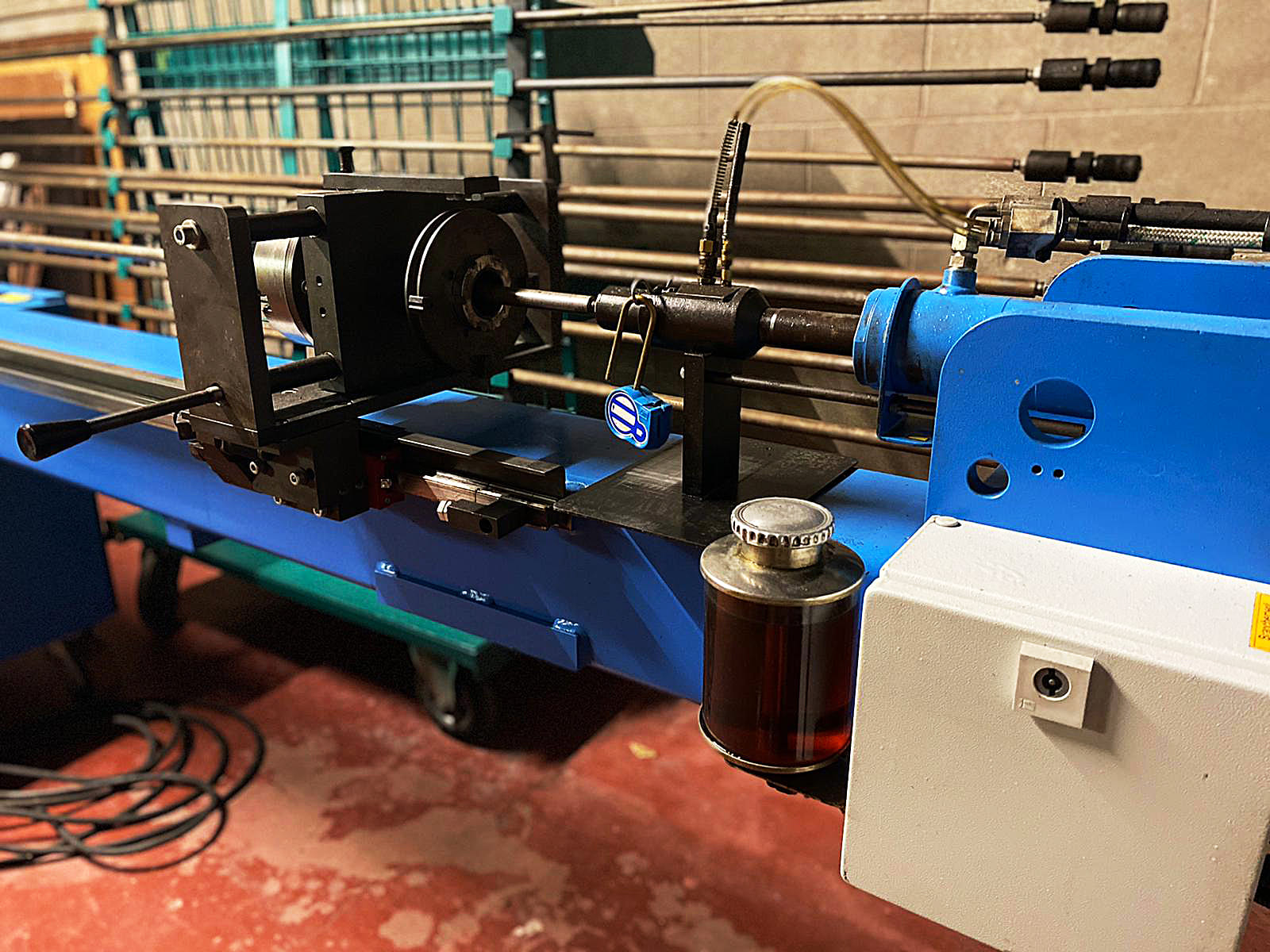

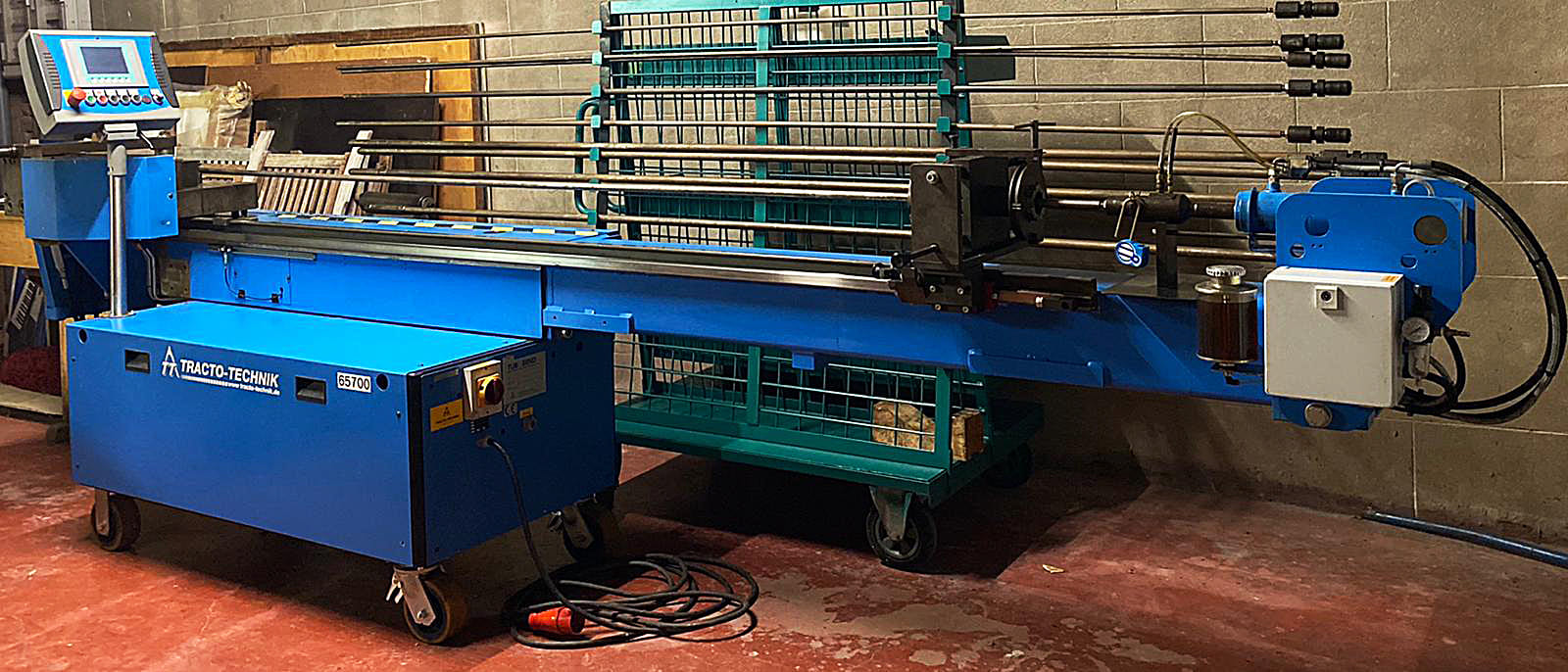

TRACTO TECHNIK TUBOBEND 80 L - 2013
Specificaties
| Fabrikant | TRACTO TECHNIK |
| Model | TUBOBEND 80 L |
| Jaar | 2013 |
| Conditie | Gebruikt |
| Buigcapaciteit | Ø 76,1 x 2,3 mm |
| Max. buigstraal | 190 mm |
| Max. buigsnelheid | 12 °/s |
| Buignauwkeurigheid | ± 0,1 ° |
| Buigsnelheid | 12o/sek |
| Aangesloten vermogen | 3,5 kW |

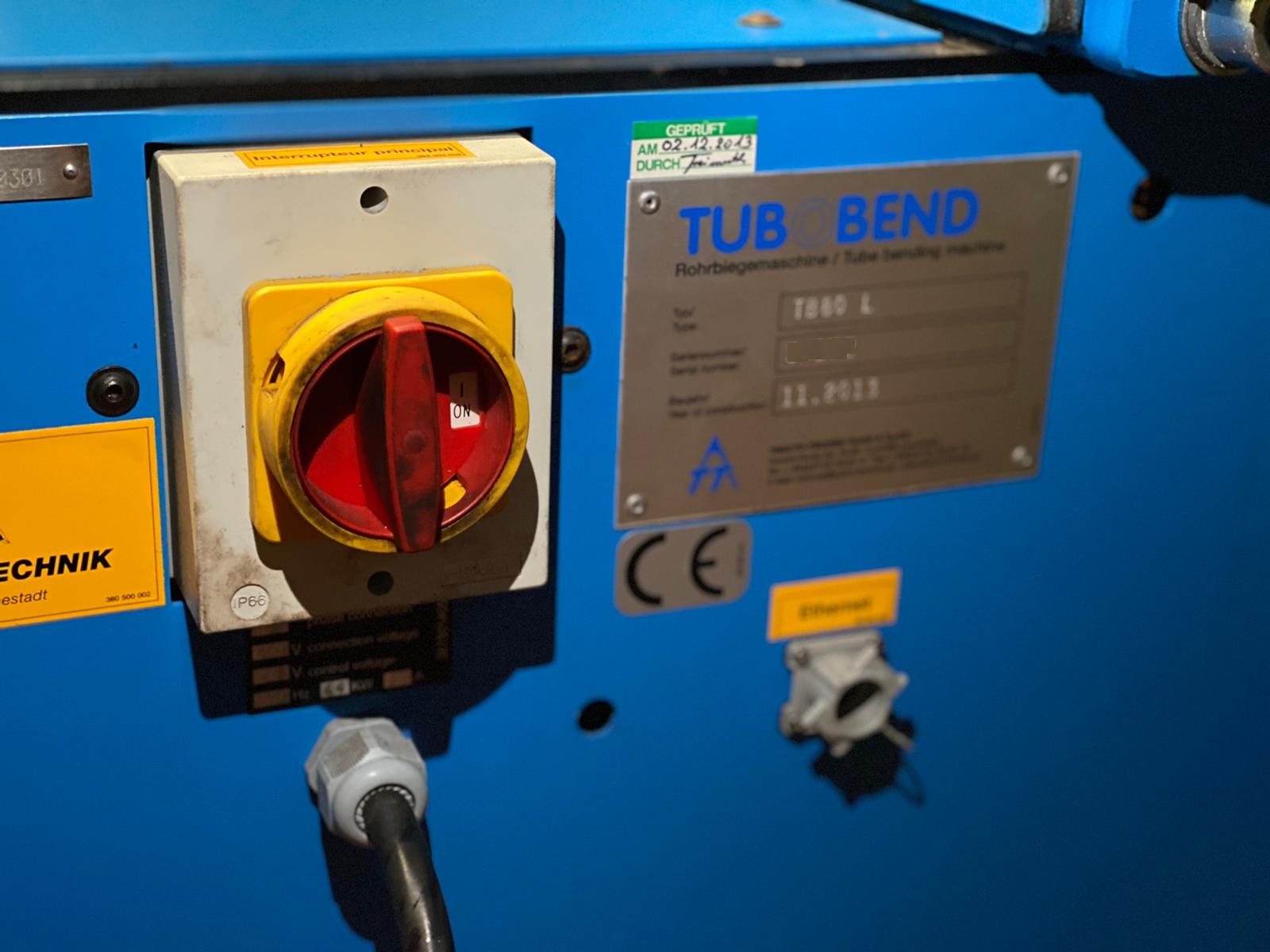

| Spanning | 400 V - 50 HZ |
| Afmetingen | L 4100 x B 720 x H 1450 mm |
| Gewicht | 1450 Kg |
| Beschikbaarheid | Onmiddellijk |
| Opmerkingen | *Informatie kan soms onnauwkeurig zijn en zonder kennisgeving wijzigen! Houd er rekening mee dat deze beschrijving mogelijk automatisch is vertaald. De informatie van deze advertentie is alleen indicatief en kan zonder kennisgeving wijzigen! GLOMACHT raadt aan om de details te controleren bij de verkoper. Neem contact met ons op voor meer informatie. |
Beschrijving
Bending machine - Year: 2013
Tools Available: Included
Bending tools including sliding and driven guide counterform, tightening counterform, and bending shape:
For diameter steel tubes:
- 42.40 mm Radius: 2xD
- 48.30 mm Radius: 2xD
- 60.30 mm Radius: 2xD
Bending tools including the back form of driven sliding guidance, the contoured and hardened tightening counterform, and the hardened shape for stainless steel tubes:
For stainless steel tubes in diameter:
- 21,30 mm Radius: 2xD
- 26,90 mm Radius: 2xD
- 33,70 mm Radius: 2xD
Steel chuck, chuck rod with greasing channel For diameter steel tube:
- 21,30 x 2,00 mm
- 21,30 x 2,60 mm
- 26,90 x 2,30 mm
- 26,90 x 3,20 mm
- 33,70 x 2,60 mm
- 33,70 x 3,20 mm
- 42,40 x 3,20 mm
- 48,30 x 2,60 mm
- 48,30 x 3,60 mm
- 60,30 x 3,60 mm
Mandrin in AMPCO, chuck rod with greasing channel For diameter stainless tube:
- 21,30 x 2,60 mm
- 26,90 x 3,20 mm
- 33,70 x 2,60 mm
- 33,70 x 3,20 mm
Sliding guidance adapter:
- Adapter BW-7 902
- Adapter BW-7 901
- Adapter BW-7 903
- Adapter BW-7 904
More info:
Adjustable clamping pressure.
Positioning device for pipe length and rotation, incl. 3-jaw chuck.
Mechanical collet chuck.

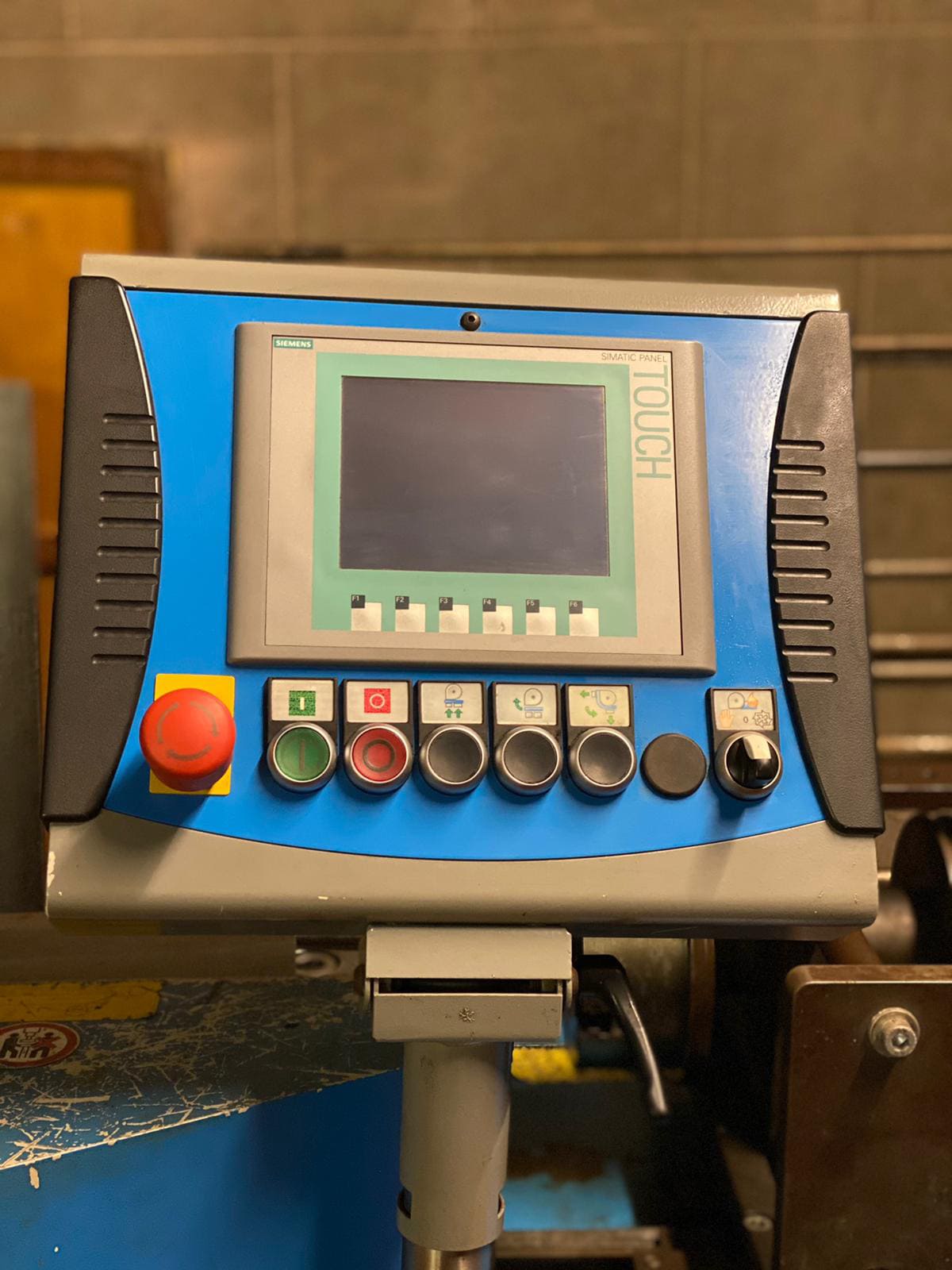

Length and rotation measuring system with digital display.
Anticipated mandrel retraction for optimizing the bend quality
M d ll bi ti d i Fast and easy bending of pipe shapes up to Ø 80 mm.

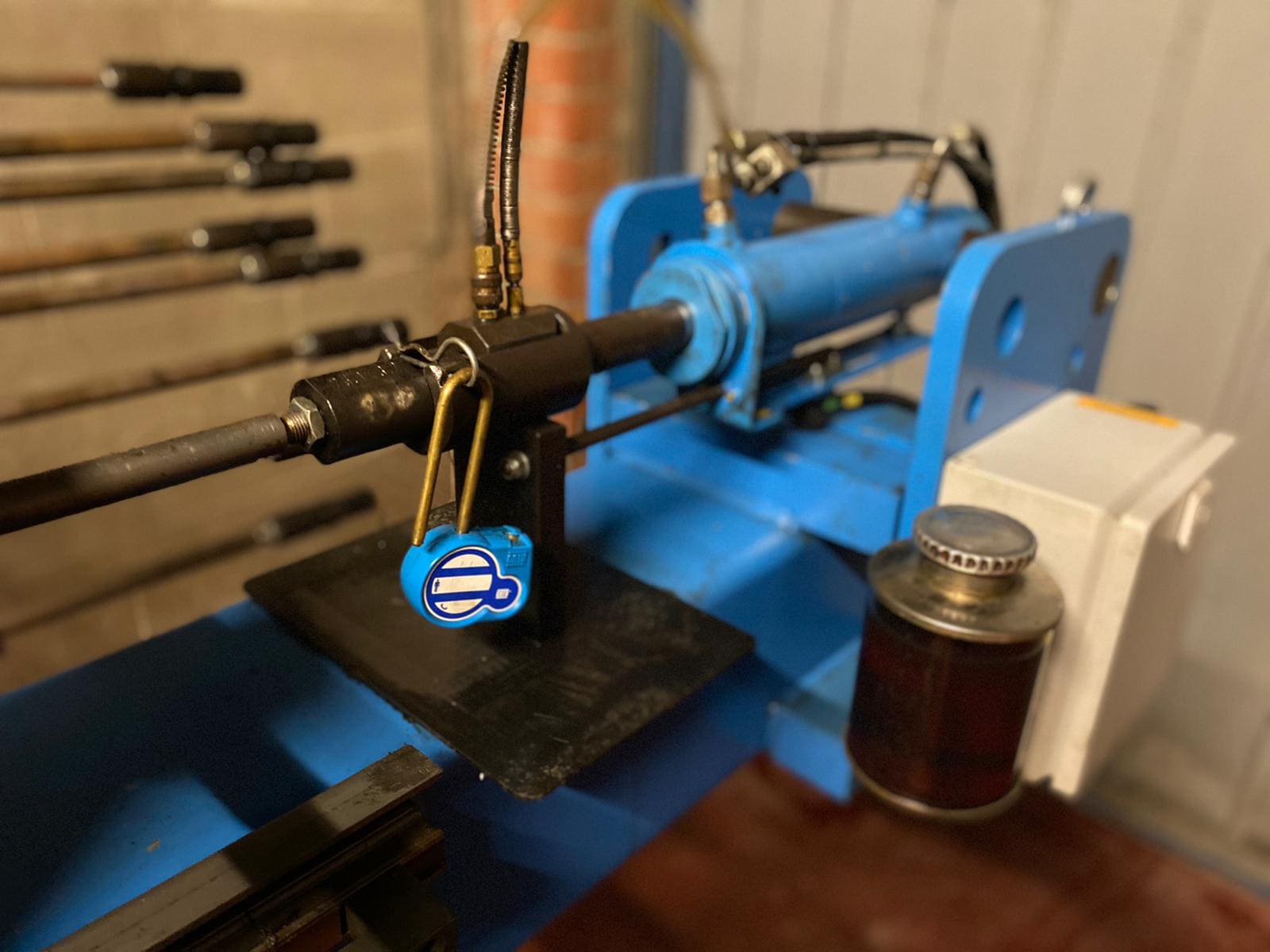

Mandrel lubrication device.
Remote control or foot switch for bending and clamping function.
Interface for data import from PIPEFAB BE pipe bending software.
Pipe bending software PIPEFAB BE for installation on an external PC.
Interface for remote maintenance of the machine control via VPN.
Pre-removal of calibration chuck:
- The chuck is pulled automatically during bending
- Variable setting up to 10 degrees
- Reference: TB80 1540
Adjustable tightening pressure
- Reference: TB80L 1300

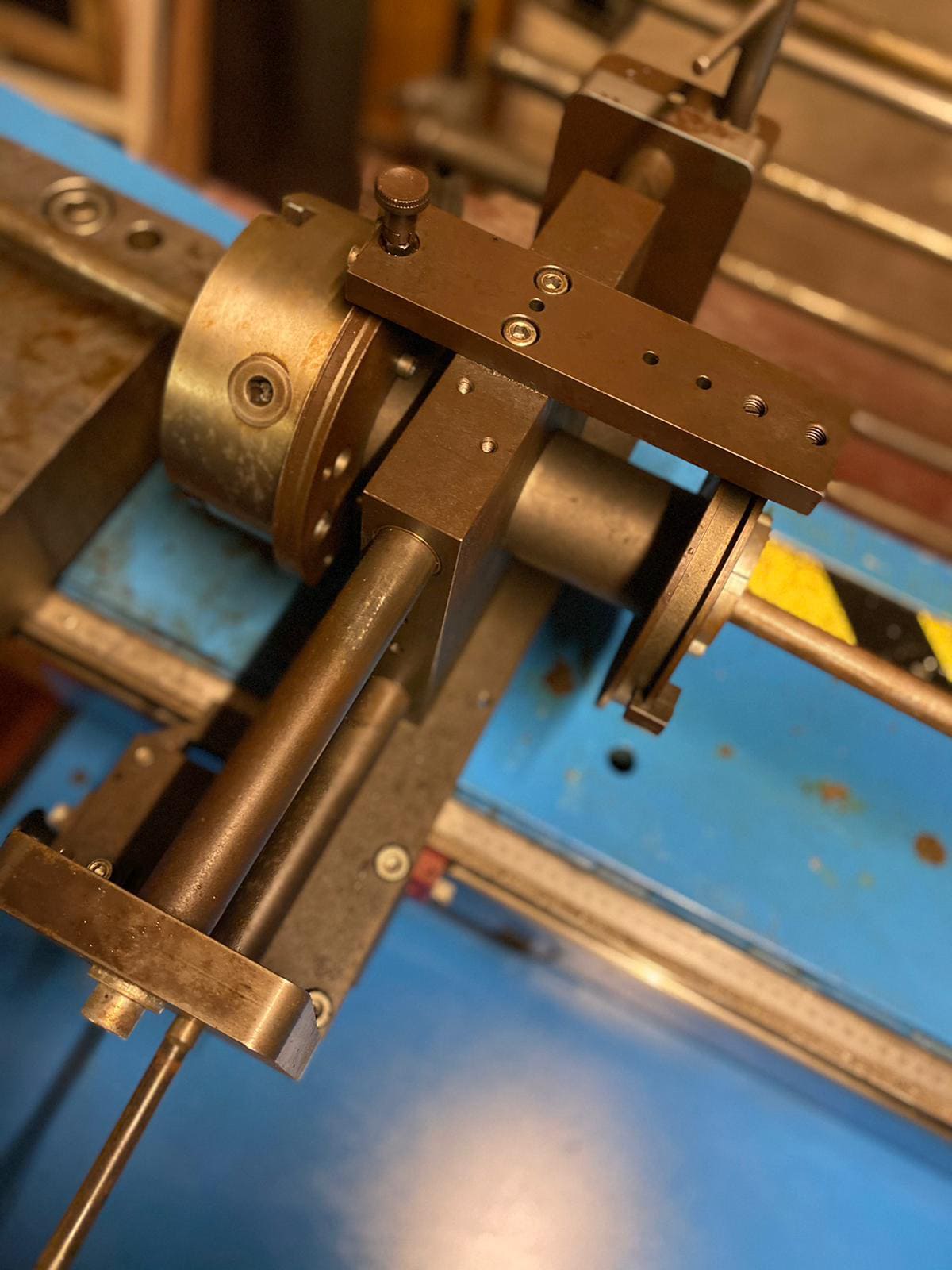

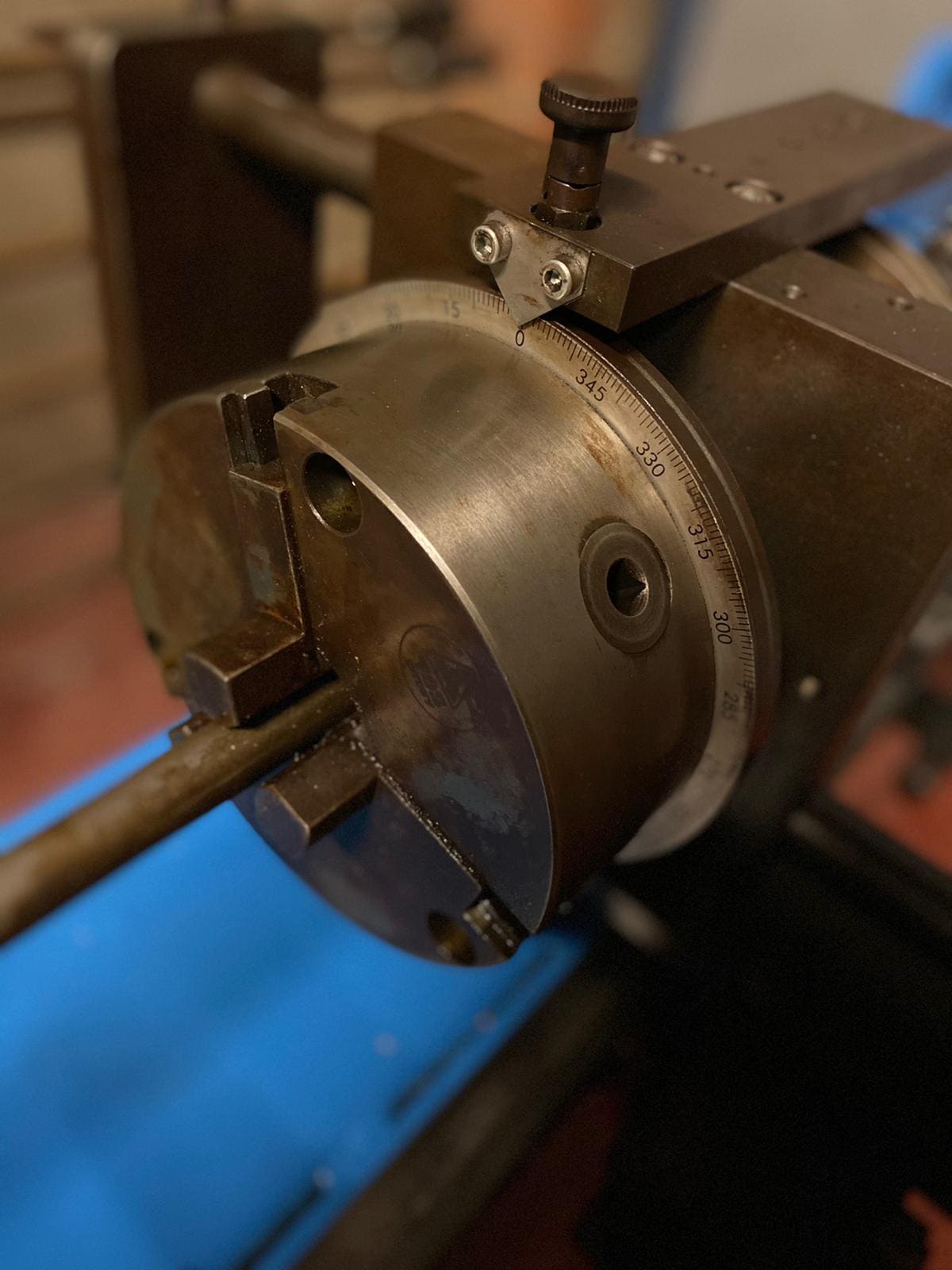

Plan positioner with 3-claw embeztling socket
- Includes 3 lengths and 3 rotational legs for 3000 mm chuck support
- Reference: TB80 V 3000 (Length 3,000 mm)
Grateing the automatic chuck:
- HP-Micro Spray Pneumatic dosing device, incl. Mounting device
- Reference: TB80 SM
